Electric Thread Cutter M6–M30 with Servo Motor Universal Tapping Arm with Tilting Head 1200 W Reach 1200 mm 220 V Yellow For Workshops

Electric Thread Cutter M6–M30 with Servo Motor Universal Tapping Arm with Tilting Head 1200 W Reach 1200 mm 220 V Yellow For Workshops

Tapping arm M6–M30 with servo motor 1200 W, touch display and overload protection. Tilting head for threads at any angle. Full description
In stock
Delivery €1.59
30-day return policy
€2,218.73
Safe shopping Safe shopping
Overview
Electric Thread Cutter M6–M30 with Servo Motor Universal Tapping Arm with Tilting Head 1200 W Reach 1200 mm 220 V Yellow For Workshops

The electric thread cutter with a servo motor is a universal tapping arm for quick and precise thread cutting in the range of M6–M30. It is powered by a servo motor with a power of 1200 W, which connects to a standard single-phase network of 220 V. The working head can be rotated to any angle, allowing you to cut threads vertically, horizontally, or from the side. The spindle speed (0–200 rpm) and thread depth can be adjusted on the touch control panel. The thread cutter is suitable for engineering production, tool shops, car service centres, and smaller workshops.

  • Thread Range – M6–M30.
  • Motor Power – 1200 W, servo motor.
  • Power Supply – 220 V, 50/60 Hz.
  • Spindle Speed – 0–200 rpm, continuously adjustable.
  • Working Reach – 1200 mm.
  • Arm Type – universal, tilting head for work at any angle.
  • Control – touch display, manual, automatic, and gap mode.
  • Thread Depth – automatic depth control in automatic mode.
  • Overload Protection – safety clutch in the clamping head protects the tap from breaking.
  • Gearbox – planetary, noise level below 60 dB, IP65 protection.
  • Packaging Dimensions – 75 x 70 x 30 cm.
  • Weight – 55 kg.
  • Colour – yellow with black elements.

Package Contents:

  • 1x electric thread cutter with tapping arm

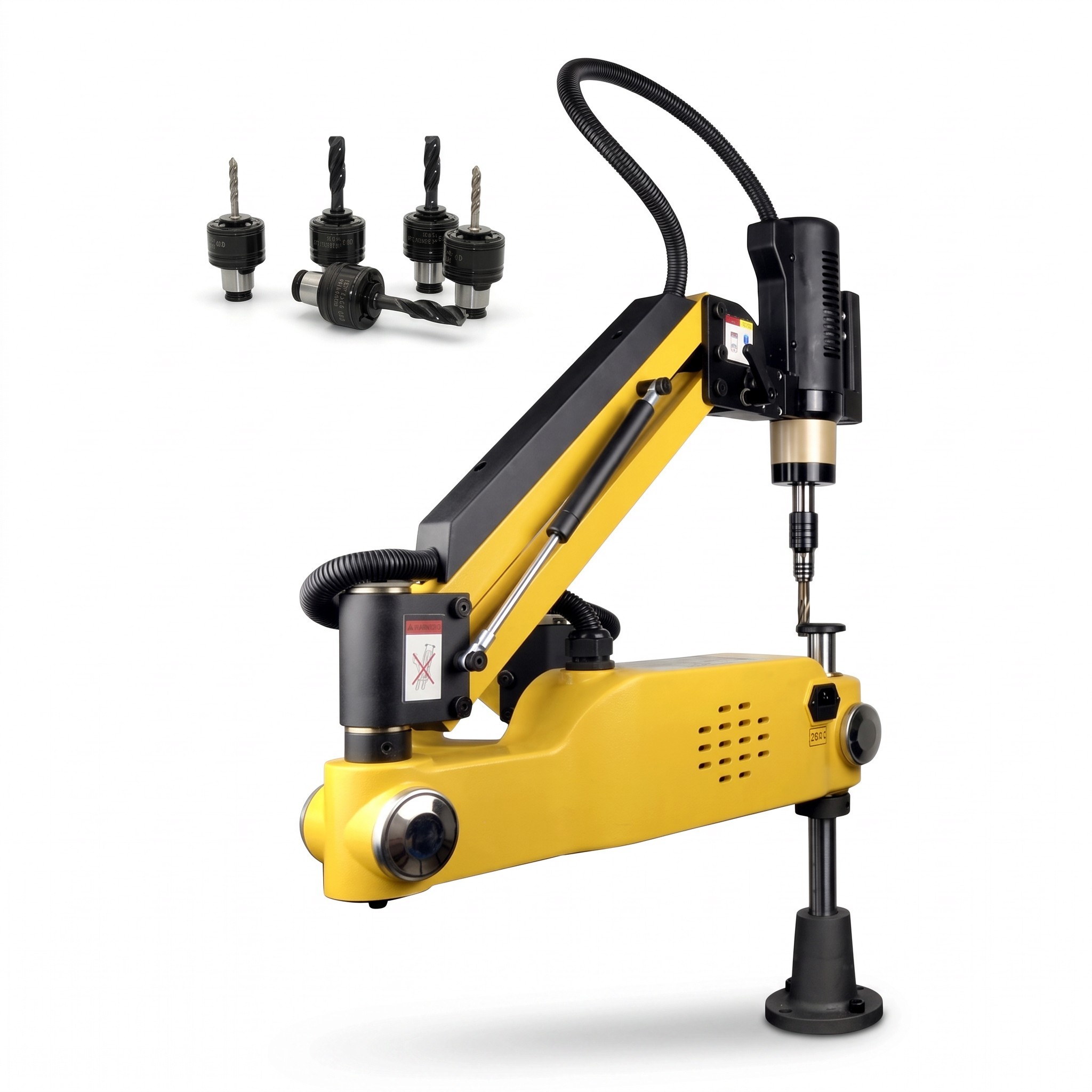

  • 9x quick-release head with overload protection (M6/8, M10, M12, M14, M16, M18/20, M22, M24, M30)

The arm is balanced and the motor moves freely within it, allowing you to easily position the tapping head over any point of the workpiece within the working reach of 1200 mm. You clamp the tap into the appropriately sized quick-release head, set the speed and thread depth, and start cutting. In automatic mode, the machine stops at the set depth and retracts the tap, so there is no need to monitor the end of the thread with a button. The right handle has an ergonomic shape and you control the speed with your thumb, while the left detachable handle allows you to guide the head precisely over the thread location. If the resistance during cutting exceeds the rated torque, the safety clutch in the head slips and the tap does not break.

The thread cutter can handle materials such as lead, copper, structural steel A3 and Q235, steel 45, cast iron, and tool steels S136, 718, and NAK80. The size M6–M30 is suitable for large threads in massive workpieces, castings, and steel structures. The servo drive with a planetary gearbox ensures smooth operation and quiet performance. Please note that the delivery does not include a mounting table. The arm needs to be securely attached to your own table or worktop with sufficient rigidity.

The electric thread cutter M6–M30 significantly speeds up serial thread cutting compared to manual work or a drill. Servo motor 1200 W with continuous speed regulation allows you to adjust the speed to the material and thread size. The universal tilting head allows for cutting threads in horizontal or diagonal directions. Overload protection in each head extends the life of the taps. The machine is suitable for both production and maintenance workshops.
