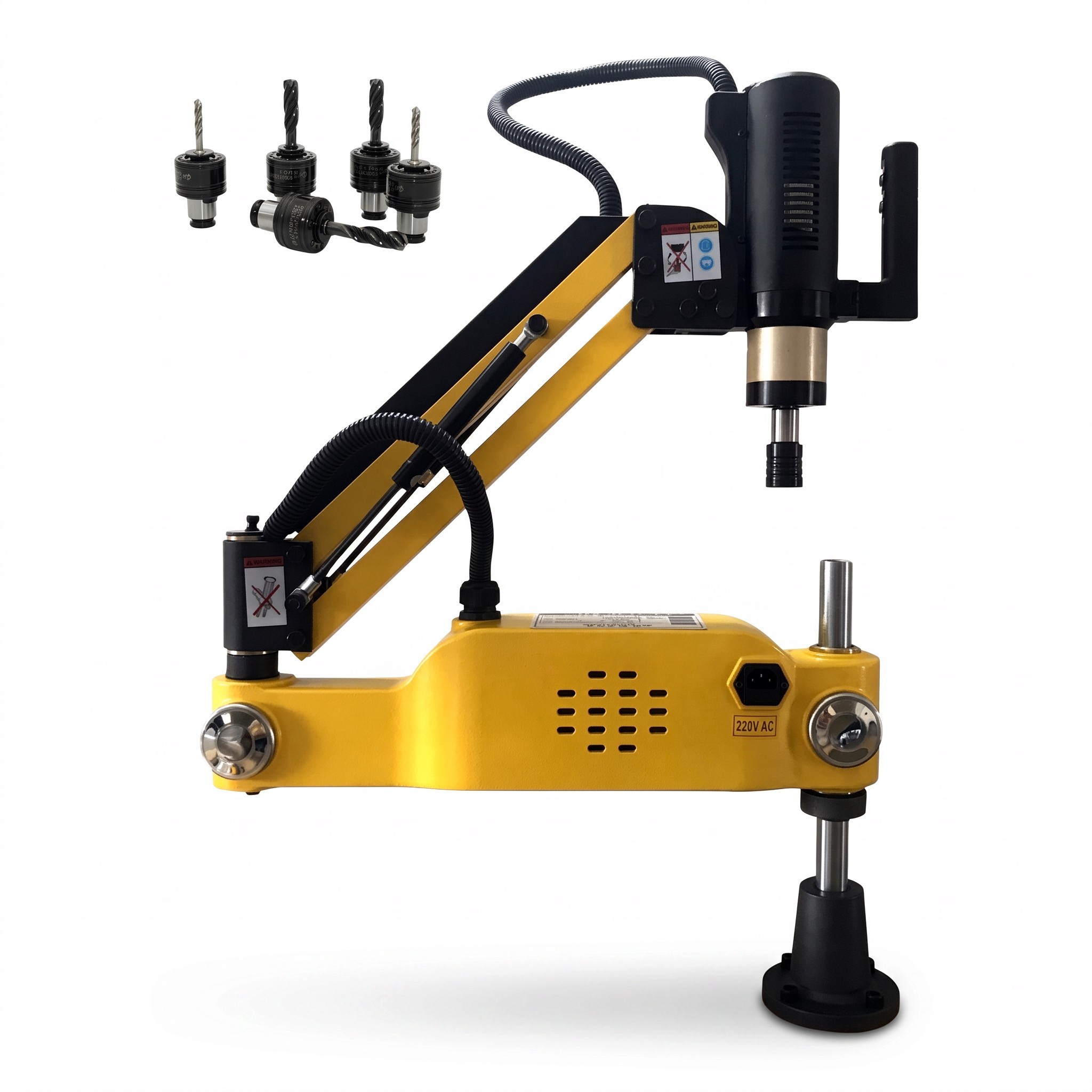

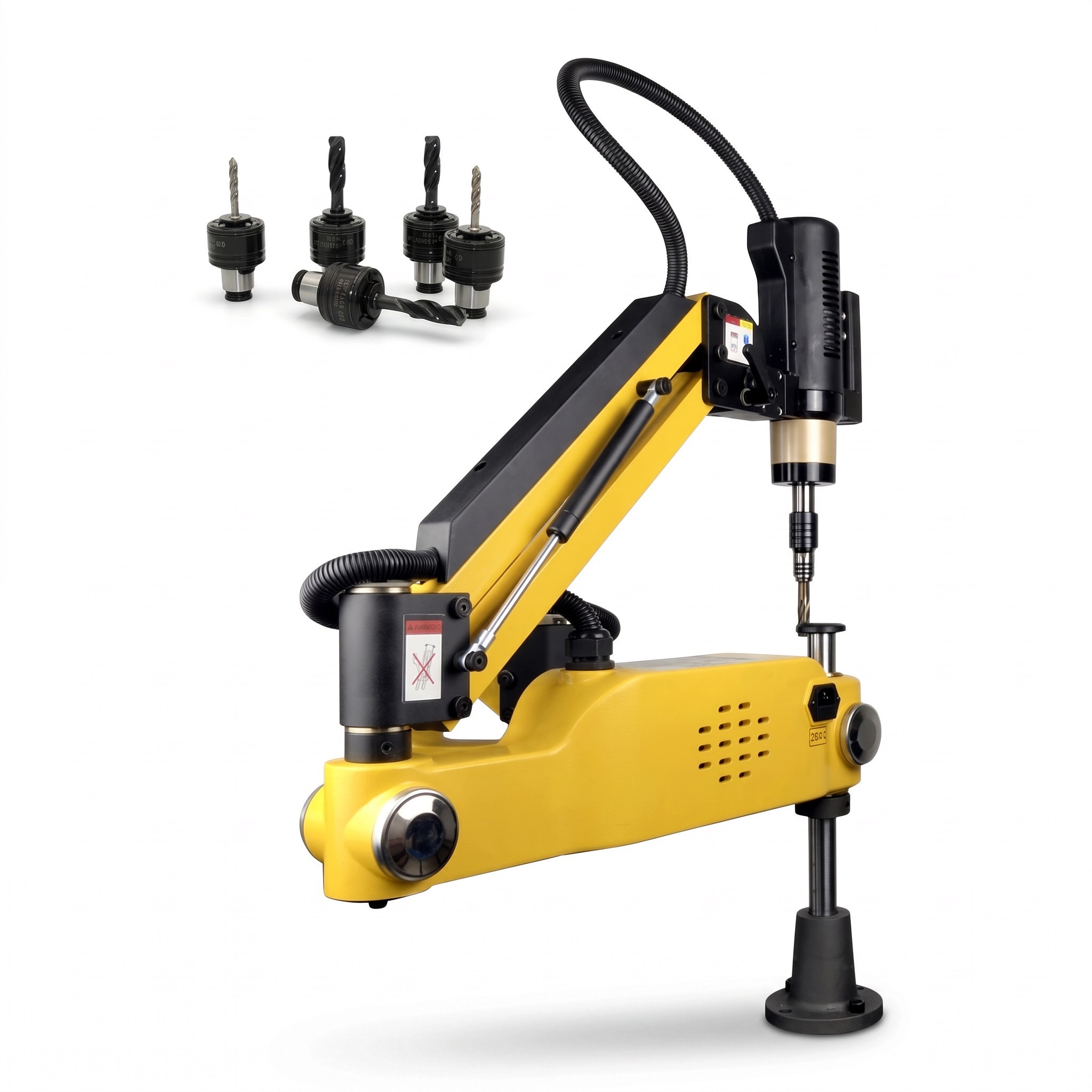

Electric Thread Cutter M3–M16 with Servo Motor Universal Tapping Arm with Tilting Head 600 W Reach 1100 mm 220 V Yellow
You already have the maximum available quantity in your cart.
The electric tapping machine with a servo motor is a universal tapping arm for quick and precise thread cutting in the range of M3–M16. It is powered by a servo motor with a power of 600 W, which connects to a standard single-phase network of 220 V. The working head can be rotated to any angle, allowing you to cut threads vertically, horizontally, or from the side. The spindle speed (0–312 rev/min) and thread depth can be adjusted on the touchscreen control panel. The tapping machine is suitable for engineering production, tool shops, car service centres, and smaller workshops.
- Thread Range – M3–M16.
- Motor Power – 600 W, servo motor.
- Power Supply – 220 V, 50/60 Hz.
- Spindle Speed – 0–312 rev/min, continuously adjustable.
- Working Reach – 1100 mm.
- Arm Type – universal, tilting head for work at any angle.
- Control – touchscreen display, manual, automatic, and gap mode.
- Thread Depth – automatic depth control in automatic mode.
- Overload Protection – safety clutch in the clamping head protects the tap from breaking.
- Gearbox – planetary, noise level below 60 dB, IP65 protection.
- Packaging Dimensions – 65 x 61 x 22 cm.
- Weight – 35 kg.
- Colour – yellow with black elements.
Package Contents:
- 1x electric tapping machine with tapping arm
- 8x quick-release head with overload protection (M3, M4, M5, M6/8, M10, M12, M14, M16)

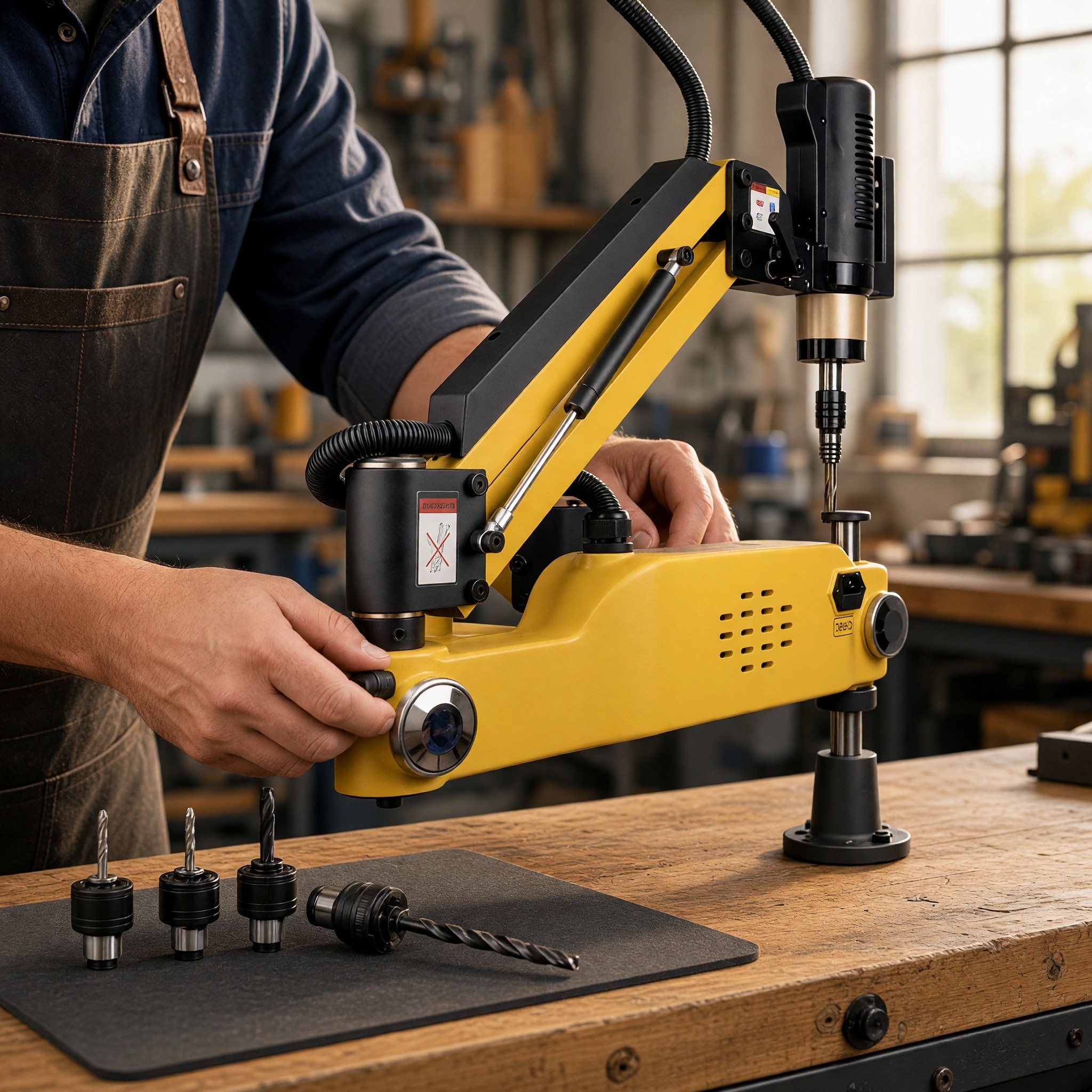

The arm is balanced and the motor moves freely within it, allowing you to easily position the tapping head over any point of the workpiece within the working reach of 1100 mm. You clamp the tap into the quick-release head of the corresponding size, set the speed and thread depth, and start cutting. In automatic mode, the machine stops at the set depth and retracts the tap, so there is no need to monitor the end of the thread with a button. The right handle has an ergonomic shape, and you control the speed with your thumb, while the left detachable handle allows you to precisely guide the head over the thread location. If the resistance during cutting exceeds the rated torque, the safety clutch in the head slips, preventing the tap from breaking.
The tapping machine can handle materials such as lead, copper, structural steel A3 and Q235, steel 45, cast iron, and tool steels S136, 718, and NAK80. The size M3–M16 is suitable for standard threads in engineering and locksmith production. The servo drive with a planetary gearbox ensures smooth operation and quiet performance. Please note that the delivery does not include a mounting table. The arm needs to be securely attached to your own table or work surface with sufficient rigidity.
The electric tapping machine M3–M16 significantly speeds up serial thread cutting compared to manual work or a drill. 600 W Servo Motor with continuous speed regulation allows you to adjust the speed according to the material and thread size. The universal tilting head enables cutting threads in horizontal or angled directions. Overload protection in each head extends the lifespan of the taps. The machine is suitable for production as well as maintenance workshops.
