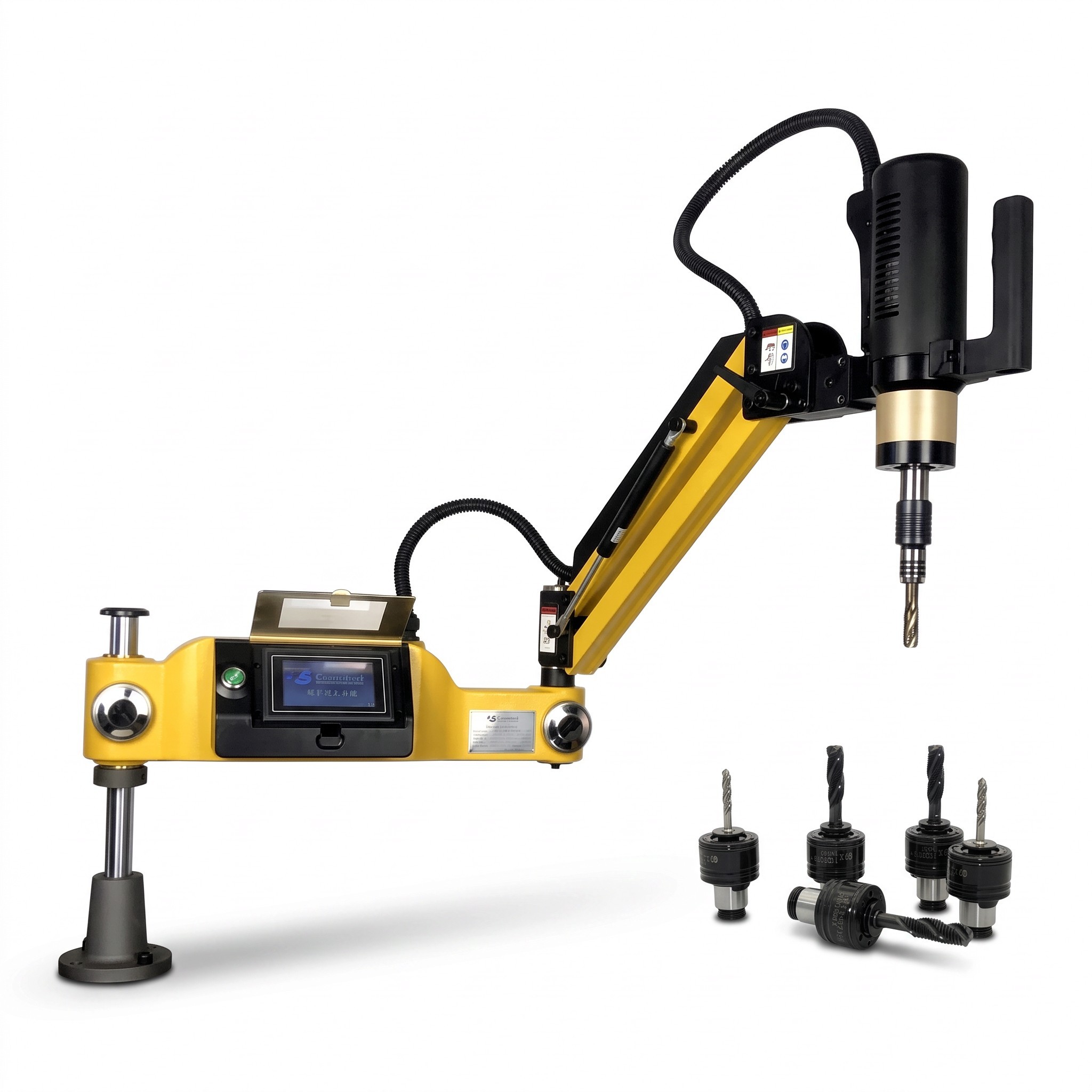

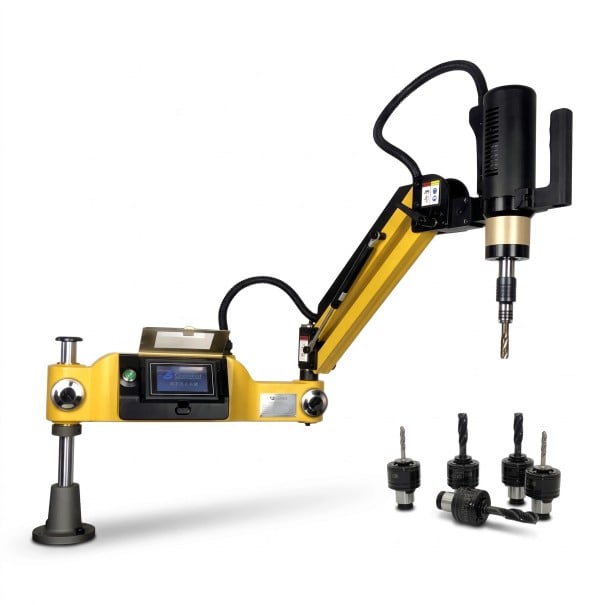

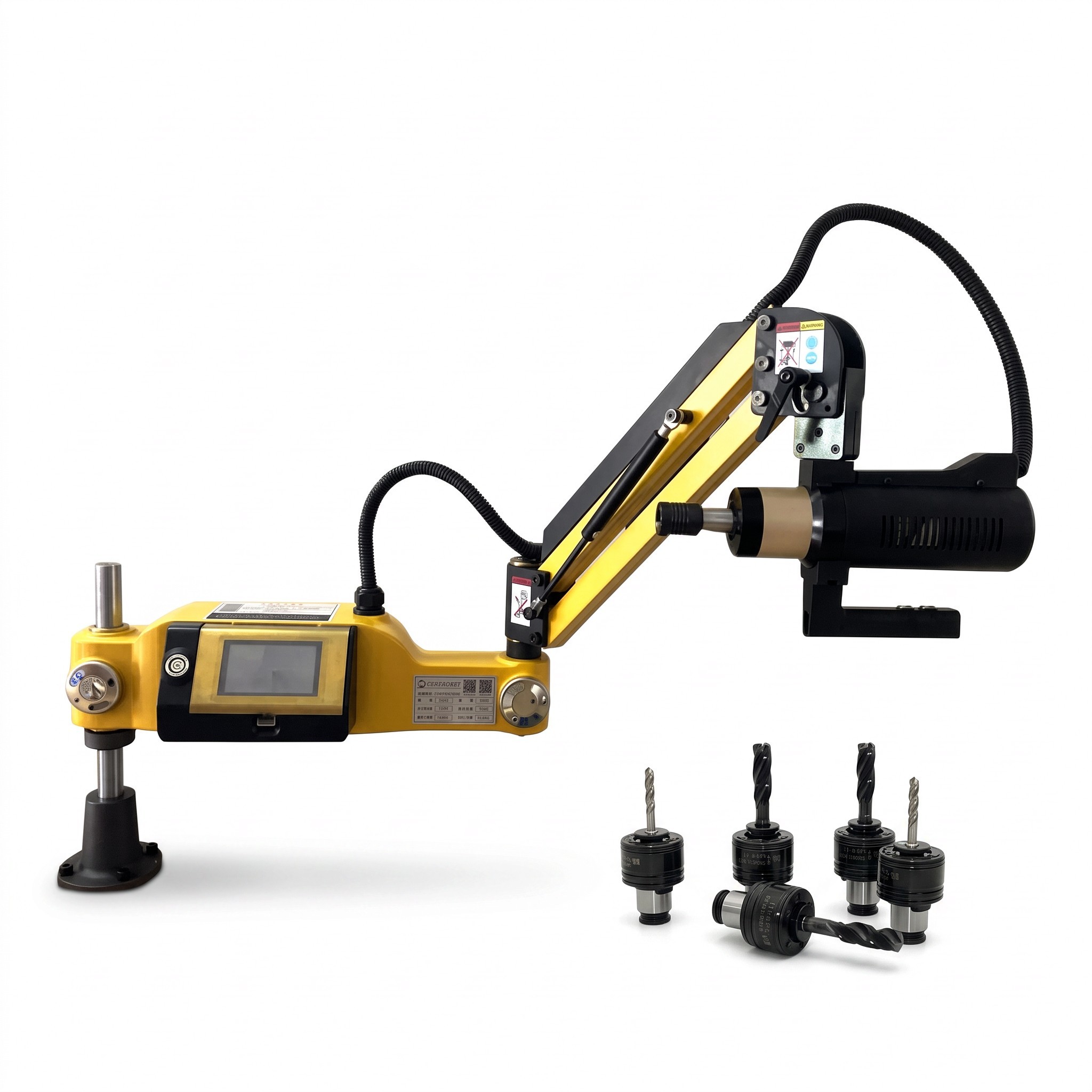

Electric Tapping Machine M6–M30 with Servo Motor Vertical Tapping Arm 1200 W Reach 1200 mm 220 V Yellow For Workshops and Engineering Production

Electric Tapping Machine M6–M30 with Servo Motor Vertical Tapping Arm 1200 W Reach 1200 mm 220 V Yellow For Workshops and Engineering Production

Tapping arm M6–M30 with 1200 W servo motor, touch display, and overload protection. Vertical arm for precise perpendicular threads at 220 V. Full description
In stock
Delivery €1.59
30-day return policy
€2,166.77
Safe shopping Safe shopping
Overview
Electric Tapping Machine M6–M30 with Servo Motor Vertical Tapping Arm 1200 W Reach 1200 mm 220 V Yellow For Workshops and Engineering Production

The electric tapping machine with a servo motor is a vertical tapping arm for fast and precise thread cutting in the range of M6–M30. It is powered by a servo motor with a power of 1200 W, which connects to a standard single-phase network of 220 V. The head is guided so that the tap remains perpendicular to the work surface, ensuring precise vertical threads. The spindle speed (0–200 rpm) and thread depth can be adjusted on the touch control panel. The tapping machine is suitable for engineering production, tool shops, car repair shops, and smaller workshops.

  • Thread Range – M6–M30.
  • Motor Power – 1200 W, servo motor.
  • Power Supply – 220 V, 50/60 Hz.
  • Spindle Speed – 0–200 rpm, continuously adjustable.
  • Working Reach – 1200 mm.
  • Arm Type – vertical, tap remains perpendicular to the work surface.
  • Control – touch display, manual, automatic, and gap mode.
  • Thread Depth – automatic depth control in automatic mode.
  • Overload Protection – safety clutch in the clamping head protects the tap from breaking.
  • Gearbox – planetary, noise level below 60 dB, IP65 rating.
  • Packaging Dimensions – 75 x 70 x 30 cm.
  • Weight – 55 kg.
  • Colour – yellow with black elements.

Contents of the Package:

  • 1x electric tapping machine with tapping arm
  • 9x quick-release head with overload protection (M6/8, M10, M12, M14, M16, M18/20, M22, M24, M30)

The arm is balanced, and the motor moves freely within it, allowing you to easily position the tapping head over any point on the workpiece within the working reach of 1200 mm. You clamp the tap into the quick-release head of the appropriate size, set the speed and thread depth, and start cutting. In automatic mode, the machine stops at the set depth and retracts the tap, so there is no need to monitor the end of the thread with a button. The right handle is ergonomically shaped, and you control the speed with your thumb, while the left removable handle allows you to precisely guide the head over the threading point. If the resistance during cutting exceeds the nominal torque, the safety clutch in the head slips, preventing the tap from breaking.

The tapping machine can handle materials such as lead, copper, structural steel A3 and Q235, steel 45, cast iron, as well as tool steels S136, 718, and NAK80. The size M6–M30 is suitable for large threads in massive workpieces, castings, and steel structures. The servo drive with a planetary gearbox ensures smooth operation and quiet performance. Please note that the delivery does not include a mounting table. The arm needs to be securely attached to your own table or work surface with sufficient rigidity.

The electric tapping machine M6–M30 significantly speeds up serial thread cutting compared to manual work or a drill. Servo motor 1200 W with continuous speed control allows adjustment of the speed to the material and thread size. The vertical design guarantees perpendicular and precise threads. Overload protection in each head extends the life of the taps. The machine is suitable for production as well as maintenance workshops.
