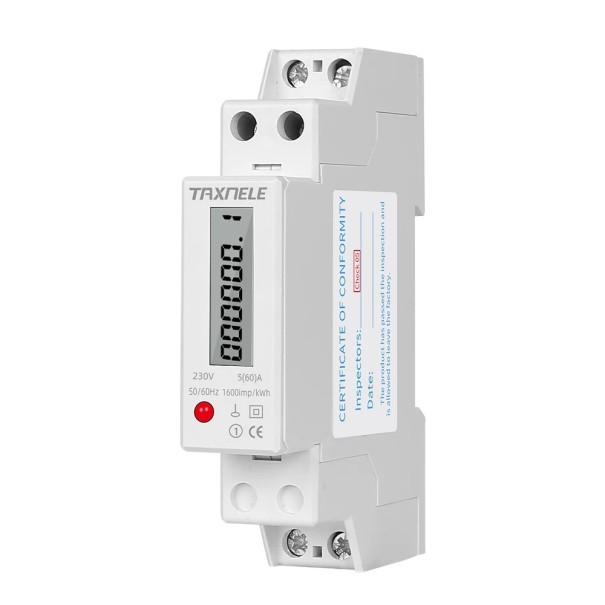

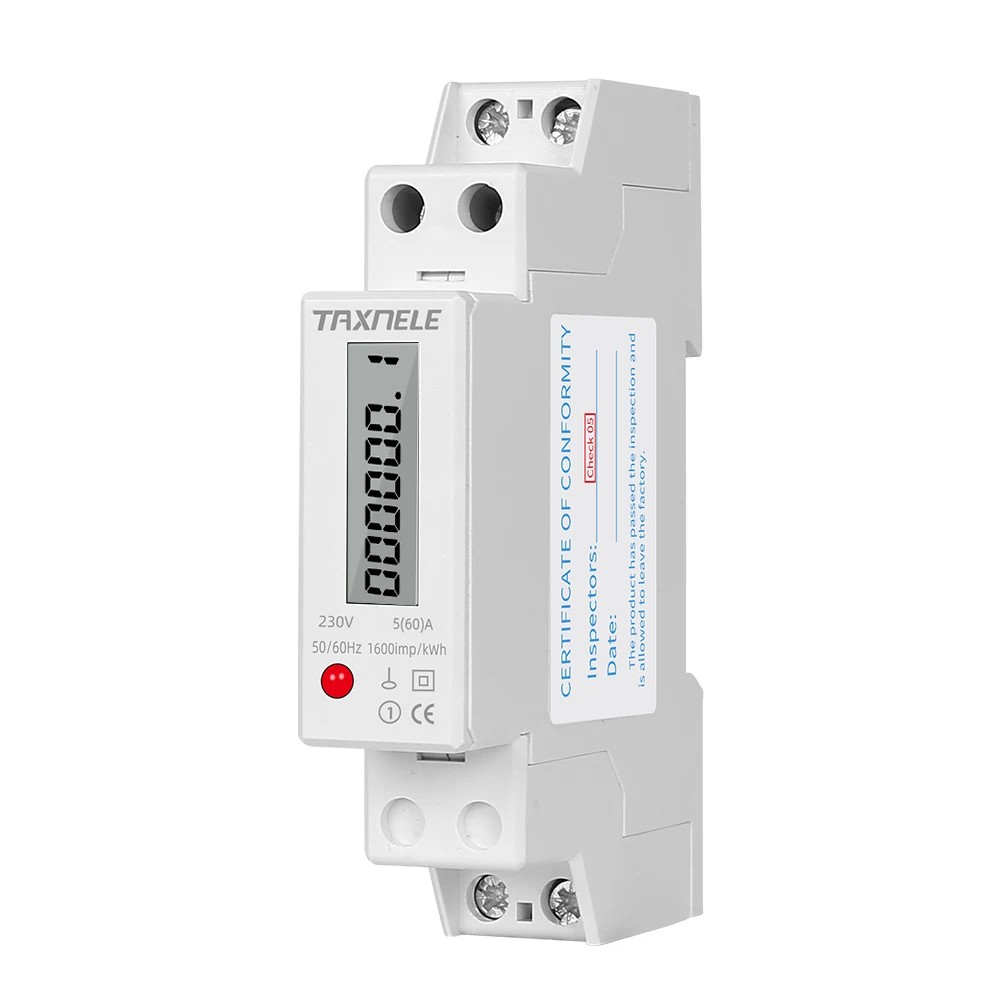

Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1
Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1 1
Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1 1
Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1 2

Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1

Narrow digital electric meter with LCD, 5(60) A, 50/60 Hz, DIN 35 mm mounting, 1600 imp/kWh, automatic data storage and durable flame-retardant casing. Full description
In stock
€19.17
Overview

Electric Meter 91 x 18 x 65 mm 230 V 5(60) A Single-phase 1P 2 Wires DIN 35 mm LCD Digital Display Memory After Power Failure Class 1

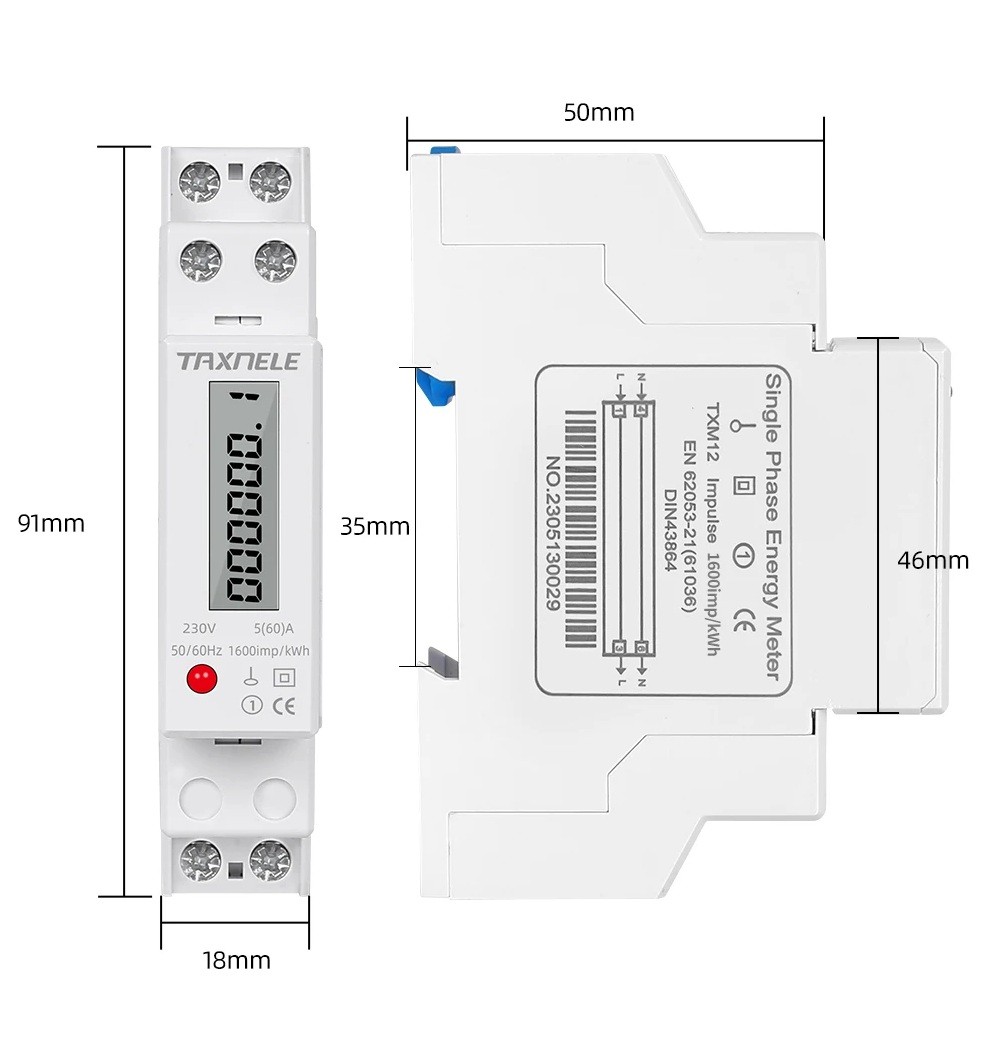

The digital single-phase electric meter with LCD display offers quick and clear readings even in poor lighting conditions. Dimensions 91 x 18 x 65 mm and DIN 35 mm mounting save space and simplify installation in any distribution board. The device is designed for networks 230 V / 50–60 Hz with a current of 5(60) A, which is sufficient for most domestic and light industrial circuits. Class 1 accuracy ensures reliable measurement, memory after power failure automatically retains values, and an indication of 1600 imp/kWh allows for more detailed pulse resolution. The body made of flame-retardant material is lightweight yet durable.

  • LCD digital display: instantly readable consumption data.
  • Narrow body 18 mm for maximum space saving in the distribution board.
  • Installation on DIN 35 mm, terminals for 1P/2 Wires (L, N).
  • Operating parameters: 230 V, 5(60) A, 50/60 Hz; accuracy class 1, indication 1600 imp/kWh.
  • Memory after power failure: automatically saves energy status during power loss.
  • Durable construction: flame-retardant casing, low weight, long lifespan.
  • Suitable for: flats, rental spaces, sub-metering, workshops, and smaller operations.
  • Package contents: 1× single-phase electric meter (digital)

This model is ideal where you want accurate data and convenient readings. The LCD display enhances orientation during regular checks and inventory of consumption. The narrow profile allows installation in almost any distribution board, and easy mounting reduces installation time. With reliable accuracy and data retention even after power failure, the digital variant is an excellent choice for long-term monitoring and cost optimisation.
