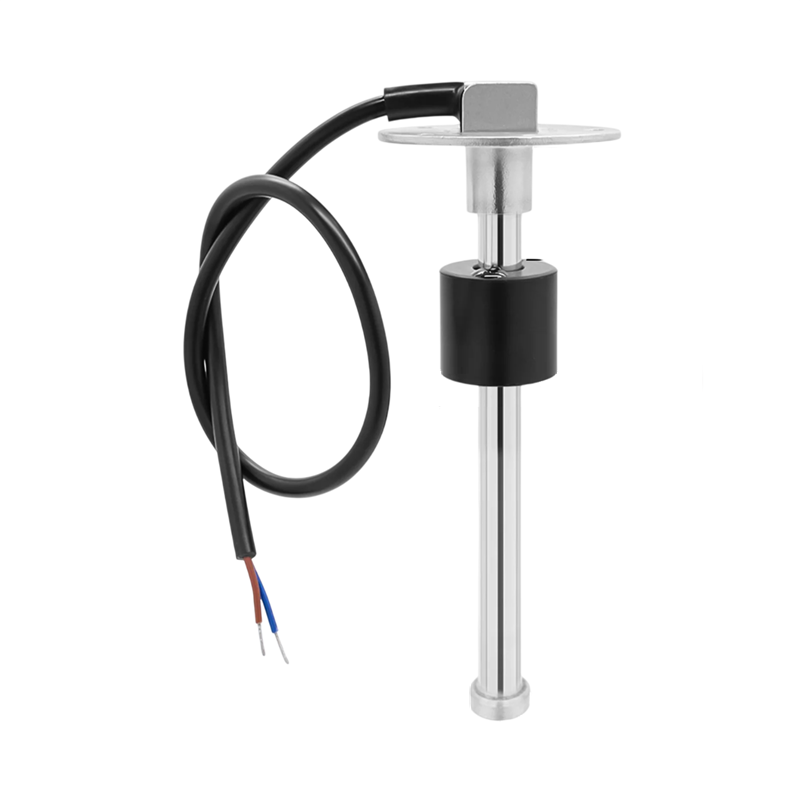

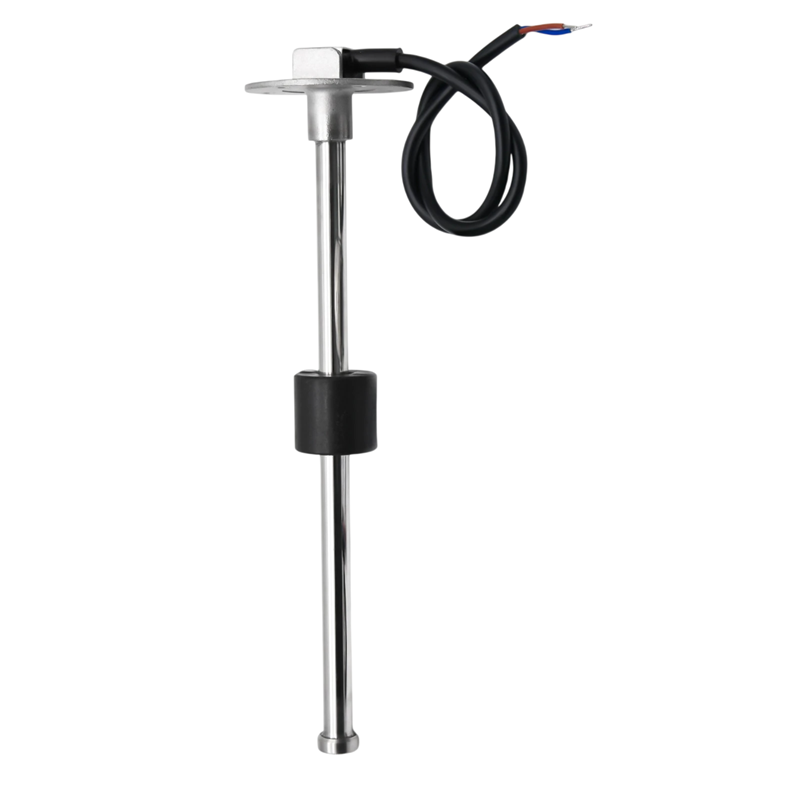

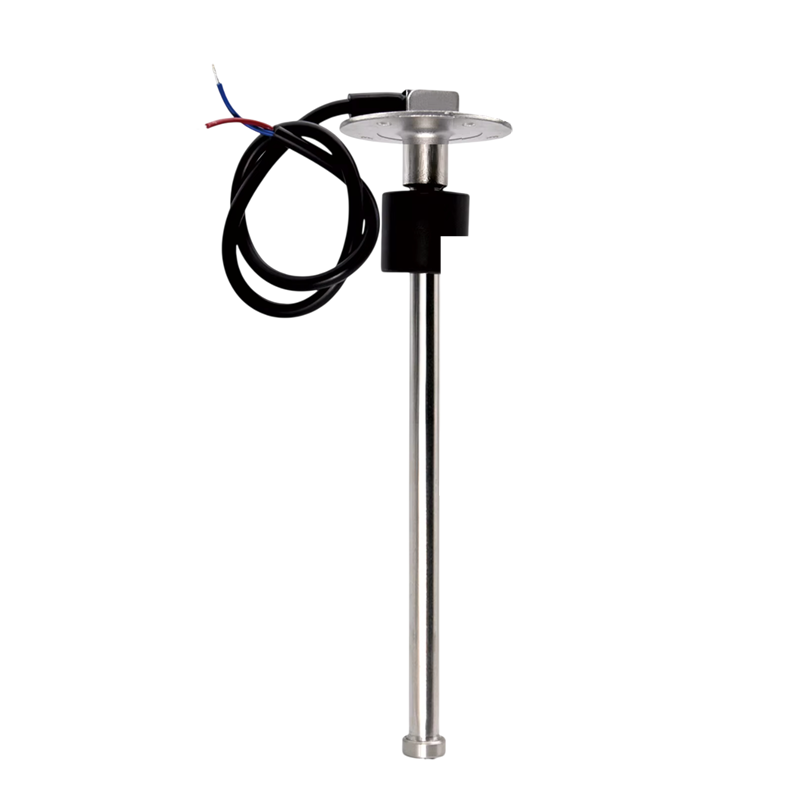

Electric Fuel Level Sensor 0–190 Ω 275 mm 11" Level Sensor IP67 for Measuring Fuel and Liquids in Boat and Truck Tanks
The fuel level sensor is designed for measuring the quantity of liquid inside a tank. This type of sensor uses a resistance output of 0–190 Ω, which is a common standard for fuel level indicators used in transport and technical systems. This allows the sensor to be connected to various measuring devices used in vehicles, boats, or other technical equipment.
The sensor's measuring rod has a length of 275 mm (11"), which corresponds to the recommended tank height of approximately 285 to 300 mm. Due to this length, the sensor is suitable for tanks with a greater structural height, where it is necessary to monitor the amount of fuel, oil, or other liquids.
The device operates within a voltage range of 9–32 V DC and the maximum operating current does not exceed ≤60 mA. This makes the sensor compatible with standard electrical systems used in transport or industrial equipment.
The sensor's design is adapted for mounting using a flange with five holes. Installation is carried out using the supplied M5 screws and a 2 mm thick gasket. The gasket helps ensure a proper seal between the sensor and the tank, reducing the risk of liquid leakage.
The sensor is protected by an IP67 rating, which provides protection against dust and temporary immersion in water. This allows the sensor to be used in environments with higher humidity or in contact with water. The measurement resolution of 21 mm enables monitoring of changes in the liquid level within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 275 mm (11")
- Operating voltage: 9–32 V DC
- IP rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 285–300 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil, and liquid tanks
- Used in marine, boating, or freight systems

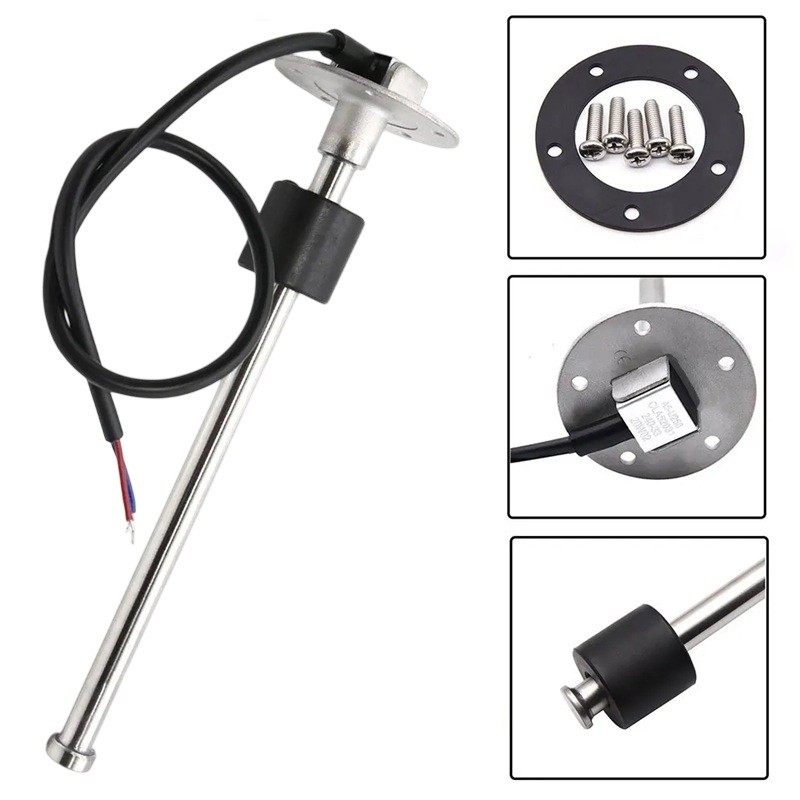

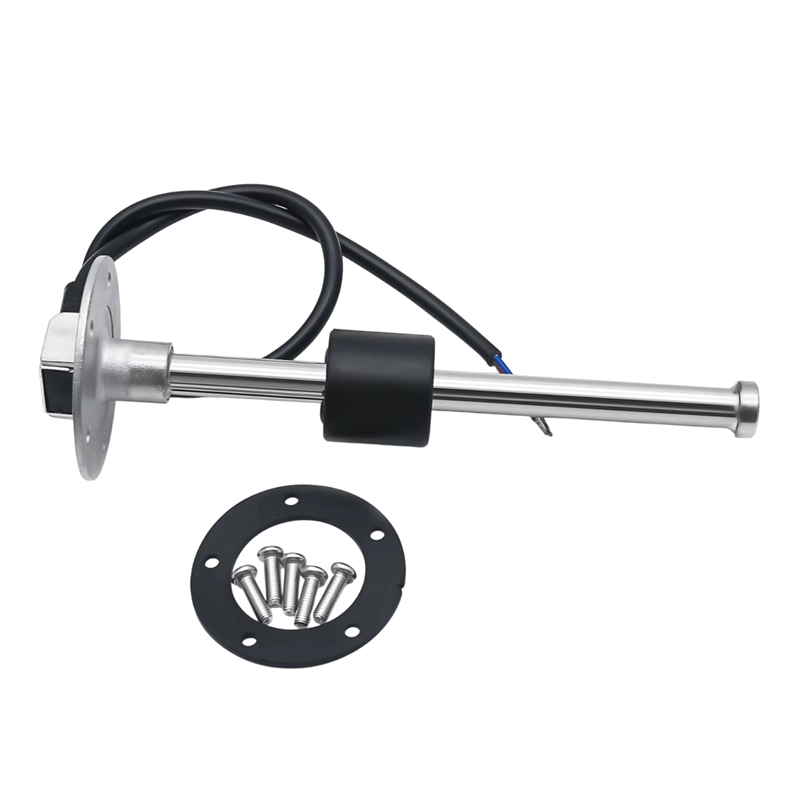

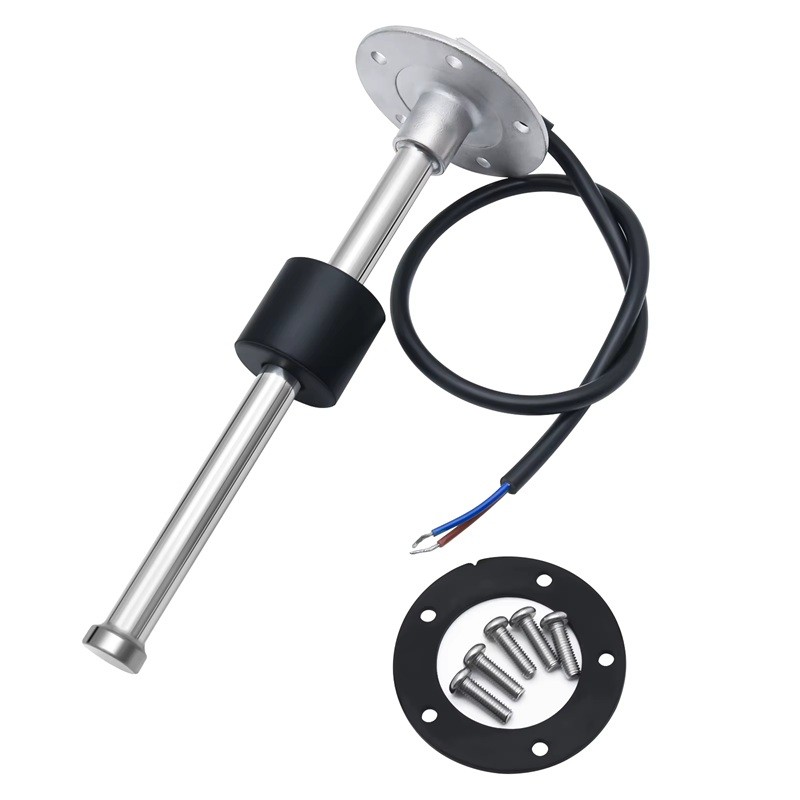

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows for monitoring the quantity of liquid in the tank using a resistance signal compatible with standard level indicators. With a length of 275 mm, it is suitable for tanks with a greater structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package includes mounting screws and a gasket, which help ensure a proper seal during installation. The IP67 rating allows for use of the device in environments with higher humidity or in contact with water.
