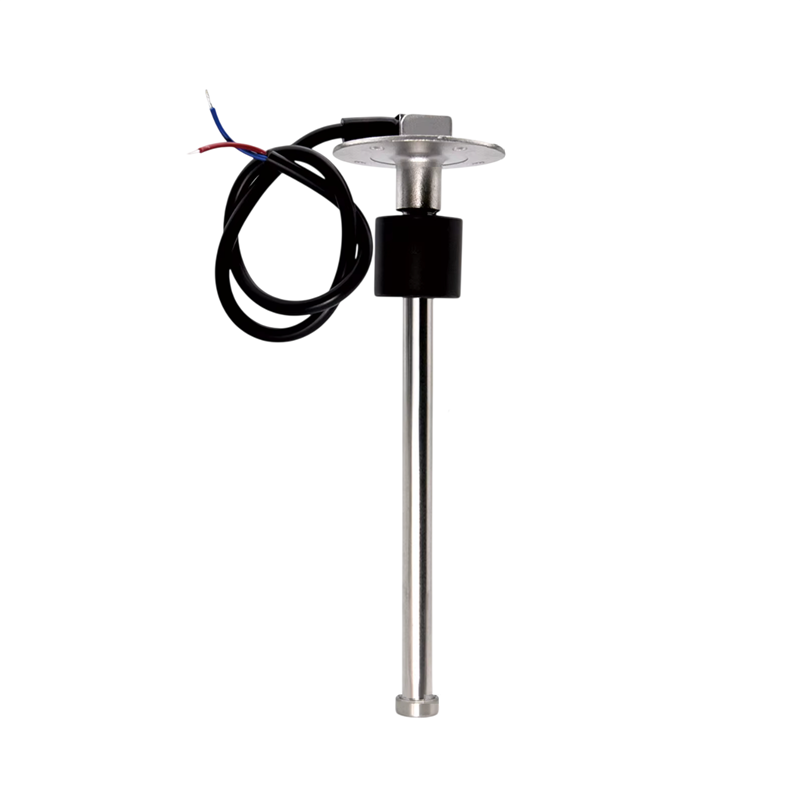

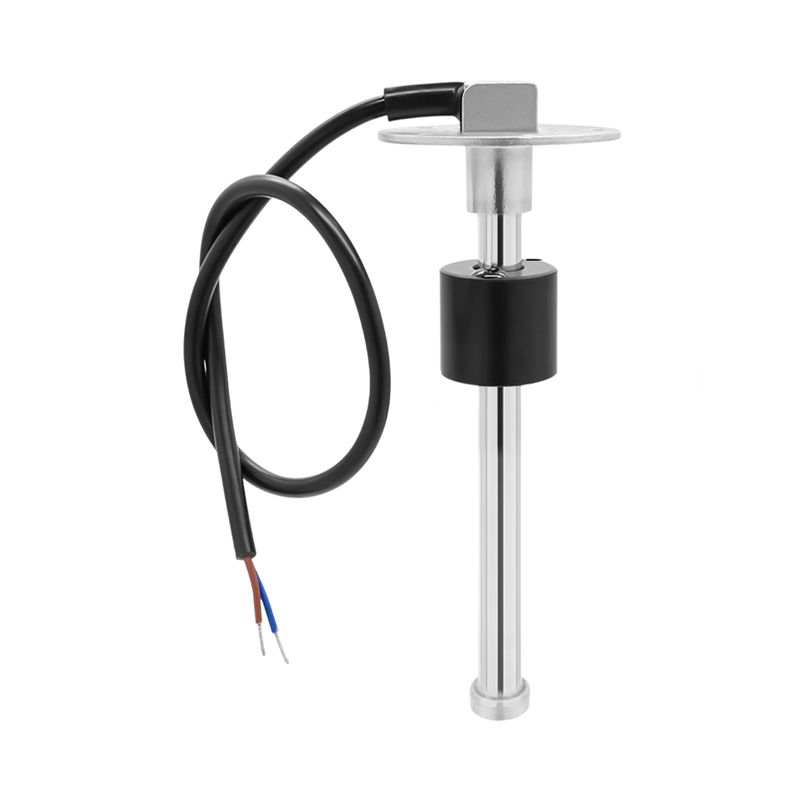

Electric Fuel Level Sensor 0–190 Ω 175 mm 7" Resistive Level Sensor IP67 for Monitoring Fuel and Liquids in Boat and Vehicle Tanks
This fuel level sensor is designed for monitoring the amount of liquid in tanks used in transport or technical systems. It uses a standard resistance signal 0–190 Ω, which is commonly used with fuel level indicators. This allows the sensor to be compatible with various measuring devices installed in boats, trucks or other equipment.
The measuring rod of the sensor has a length of 175 mm (7"), which corresponds to the recommended tank height of approximately 185 to 200 mm. This dimension allows for use in tanks designed for fuel, oil or other liquids, where it is necessary to regularly check their quantity.
The device operates within a voltage range of 9–32 V DC and the maximum operating current does not exceed ≤60 mA. This means it can be connected to electrical systems used in vehicles, boats or industrial equipment.
The sensor's design is intended for mounting using a flange with five holes. Installation is carried out using the supplied M5 screws and a 2 mm thick gasket, which helps seal the connection between the sensor and the tank. This allows the sensor to be securely fastened and minimizes the risk of liquid leakage.
The IP67 rating protects the sensor from dust and temporary immersion in water. The sensor is designed to operate over a wide temperature range, allowing its use in various operating conditions. The measurement resolution of 21 mm enables monitoring changes in the liquid level within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Sensor length: 175 mm (7")
- Operating voltage: 9–32 V DC
- Ingress protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 185–200 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in marine, boat or truck systems, for example

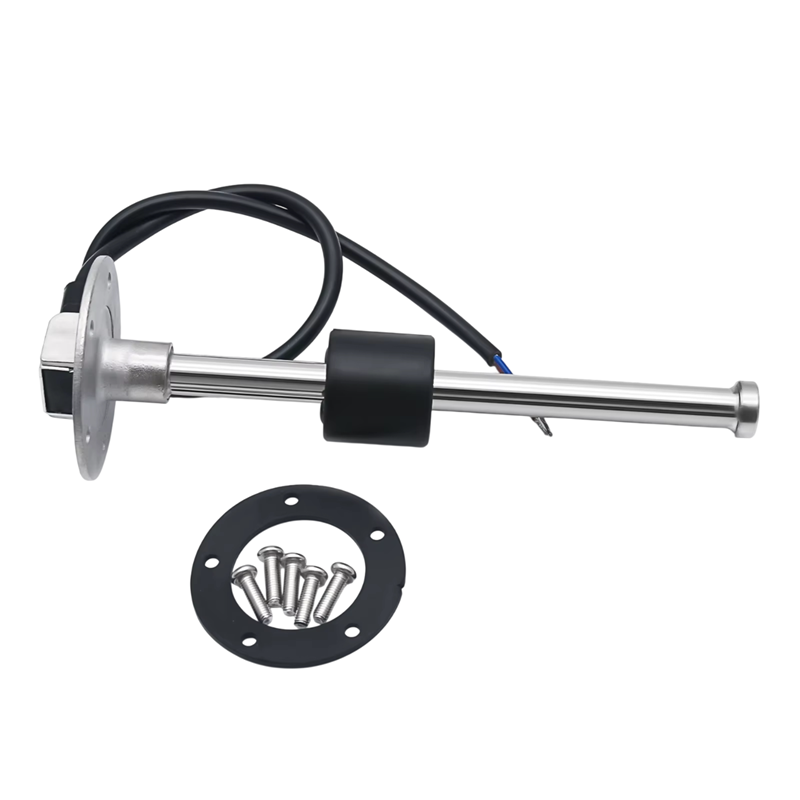

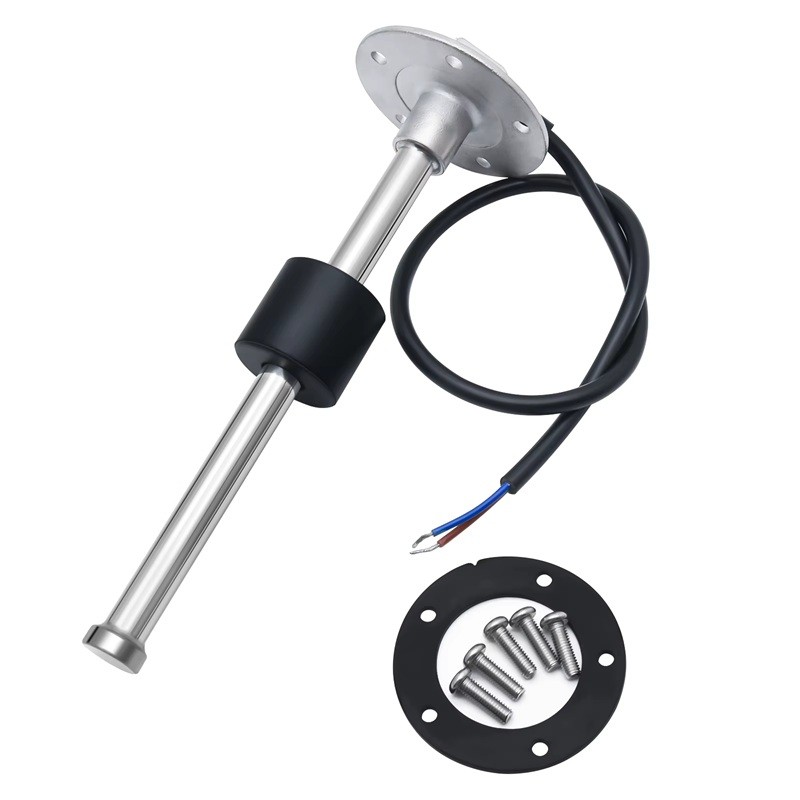

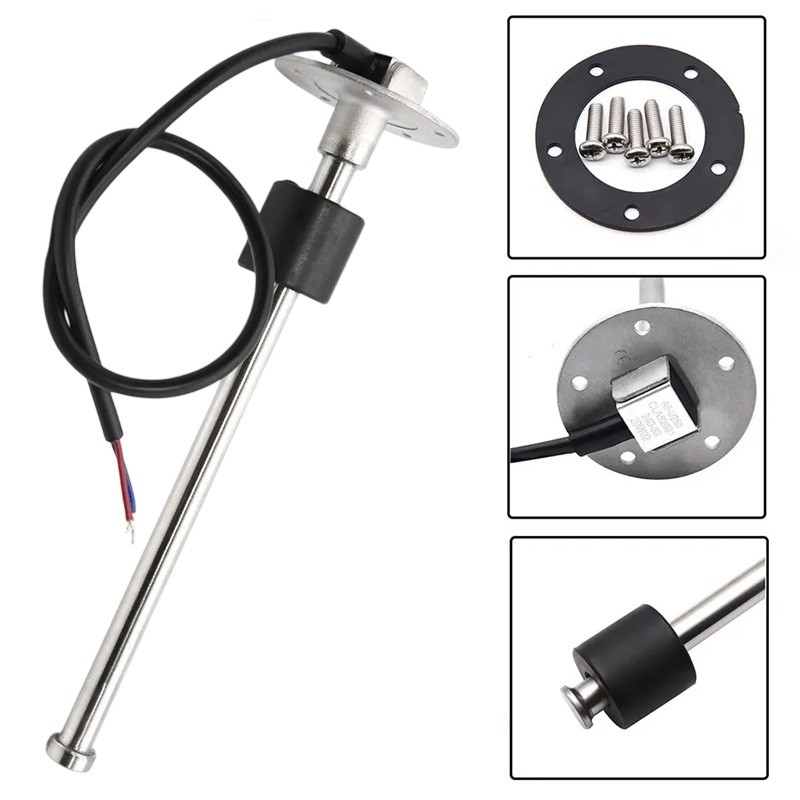

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor is designed for monitoring the amount of liquid in the tank using a resistance output compatible with standard level indicators. With a length of 175 mm, it is suitable for tanks with a higher construction height. The mounting flange allows for secure attachment of the sensor using M5 screws. The package also includes a gasket that helps ensure proper sealing during installation. The IP67 rating allows the sensor to be used in environments where it may come into contact with moisture or water.
