Digital Pressure Switch for Pump 220 V Relay 10 A IP65 Rating Display in Bar for Pumps up to 1.5 kW
You already have the maximum available quantity in your cart.

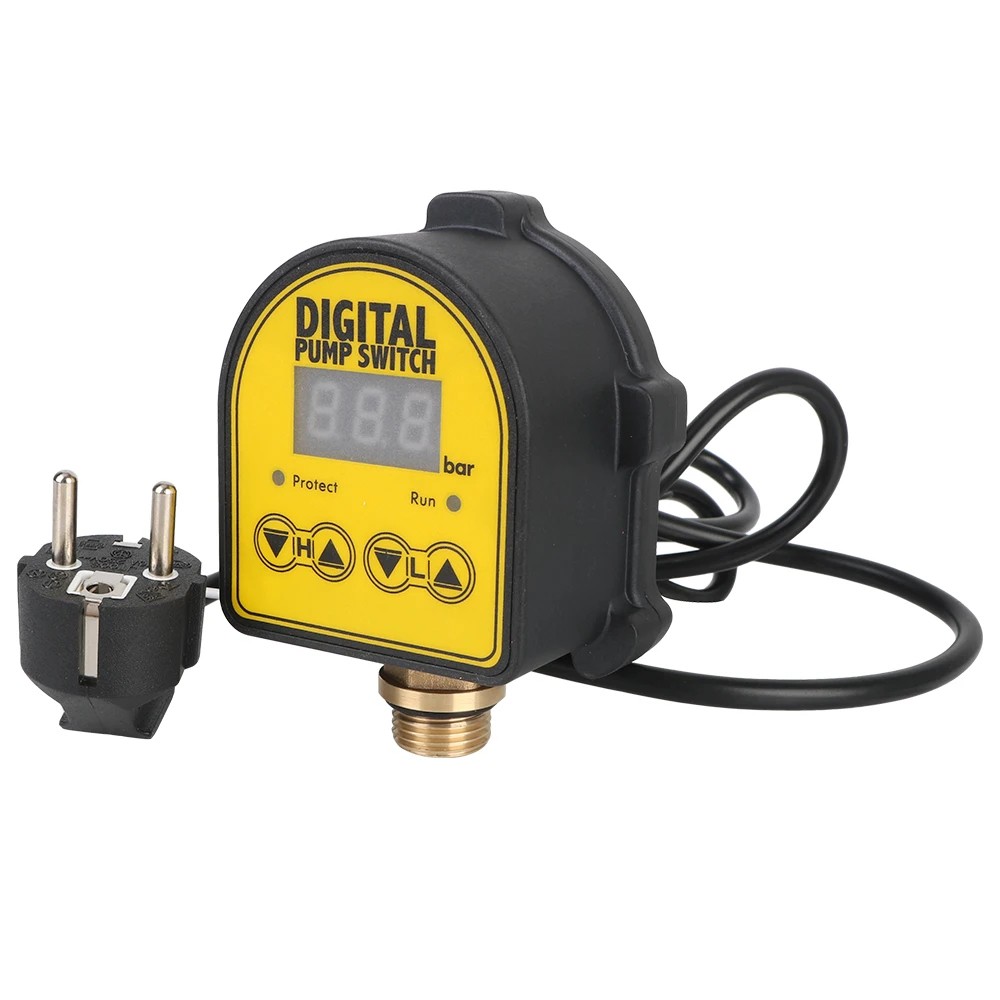

The digital pressure switch automatically turns the water pump on and off according to the pressure in the pipe. Built-in pressure sensor transmits values to the microprocessor, which evaluates the switching. The relay load capacity is 220 V AC and 10 A, allowing the switch to directly start a pump with a power output of up to 1.5 kW. The device has an IP65 rating and operates with liquids at temperatures up to 80 °C. The front features a digital display showing pressure in bars, Protect and Run indicators, and buttons for setting the upper and lower limits. The body is yellow and black.
Features:
- Built-in pressure sensor — measures pressure directly within the switch body.
- Relay load capacity 220 V AC and 10 A — switching of the connected pump.
- Direct start of pump up to 1.5 kW — without the need for an additional contactor.
- IP65 rating — protection against dust and water jets.
- Liquid temperature up to 80 °C — operational range of the switch.
- Dry run protection — shuts off when water is insufficient and restarts upon restoration of flow.
- Digital display — shows pressure in bars.
- Setting limits H and L — buttons for upper and lower pressure limits.
- Protect and Run indicators — indicate protection and operation.
- Microprocessor control — evaluates status and switching.
- Active output signal — powers the pump at 220 V.
- Brass thread — connection to the pipe.
- Power cable with plug — connects to a standard socket.
- Yellow colour — front panel with black frame.

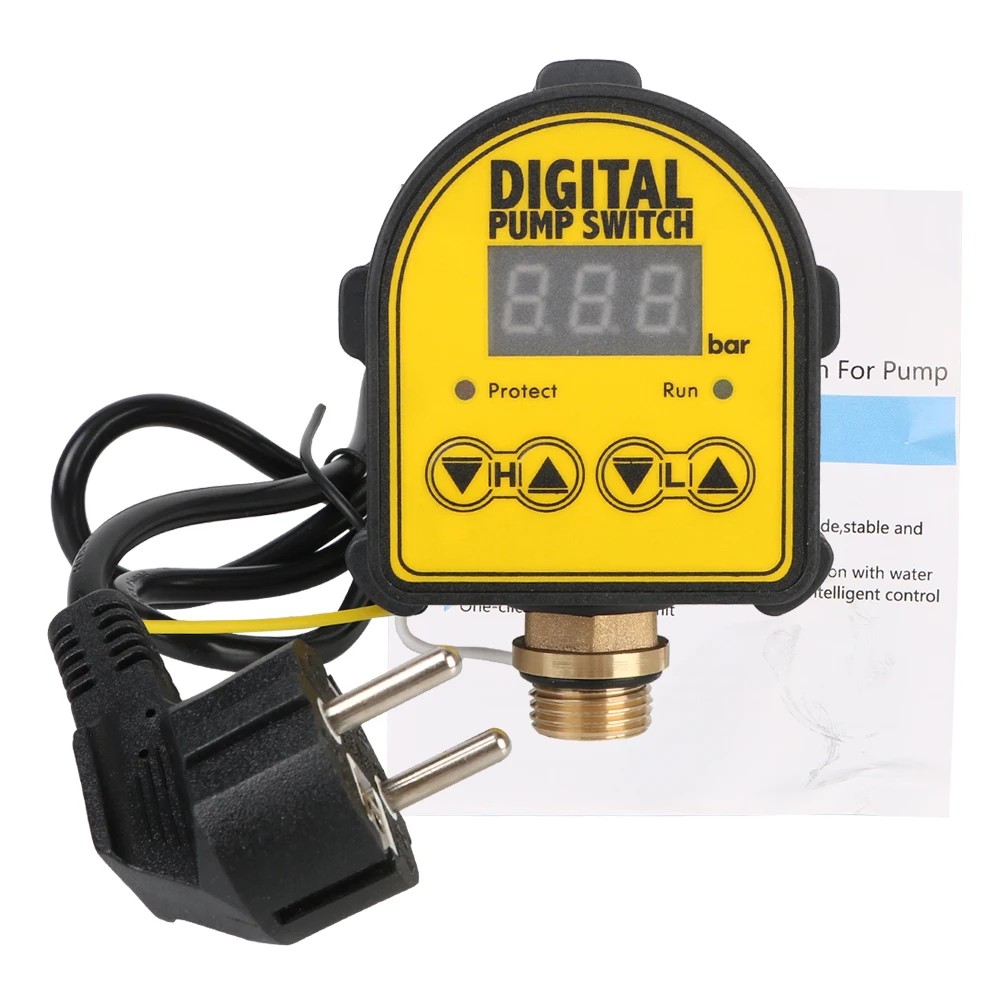

Package Contents:
- 1x digital pressure switch
- 1x user manual
The switch is ideal for domestic waterworks, well pumps, pressure stations, and irrigation systems where constant pressure needs to be maintained without manual activation. Dry run protection prevents damage to the pump when the water source runs dry, and operation resumes automatically upon restoration of flow. Both the upper and lower pressure limits can be set directly using the buttons on the panel according to the distribution needs. Brass thread allows installation in damp areas or in a pit. The power cable with plug minimises installation time.
