Digital Infrared Thermal Camera Temperature Measurement 32 x 24 Pixels Range -40 to 300 °C LCD Display and USB Connection to PC and Phone Black

Digital Infrared Thermal Camera Temperature Measurement 32 x 24 Pixels Range -40 to 300 °C LCD Display and USB Connection to PC and Phone Black

Portable thermometer device for quick real-time thermal mapping. Saves images to USB drive and transfers them to a computer or mobile phone. Full description
In stock
Delivery €1.59
30-day return policy
€116.55
Safe shopping Safe shopping
Overview
Digital Infrared Thermal Camera Temperature Measurement 32 x 24 Pixels Range -40 to 300 °C LCD Display and USB Connection to PC and Phone Black

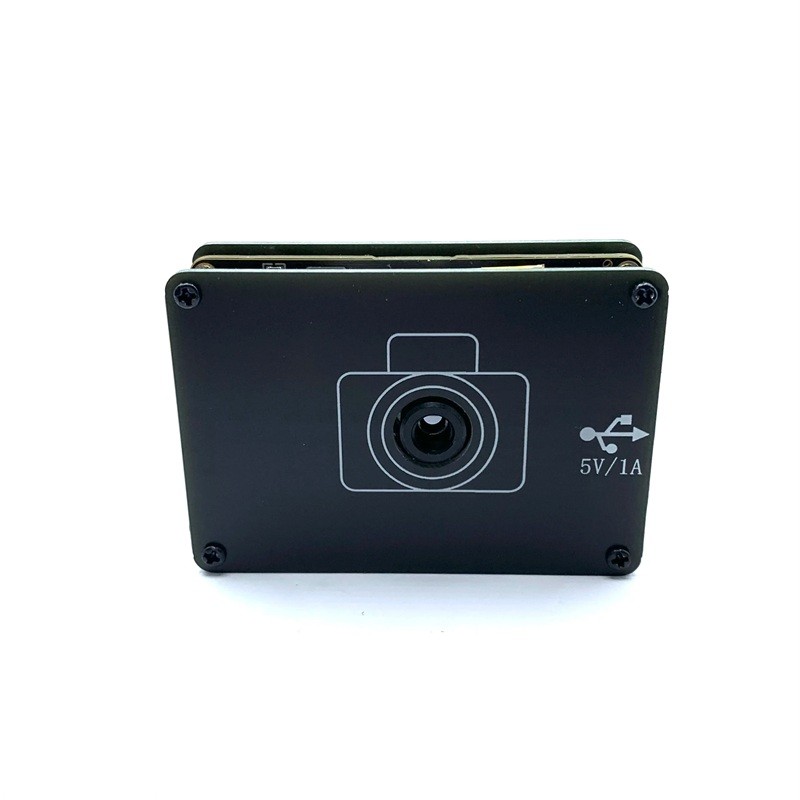

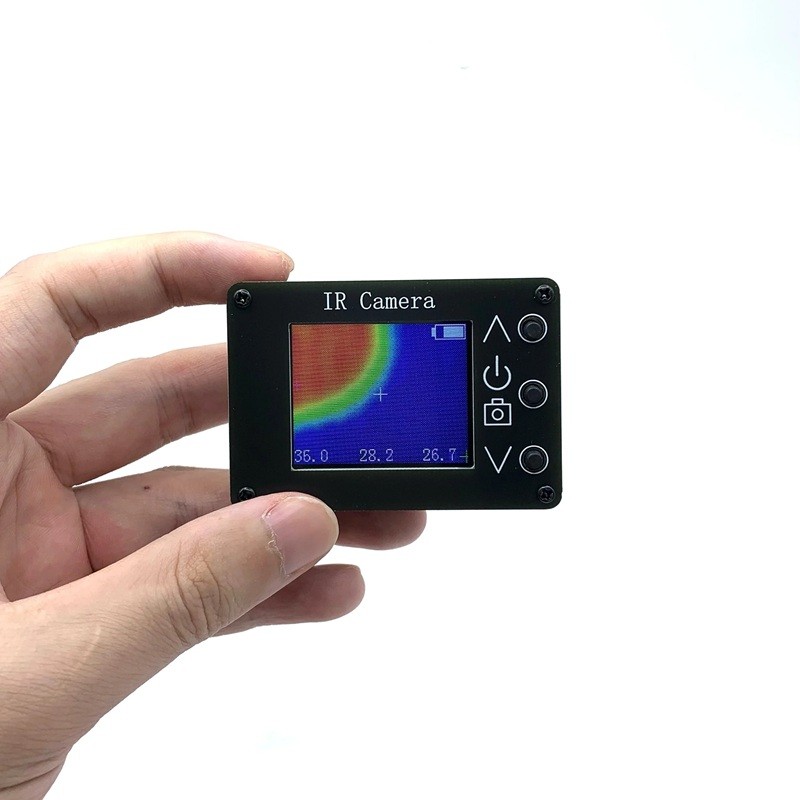

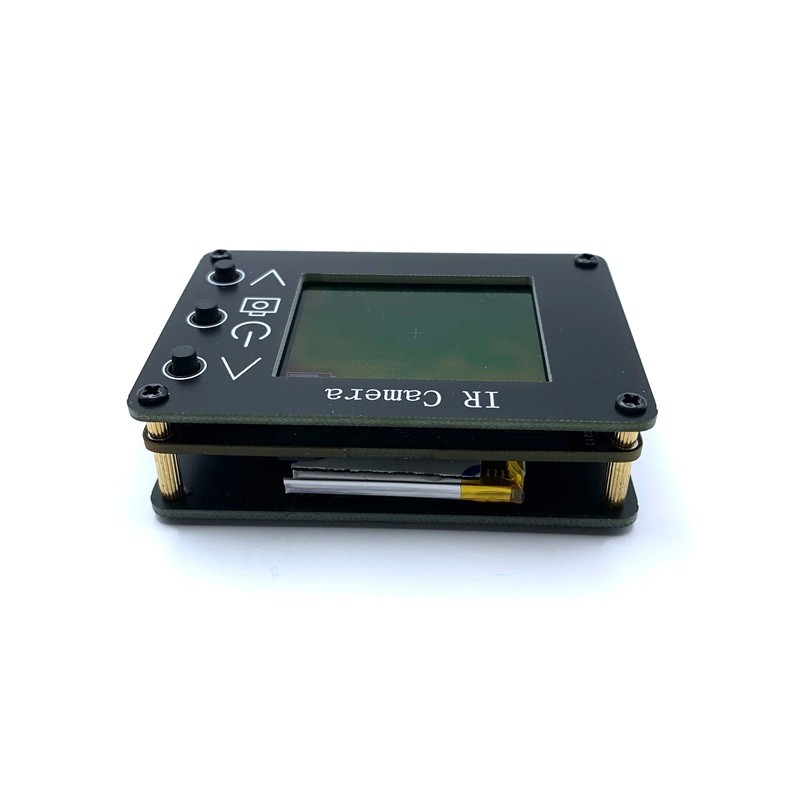

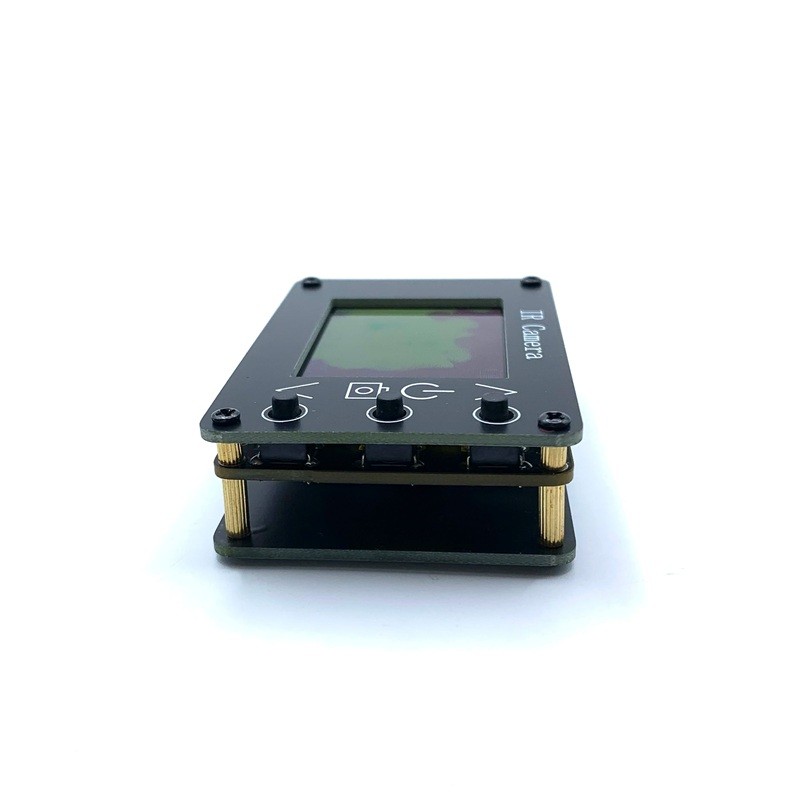

The digital infrared thermal camera is a compact measuring device that displays the temperature distribution of a scene using a colour thermal map. The infrared sensor has a total of 768 measuring points with a resolution of 32 x 24 pixels and can measure temperatures over a wide range of -40 to 300 °C. The measured values are clearly displayed on a colour LCD screen directly on the device, allowing you to see temperature differences immediately. The device in black is operated using buttons for navigating the menu and capturing images. Thanks to the built-in USB function, captured images can be easily transferred to a computer or mobile phone.

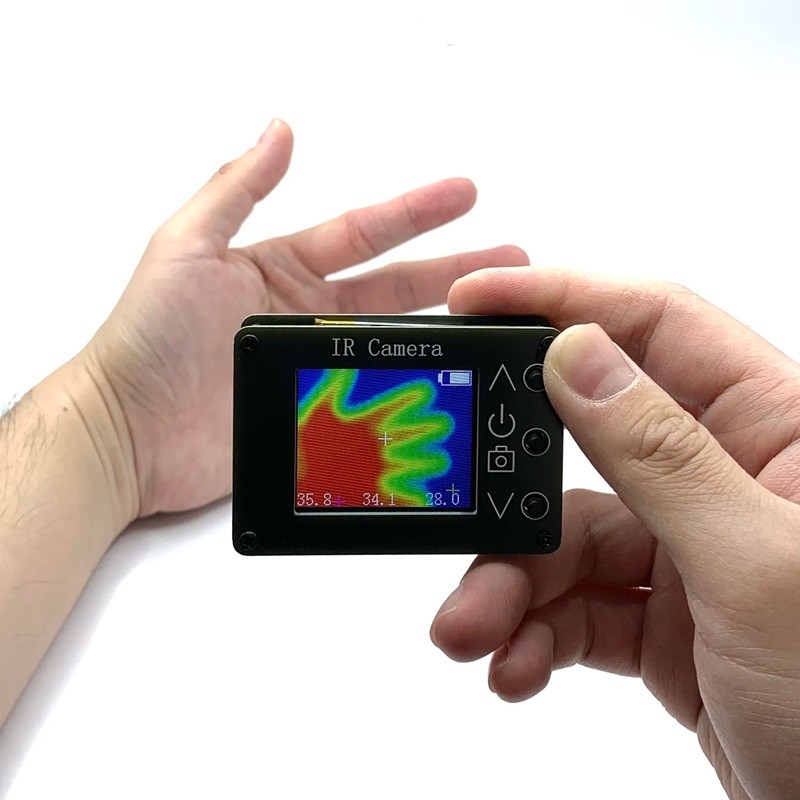

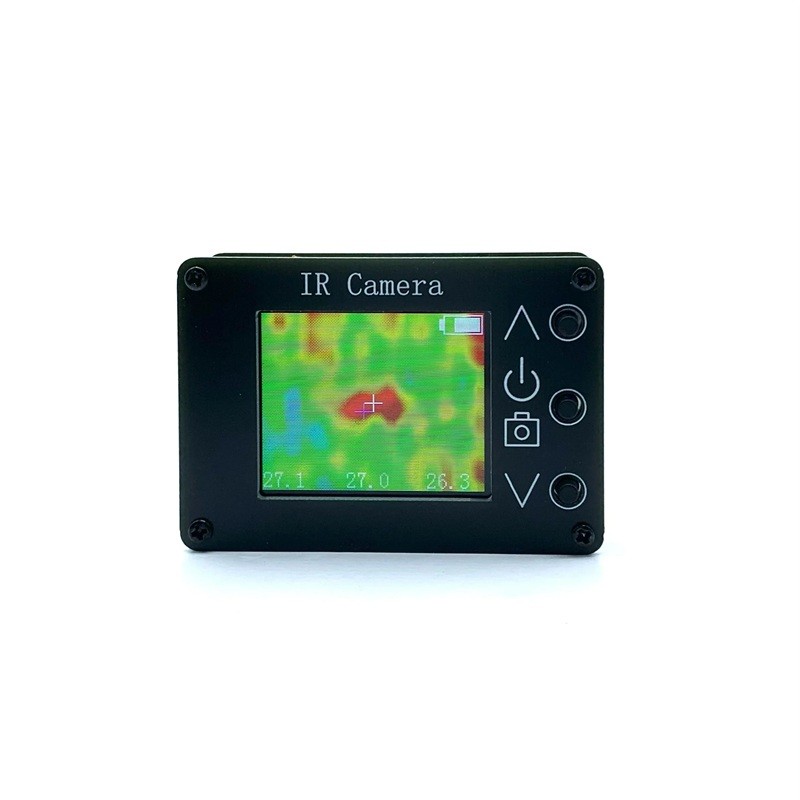

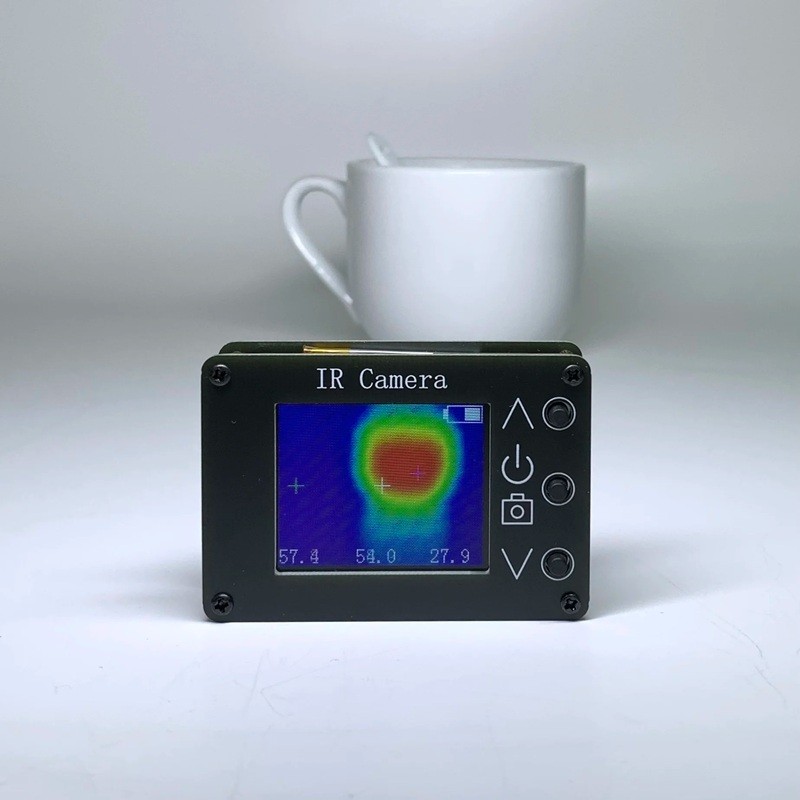

The thermal camera operates with a colour scale, where warmer areas are represented by warm colours and cooler areas by cool shades. The display simultaneously shows several temperature readings, giving you an overview of the temperature distribution in the observed scene. The image updates continuously, so the displayed values and colours slightly change according to minor temperature differences in the surroundings. The device is suitable for quickly locating heat sources, such as heated objects, electronics, or the human body.

Key features:

  • Sensor resolution — 32 x 24 pixels, i.e., 768 measuring points for basic temperature mapping
  • Measurement range — temperature from -40 to 300 °C
  • Colour display — LCD displays measured temperatures directly on the device
  • Image storage — captured images are saved in BMP format
  • USB U-disk — internal memory with a capacity of 4 MB for storing images

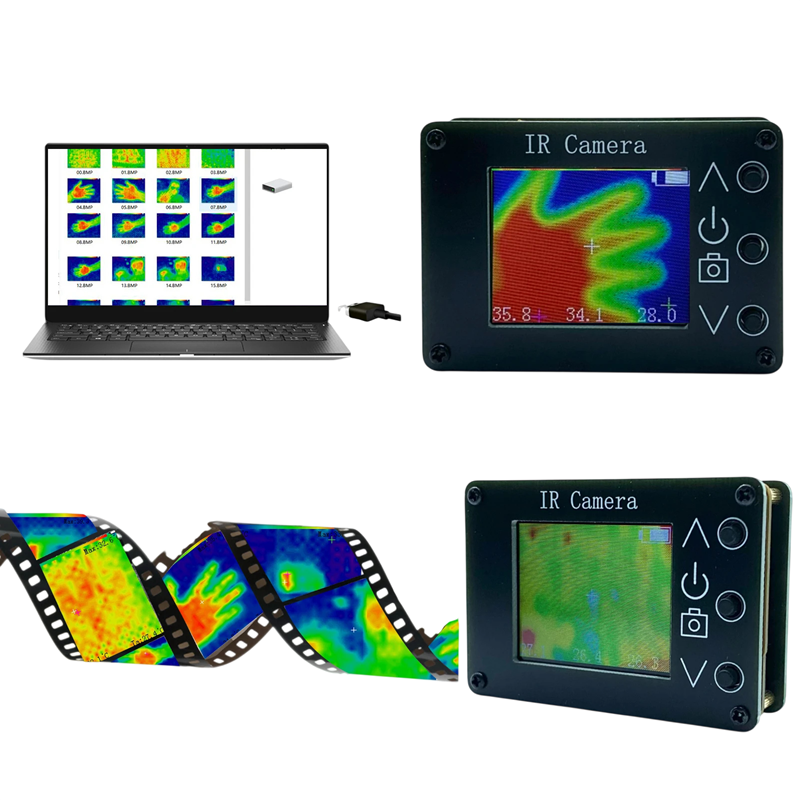

  • Data transfer — connection to a computer or phone via a data cable for viewing and copying images
  • Power supply — built-in rechargeable battery
  • Control — buttons for navigating the menu and capturing photos
  • Colour — black finish

The resolution of 32 x 24 pixels is considered very low, therefore the device is suitable only for simple orientation temperature measurements. It is not intended for detecting underfloor heating, water leaks from walls, or plumbing leaks, nor for applications with high accuracy requirements, such as mobile phone repairs.

Contents of the package:

  • 1x infrared thermal camera
  • 1x USB data cable

This thermal camera is suitable for hobby use, education, and basic orientation in temperature differences of surrounding objects. The real-time thermal mapping allows for quick identification of warmer and cooler areas in the observed scene. Captured images can be saved and subsequently viewed on a computer or phone. Compact dimensions and a rechargeable battery facilitate the use of the device practically anywhere. It serves as an accessible tool for simple temperature measurement in everyday conditions.
