Digital Capacity Detector CW20 300 A WiFi Tuya with Timer and Voice Control DC 0-420 V Colour Display Black for Battery Monitoring

Digital Capacity Detector CW20 300 A WiFi Tuya with Timer and Voice Control DC 0-420 V Colour Display Black for Battery Monitoring

Smart energy consumption and battery capacity meter with WiFi connection via the Tuya and Smart Life app. Monitors voltage, current, power, and temperature in real-time. Full description
In stock
Delivery €1.59
30-day return policy
€100.83
Safe shopping Safe shopping
Overview
Digital Capacity Detector CW20 300 A WiFi Tuya with Timer and Voice Control DC 0-420 V Colour Display Black for Battery Monitoring

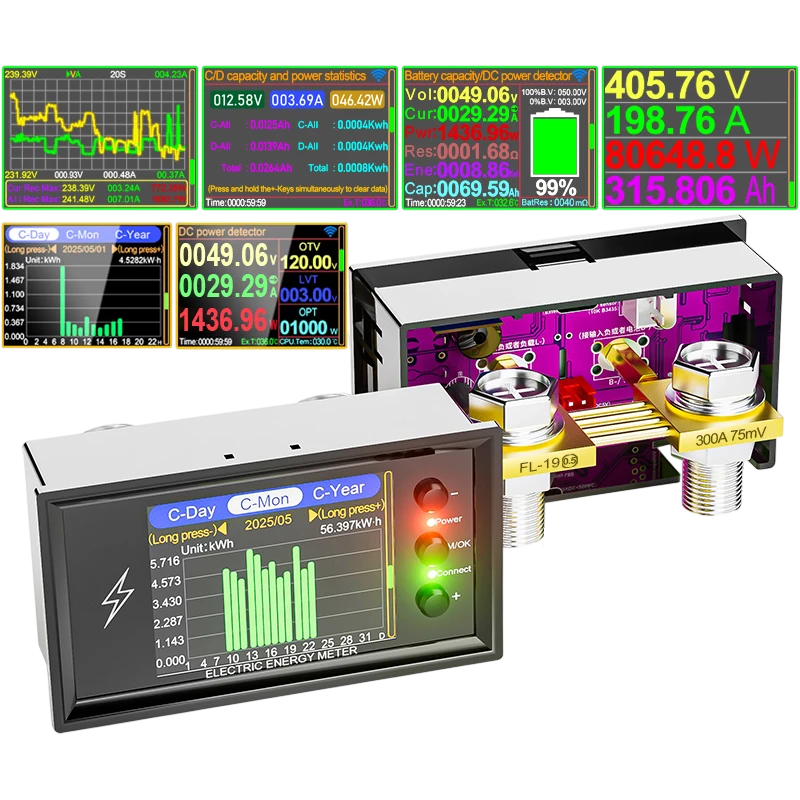

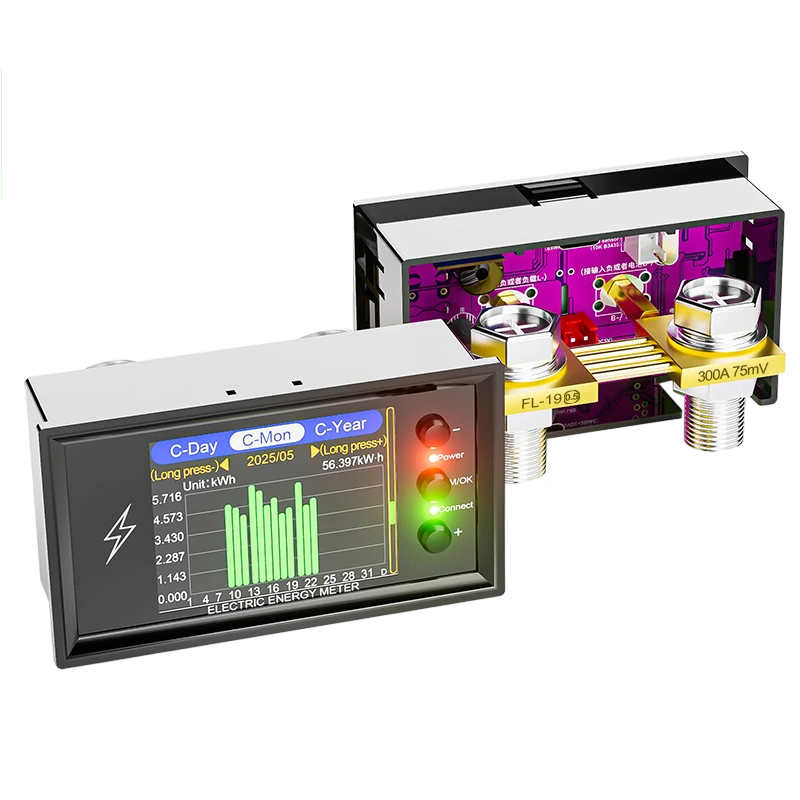

This smart coulomb meter and energy consumption meter serves to monitor voltage, current, power, and battery capacity in direct current systems. Thanks to WiFi connectivity and support for Tuya and Smart Life applications, you can keep track of all values remotely directly on your mobile phone, no matter where you are. The clear 2.0-inch colour display with high resolution shows voltage, current, power, energy in kWh, and measured capacity in ampere-hours in real-time. The display also shows the remaining battery capacity in percentage and circuit resistance, making it easier to check the status of the entire system. The device measures voltage in the range of DC 0-420 V and current from 0.30 to 300.00 A using the included 300 A 75 mV shunt. It also includes a temperature probe for continuous temperature monitoring and functions for charging and discharging statistics.

Key features:

  • Wide measurement range — voltage in the range of DC 0-420 V and current from 0.30 to 300.00 A allow deployment in many direct current circuits.
  • Wireless connection — communication via WiFi and Bluetooth, as well as connection to a computer via HID interface for monitoring and exporting data.
  • Control via app — compatibility with Tuya and Smart Life allows remote monitoring and settings directly from your phone.
  • Clear display — 2.0-inch colour screen with high resolution displays all key metrics at once.
  • Smart features — integrated timer and voice control make everyday use easier.
  • Detailed statistics — daily, monthly, and yearly overview of consumed energy and battery capacity.
  • Capacity and power measurement — monitoring of charging and discharging of the remaining battery capacity and current power.
  • Temperature control — the included temperature probe monitors the temperature of the measured circuit.
  • Compact dimensions — body measuring 87 x 50 x 50 mm fits easily into smaller spaces.

Contents of the package:

  • 1x digital capacity detector CW20

The device is suitable for monitoring solar systems, home batteries, caravans, and charging circuits where an overview of energy flow is important. It allows monitoring of current and historical consumption values and timely detection of operational deviations. Control via the Tuya and Smart Life mobile app facilitates monitoring without the need to be directly at the device. Thanks to compact dimensions of 87 x 50 x 50 mm, it can be easily placed in a distribution box or on a dashboard. The combination of WiFi, Bluetooth, and connection to a computer offers flexible handling of measured data and long-term consumption statistics, so you can keep voltage, current, power, and energy under constant control in one device.
