Diagnostic Module 1:1 DICE 2014D for Volvo OBD2 with USB Connection to PC and Full Chip Board for Vehicles 1999 to 2016 Grey-Black

Diagnostic Module 1:1 DICE 2014D for Volvo OBD2 with USB Connection to PC and Full Chip Board for Vehicles 1999 to 2016 Grey-Black

Interface for diagnosing Volvo vehicles from 1999 to 2016 connects to the OBD2 socket and to a computer via USB. It has four indicator lights and a hook for hanging. Full description
In stock
Delivery €1.59
30-day return policy
€336.20
Safe shopping Safe shopping
Overview
Diagnostic Module 1:1 DICE 2014D for Volvo OBD2 with USB Connection to PC and Full Chip Board for Vehicles 1999 to 2016 Grey-Black

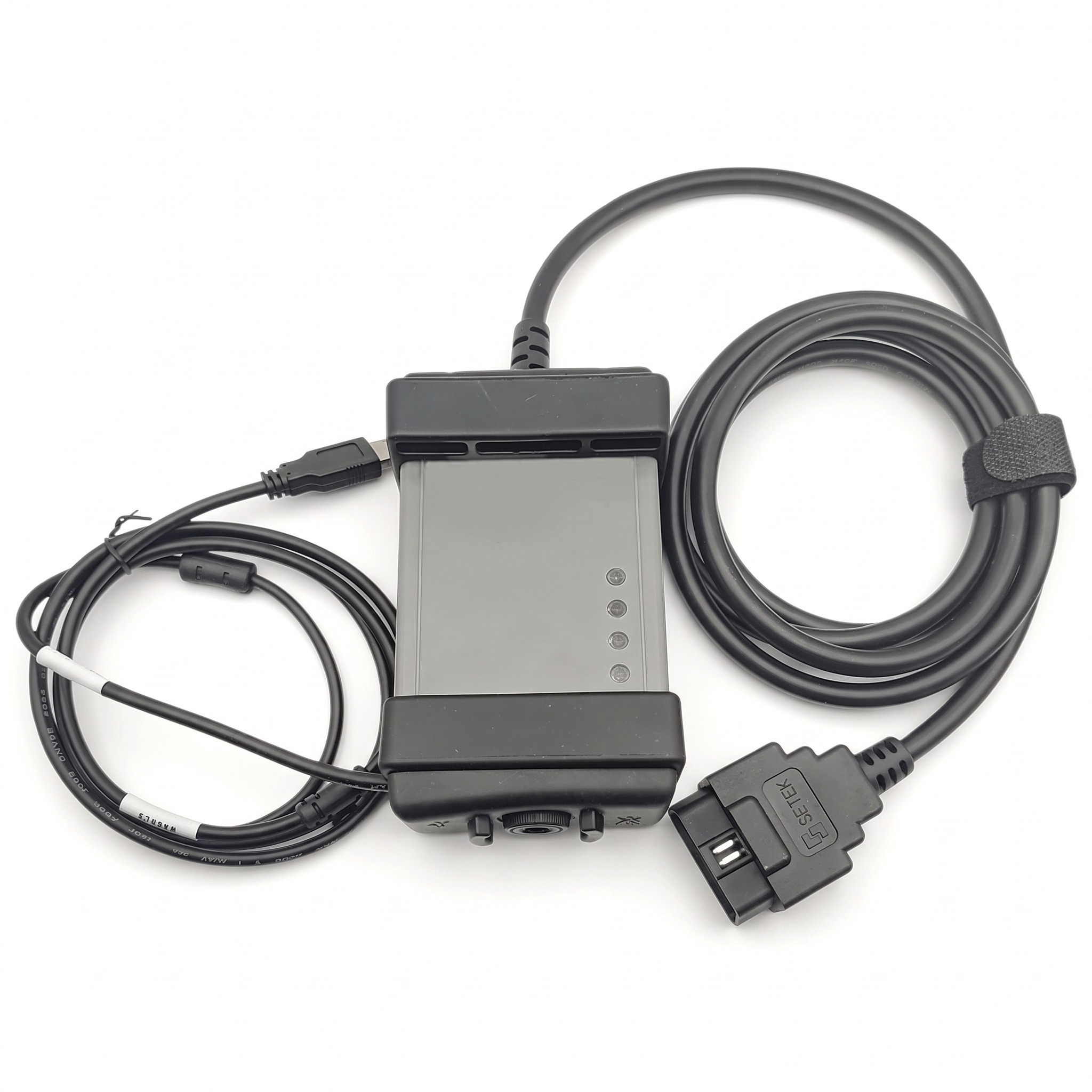

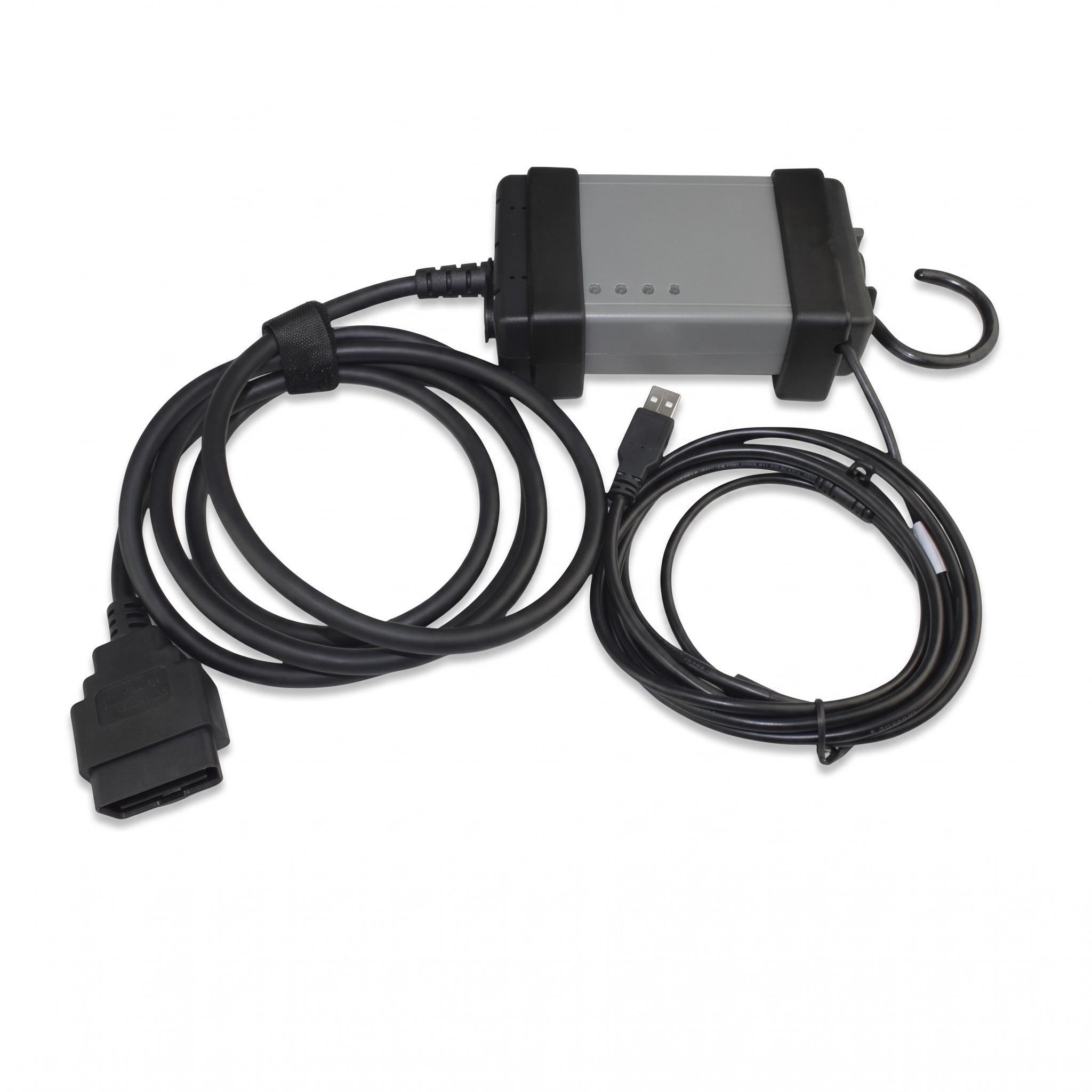

The Diagnostic Module 1:1 DICE 2014D serves as a communication interface between the computer and the control units of Volvo vehicles. It is designed for Volvo vehicles manufactured between 1999 and 2016 and connects to the vehicle via an integrated cable with an OBD2 connector. It communicates with the computer via a USB cable and works together with diagnostic software installed on the computer, through which diagnostics and fault finding in the individual systems of the vehicle are performed. When plugged into the diagnostic socket, the module is powered directly from the car battery, provided the battery is charged. The grey body of the module is protected at both ends by black caps, and there is a foldable hook on the back for hanging.

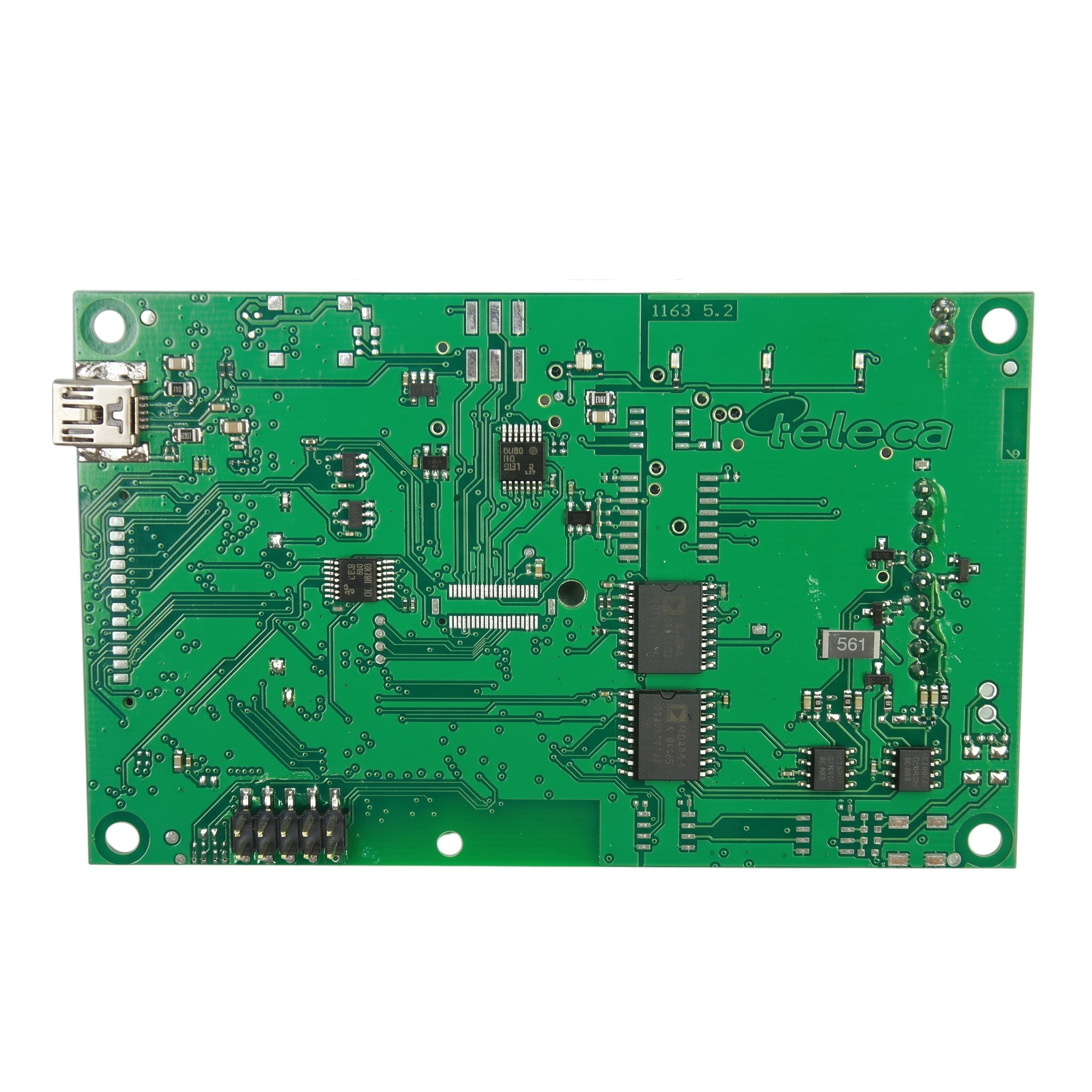

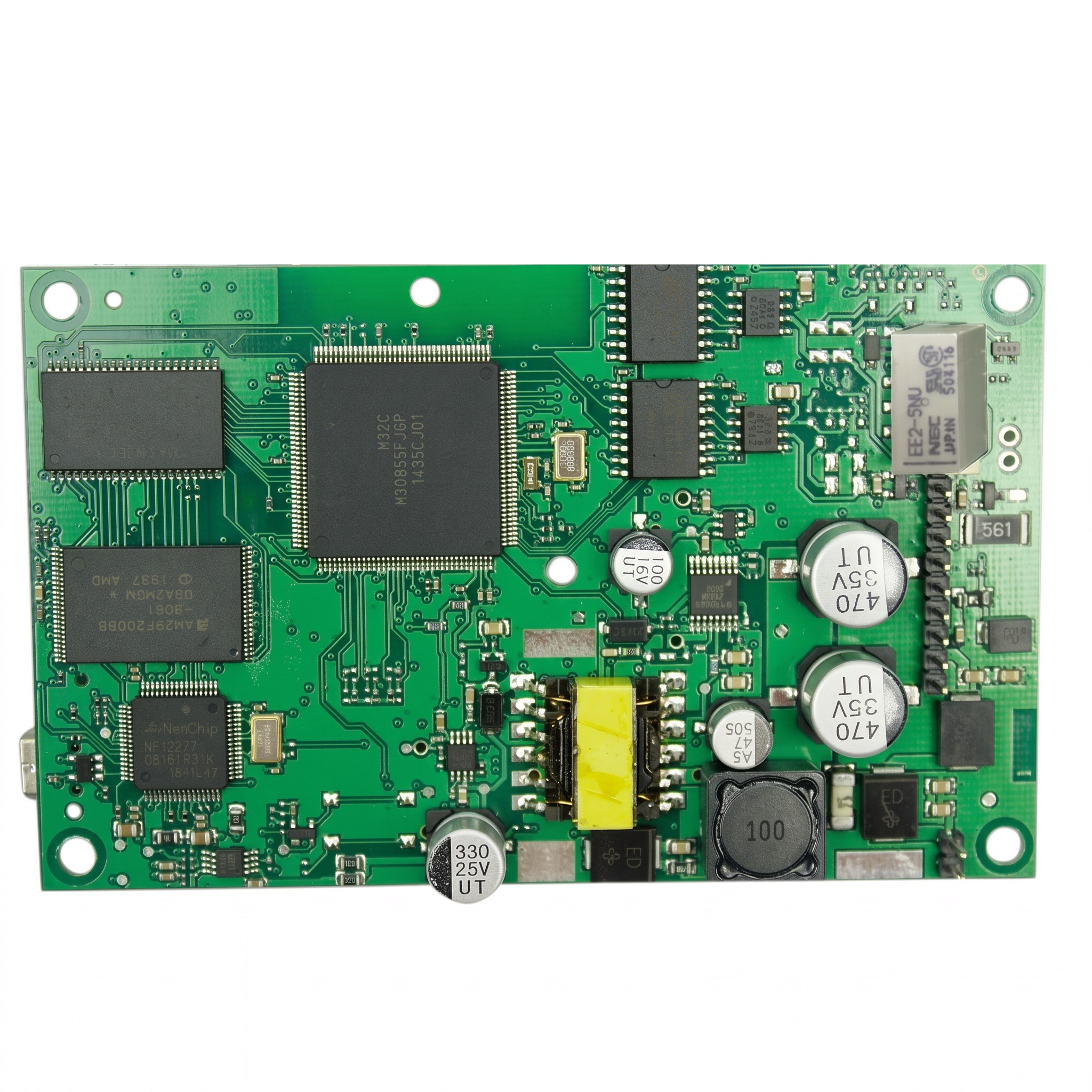

  • Version 2014D – the module contains a fully equipped full chip board in green with NEC relay and M32C chip, firmware can be updated, and the device offers an autotest function.

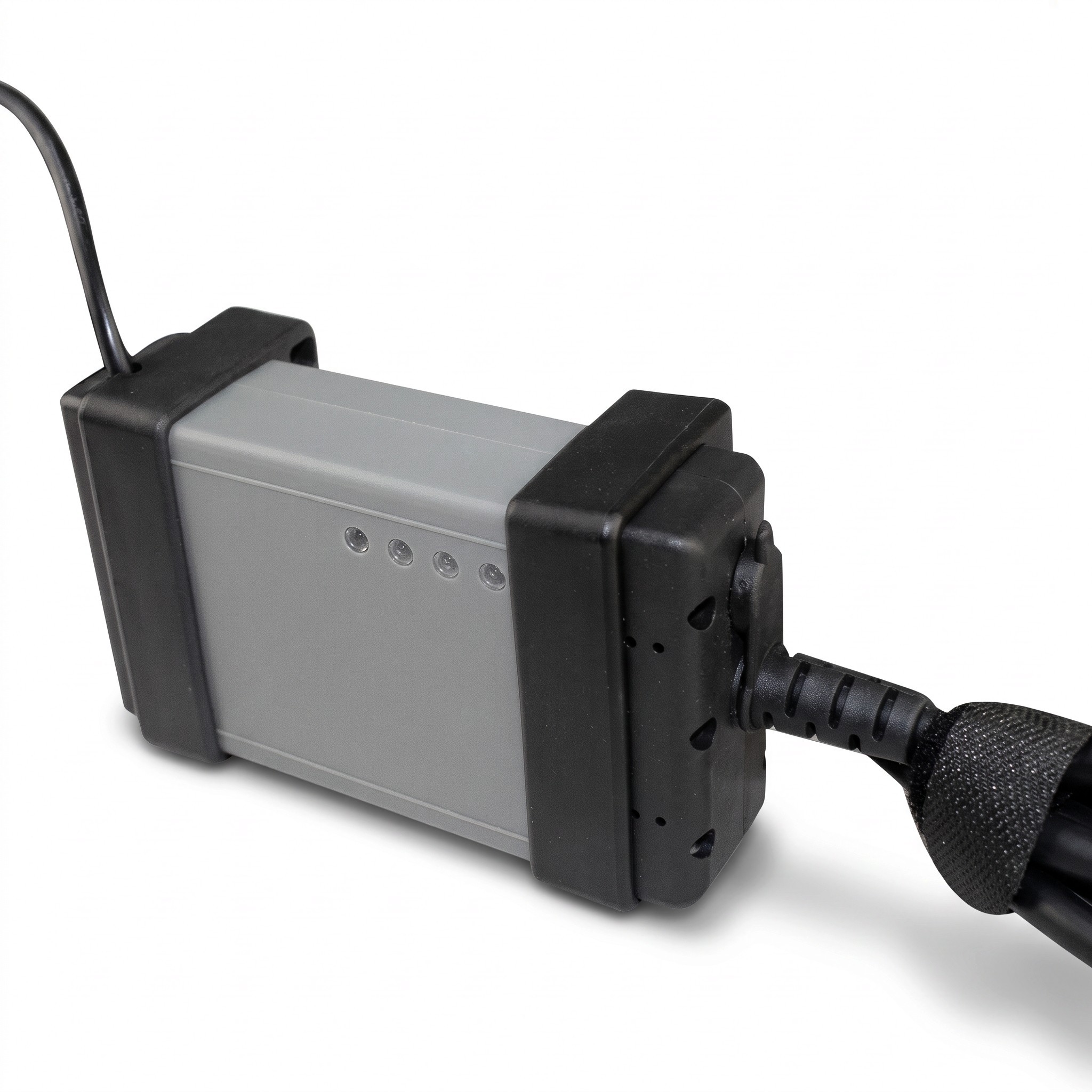

  • Status Indicators – four LED indicators on the top show the status of the unit, communication with the computer, and connection to the vehicle, so it is immediately visible whether the module is correctly connected.

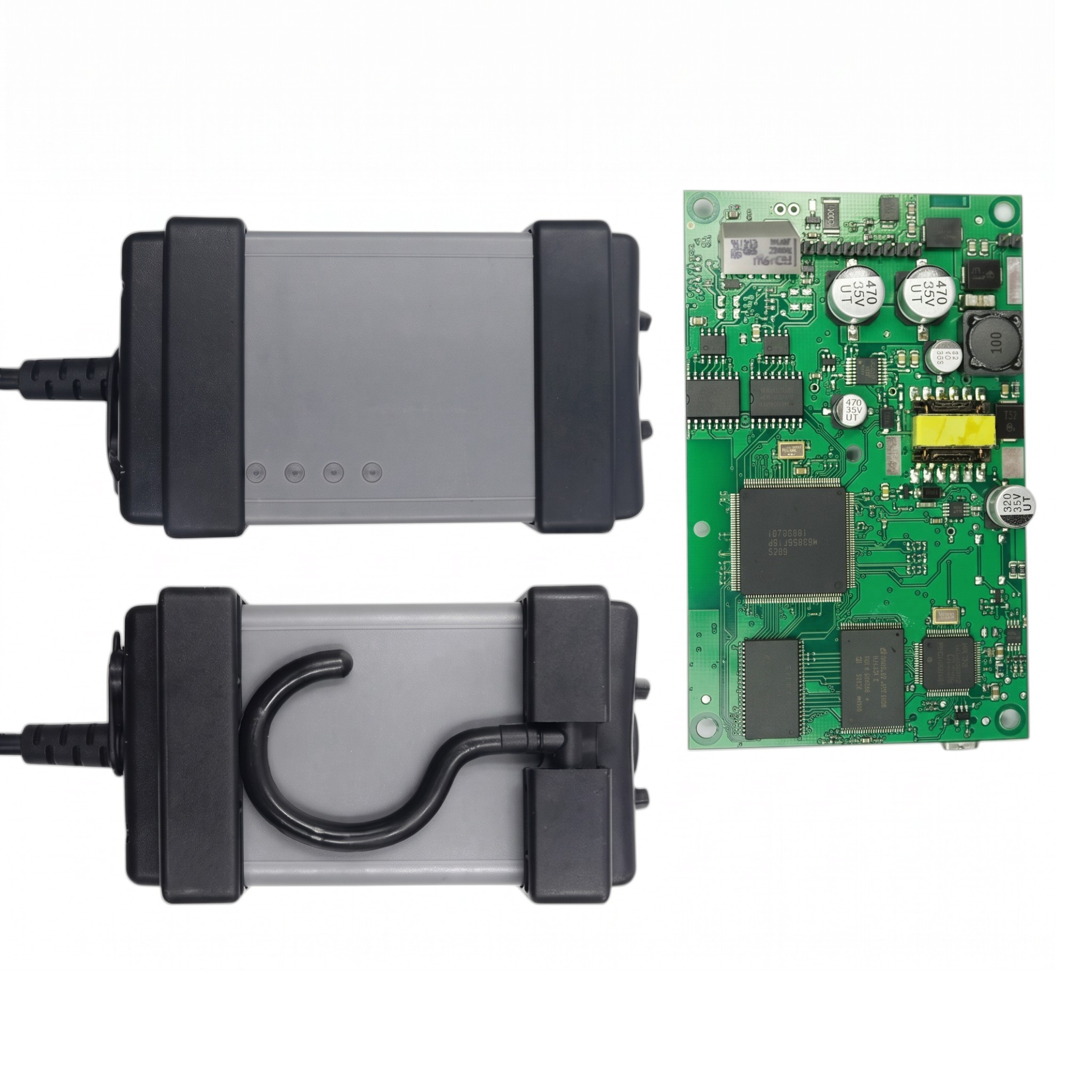

  • Foldable Hook – on the back, there is a hook for hanging the module, for example, on the handle above the doors, so it does not lie on the seat or floor during diagnostics. When the hook is not needed, it can be folded back against the body of the module.
  • Power Input – at one end is a DC 12 V input for connecting a cable to the battery or adapter, which is used during firmware updates and troubleshooting. At the other end, there is a removable cover secured with a screw.
  • Computer Requirements – the software requires Windows 7 Professional (the 32-bit version is preferable), Internet Explorer 9 or newer, .NET Framework 3.5, and at least 40 GB of free space on drive C. Windows XP and Windows 7 Home systems are not supported.
  • Languages – the software interface is available in English, Spanish, French, Japanese, Korean, Portuguese, Russian, Swedish, Thai, and Chinese.

Package Contents:

  • 1x diagnostic module with integrated OBD2 cable
  • 1x USB cable

The DICE 2014D module is suitable for car workshops and mechanics who specialise in Volvo vehicles and need to connect a computer to the vehicle's control units. The module connects to the computer exclusively via USB cable, it does not support wireless connection via Bluetooth. Before installing the software, it is necessary to disable the antivirus program and disconnect the internet, as updates are not performed directly online, to avoid damaging the device. The module does not support vehicles manufactured before 1999 or the newer Volvo XC90 with DoIP communication. Therefore, it is advisable to verify the year of manufacture of the vehicle before purchase and prepare a computer with Windows 7 Professional on which the diagnostic software will be installed.
