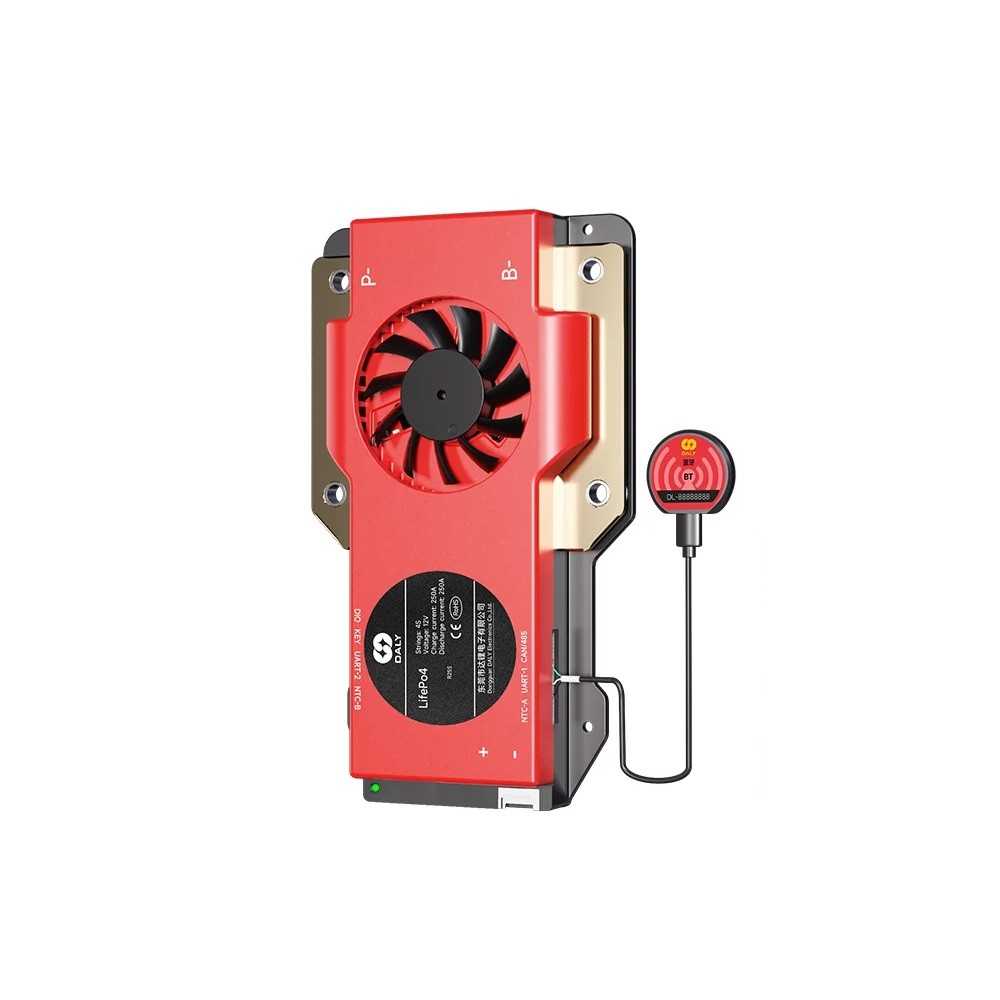

DALY Smart BMS LiFePO4 8S 24 V 250 A Battery Protection 108 x 183 x 26 mm Bluetooth and NTC and RS485 CANBUS Red for Solar Systems
You already have the maximum available quantity in your cart.
The DALY Smart BMS LiFePO4 is an electronic protection board for batteries configured in 8S with a voltage of 24 V, designed for eight 3.2 V LiFePO4 cells connected in series. It handles a continuous charging and discharging current of up to 250 A, has compact dimensions of 108 x 183 x 26 mm, an integrated cooling fan, and a red finish. It monitors the voltage of individual cells, while the external NTC sensor tracks the temperature. You can monitor the battery status wirelessly via Bluetooth from your phone, and the module also offers RS485 and CANBUS interfaces.
Main features:
- Configuration — suitable for an 8S LiFePO4 battery assembly with an output voltage of 24 V
- Cells — designed for 3.2 V LiFePO4 cells connected in series
- Current load — charging and discharging current of 250 A
- Cooling — integrated fan for heat dissipation from the board
- Wireless management — monitoring and settings via Bluetooth app on your phone
- Temperature measurement — external NTC sensor for battery temperature monitoring
- Communication — supported interfaces RS485 and CANBUS
- Dimensions — compact board 108 x 183 x 26 mm
- Finish — metal construction in red
- Usage — solar storage for motorhomes and backup power
Contents of the package:
- 1x DALY Smart BMS LiFePO4 8S 24 V 250 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x B- P- connecting cable
This protection board simplifies the construction of your own 24 V LiFePO4 battery for motorhomes, caravans, solar systems, and backup power sources. The integrated electronics monitor the voltage of individual cells and contribute to their protection during charging and discharging. The combination of wireless monitoring via Bluetooth and communication interfaces RS485 and CANBUS simplifies integration into larger systems. Compact dimensions of 108 x 183 x 26 mm allow installation even in confined spaces, and the cooling fan helps manage temperature under load. Clear management via phone saves time during battery monitoring and maintenance, making the board a suitable choice for reliable home and mobile 24 V systems.
