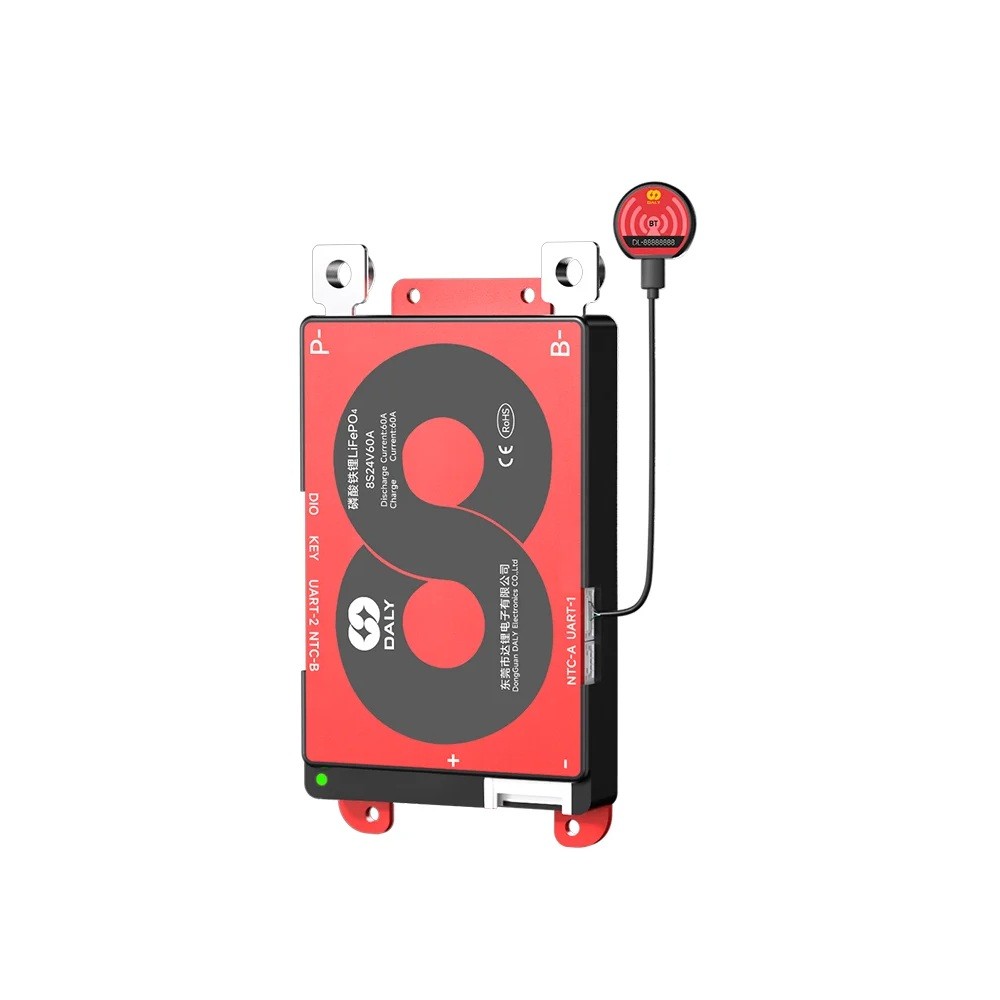

DALY Smart BMS 8S 24 V 60 A Balancer Bluetooth and NTC Sensor 65 x 123 x 14 mm for LiFePO4 Batteries Red Caravans and Photovoltaics
You already have the maximum available quantity in your cart.
DALY Smart BMS is an intelligent protection board for constructing lithium batteries LiFePO4. It is designed for 8S LiFePO4 batteries with a voltage of 24 V and handles continuous charging and discharging current of 60 A with overcurrent protection at 90 A. You can monitor the battery status wirelessly via the included Bluetooth module in a mobile application. The internal resistance of the circuit is less than 20 mΩ, which increases efficiency and reduces heating. The compact board with dimensions of 65 x 123 x 14 mm easily fits into smaller assemblies.
Built-in passive balancing with a current of 100 mA equalises the voltage of individual cells and increases the usable capacity and lifespan of the battery. The board protects the cells from overcharging with a threshold of 3.75 V and deep discharge with a threshold of 2.2 V, as well as overcurrent and short circuit. Temperature measurement is managed by the included NTC sensor, and the package also includes a Bluetooth module. Low standby consumption of under 550 µA ensures minimal self-discharge of the connected battery.
Main features:
- Battery support — 8S LiFePO4 with a voltage of 24 V
- Discharge and charge current — continuously 60 A
- Overcurrent protection — at 90 A
- Passive balancing — current 100 mA
- Cell protection — against overcharging 3.75 V and deep discharge 2.2 V
- Communication — Bluetooth module included
- Temperature measurement — NTC sensor
- Internal resistance — below 20 mΩ
- Colour — red
- Dimensions — 65 x 123 x 14 mm
- Operating temperature — -35 to 75 °C
- Storage temperature — -40 to 85 °C
Package contents:
- 1x DALY Smart BMS 8S 24 V 60 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x set of B- and P- cables
This protection board represents a practical solution for assembling 24V LiFePO4 batteries for motorhomes, photovoltaics, and home energy storage. It can also be used in electric vehicles, tricycles, forklifts, and golf carts. The balancer and multi-level protection extend the lifespan of the cells and enhance the safety of the assembly. Reliable operation is ensured over a wide range of operating temperatures from -35 to 75 °C. The included Bluetooth module, temperature sensor, and connecting cables allow for immediate connection without the need to purchase additional accessories.
