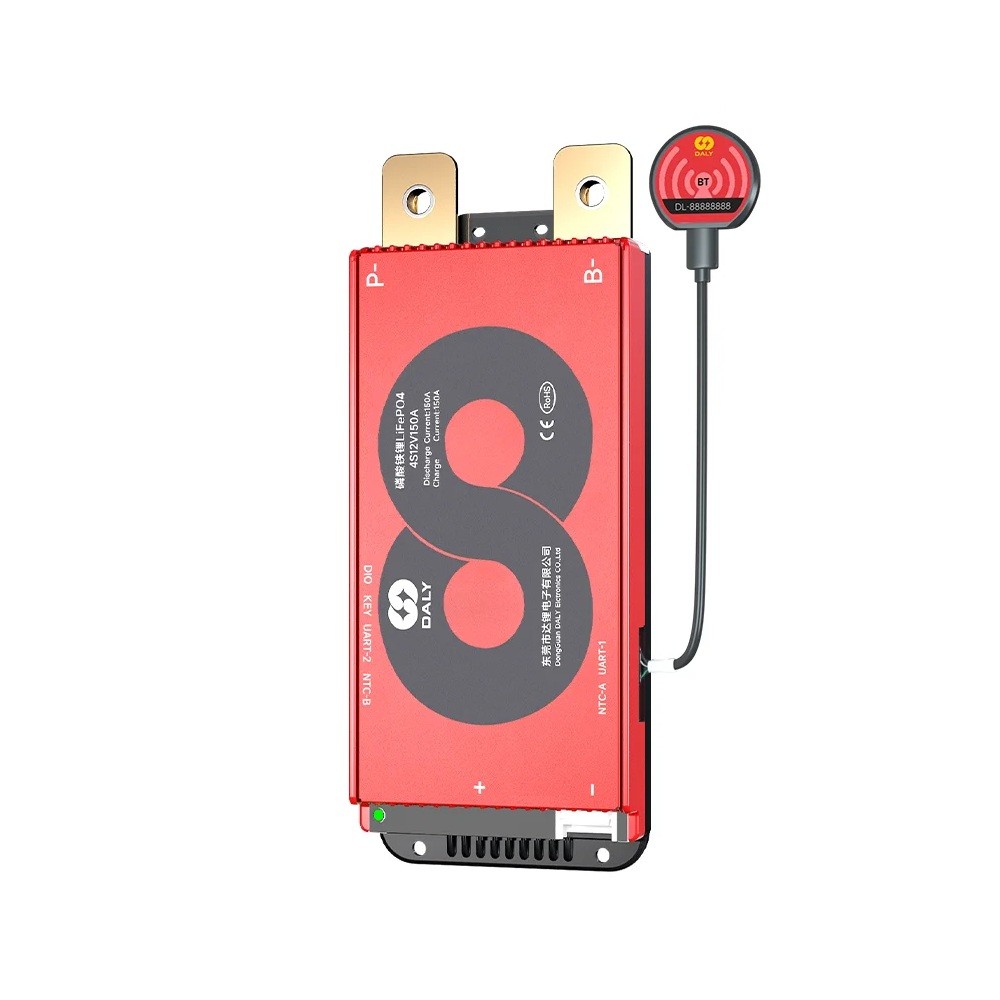

DALY Smart BMS 8S 24 V 150 A Bluetooth Balancer and NTC Sensor 66 x 164 x 21 mm for LiFePO4 Batteries Red Caravans and Photovoltaics
You already have the maximum available quantity in your cart.
The DALY Smart BMS is an intelligent protection board for building lithium LiFePO4 batteries. It is designed for 8S LiFePO4 batteries with a voltage of 24 V and can handle a continuous charging and discharging current of 150 A with overcurrent protection at 225 A. You can monitor the battery status wirelessly via the included Bluetooth module in a mobile application. The internal resistance of the circuit is less than 20 mΩ, which increases efficiency and reduces heating. The robust board with dimensions of 66 x 164 x 21 mm can handle even more demanding setups.
The built-in passive balancing with a current of 100 mA equalises the voltage of individual cells and increases the usable capacity and lifespan of the battery. The board protects the cells from overcharging at a threshold of 3.75 V and deep discharge at a threshold of 2.2 V, as well as overcurrent and short-circuit conditions. The included NTC sensor takes care of temperature measurement, and the package also includes a Bluetooth module. Low standby consumption of under 550 µA ensures minimal self-discharge of the connected battery.
Main features:
- Battery support — 8S LiFePO4 with a voltage of 24 V
- Discharge and charge current — continuously 150 A
- Overcurrent protection — at 225 A
- Passive balancing — current 100 mA
- Cell protection — against overcharging at 3.75 V and deep discharge at 2.2 V
- Communication — Bluetooth module included
- Temperature measurement — NTC sensor
- Internal resistance — below 20 mΩ
- Colour — red
- Dimensions — 66 x 164 x 21 mm
- Operating temperature — -35 to 75 °C
- Storage temperature — -40 to 85 °C
Package contents:
- 1x DALY Smart BMS 8S 24 V 150 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x set of B- and P- cables
This protection board represents a practical solution for assembling 24V LiFePO4 batteries for caravans, photovoltaics, and home energy storage. It can also be used in electric vehicles, tricycles, forklifts, and golf carts. The balancer and multi-level protection extend the lifespan of the cells and increase the safety of the setup. Reliable operation is ensured over a wide range of operating temperatures from -35 to 75 °C. The included Bluetooth module, temperature sensor, and connecting cables allow for immediate connection without the need to purchase additional accessories.
