DALY Smart BMS 7S-24S 60 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 Batteries Red Protection for Lithium Batteries
You already have the maximum available quantity in your cart.

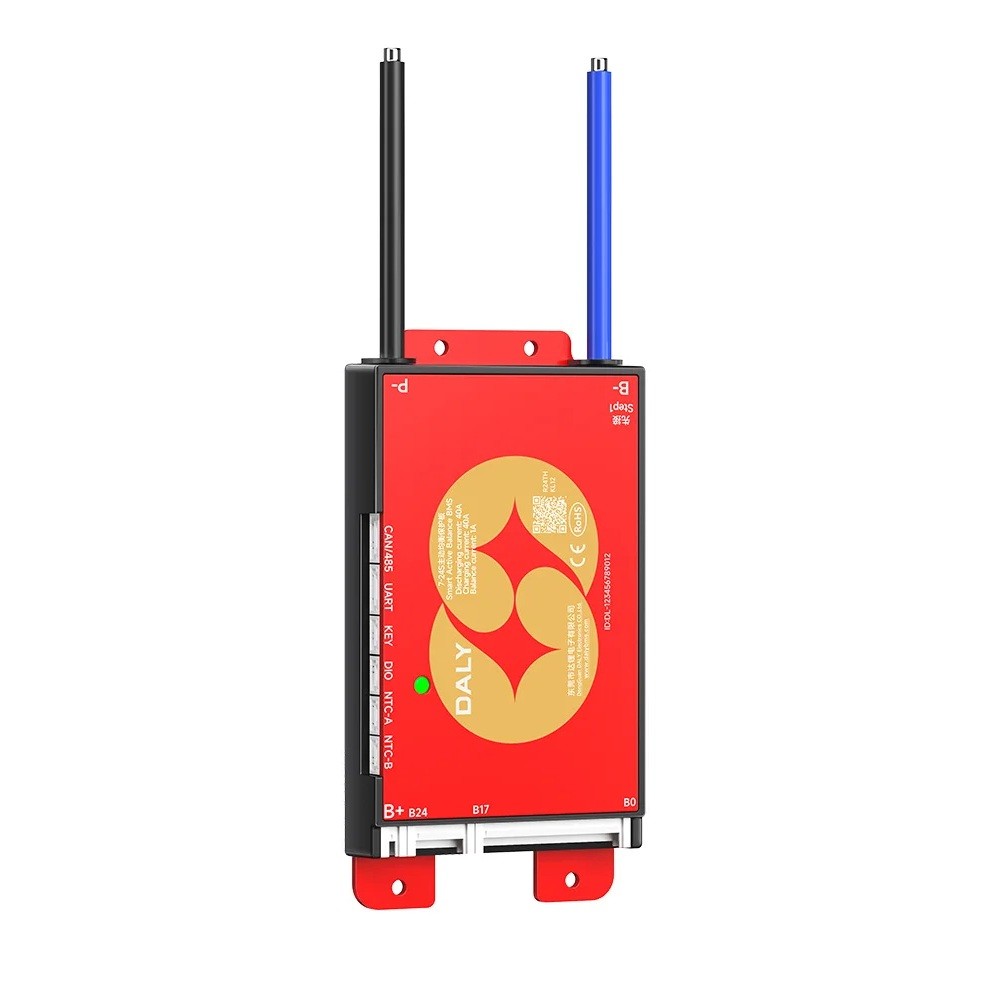

The DALY Smart BMS is an intelligent protective board for lithium LiFePO4 batteries in a configuration of 7 to 24 cells in series. It handles a continuous charging and discharging current of 60 A and a peak discharging current of up to 90 A. With support for 7S-24S LiFePO4 batteries, it is suitable for building and maintaining your own batteries. You can monitor the battery status and individual cells wirelessly via Bluetooth in a mobile application. The board measures the voltage of the cells in the range of 1.5 to 4.5 V and operates at a voltage above 10 V.
Built-in active balancing with a current of 1 A equalises the voltage of individual cells and increases the usable capacity and lifespan of the entire battery. In addition to Bluetooth, the board also offers communication via RS485 and CAN for connection to inverters and superior systems. The Smart BMS automatically manages charging and discharging and protects individual cells from overcharging, deep discharging, and short circuits. Wireless management in the mobile application allows convenient monitoring of voltage, current, and charge status at any time.
Main features:
- Cell support — 7S-24S LiFePO4 batteries
- Discharging and charging current — continuously 60 A
- Peak discharging current — up to 90 A
- Active balancing — current 1 A
- Communication — Bluetooth, RS485 and CAN, and UART
- Cell voltage measurement — 1.5 to 4.5 V
- Operating voltage — above 10 V
- Colour — red
- Operating temperature — -30 to 70 °C
- Storage temperature — -40 to 85 °C
Contents of the package:
- 1x DALY Smart BMS 7S-24S 60 A
This protective board represents a practical solution for assembling reliable lithium batteries for solar systems in caravans and boats. The active balancer and smart protection extend the lifespan of the cells and increase the safety of the entire assembly. Reliable operation is ensured over a wide range of operating temperatures from -30 to 70 °C. Wireless management via Bluetooth and support for RS485 and CAN facilitate integration into superior systems. The red design with clear connectors simplifies installation and wiring.
