DALY Smart BMS 7S-24S 40 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 Batteries Red Lithium Battery Protection
You already have the maximum available quantity in your cart.

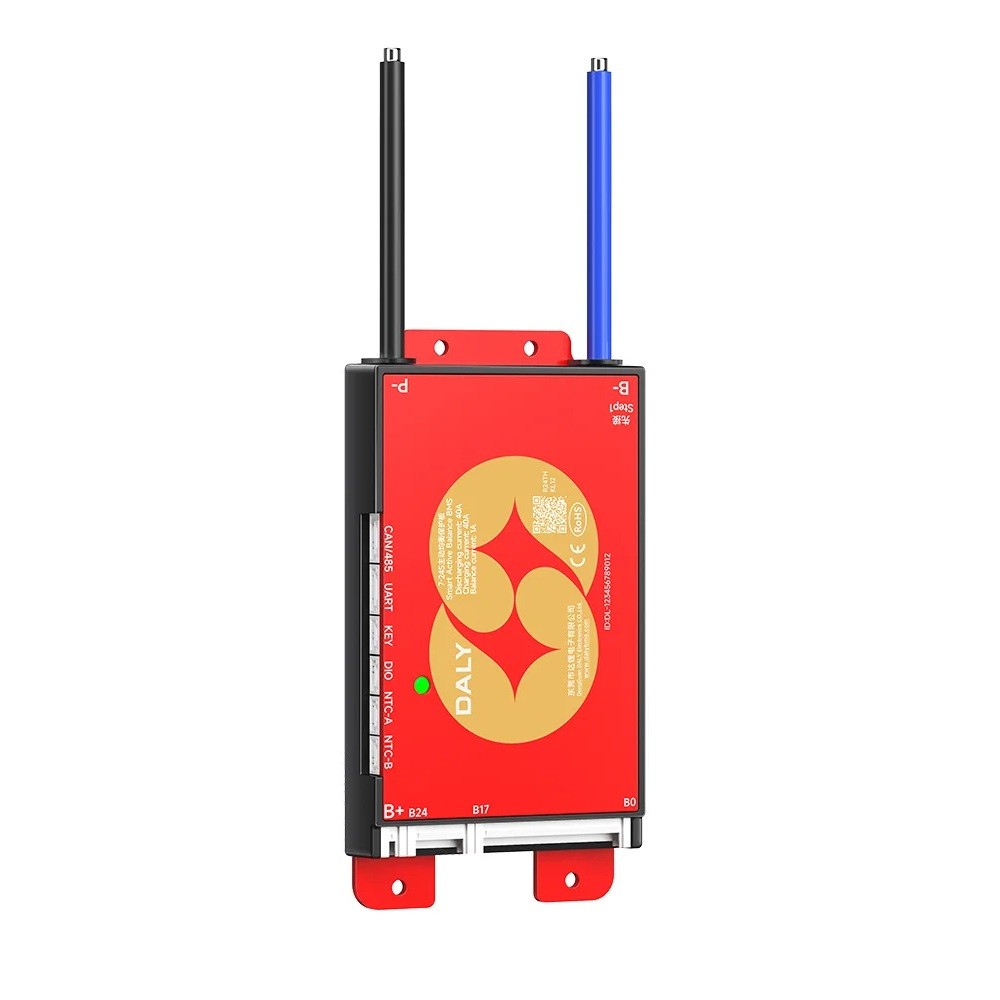

The DALY Smart BMS is an intelligent protective board for LiFePO4 lithium batteries in a configuration of 7 to 24 cells in series. It handles continuous charging and discharging current of 40 A and a peak discharging current of up to 60 A. With support for 7S-24S LiFePO4 batteries, it is suitable for building and maintaining your own batteries. You can monitor the battery status and individual cells wirelessly via Bluetooth in a mobile app. The board measures the cell voltages in the range of 1.5 to 4.5 V and operates at a voltage above 10 V.
The built-in active balancing with a current of 1 A equalises the voltage of individual cells and increases the usable capacity and lifespan of the entire battery. In addition to Bluetooth, the board also offers communication via RS485 and CAN for connection to inverters and superior systems. The Smart BMS automatically manages charging and discharging and protects individual cells from overcharging, deep discharging, and short circuits. Wireless management in the mobile app allows convenient monitoring of voltage, current, and state of charge at any time.
Main features:
- Cell support — 7S-24S LiFePO4 batteries
- Discharging and charging current — continuously 40 A
- Peak discharging current — up to 60 A
- Active balancing — current 1 A
- Communication — Bluetooth, RS485, CAN, and UART
- Cell voltage measurement — 1.5 to 4.5 V
- Operating voltage — above 10 V
- Colour — red
- Operating temperature — -30 to 70 °C
- Storage temperature — -40 to 85 °C
Package contents:
- 1x DALY Smart BMS 7S-24S 40 A
This protective board represents a practical solution for assembling reliable lithium batteries for solar systems in caravans and boats. The active balancer and smart protection extend the lifespan of the cells and enhance the safety of the entire assembly. Reliable operation is ensured over a wide range of operating temperatures from -30 to 70 °C. Wireless management via Bluetooth and support for RS485 and CAN facilitate integration into superior systems. The red design with clear connectors simplifies installation and wiring.
