DALY Smart BMS 7S-17S 60 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 and Li-ion Batteries Red Battery Protection
You already have the maximum available quantity in your cart.

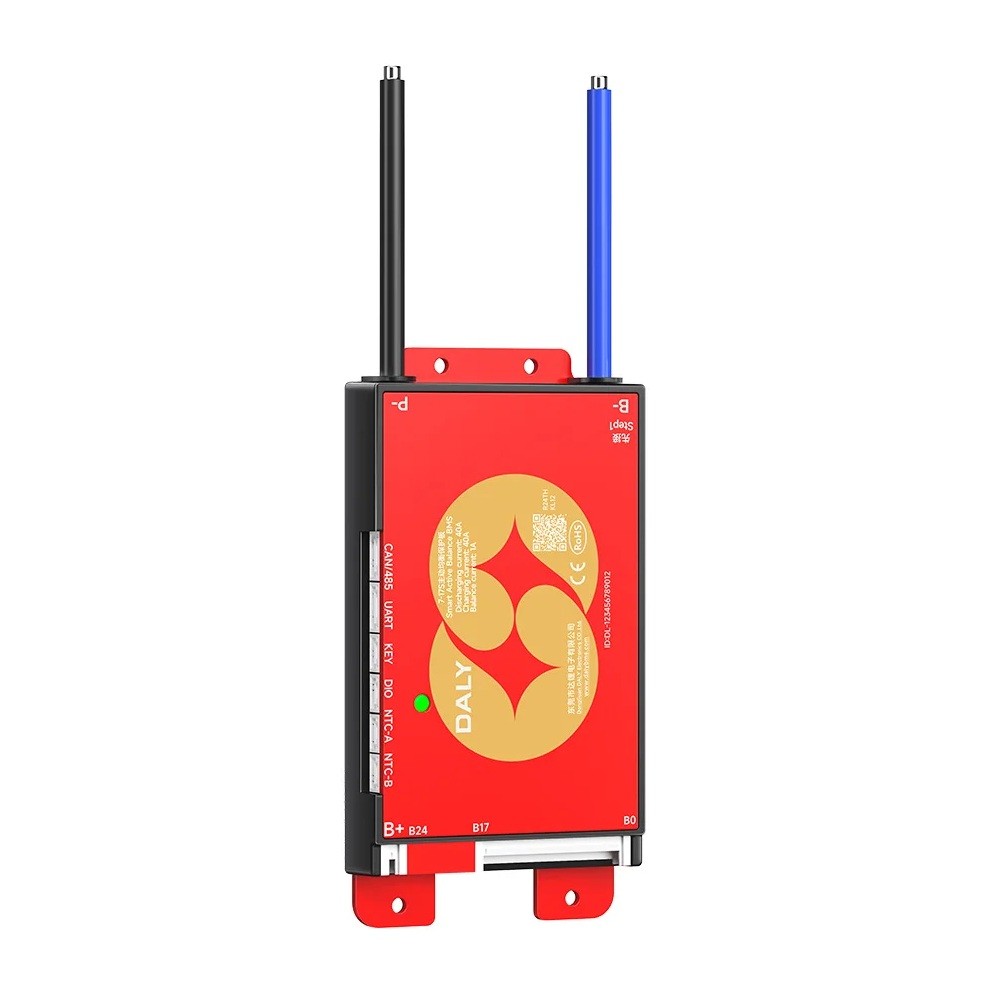

DALY Smart BMS is an intelligent protective board for lithium batteries LiFePO4 and Li-ion in a configuration of 7 to 17 cells in series. It handles continuous charging and discharging current of 60 A and a peak discharging current of up to 90 A. With support for 7S-17S LiFePO4 and Li-ion batteries, it is suitable for building and maintaining your own batteries. You can monitor the battery status and individual cells wirelessly via Bluetooth in a mobile app. The board measures the voltage of the cells in the range of 1.5 to 4.5 V and operates at a voltage above 10 V.
The built-in active balancing with a current of 1 A equalises the voltage of individual cells and increases the usable capacity and lifespan of the entire battery. In addition to Bluetooth, the board also offers communication via RS485 and CAN for connection to inverters and higher-level systems. The Smart BMS automatically manages charging and discharging and protects individual cells from overcharging, deep discharging, and short circuits. Wireless management in the mobile app allows for convenient monitoring of voltage, current, and state of charge at any time.
Main features:
- Cell support — 7S-17S LiFePO4 and Li-ion batteries
- Discharge and charge current — continuously 60 A
- Peak discharge current — up to 90 A
- Active balancing — current 1 A
- Communication — Bluetooth RS485 and CAN as well as UART
- Cell voltage measurement — 1.5 to 4.5 V
- Operating voltage — above 10 V
- Colour — red
- Operating temperature — -30 to 70 °C
- Storage temperature — -40 to 85 °C
Contents of the package:
- 1x DALY Smart BMS 7S-17S 60 A
This protective board represents a practical solution for assembling reliable lithium batteries for solar systems in caravans and boats. The active balancer and smart protection extend the lifespan of the cells and enhance the safety of the entire assembly. Reliable operation is ensured over a wide range of operating temperatures from -30 to 70 °C. Wireless management via Bluetooth and support for RS485 and CAN facilitate integration into higher-level systems. The red design with clear connectors simplifies installation and wiring.
