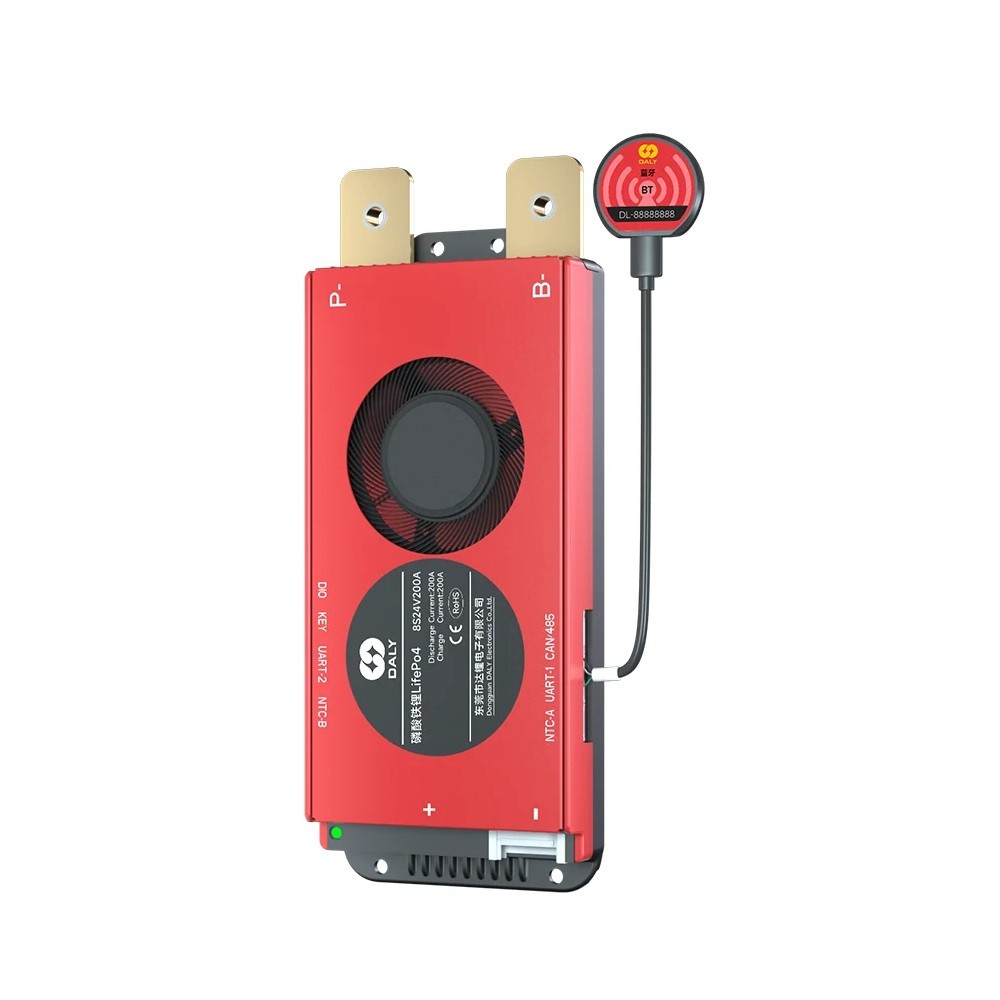

DALY Smart BMS 4S 12 V 200 A Battery Protection Module LiFePO4 66 x 164 x 21 mm Bluetooth RS485 CANBUS NTC Red for Lithium Batteries
You already have the maximum available quantity in your cart.
The DALY Smart BMS is an electronic protection and control module designed for lithium iron phosphate batteries LiFePO4 in a 4S configuration with a nominal voltage of 12 V. The module is designed for charging and discharging currents of up to 200 A and protects the battery from overload, deep discharge, and short circuits. With the integrated Bluetooth connection, you can conveniently monitor and adjust the battery status directly from a mobile app without needing to physically access the module. The included NTC sensor continuously monitors the temperature of the cells, and the RS485 and CANBUS communication interfaces allow connection to superior systems, inverters, or monitoring units. The integrated fan in the metal housing dissipates heat even under higher loads.
Main features:
- High current — the module handles charging and discharging currents of up to 200 A and protects the battery from overload
- 4S configuration — designed for LiFePO4 batteries with a nominal voltage of 12 V
- Bluetooth control — wireless monitoring of voltage, current, and battery status via a mobile app
- NTC sensor — continuous temperature measurement of the cells during charging and discharging for enhanced safety
- RS485 and CANBUS interfaces — connection to superior systems, inverters, and control units
- Active cooling — integrated fan and metal housing for better heat dissipation
- Dimensions — 66 x 164 x 21 mm for easy placement in battery assemblies
- Red design — clearly labelled terminals P-, B-, NTC, and communication ports
Package contents:
- 1x DALY Smart BMS module 4S 200 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x B-P cable
The DALY Smart BMS combines protection, monitoring, and control of the battery into one compact unit. It is suitable for LiFePO4 batteries in a 4S configuration with a voltage of 12 V and can handle high current loads without the need for complex operation. Wireless connectivity, along with the temperature sensor, allows for real-time monitoring of the battery, ensuring you have constant control over its operation. Active cooling and the metal housing contribute to heat dissipation even under prolonged loads. The module is a practical solution for the construction, maintenance, and safe operation of lithium battery assemblies.
