DALY Smart BMS 4S 12 V 100 A Balancer Bluetooth and NTC Sensor 65 x 123 x 14 mm for LiFePO4 Batteries Red Caravans and Photovoltaics
You already have the maximum available quantity in your cart.

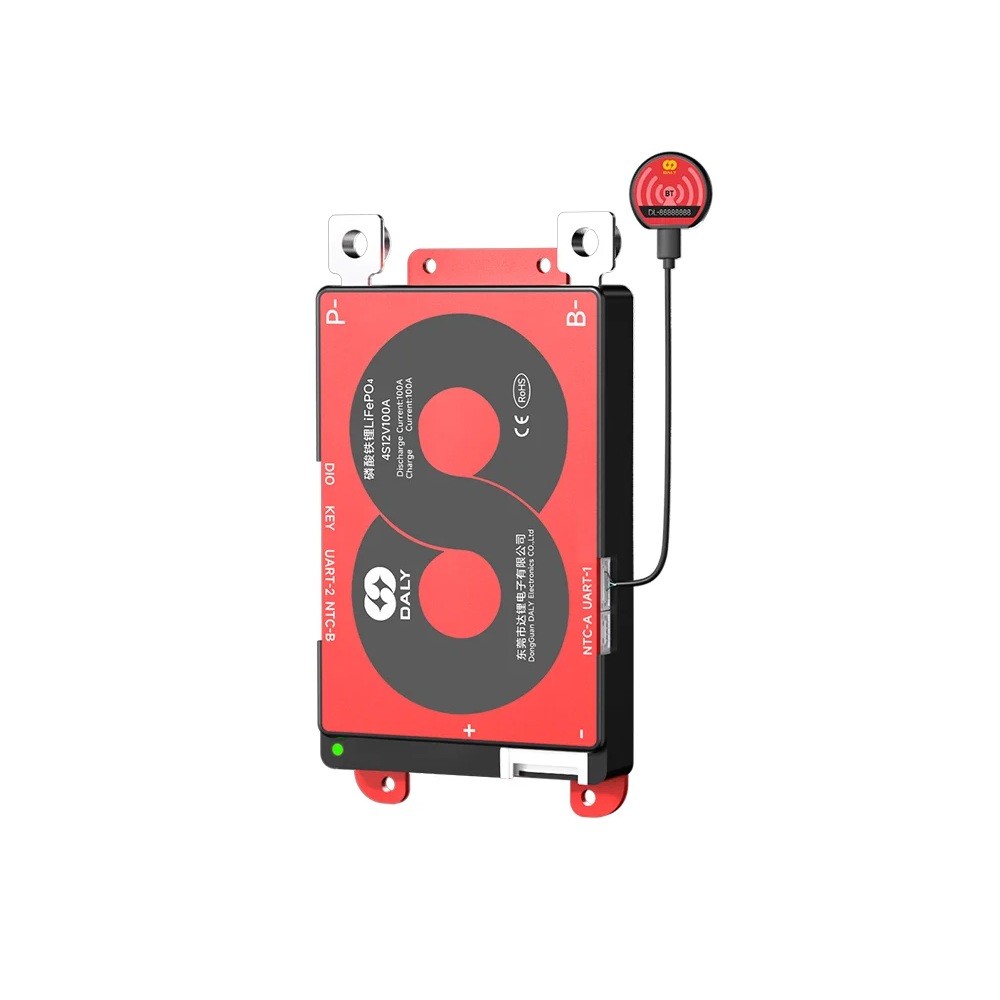

DALY Smart BMS is an intelligent protection board for constructing lithium LiFePO4 batteries. It is designed for 4S LiFePO4 batteries with a voltage of 12 V and handles a continuous charging and discharging current of 100 A with overcurrent protection at 150 A. You can monitor the battery status wirelessly via the included Bluetooth module in a mobile app. The internal resistance of the circuit is less than 20 mΩ, which increases efficiency and reduces heating. The compact board with dimensions of 65 x 123 x 14 mm easily fits into smaller assemblies.
The built-in passive balancing with a current of 100 mA equalises the voltage of individual cells and increases the usable capacity and lifespan of the battery. The board protects the cells from overcharging with a threshold of 3.75 V and deep discharging with a threshold of 2.2 V, overcurrent, and short circuit. Temperature measurement is taken care of by the included NTC sensor, and the package also includes a Bluetooth module. Low standby consumption of under 550 µA ensures minimal self-discharge of the connected battery.
Main features:
- Battery support — 4S LiFePO4 with a voltage of 12 V
- Discharge and charge current — continuously 100 A
- Overcurrent protection — at 150 A
- Passive balancing — current 100 mA
- Cell protection — against overcharging 3.75 V and deep discharging 2.2 V
- Communication — Bluetooth module included
- Temperature measurement — NTC sensor
- Internal resistance — below 20 mΩ
- Colour — red
- Dimensions — 65 x 123 x 14 mm
- Operating temperature — -35 to 75 °C
- Storage temperature — -40 to 85 °C
Contents of the package:
- 1x DALY Smart BMS 4S 12 V 100 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x set of B- and P- cables
This protection board represents a practical solution for assembling 12V LiFePO4 batteries for caravans, photovoltaics, and home energy storage. It is also suitable for use in electric vehicles, tricycles, forklifts, and golf carts. The balancer and multi-level protection extend the lifespan of the cells and enhance the safety of the assembly. Reliable operation is ensured over a wide range of operating temperatures from -35 to 75 °C. The included Bluetooth module, temperature sensor, and connecting cables allow for immediate connection without the need for additional accessories.
