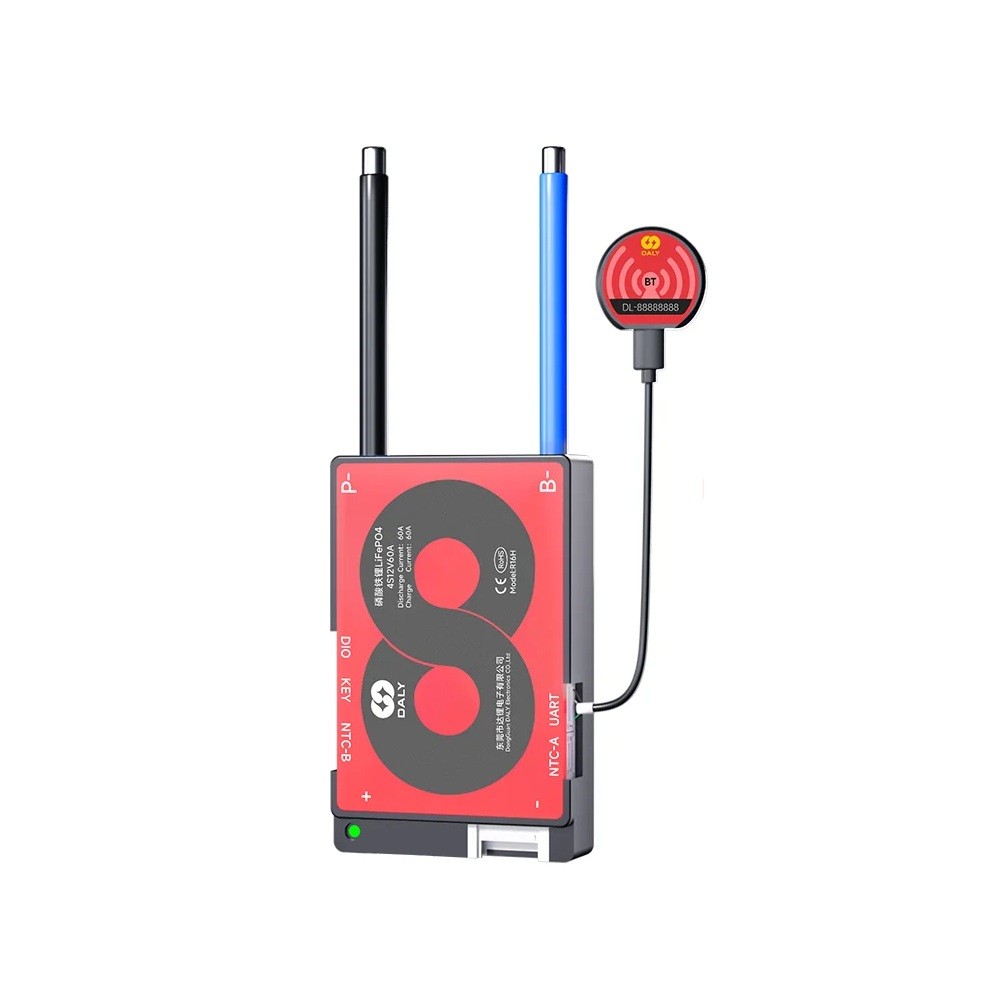

DALY Smart BMS 16S 48 V 60 A Bluetooth Balancer and NTC Sensor 48 x 75 x 14 mm for LiFePO4 Batteries Red Caravans and Photovoltaics
You already have the maximum available quantity in your cart.
The DALY Smart BMS is an intelligent protection board for constructing lithium LiFePO4 batteries. It is designed for 16S LiFePO4 batteries with a voltage of 48 V and handles a continuous charging and discharging current of 60 A with overcurrent protection at 90 A. You can monitor the battery status wirelessly via the included Bluetooth module in a mobile application. The internal resistance of the circuit is less than 20 mΩ, which increases efficiency and reduces heating. The compact board with dimensions of 48 x 75 x 14 mm easily fits into smaller assemblies.
Built-in passive balancing with a current of 100 mA equalises the voltage of individual cells and increases the usable capacity and lifespan of the battery. The board protects the cells from overcharging with a threshold of 3.75 V and deep discharging with a threshold of 2.2 V, as well as overcurrent and short circuits. The included NTC sensor takes care of temperature measurement, and the Bluetooth module is also included in the package. Low standby consumption of under 550 µA ensures minimal self-discharge of the connected battery.
Main features:
- Battery support — 16S LiFePO4 with a voltage of 48 V
- Discharge and charge current — continuously 60 A
- Overcurrent protection — at 90 A
- Passive balancing — current 100 mA
- Cell protection — against overcharging at 3.75 V and deep discharging at 2.2 V
- Communication — Bluetooth module included
- Temperature measurement — NTC sensor
- Internal resistance — below 20 mΩ
- Colour — red
- Dimensions — 48 x 75 x 14 mm
- Operating temperature — -35 to 75 °C
- Storage temperature — -40 to 85 °C
Package contents:
- 1x DALY Smart BMS 16S 48 V 60 A
- 1x Bluetooth module
- 1x NTC temperature sensor
This protection board represents a practical solution for assembling 48V LiFePO4 batteries for photovoltaic systems in motorhomes and home energy storage. It is also suitable for use in electric vehicles, tricycles, forklifts, and golf carts. The balancer and multi-level protection extend the lifespan of the cells and enhance the safety of the assembly. Reliable operation is ensured across a wide range of operating temperatures from -35 to 75 °C. The included Bluetooth module and temperature sensor allow for immediate connection without the need for additional accessories.
