DALY Smart BMS 16S 48 V 40 A Bluetooth Balancer and NTC Sensor 48 x 75 x 14 mm for LiFePO4 Batteries Red Caravans and Photovoltaics
You already have the maximum available quantity in your cart.

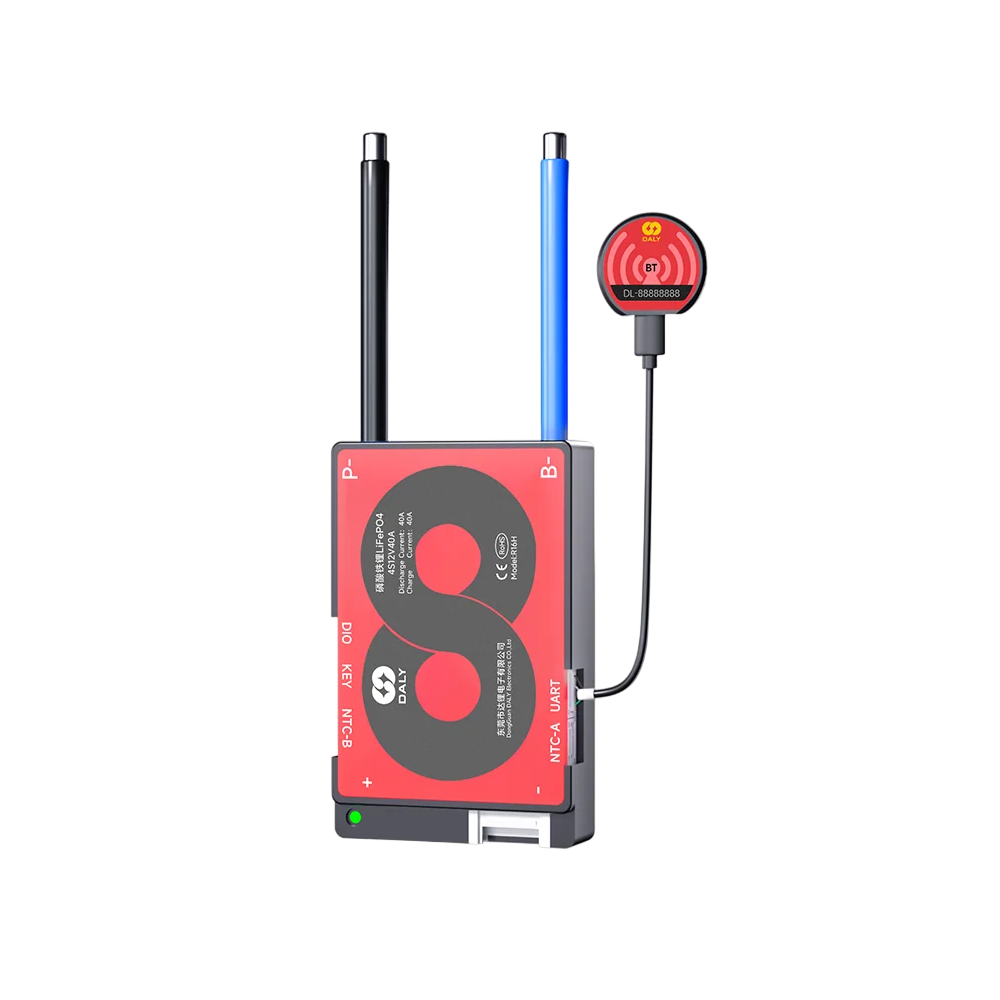

The DALY Smart BMS is an intelligent protection board for constructing lithium batteries LiFePO4. It is designed for 16S LiFePO4 batteries with a voltage of 48 V and handles continuous charging and discharging current of 40 A with overcurrent protection at 60 A. You can monitor the battery status wirelessly via the included Bluetooth module in a mobile application. The internal resistance of the circuit is less than 20 mΩ, which increases efficiency and reduces heating. The compact board with dimensions of 48 x 75 x 14 mm easily fits into smaller setups.
Built-in passive balancing with a current of 100 mA equalises the voltage of individual cells and increases usable capacity and battery life. The board protects the cells from overcharging with a threshold of 3.75 V and deep discharge with a threshold of 2.2 V, overcurrent, and short circuit. The included NTC sensor takes care of temperature measurement, and the Bluetooth module is also included in the package. Low standby current consumption of under 550 µA ensures minimal self-discharge of the connected battery.
Main features:
- Battery support — 16S LiFePO4 with a voltage of 48 V
- Discharge and charge current — continuously 40 A
- Overcurrent protection — at 60 A
- Passive balancing — current 100 mA
- Cell protection — against overcharging 3.75 V and deep discharge 2.2 V
- Communication — Bluetooth module included
- Temperature measurement — NTC sensor
- Internal resistance — under 20 mΩ
- Colour — red
- Dimensions — 48 x 75 x 14 mm
- Operating temperature — -35 to 75 °C
- Storage temperature — -40 to 85 °C
Package contents:
- 1x DALY Smart BMS 16S 48 V 40 A
- 1x Bluetooth module
- 1x NTC temperature sensor
This protection board represents a practical solution for assembling 48V LiFePO4 batteries for photovoltaic systems in motorhomes and home energy storage. It can also be used in electric vehicles, tricycles, forklifts, and golf carts. The balancer and multi-level protection extend the life of the cells and increase the safety of the assembly. Reliable operation is ensured over a wide range of operating temperatures from -35 to 75 °C. The included Bluetooth module and temperature sensor allow for immediate connection without the need for additional accessories.
