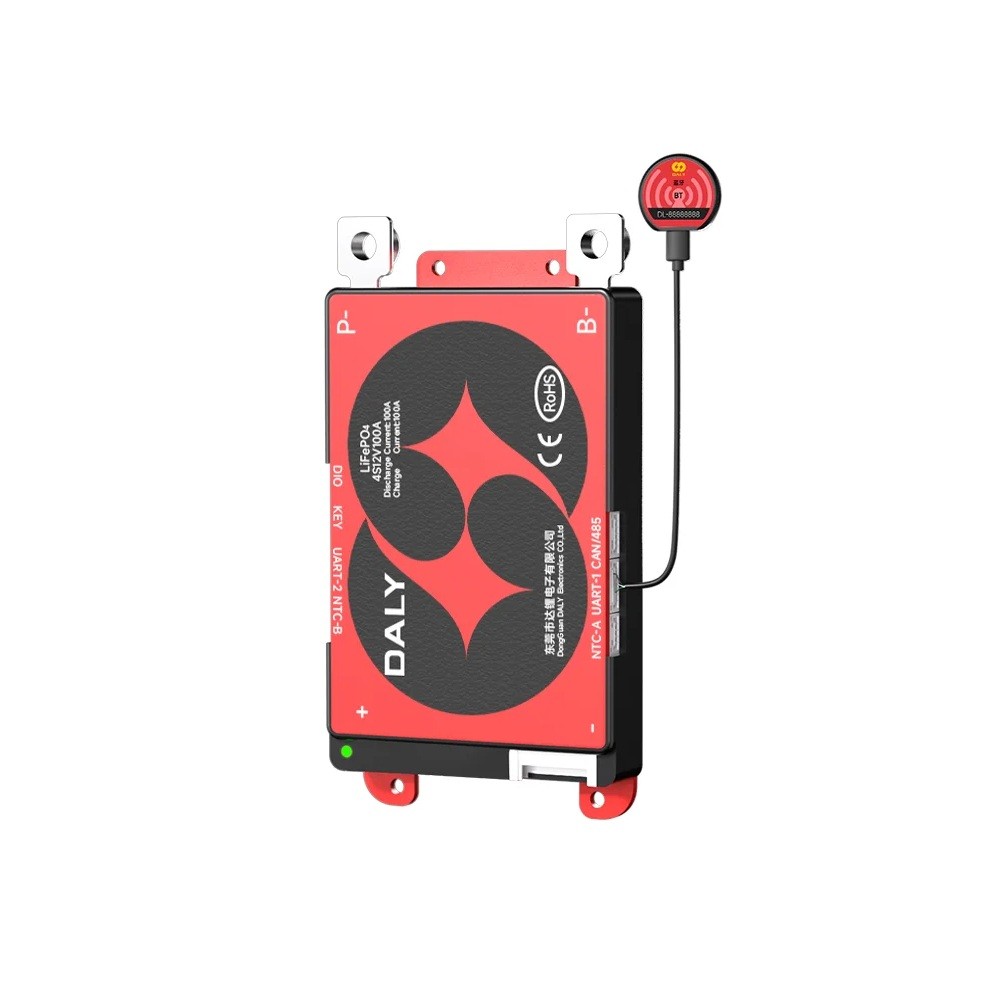

DALY Smart BMS 16S 48 V 100 A Battery Protection Module LiFePO4 65 x 123 x 14 mm Bluetooth RS485 CANBUS NTC Red for Lithium Batteries
You already have the maximum available quantity in your cart.
DALY Smart BMS is an electronic protection and control module designed for lithium iron phosphate batteries LiFePO4 in a 16S configuration with a nominal voltage of 48 V. The module is designed for charging and discharging current up to 100 A and protects the battery from overload, deep discharge, and short circuit. With integrated Bluetooth connectivity, you can conveniently monitor and adjust the battery status directly from a mobile app without needing physical access to the module. The included NTC sensor continuously monitors the temperature of the cells, and the RS485 and CANBUS communication interfaces allow connection to superior systems, inverters, or monitoring units. Its compact design facilitates installation in battery boxes and custom assemblies.
Main features:
- High current — the module handles charging and discharging current up to 100 A and protects the battery from overload
- 16S configuration — designed for LiFePO4 batteries with a nominal voltage of 48 V
- Bluetooth control — wireless monitoring of voltage, current, and battery status via a mobile app
- NTC sensor — continuous temperature measurement of cells during charging and discharging for enhanced safety
- RS485 and CANBUS interface — connection to superior systems, inverters, and control units
- Compact dimensions — 65 x 123 x 14 mm allow easy placement in battery assemblies
- Red design — clearly labelled terminals P-, B-, NTC, and communication ports
Package contents:
- 1x DALY Smart BMS module 16S 100 A
- 1x Bluetooth module
- 1x NTC temperature sensor
- 1x B-P- cable
DALY Smart BMS combines protection, monitoring, and control of the battery into one compact unit. It is suitable for LiFePO4 batteries in a 16S configuration with a voltage of 48 V and provides reliable protection and clear information about the status of the cells. Wireless connectivity together with the temperature sensor allows real-time monitoring of the battery, ensuring you have constant control over operations. The RS485 and CANBUS interfaces also facilitate integration into larger energy systems. The module is thus a practical solution for the construction, maintenance, and safe operation of lithium battery assemblies.
