CW20 Digital Energy Meter 100 A WiFi Tuya Capacity Detector DC 0-420 V 2.0 Inch Colour Display and Bluetooth Black for Solar Systems

CW20 Digital Energy Meter 100 A WiFi Tuya Capacity Detector DC 0-420 V 2.0 Inch Colour Display and Bluetooth Black for Solar Systems

Monitors voltage, current, power and battery capacity with control via the Tuya and Smart Life app. Supports timer, voice control and Bluetooth connection. Full description
In stock
Delivery €1.59
30-day return policy
€90.35
Safe shopping Safe shopping
Overview
CW20 Digital Energy Meter 100 A WiFi Tuya Capacity Detector DC 0-420 V 2.0 Inch Colour Display and Bluetooth Black for Solar Systems

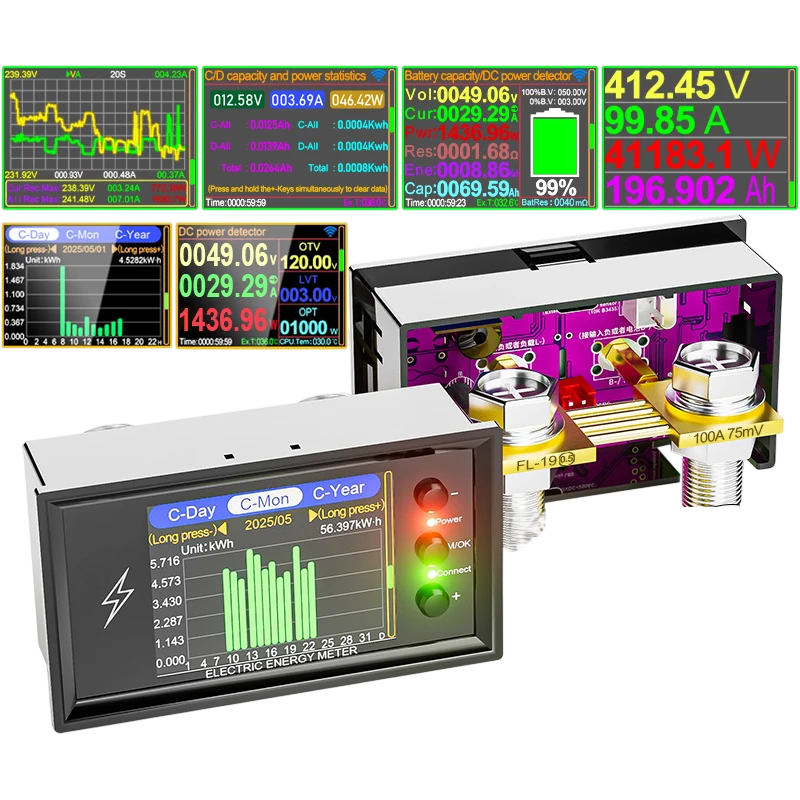

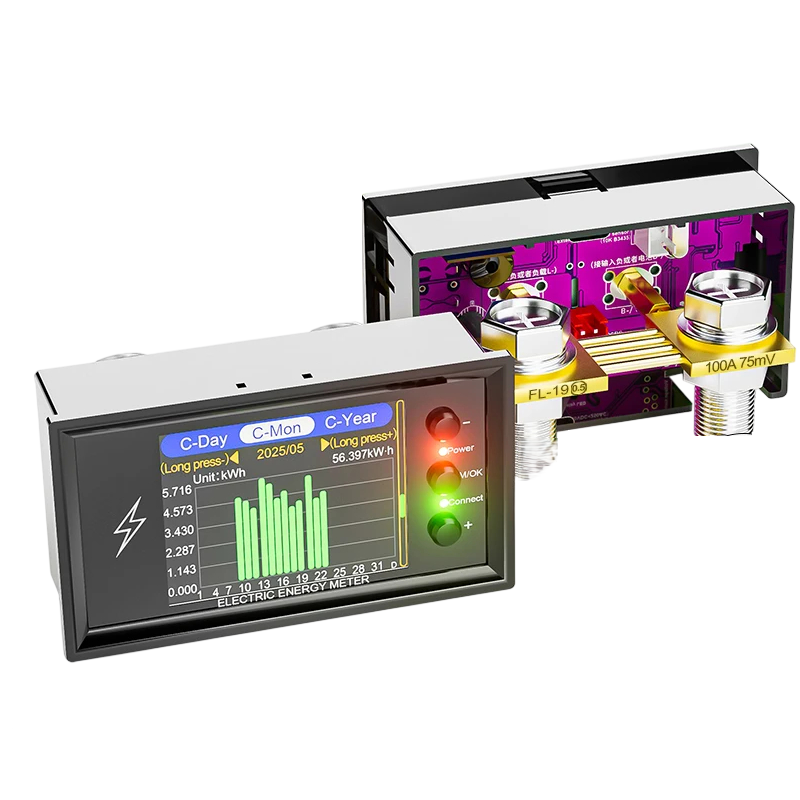

The CW20 is a smart digital energy meter and capacity detector for direct current circuits. It measures DC voltage 0-420 V and current 0-100 A, and displays power, capacity and energy consumption data clearly on a 2.0 inch colour display. It supports connection via WiFi and Bluetooth as well as online monitoring via computer. It can be controlled through the Tuya and Smart Life app, and also features a timer and voice control.

Main Features:

  • Measurement Range — Direct current voltage DC 0-420 V and current 0-100 A
  • Displayed Data — Voltage, current, power, capacity and energy consumption
  • Statistics — Overview of consumption by days, months and years
  • Display — 2.0 inch high-resolution colour display
  • Smart Control — via the Tuya and Smart Life apps
  • Connection — WiFi, Bluetooth and USB for connection to a computer
  • Functionality — Timer and voice control
  • Current Measurement — via shunt 100 A 75 mV
  • Temperature Measurement — with the included temperature probe
  • Dimensions — 87 x 50 x 50 mm
  • Design — Black plastic casing

Contents of the Package:

  • 1x CW20 Energy Meter 100 A WiFi Version
  • 1x Measuring Shunt 100 A 75 mV
  • 1x USB Power Cable
  • 1x Temperature Probe

This energy meter is suitable for monitoring solar systems, photovoltaic installations, recreational vehicles and home energy storage. It tracks voltage, current, power and energy consumption in kWh in one place and stores data in daily, monthly and yearly statistics. With WiFi and Bluetooth, you can monitor the circuit remotely via the mobile app. The temperature probe additionally provides temperature control measurements. Compact dimensions facilitate installation in distribution boards and smaller assemblies.
