Cooling Sheet for Electronics 100 x 100 x 1.25 mm with Thermal Conductivity 21 W/m.K Grey Non-Conductive for Cutting Parts for GPU CPU and SSD

Cooling Sheet for Electronics 100 x 100 x 1.25 mm with Thermal Conductivity 21 W/m.K Grey Non-Conductive for Cutting Parts for GPU CPU and SSD

Grey sheet 100 x 100 x 1.25 mm made of thermally conductive material 21 W/m.K, from which parts for GPU, CPU, and SSD can be cut using scissors. It does not conduct electricity. Full description
In stock
Delivery €1.59
30-day return policy
€23.97
Safe shopping Safe shopping
Overview
Cooling Sheet for Electronics 100 x 100 x 1.25 mm with Thermal Conductivity 21 W/m.K Grey Non-Conductive for Cutting Parts for GPU CPU and SSD

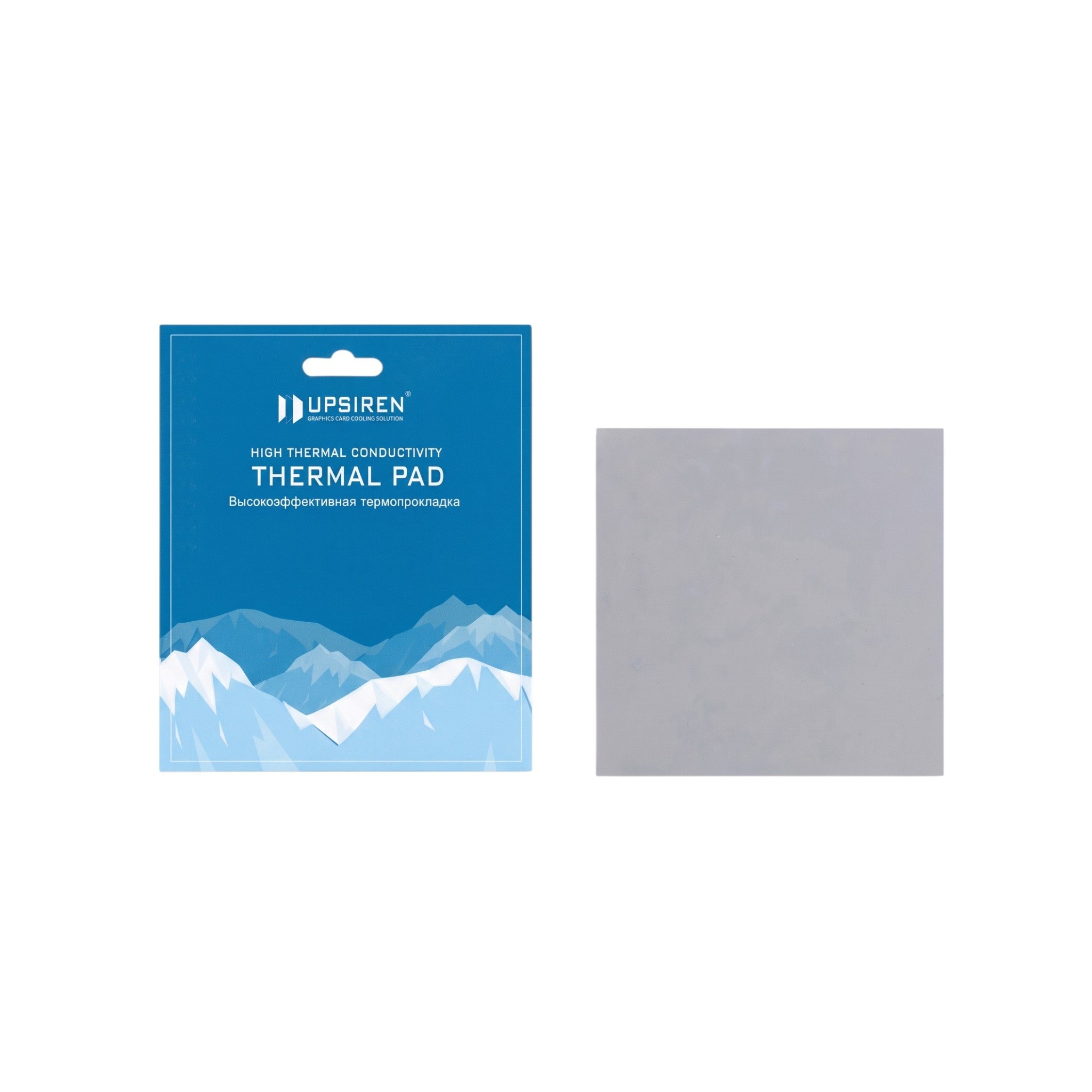

The cooling sheet for electronics measuring 100 x 100 mm serves as a supply of thermally conductive material from which pads for graphics cards, processors, M.2 SSDs, laptops, or gaming consoles can be cut. With a thickness of 1.25 mm, it is designed for areas where there is a gap between the chip and the cooler that needs to be reliably filled. The grey material with thermal conductivity of 21 W/m.K transfers heat from the component to the cooler while also compensating for minor surface irregularities. The sheet can be cut with scissors, and both sides are protected by a blue film.

  • Format 100 x 100 mm – the square sheet provides enough material for multiple parts of different sizes. Pads for memory chips and power for graphics cards, M.2 SSDs, and small chips on motherboards can be cut from it.
  • Thickness 1.25 mm – the layer fills the gap between the component and the cooler in devices where their construction requires it. It is advisable to measure the thickness of the original pad before replacement to ensure the cooler makes even contact with all chips after installation.
  • Conductivity 21 W/m.K – the material is suitable for components that heat up significantly under load, such as graphics memory, power circuits, processors, and SSD controllers. It dissipates heat across the entire area of contact with the chip.

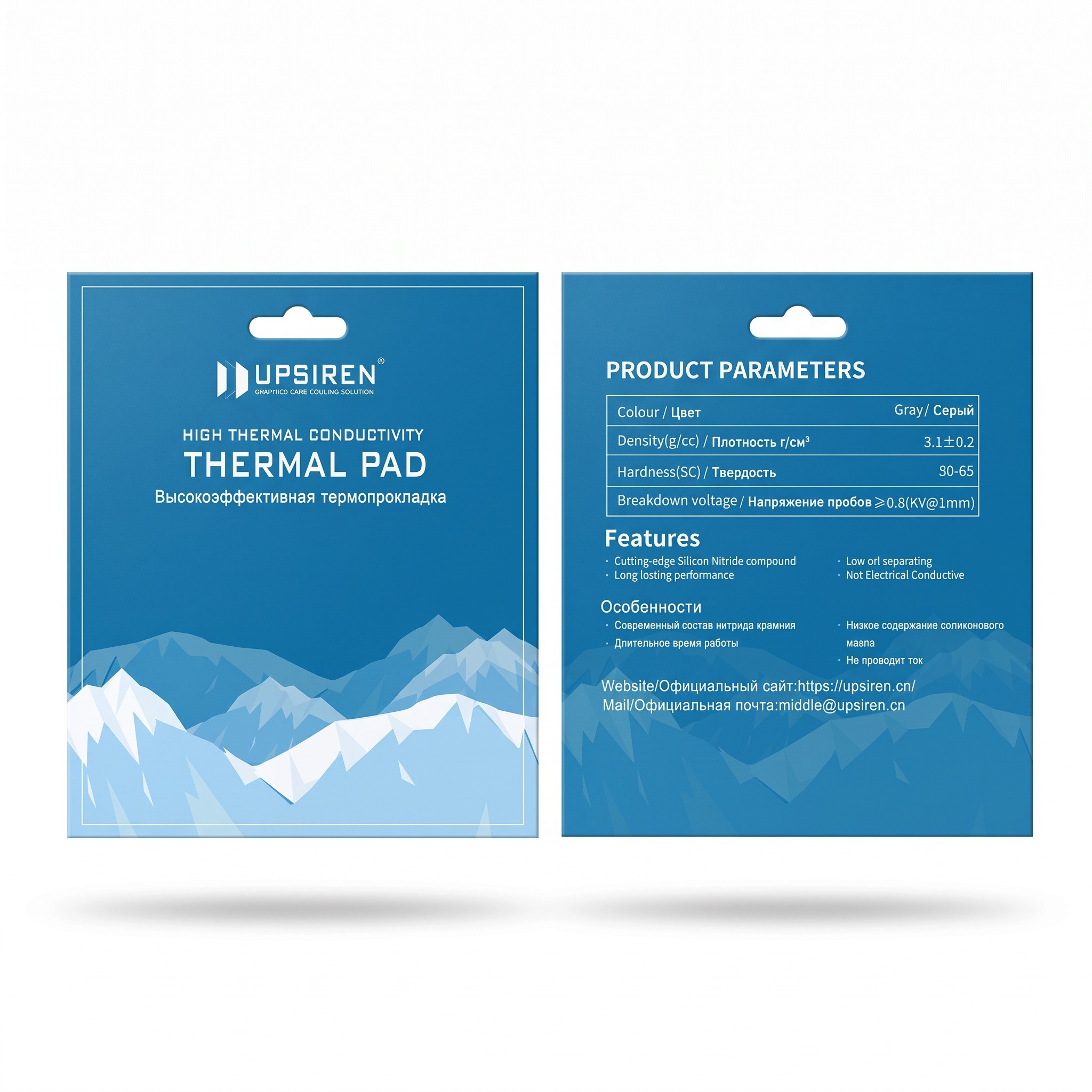

  • Electrically Non-Conductive – the sheet does not conduct electricity, and the parameter table indicates breakdown voltage of at least 9.8 kV per 1 mm. Therefore, parts made from it can be placed directly on populated printed circuit boards.

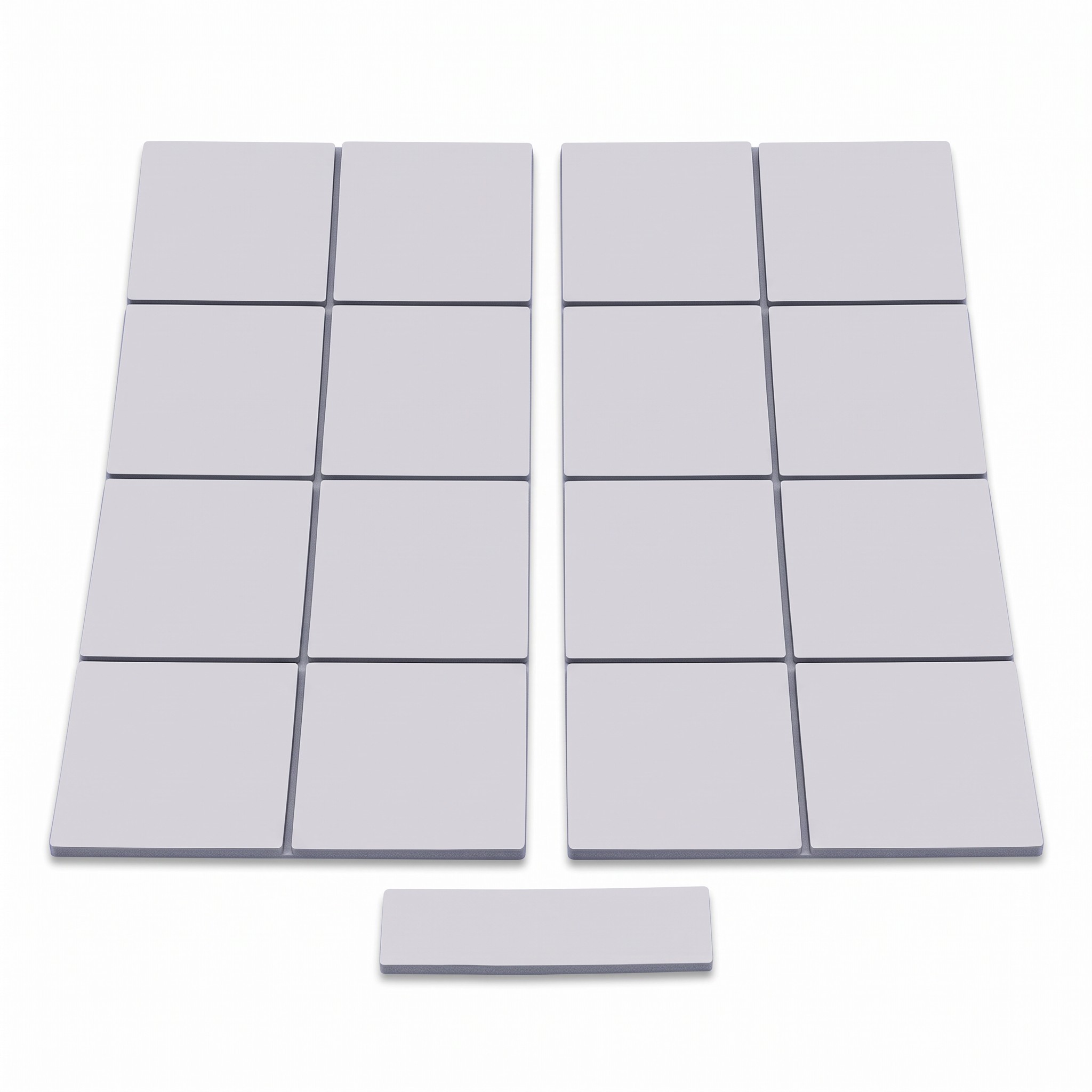

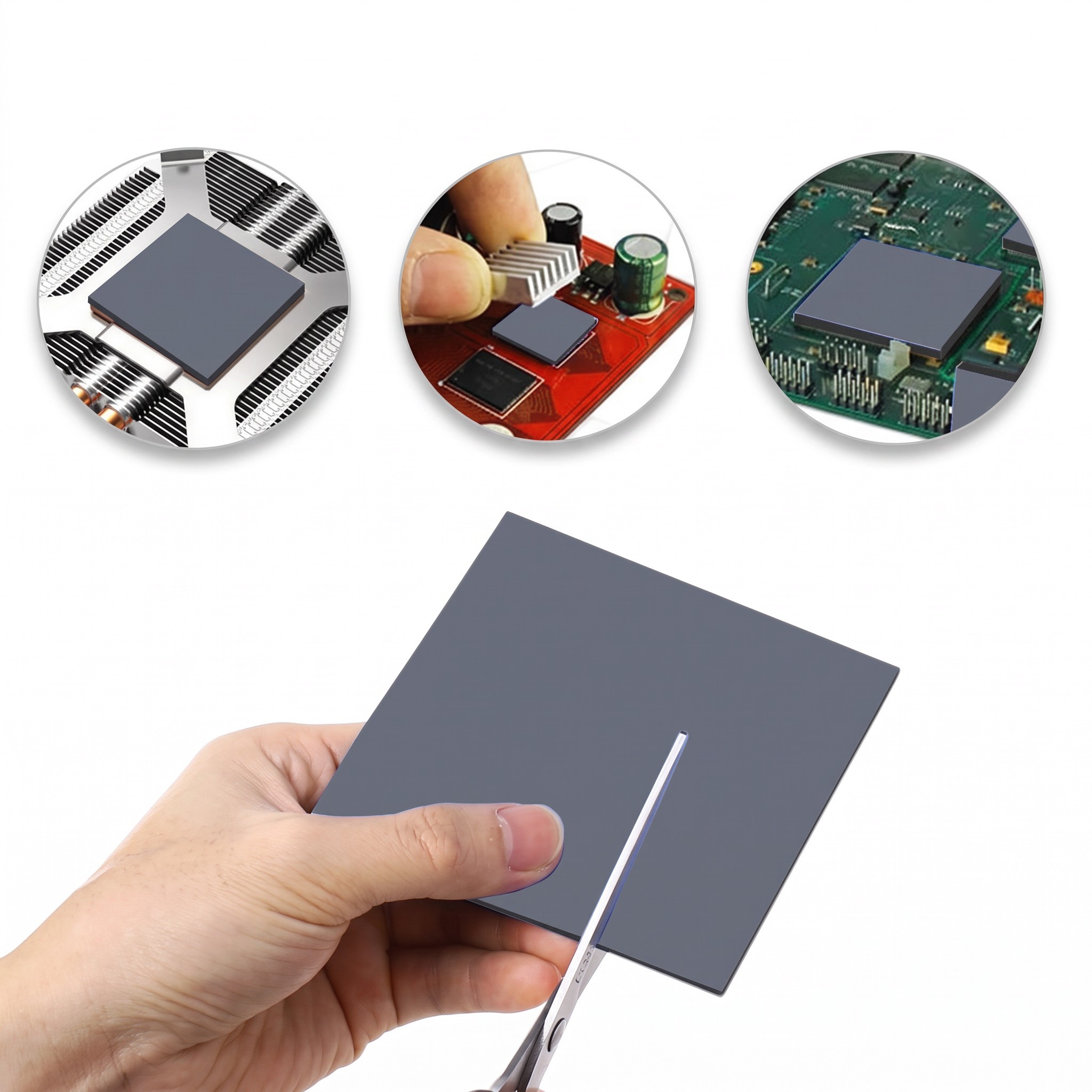

  • Easy Cutting – parts corresponding to the outline of a specific chip can be easily cut from the sheet with scissors. Leftover material can be saved for future repairs.

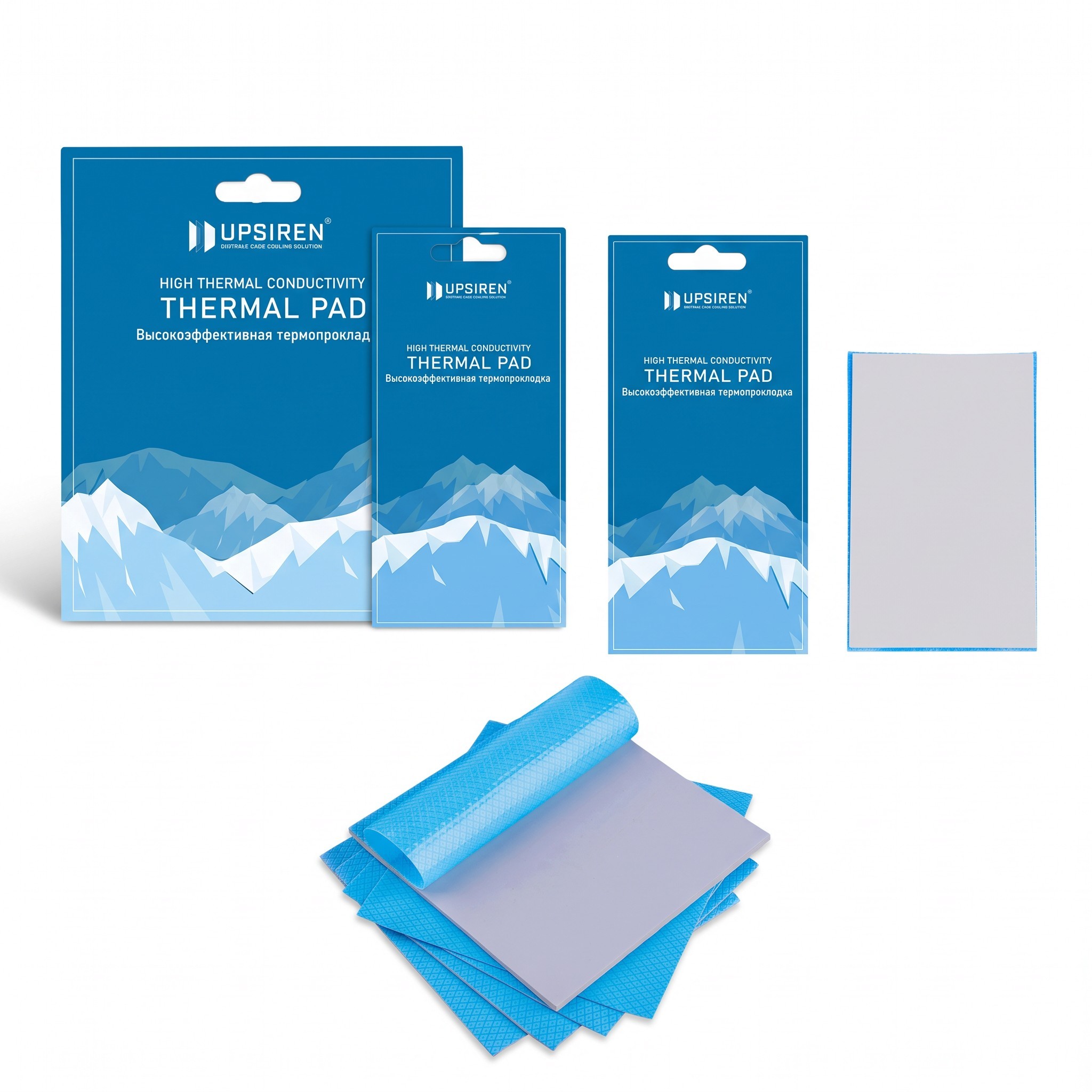

  • Film on Both Sides – the blue protective film shields the surface from dust and fingerprints during cutting and handling. It is removed just before placing the part on the component.
  • Suitable Devices – graphics cards, processors, M.2 SSDs, laptops, gaming consoles, chips on motherboards, and other electronics with cooling. It is always necessary for the thickness of 1.25 mm to match the gap in the given device.

Contents of the Package:

  • 1x cooling sheet 100 x 100 mm

The grey cooling sheet 100 x 100 x 1.25 mm is a useful material for repairs and maintenance of cooling systems in computers, laptops, and gaming consoles. The square area of 100 x 100 mm allows for cutting parts for multiple components while still leaving material in reserve. Replacement begins by removing the cooler, taking off the remnants of the old pad, and cleaning the surface of the chip. Then, a part of the appropriate shape is cut from the sheet, the film is removed, the part is placed on the component, and the cooler is reattached. Because the sheet does not conduct electricity, it can also be used on densely populated boards.
