Cooling Pad for Chips and Memory 100 x 100 x 2.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for PC Laptop and Console

Cooling Pad for Chips and Memory 100 x 100 x 2.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for PC Laptop and Console

The 100 x 100 x 2.5 mm pad in grey with a conductivity of 21 W/m.K is designed for a wide gap between the chip and the cooler. It does not conduct electricity and can be cut with scissors. Full description
In stock
Delivery €1.59
30-day return policy
€29.21
Safe shopping Safe shopping
Overview
Cooling Pad for Chips and Memory 100 x 100 x 2.5 mm with Conductivity 21 W/m.K Grey Non-Conductive for Cutting for PC Laptop and Console

The cooling pad for chips and memory has dimensions of 100 x 100 mm and serves as a grey sheet from which parts for graphics cards, processors, M.2 SSD drives, laptops, and gaming consoles can be cut using scissors. Thanks to the thickness of 2.5 mm, it is intended for devices where there is a wide gap between the component and the cooler. The material with thermal conductivity of 21 W/m.K fills this gap and transfers heat from the chip to the cooler. The flexible surface adapts to small irregularities of both the component and the cooler. Both sides of the sheet are protected by a blue film.

  • Sheet 100 x 100 mm – the square area allows for cutting multiple parts of various sizes. It can be used, for example, on memory and power circuits of the graphics card, on M.2 SSD drives, or on chips on the motherboard and in the laptop.
  • Thickness 2.5 mm – the pad is designed for places where the cooler is structurally distant from the component and the gap needs to be filled. It is advisable to measure the thickness of the original pad before replacement to ensure that the cooler fits all chips after installation.
  • Conductivity 21 W/m.K – the material is suitable for components that heat up significantly under load, such as graphics memory, power circuits, processors, or SSD controllers. It transfers heat across the entire contact area.

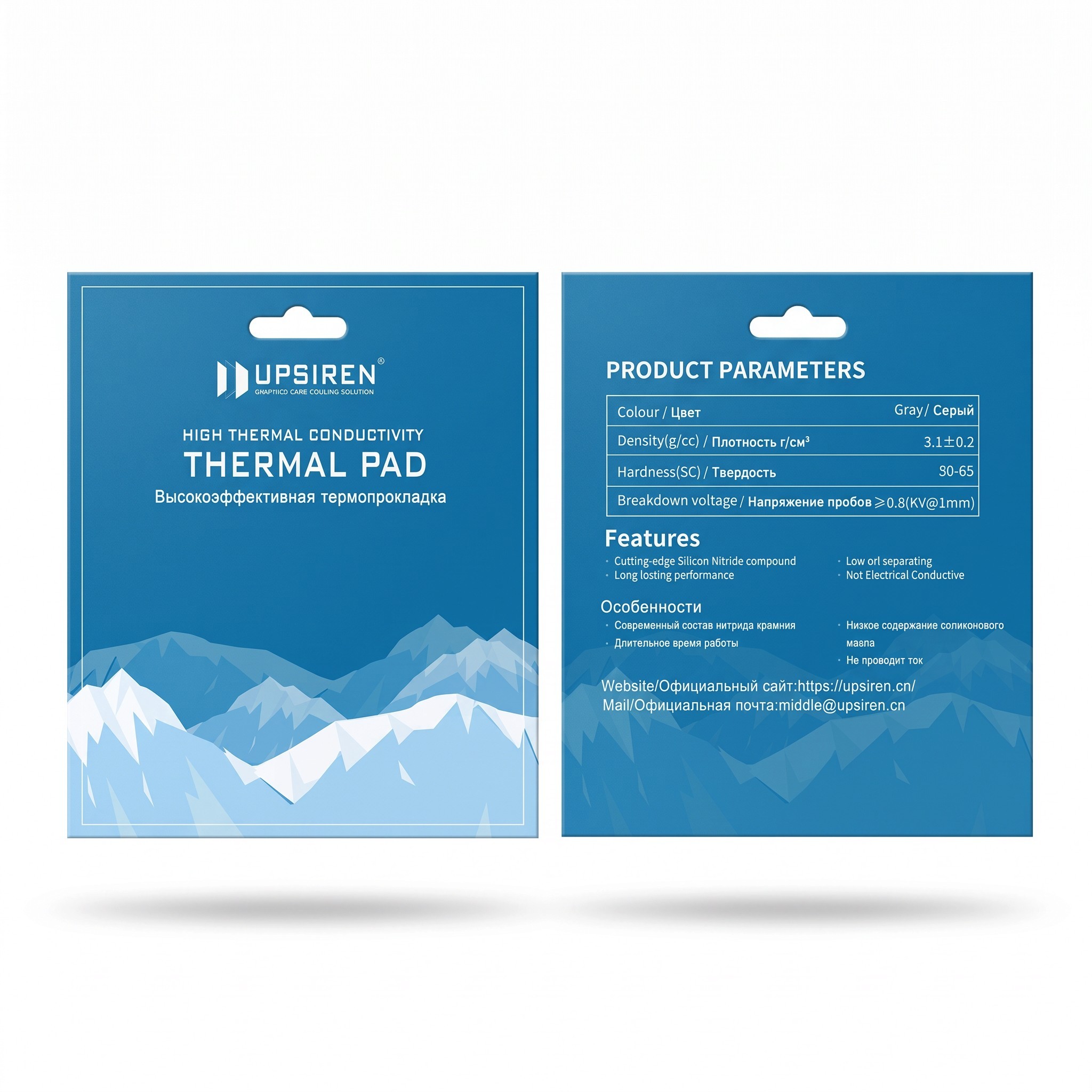

  • Electrically Non-Conductive Pad – the material does not conduct electricity and the parameter table states breakdown voltage of at least 9.8 kV per 1 mm. Parts can thus be placed directly on populated components of the printed circuit board.

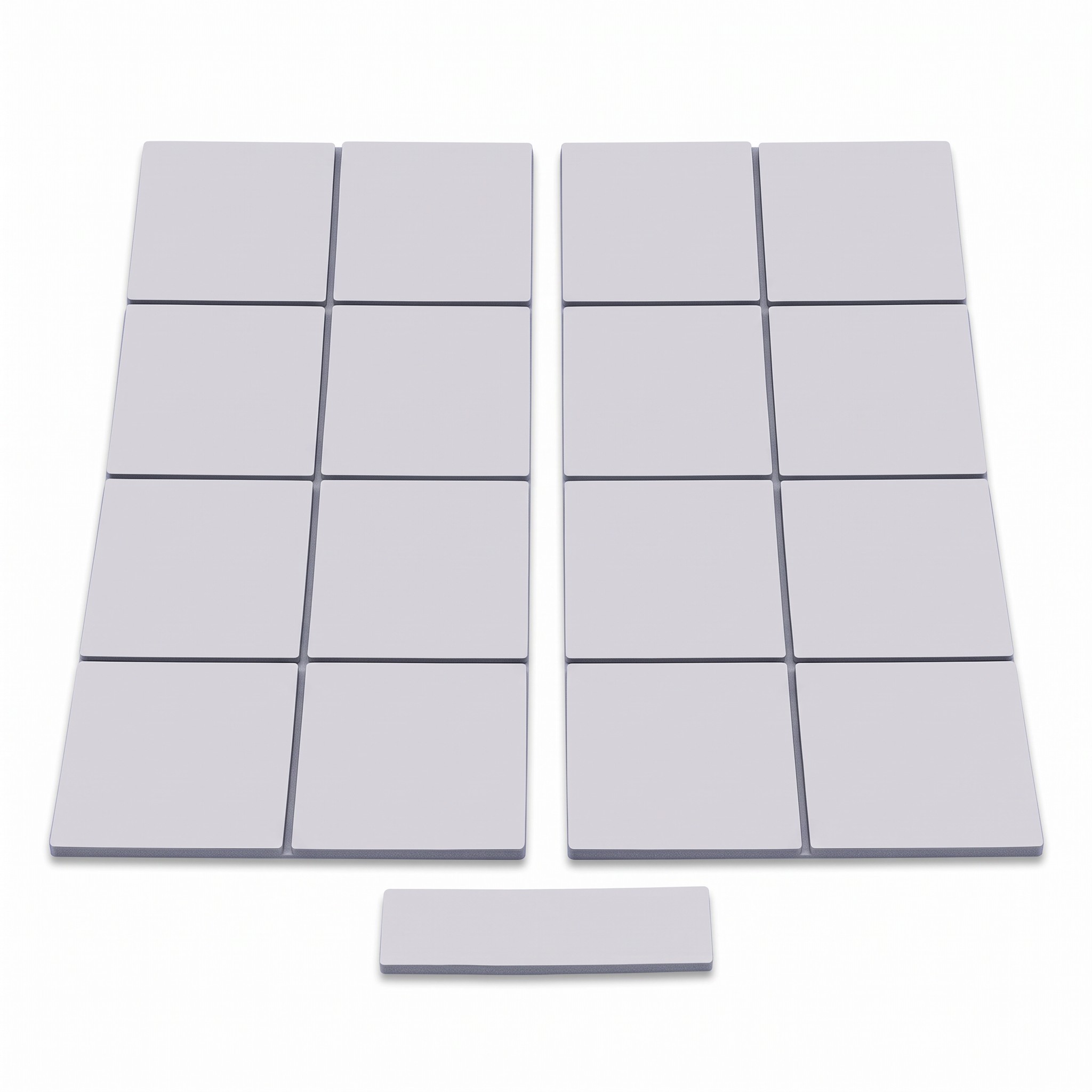

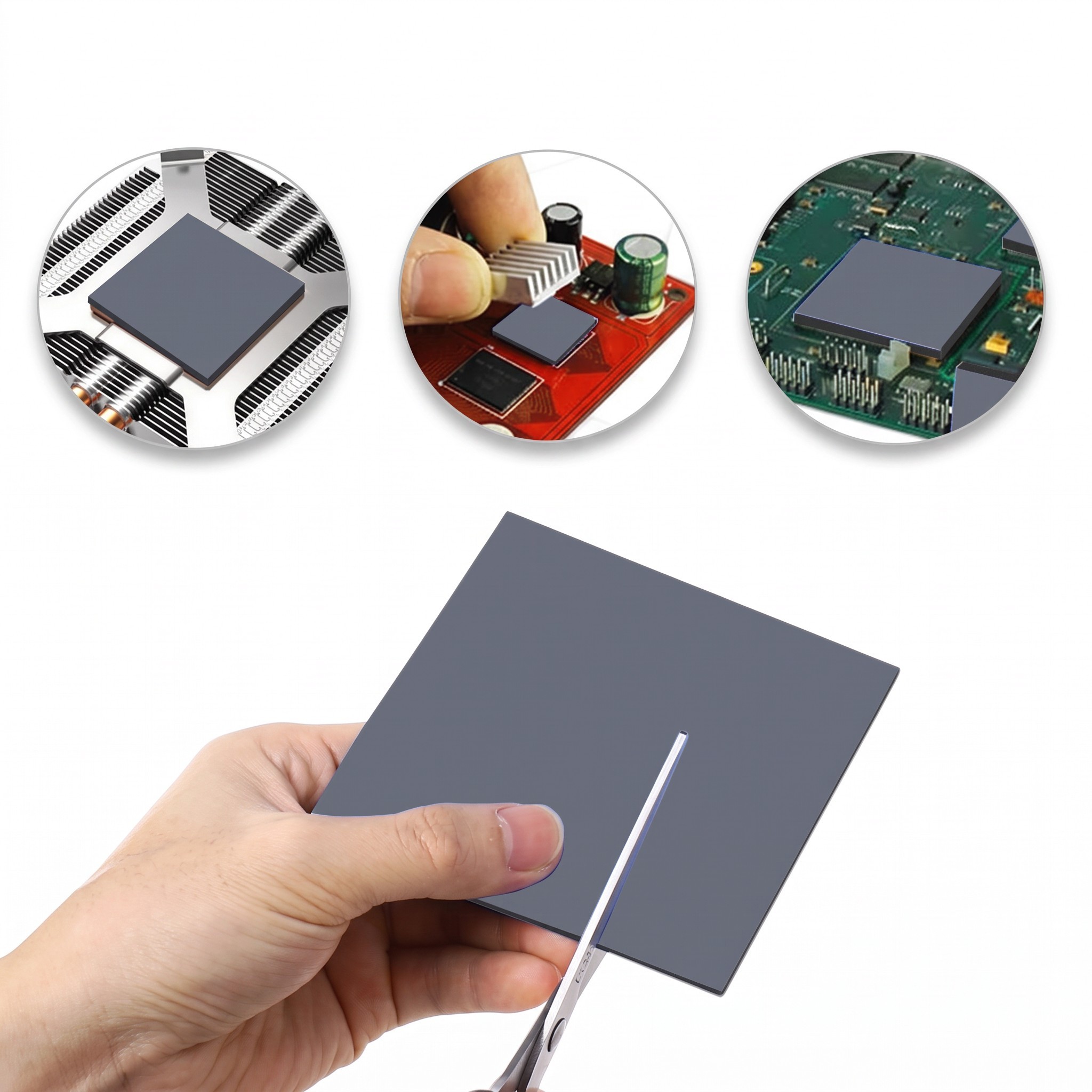

  • Custom Fit – the pad can be easily cut with scissors, allowing it to copy the shape of a specific chip or a whole group of components. Unused material can be stored for future maintenance.
  • Protective Film – the blue film on both sides protects the surface of the pad from dirt and fingerprints. It is removed only when the part is applied to the component.
  • Where to Use It – graphics cards, processors, M.2 SSD drives, laptops, gaming consoles, chips on motherboards, and other electronics with a cooler. It is always necessary for the thickness of 2.5 mm to match the gap in the specific device.

Package Contents:

  • 1x Thermal Conductive Pad 100 x 100 mm

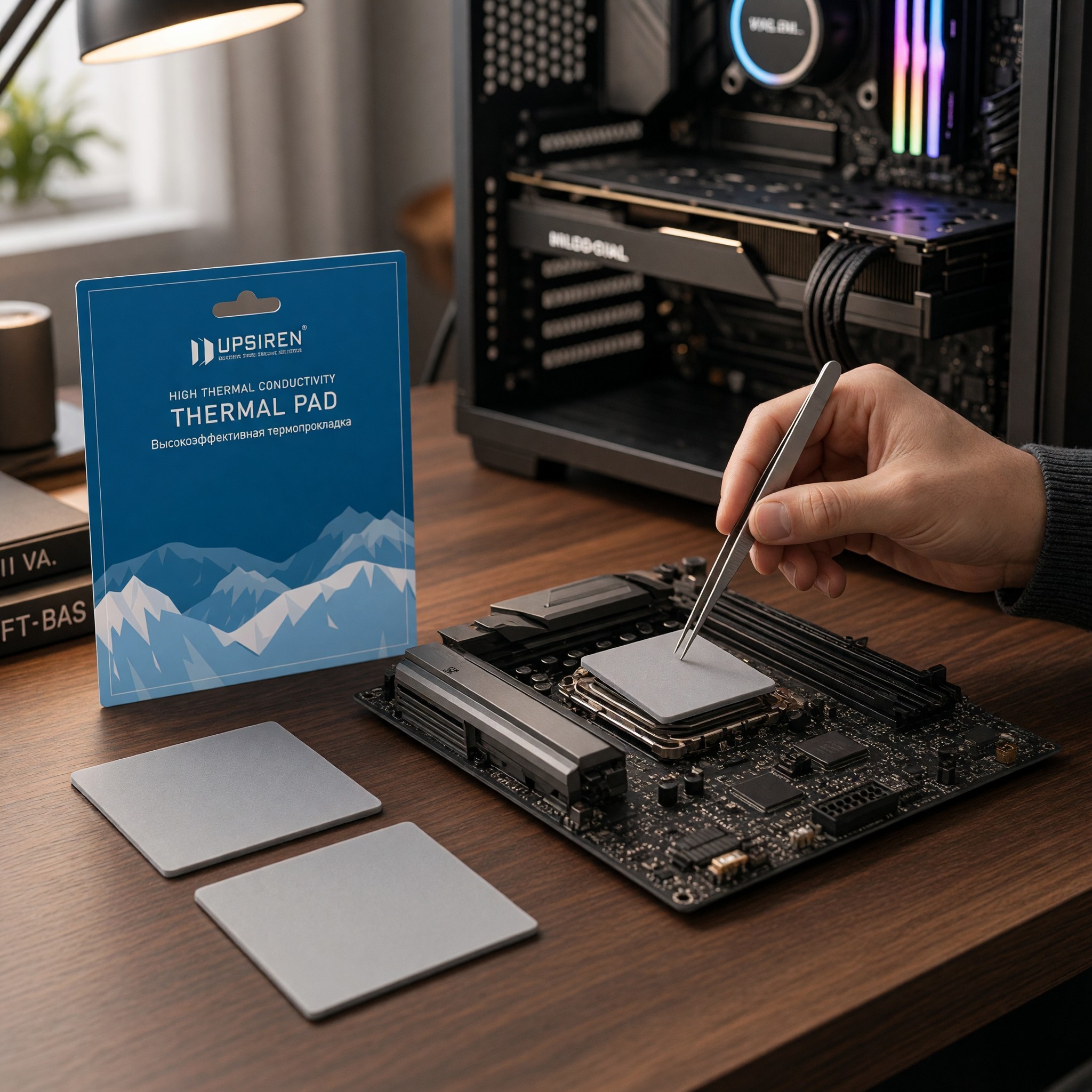

The grey cooling pad 100 x 100 x 2.5 mm is intended for maintenance and repair of cooling systems in computers, laptops, and gaming consoles. The area of 100 x 100 mm is sufficient for parts for multiple components, and a portion of the sheet can be kept in reserve. The process begins with removing the cooler, taking off the old pad, and cleaning the surface of the chip. Then, a part of the required shape is cut out, the film is removed from it, it is placed on the component, and the cooler is re-mounted. Because the pad does not conduct electric current, it is also suitable for densely populated boards.
