Cooling Pad 85 x 45 x 0.75 mm with Conductivity 21 W/m.K Grey for Cutting to Processor Graphics Card and M.2 SSD

Cooling Pad 85 x 45 x 0.75 mm with Conductivity 21 W/m.K Grey for Cutting to Processor Graphics Card and M.2 SSD

The pad 85 x 45 mm with a thickness of 0.75 mm dissipates heat from chips to the cooler with a conductivity of 21 W/m.K. It can be cut to shape for a processor, GPU, or M.2 SSD. Full description
In stock
Delivery €1.59
30-day return policy
€16.99
Safe shopping Safe shopping
Overview
Cooling Pad 85 x 45 x 0.75 mm with Conductivity 21 W/m.K Grey for Cutting to Processor Graphics Card and M.2 SSD

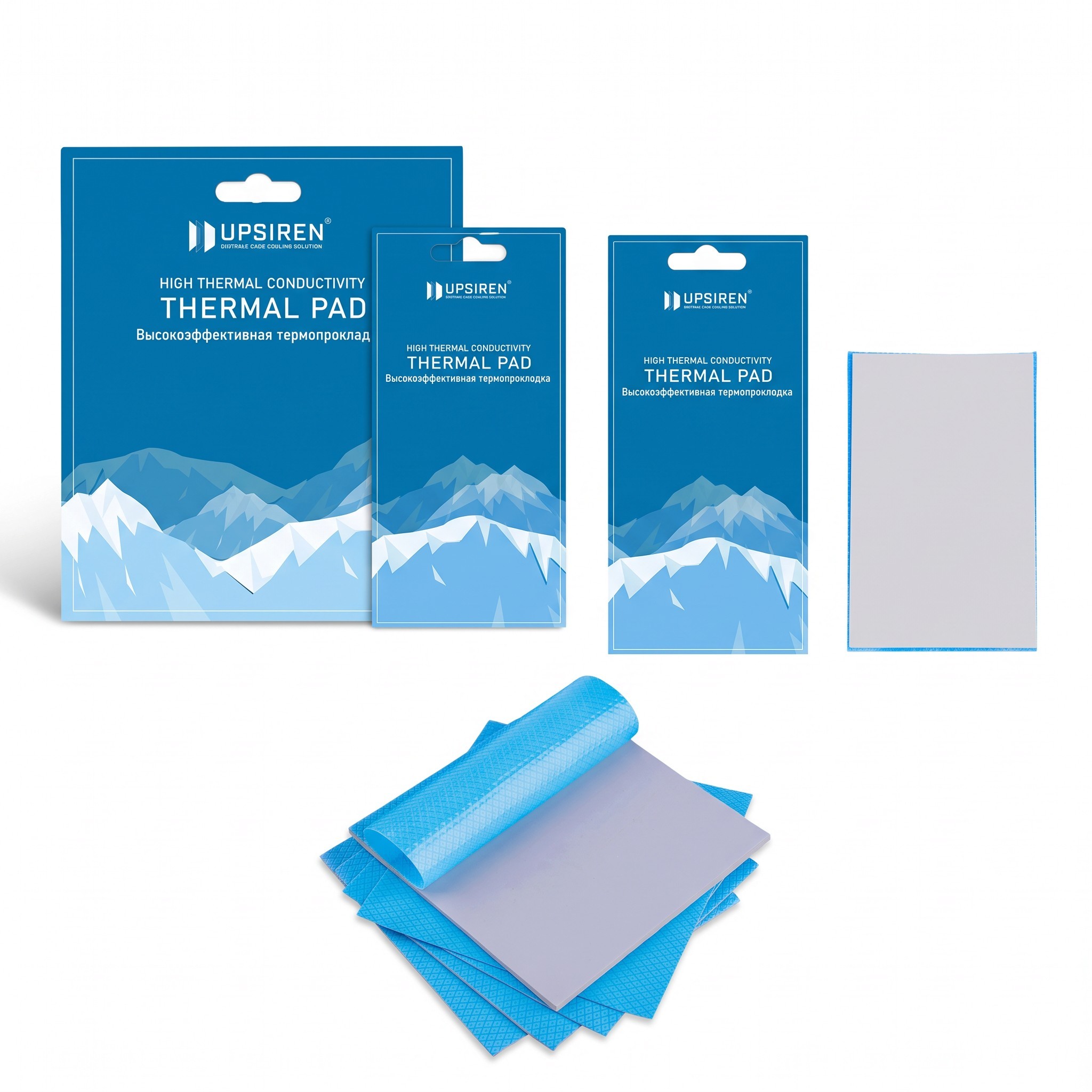

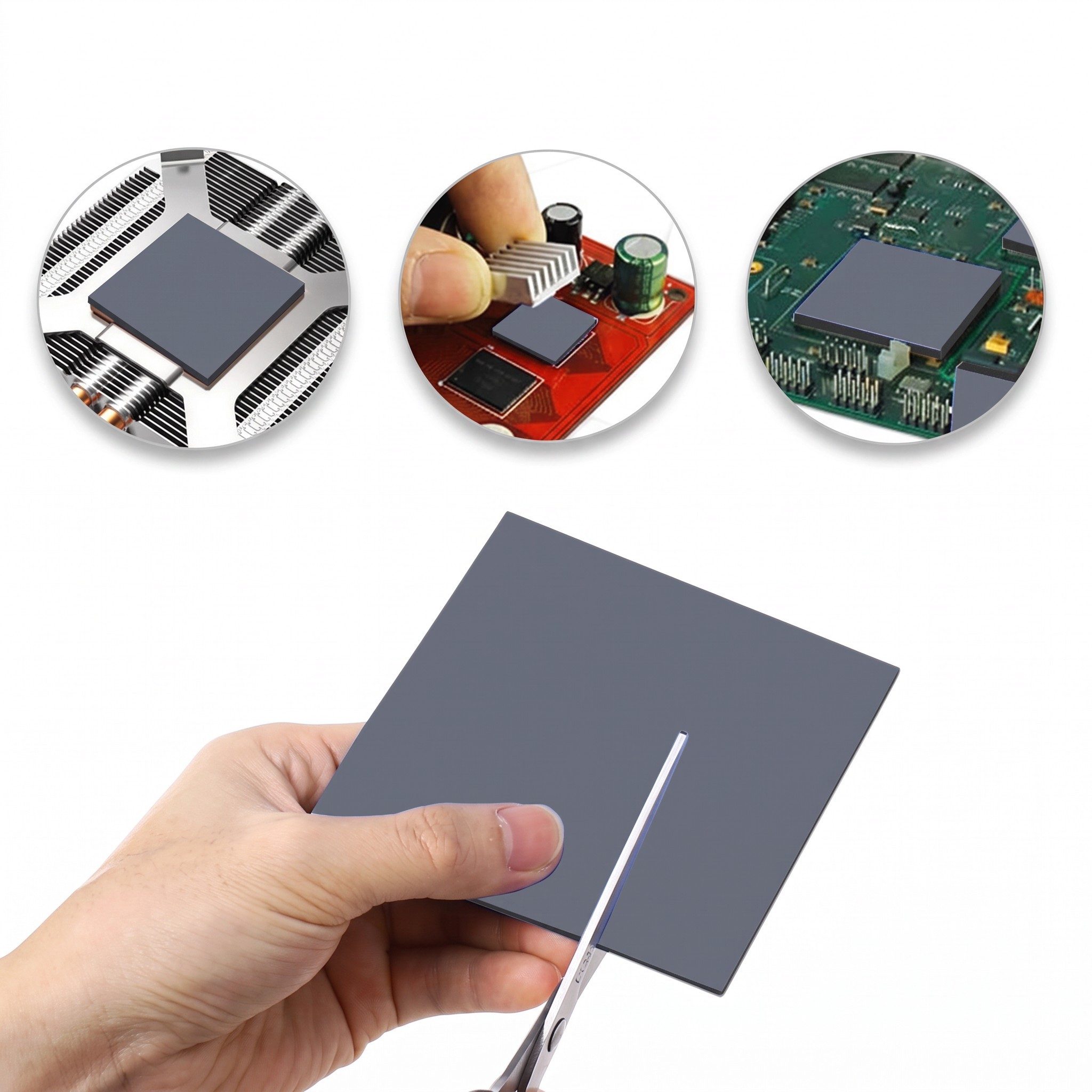

The cooling pad measuring 85 x 45 mm provides ample material for larger chips as well as multiple smaller components simultaneously. Its thickness of 0.75 mm corresponds to the space where the cooler is separated from the component by less than a millimetre. With a thermal conductivity of 21 W/m.K, heat from the chip smoothly transfers to the metal cooler, rather than accumulating in the air gap. The grey pad can be cut with scissors to the shape of the processor, graphics chip, or M.2 SSD. Both sides are covered with blue film.

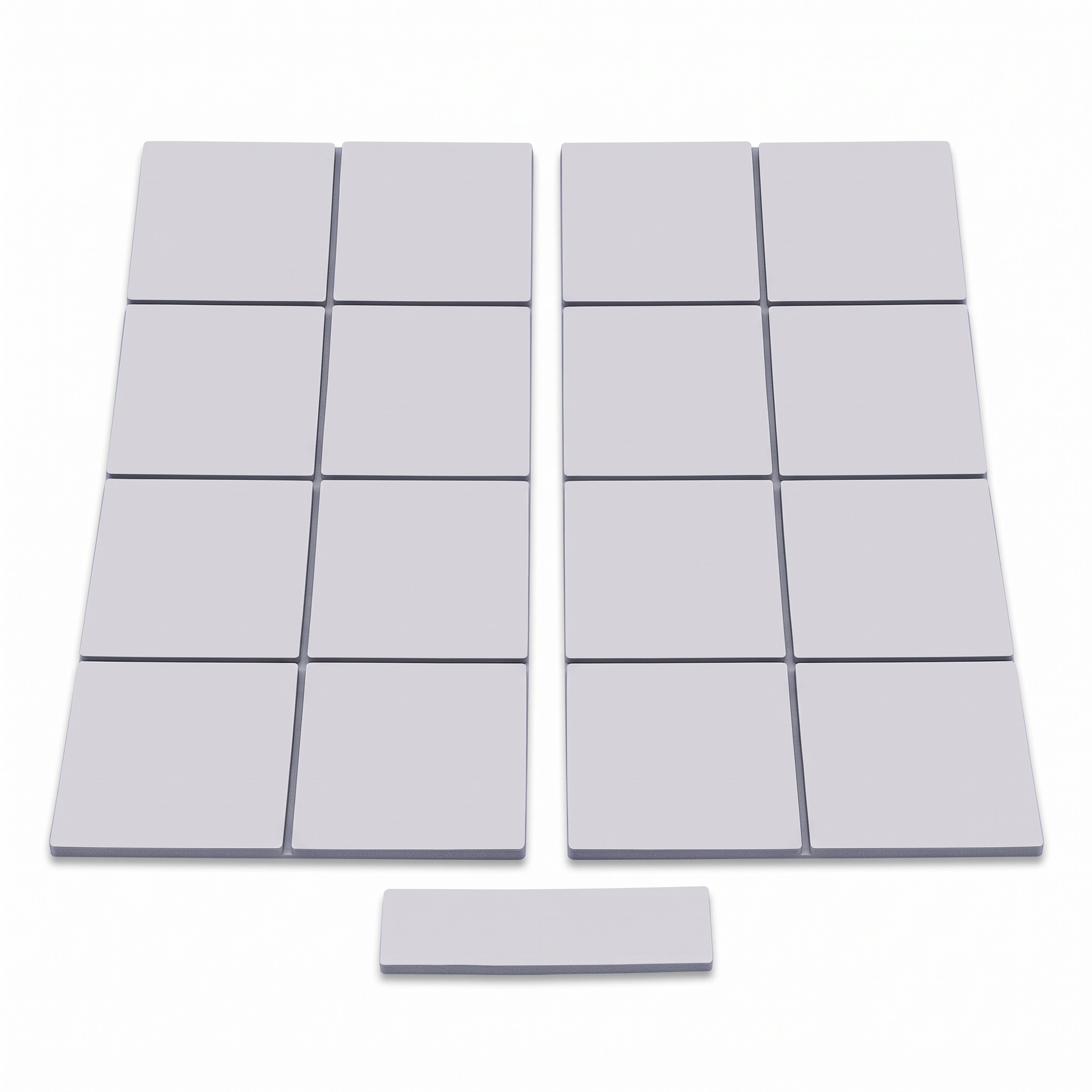

  • Dimension 85 x 45 mm – the rectangle allows for the preparation of one continuous piece for longer components, such as an M.2 SSD, or several separate pieces for memory and power circuits of the graphics card. Unused remnants can be stored for future repairs.
  • Thickness 0.75 mm – when selecting the thickness, the gap in the specific device is crucial. The easiest way is to measure the original pad with a caliper or to look up the specification in the service documentation. The correct thickness ensures that the cooler makes contact with both the main chip and surrounding components.
  • Heat Transfer – the conductivity of 21 W/m.K is applicable to components with high thermal loads, whether they are graphics memory, power transistors, or SSD controllers. The pad also fills in any irregularities between the chip surface and the cooler.

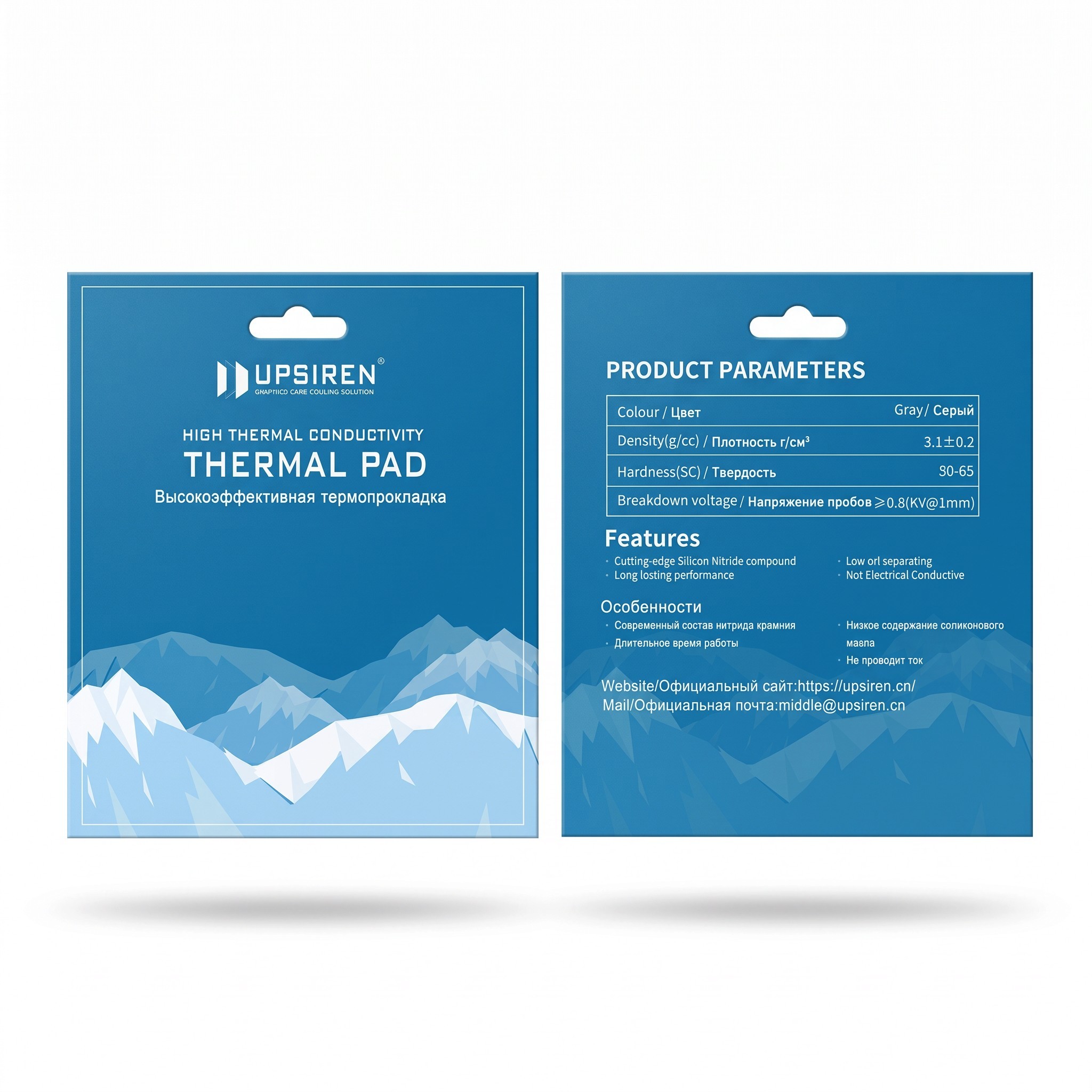

  • No Electrical Conductivity – the material does not conduct electricity and according to the parameter table has a breakdown voltage of at least 9.8 kV per 1 mm. Therefore, it can be placed over closely mounted components on the board.
  • Protective Film – the blue film on both sides protects the cleanliness of the surface during storage and cutting. It is removed gradually, first from the side facing the chip, then from the side facing the cooler, to prevent the surface from being contaminated with dust.
  • Where It Is Used – computers, laptops, gaming consoles, graphics cards, M.2 SSDs, and chipsets of motherboards where the manufacturer accounts for a gap of 0.75 mm between the component and the cooler.

Package Contents:

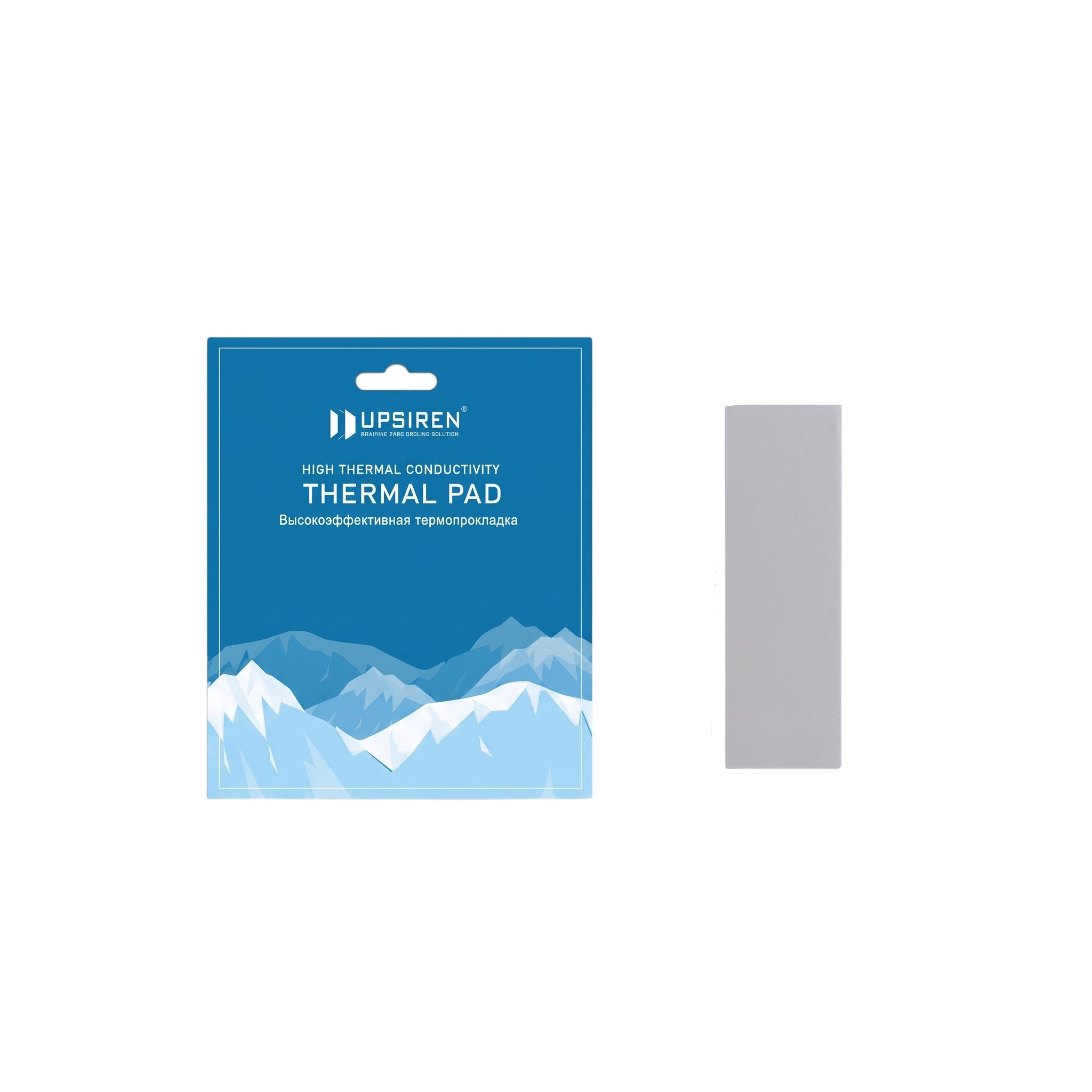

  • 1x cooling pad 85 x 45 mm

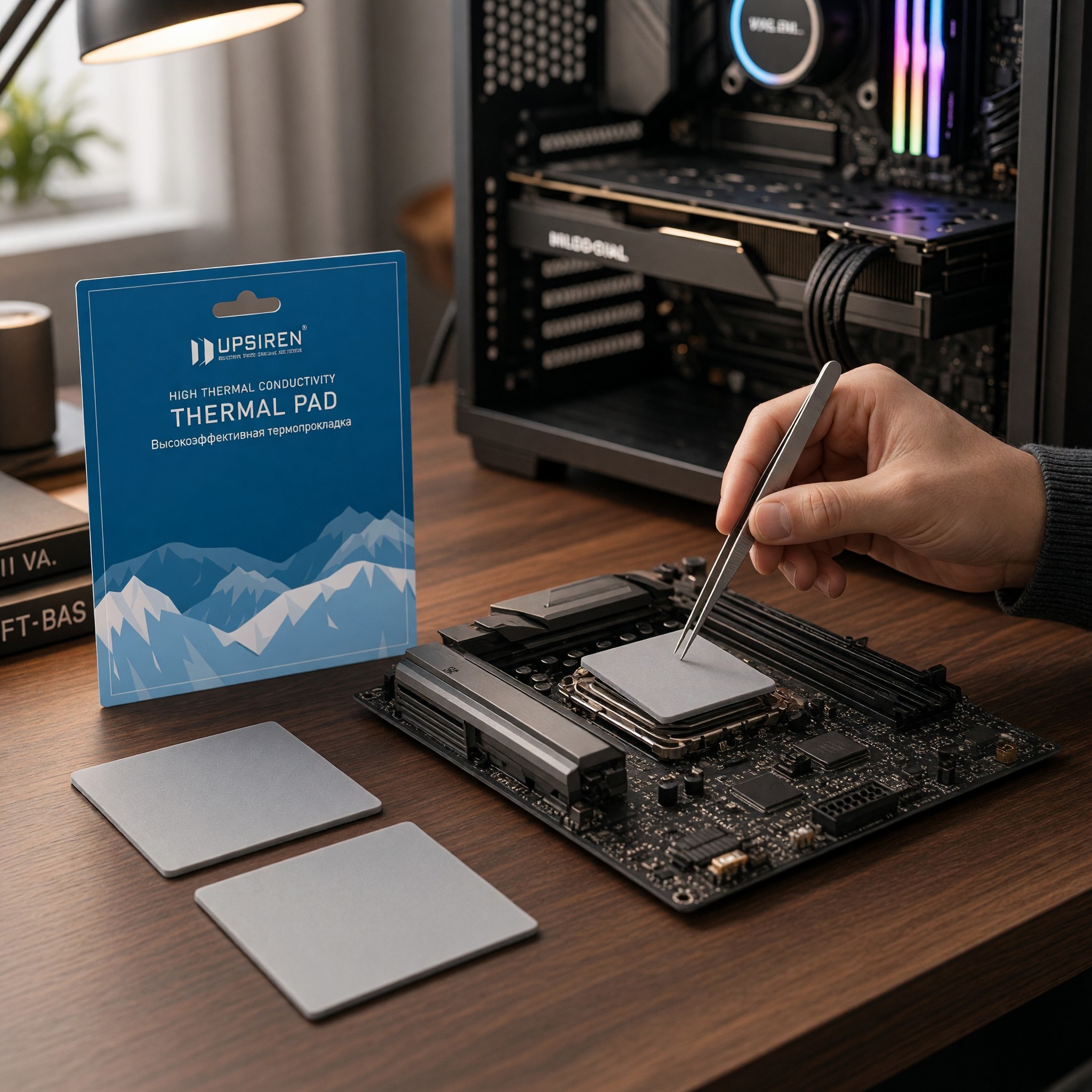

The grey cooling pad 85 x 45 x 0.75 mm is suitable for repairs and maintenance of cooling when the original pads have hardened or been damaged during disassembly. The process begins with removing the cooler, cleaning off any remnants of the old material, and cleaning the chips. Then, the necessary parts are cut from the pad, the films are removed, and the pieces are placed on the components, onto which the cooler is reattached. With an area of 85 x 45 mm, it is sufficient even for a larger chip or for an entire M.2 SSD in one piece. Thickness of 0.75 mm is intended for devices where the manufacturer accounts for this gap.
