Combined Power and DMX Cable 2 m with powerCON Connectors and 3-Pin XLR Male and Female Black for Connecting Lights on Stage

Combined Power and DMX Cable 2 m with powerCON Connectors and 3-Pin XLR Male and Female Black for Connecting Lights on Stage

Power and DMX signal are carried by one cable with locked powerCON and XLR male and female connectors. Ideal for daisy chaining moving heads on stage. Full description
In stock
Delivery €1.59
30-day return policy
€31.83
Safe shopping Safe shopping
Overview
Combined Power and DMX Cable 2 m with powerCON Connectors and 3-Pin XLR Male and Female Black for Connecting Lights on Stage

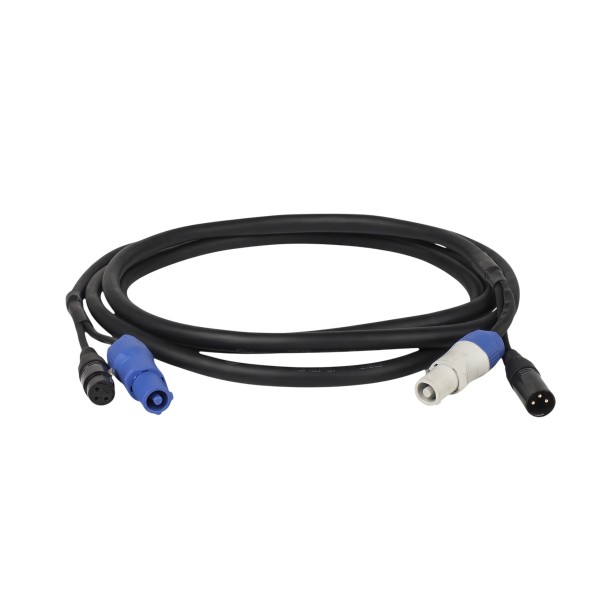

The combined power and DMX cable of 2 m length supplies both power and DMX control signal to lighting equipment through a single cable. At each end, the cable splits into a power branch with a powerCON connector and a signal branch with an XLR connector. On one side, there is a blue input powerCON connector and a male XLR, while on the other side, there is a grey-white output powerCON connector and a female XLR. This cable connects one light to another, allowing for just one cable between devices instead of two separate ones. It is suitable as an accessory for stage lighting, for example, for connecting moving heads on a truss or stand.

  • Length and Design – the cable measures 2 m and both the power and signal lines run together in one black sheath in the centre. The split at both ends is reinforced with heat-shrink tubing. For transport and storage, the cable coils into a loop.
  • powerCON Connectors – the blue input and grey-white output connectors have a metal locking latch. Once inserted into the device socket, the connector is secured, and the latch prevents accidental disconnection. The colour differentiation between input and output helps to avoid confusion during connection.
  • Signal Connectors – the DMX signal is transmitted via 3-Pin XLR Connectors, with a male on one end and a female with a locking latch on the other. Both connectors have a black casing with a textured grip. They connect to the DMX input and output on the light panel.
  • Daisy Chaining Lights – the input connectors connect to the inputs of devices, while the output connectors connect to the outputs. This allows both power and signal to be passed from one light to the next without separate cabling. In a setup of multiple lights, the cables connect sequentially from the first light to the last.
  • Detachable Connectors – the powerCON connector consists of an internal insert with contacts, a casing with a latch, an internal cable clamp, and a screw-on rear cover. The cover secures the cable in the casing when tightened.
  • Usage – the cable is designed for stage lights, moving heads, and other equipment with powerCON and DMX inputs and outputs. It is suitable for concert stages, clubs, and venues with trusses and structures. One cable is used for each connection between two adjacent lights.

Package Contents:

  • 1x combined power and DMX cable 2 m

The combined cable merges power and control of lights into one line, so between two lights, only one cable is needed instead of two. The length of 2 m is suitable for connecting lights positioned close to each other on a single truss or structure. powerCON Connectors with locking hold securely in the device sockets even when handling lights and cables. The colour differentiation of the blue input and grey-white output facilitates correct connection. The black sheath and combined line help keep the cabling around the lights tidy.
