Car Camera with Fish Eye Lens Viewing Angle 175° Mounting at the Front, Rear or Side of the Vehicle CCD Sensor 520 TVL Power Supply 12 V RCA Output
You already have the maximum available quantity in your cart.
The car camera with a fish eye lens captures a very wide view thanks to its 175° viewing angle. It can be used as a front, rear, or side camera, allowing you to choose the mounting location according to your needs. The image is captured by a CCD sensor with a horizontal resolution of 520 TVL and an effective resolution of 800 x 600 px. The camera measures just 21 x 23 mm and is powered by a 12 V supply. The image is transmitted via RCA connector to a monitor or display with video input.
- Fish Eye — the 2.8 mm lens has a viewing angle of 175°. This results in a very wide image, which is curved at the edges, as is common with this type of lens.
- Universal Placement — the camera can be used as a front, rear, or side camera. It can be mounted on the side of the vehicle, for example, under the wing mirror to monitor the area alongside the car.
- Image — the camera features a CCD sensor with a horizontal resolution of 520 TVL and an effective resolution of 800 x 600 px. It operates in NTSC format, so please check that your monitor supports this before purchasing.

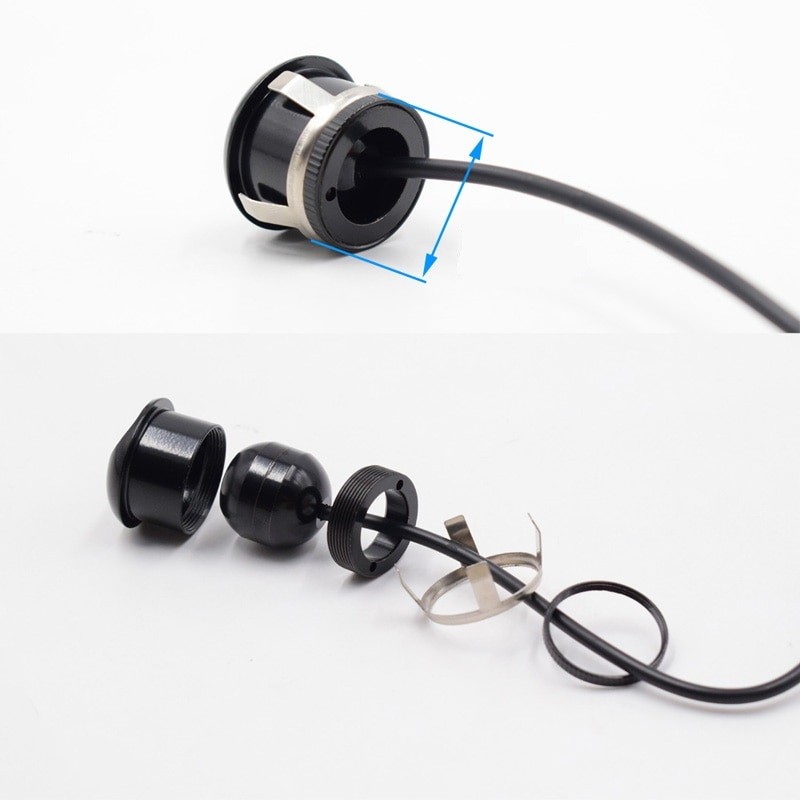

- Compact Size — the camera measures 21 x 23 mm, making it unobtrusive on the vehicle. It consists of a spherical body with a lens and a cylindrical housing with a mounting ring and clip.
- Connection — the video output is terminated with an RCA connector, and the camera is powered by a 12 V direct current. The included cable is used for connection.
- Package Contents — 1x camera, 1x cable, 1x user manual. The monitor and vehicles shown in the photos are not included in the package.
The fish eye lens camera is suitable for drivers who want to see as wide an area as possible around the vehicle. With a viewing angle of 175°, you can see the area beside the camera on the monitor. Its compact size and the option for mounting at the front, rear, or side make it a versatile solution. It operates on a 12 V supply and transmits the image via the RCA connector. The camera works in NTSC format.
