Cable Float Switch for Liquid Level with 5 m PVC Cable and Counterweight, 220V/8A or 380V/4A, for Tanks and Pumps, Yellow-Blue
You already have the maximum available quantity in your cart.
The float switch with a five-metre cable is among the longest designs and is suitable for deep wells, large cisterns, and industrial tanks. The generous cable length allows for securing the suspension point high above the water level while keeping the float at the specified level. The passive micro-switch principle inside the waterproof plastic float ensures extremely long life and no maintenance requirement. The float withstands fresh water, wastewater, oil substances, and mildly aggressive chemical liquids.

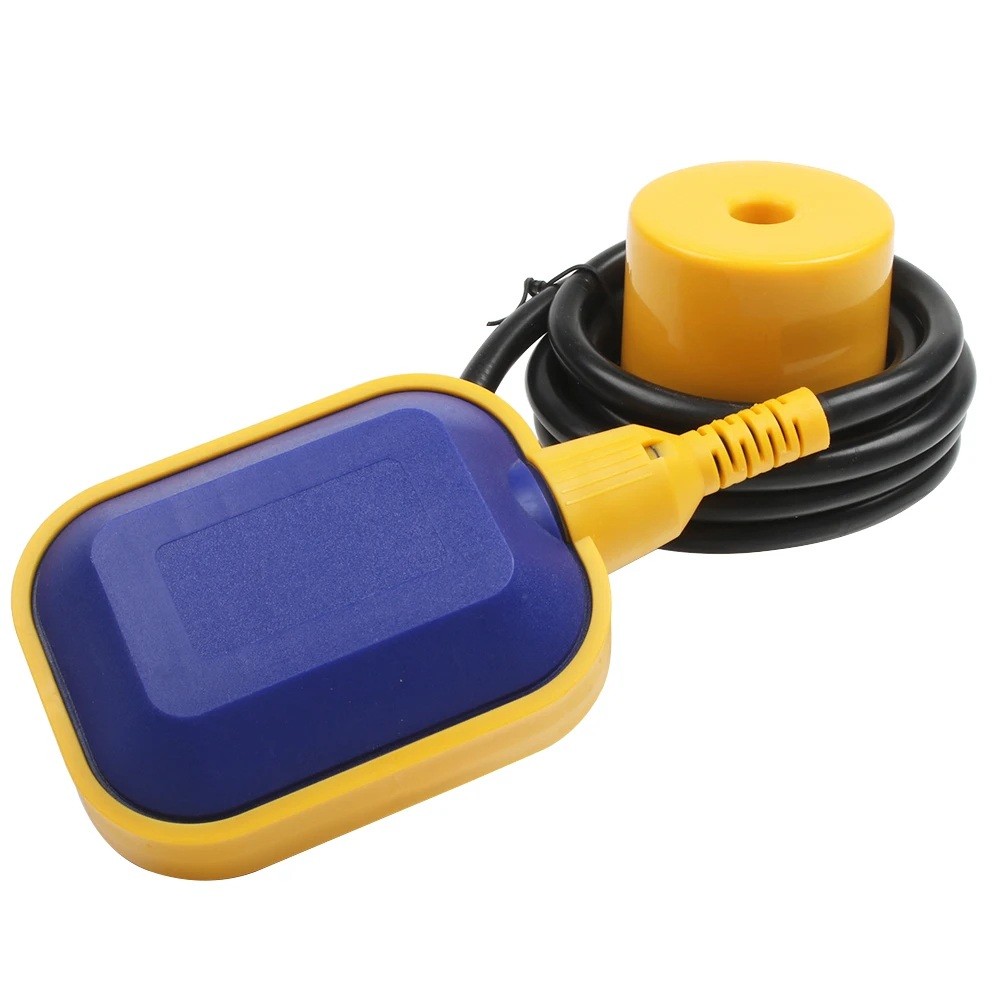

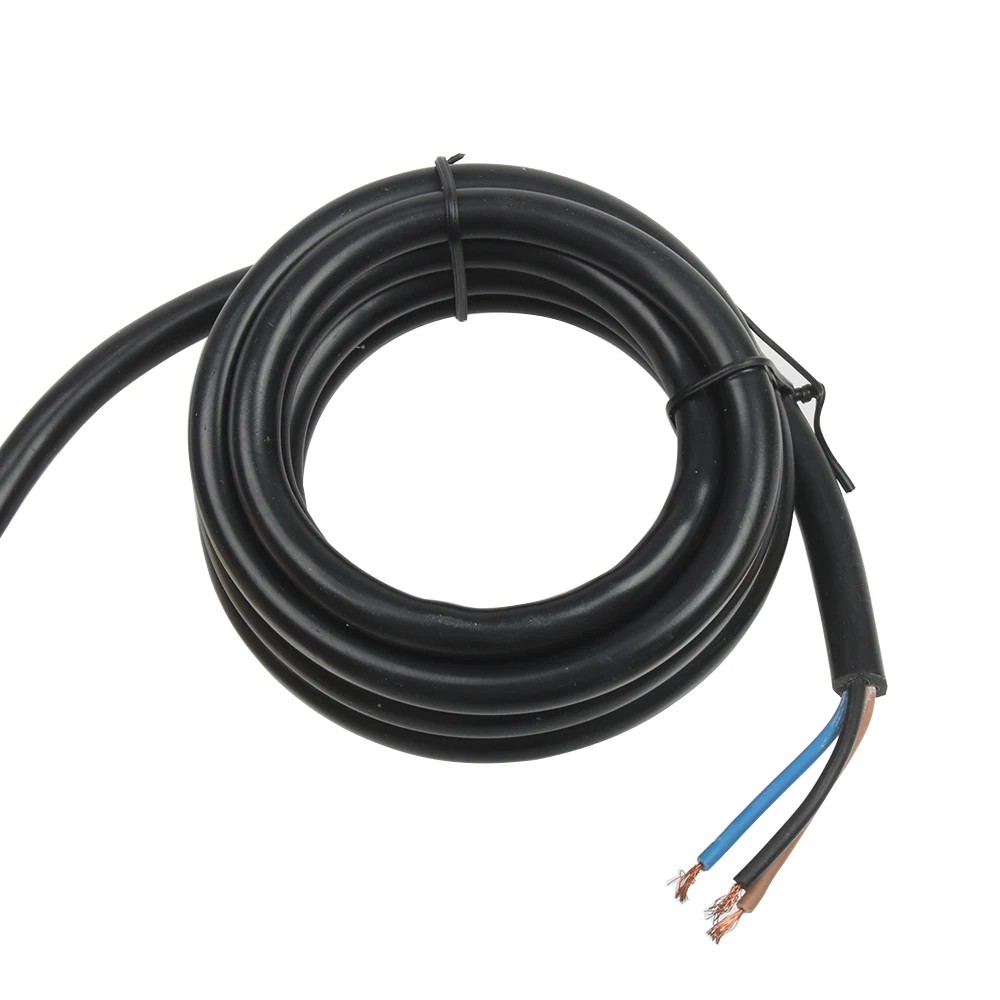

- 5 m PVC cable with counterweight for deep tanks and large height ranges

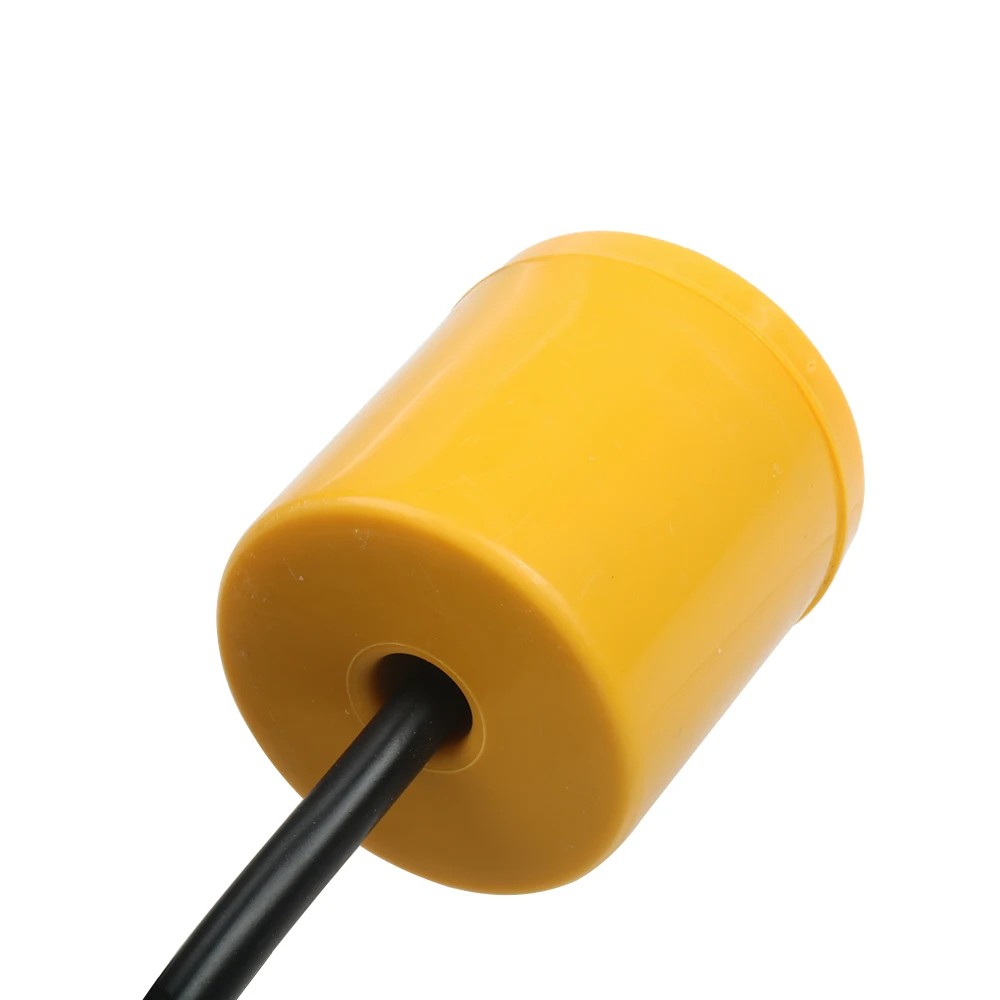

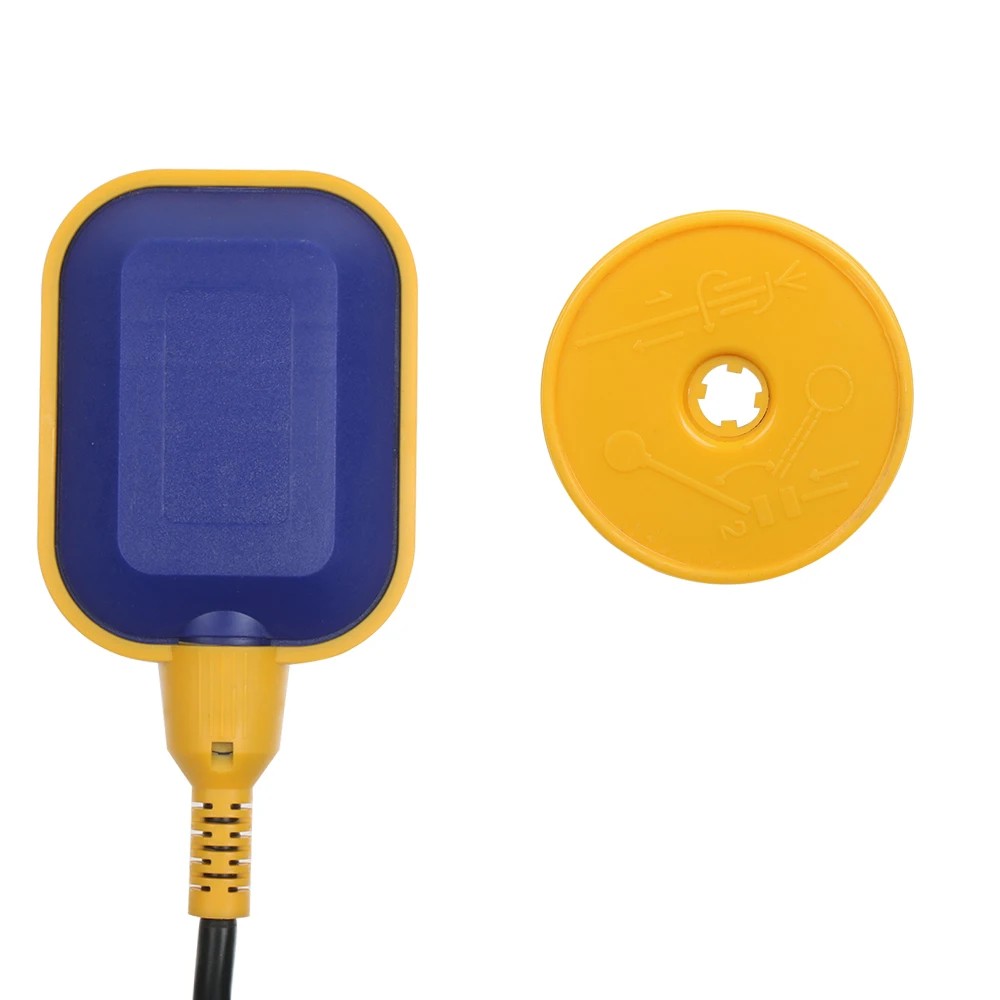

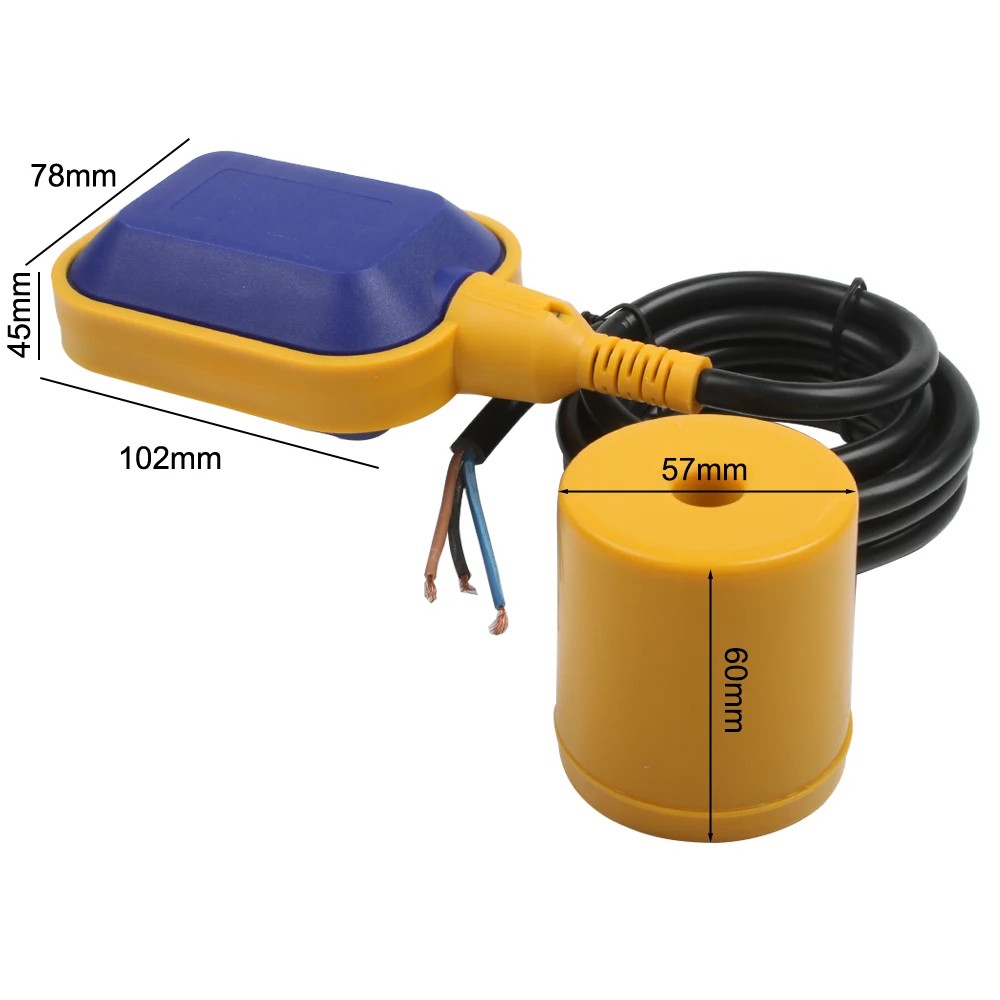

- Float dimensions 102 x 78 x 45 mm, counterweight diameter 57 x height 60 mm
- Operating voltage 220V/8A and 380V/4A, direct switching up to 2 kW at 250V
- Up to 500,000 mechanical cycles and 100,000 switching under full load
- Universal use - water, waste, oils, weakly acidic media
- Operating temperature 0 to 65 °C, short-term up to 70 °C
- Waterproof design with resistance up to 1 bar
- Yellow body, blue lid, black PVC cable

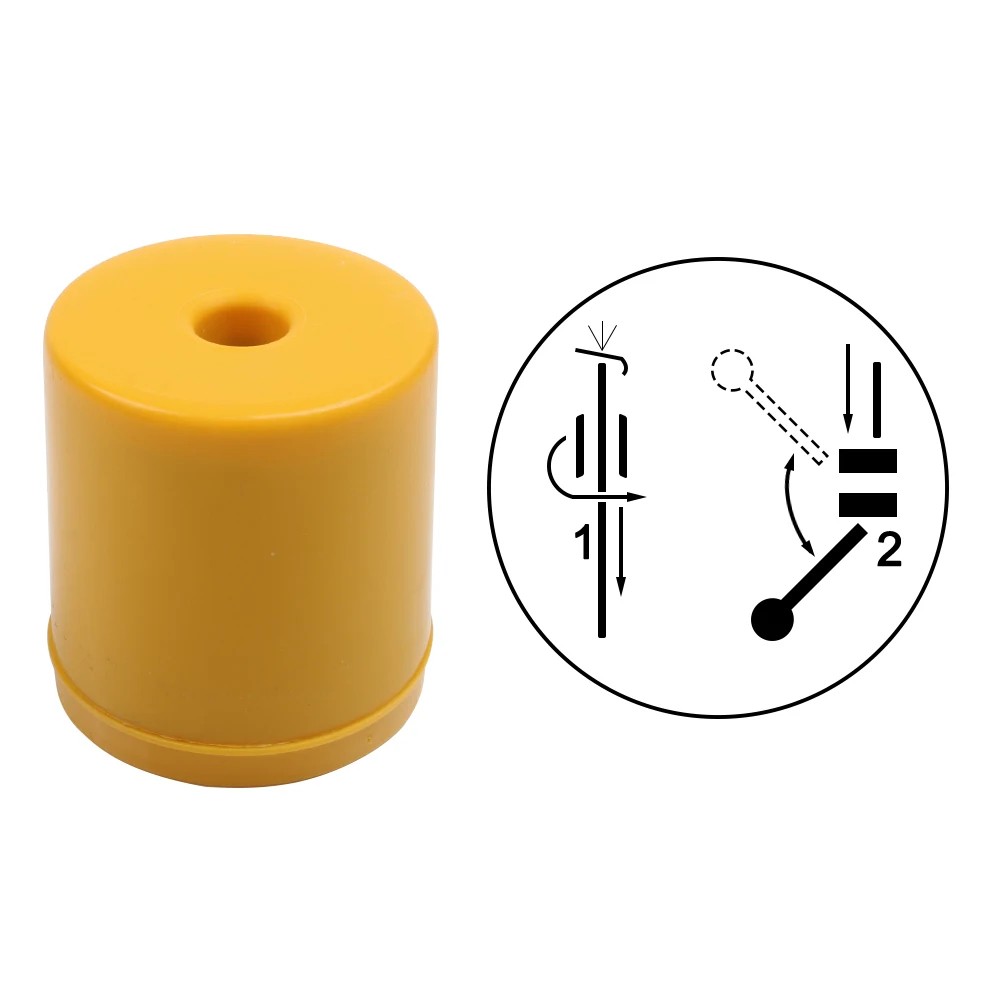

- Filling or draining function depending on the wiring
- Passive principle - without electronics and without its own power supply
- Contents of the package: 1x float switch
The five-metre cable covers deep drilled wells, underground storage tanks, rainwater cisterns, large pumping pits, and industrial tanks. In automatic mode, it ensures that the pump replenishes water whenever the level drops below the set level, or conversely, drains excess when the upper limit is reached. The free end of the cable can be precisely secured using a suspension or hook, thus determining at what height the switch should react. The large range between the switching on and off levels reduces the frequency of pump activation, saves mechanics, and extends the lifespan of the entire system. Regardless of the wiring (filling or emptying), the float operates reliably in demanding outdoor conditions and can withstand constant contact with water or sludge.
