Cable Float Switch for Liquid Level with 4 m PVC Cable and Counterweight, 220V/8A or 380V/4A, for Tanks and Pumps, Yellow-Blue
You already have the maximum available quantity in your cart.
The float switch with a four-metre cable is designed for deeper tanks and reservoirs, where a greater distance is required between the suspension point and the float itself. The principle of operation is based on a microswitch inside a plastic waterproof float - when the set level is reached, the float tilts and either makes or breaks the electrical contact. The robust PVC cable withstands continuous contact with water, moisture, oils, and weakly acidic liquids. The float can be used to control a pump, valve, alarm, or any device that responds to the level state.

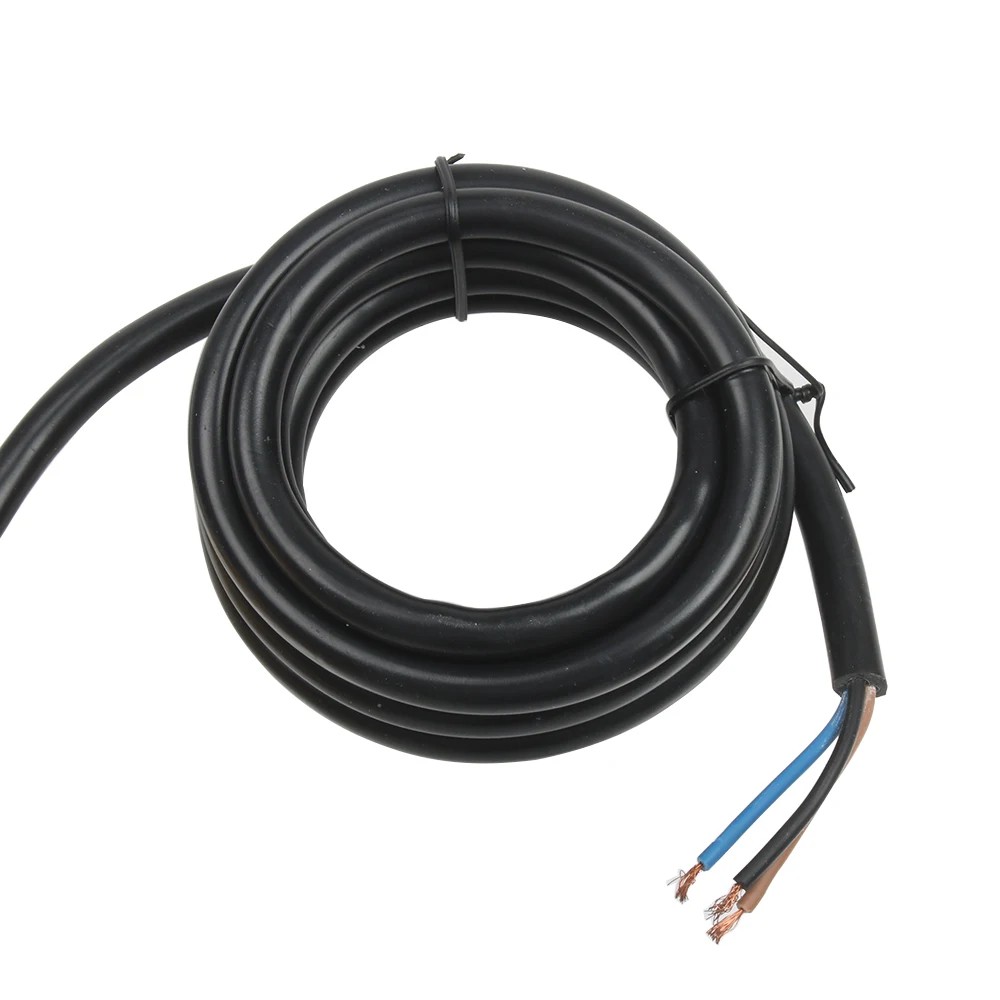

- 4 m PVC cable for deeper tanks and greater distance between the suspension and the float

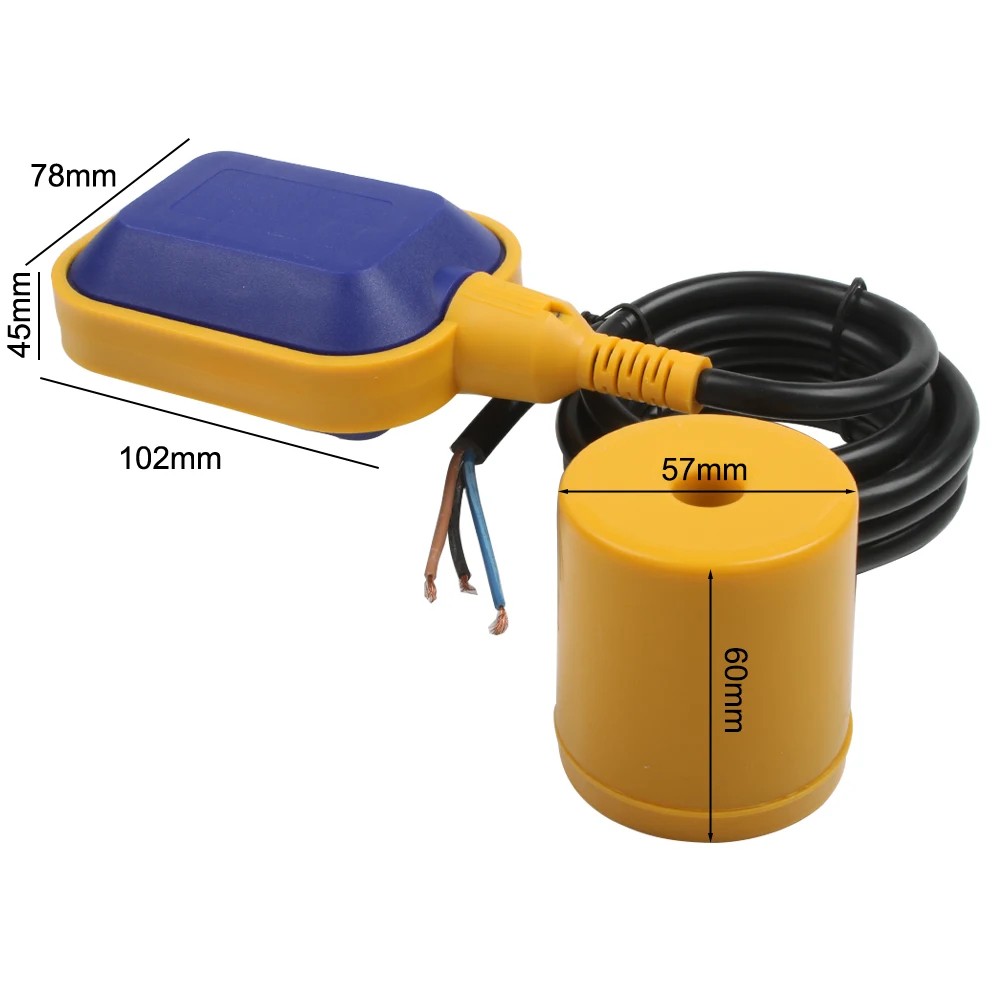

- Float 102 x 78 x 45 mm, counterweight diameter 57 x height 60 mm
- Operating voltage 220V/8A or 380V/4A, direct switching up to 2 kW
- Mechanical lifespan of 500,000 cycles, electrical 100,000 cycles under load
- Suitable for water, wastewater, oils, and weakly acidic media
- Operating temperature 0 to 65 °C, briefly 70 °C
- Waterproof construction up to 1 bar pressure
- Yellow float body with blue cap and black PVC cable
- Optional filling or emptying function depending on wiring configuration
- No need for external power supply for the sensor itself
- Package contents: 1x float switch

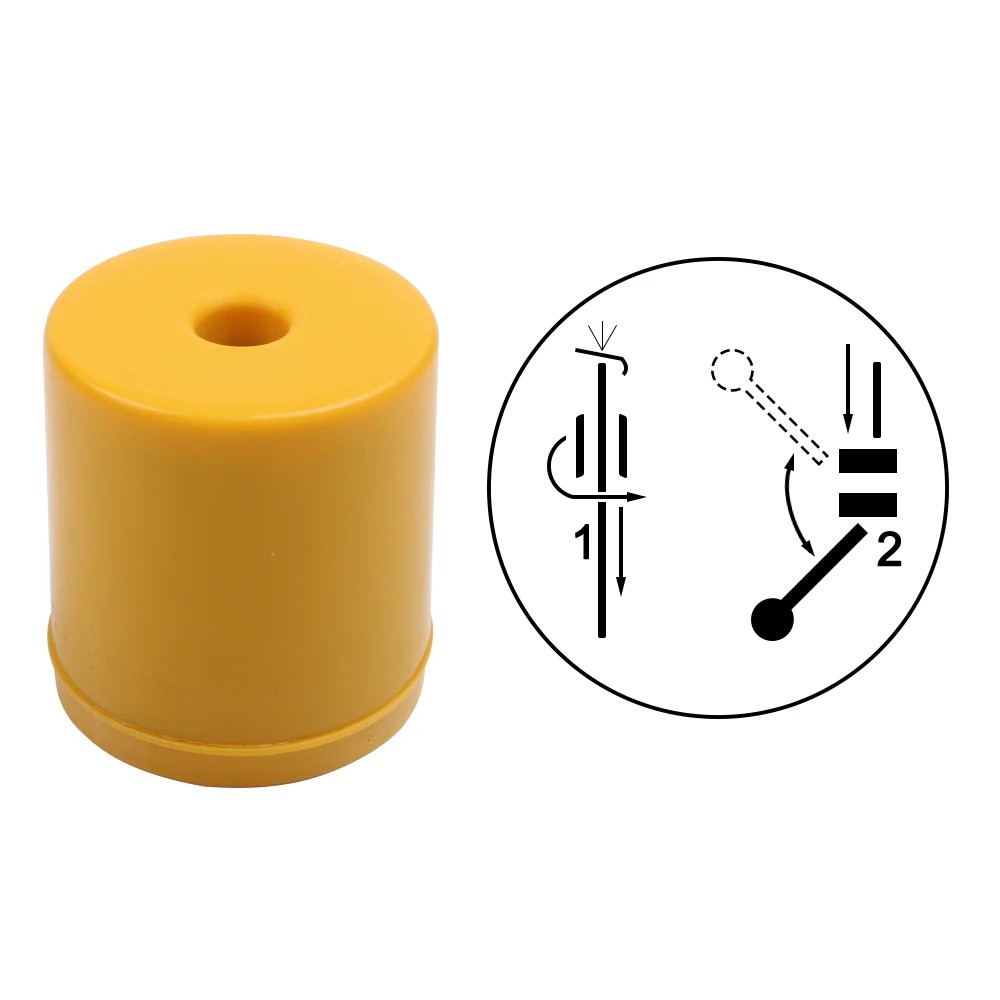

The four-metre cable is appreciated by owners of deeper wells, larger pumping sumps, underground cisterns, or accumulation tanks for heating systems. The distance between the suspension point and the float allows for precise adjustment of the switching level even in objects with a higher column of liquid. The movable attachment point of the cable affects the difference between turning on and off - a shorter free part means less hysteresis, while a longer one results in a greater range between filling and topping up. The float is also suitable for automatic control of pumps for draining groundwater, rainwater from basements, or sewage from domestic sumps. The construction without electronics ensures long lifespan and resistance to power outages.
