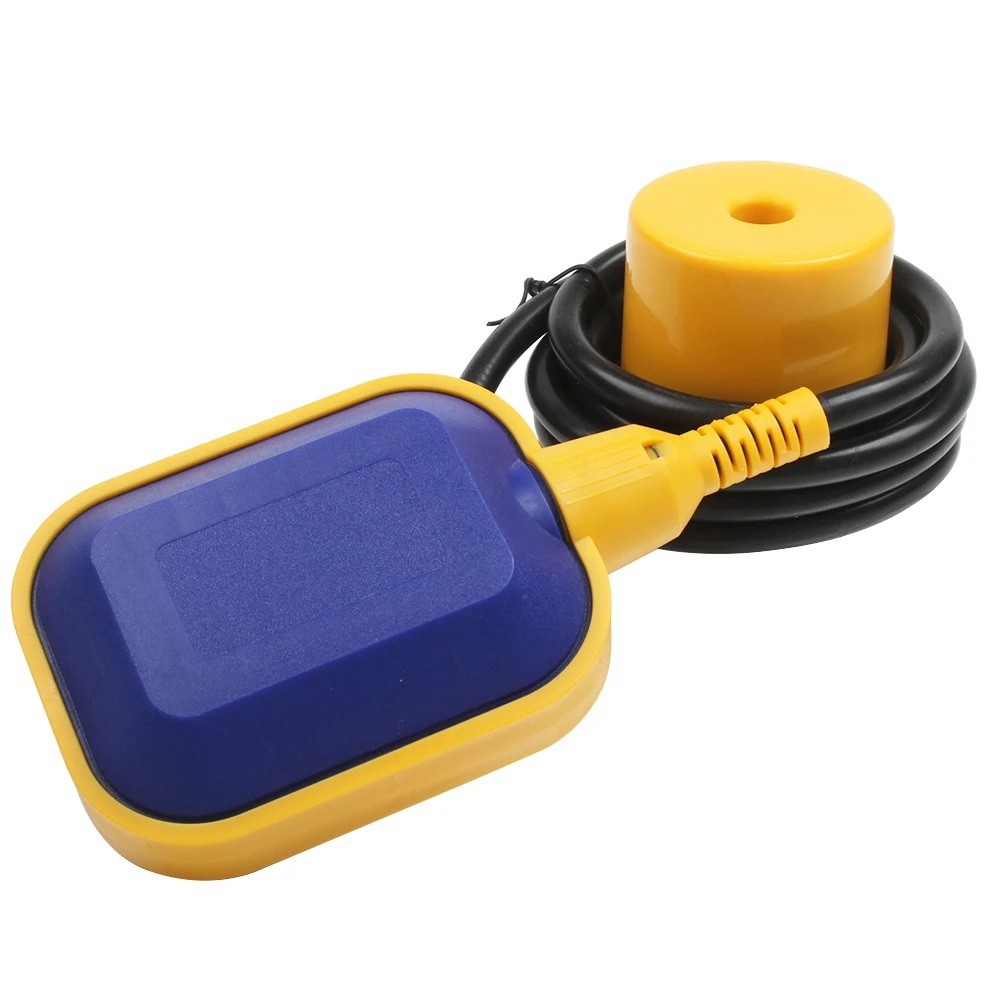

Cable Float Switch for Liquid Level with 3m PVC Cable and Counterweight, 220V/8A or 380V/4A, for Tanks and Pumps, Yellow-Blue
You already have the maximum available quantity in your cart.
The float switch with a three-metre cable ensures automatic level control even in medium-depth tanks, sumps, and wells. The float hangs freely in the liquid and changes position according to the current level - the internal microswitch opens or closes the contact, thereby controlling the pump, valve, alarm, or signalling device. The plastic waterproof housing with a robust PVC cable withstands continuous contact with water, waste, oil substances, and mildly chemical liquids. The principle operates passively, without electronics and without the need for power supply to the sensor itself.

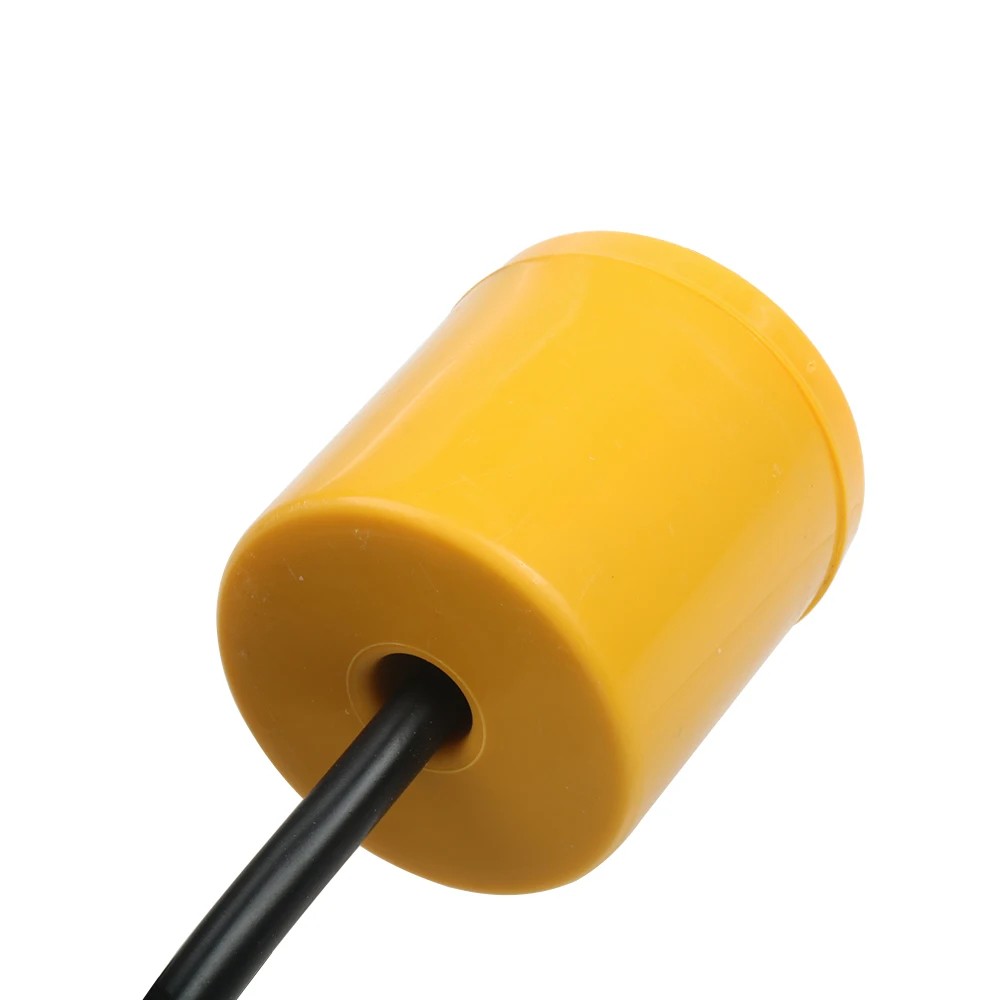

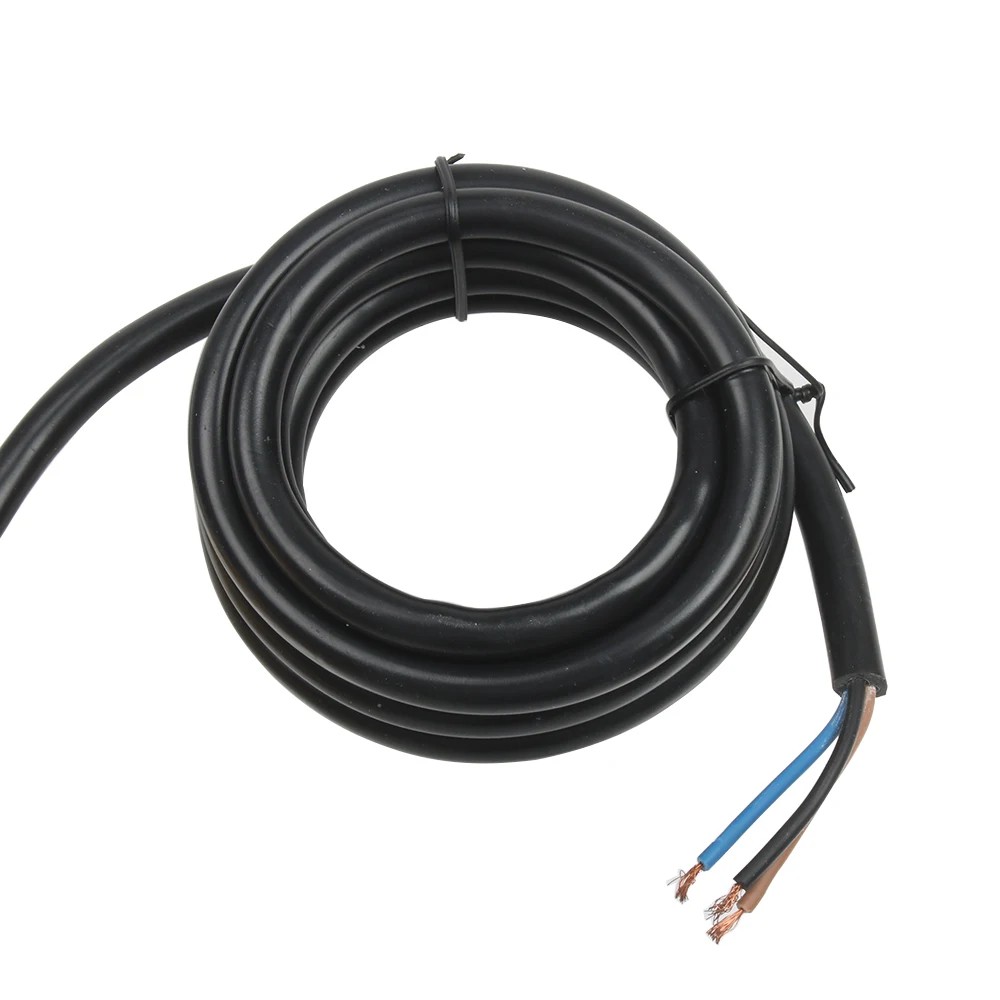

- Length of PVC cable 3m with integrated counterweight for stable float position

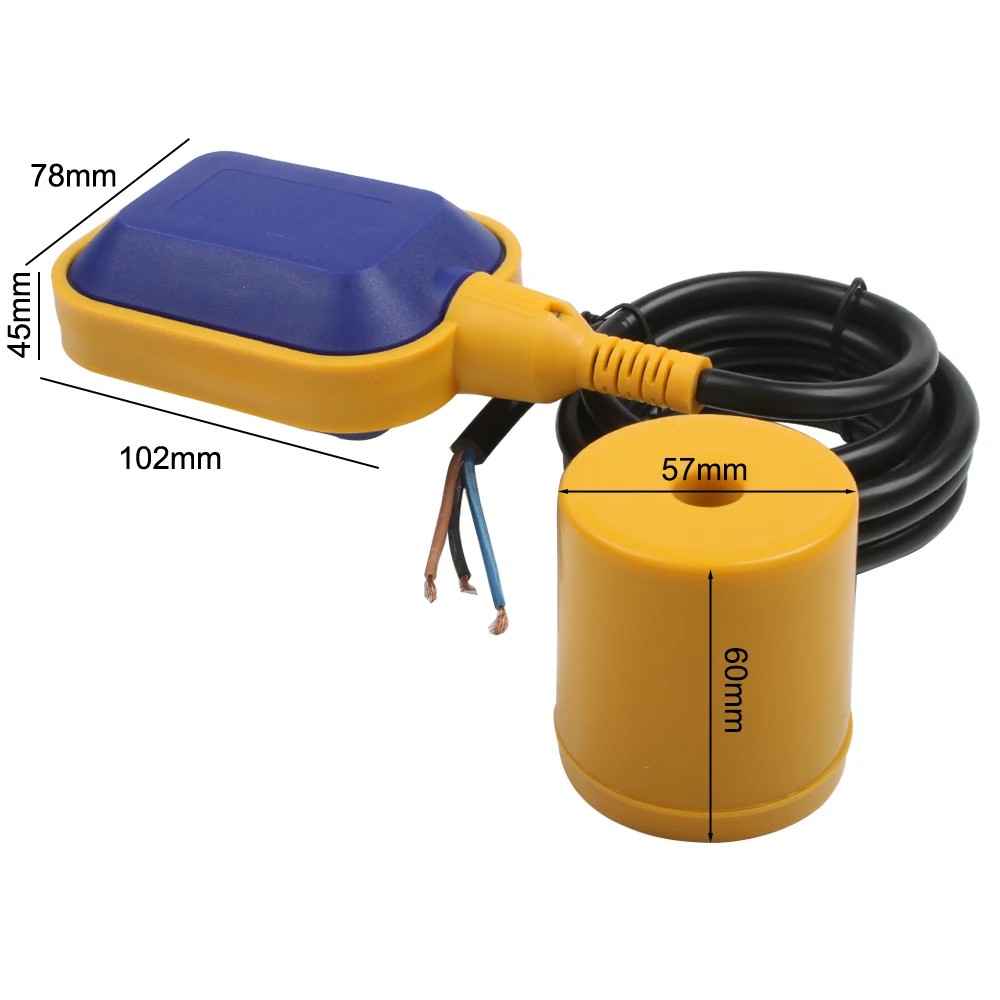

- Float dimensions 102 x 78 x 45 mm, cable and counterweight diameter 57 x height 60 mm
- Voltage 220V/8A or 380V/4A, direct switching capacity up to 2 kW at 250V
- Up to 500,000 mechanical cycles and 100,000 switchings under load
- Universal use - water, wastewater, oil, weak acids
- Operating temperature 0 to 65 °C, temporarily up to 70 °C
- Waterproof construction, maximum pressure 1 bar

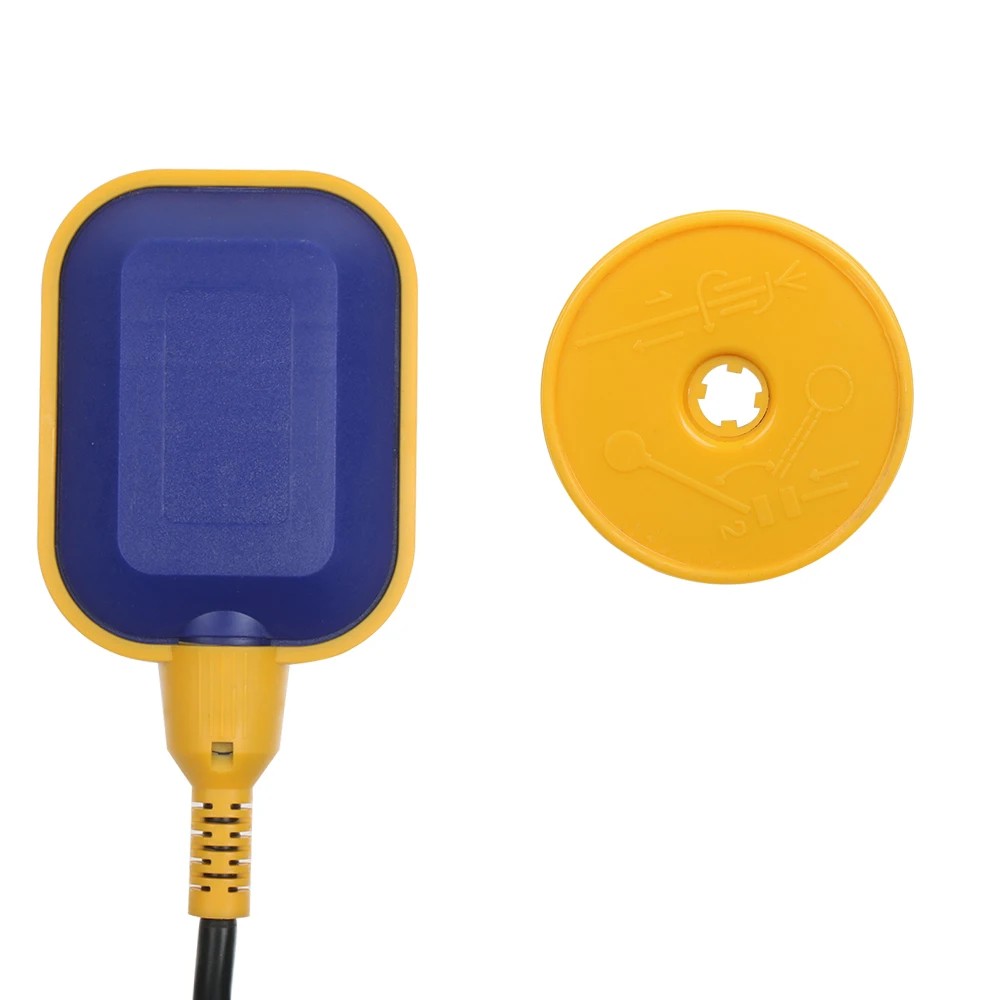

- Yellow plastic housing with blue cap, black PVC cable
- By changing the wiring connections, filling or emptying can be set
- Maintenance-free design without the need for calibration
- Contents: 1x float switch

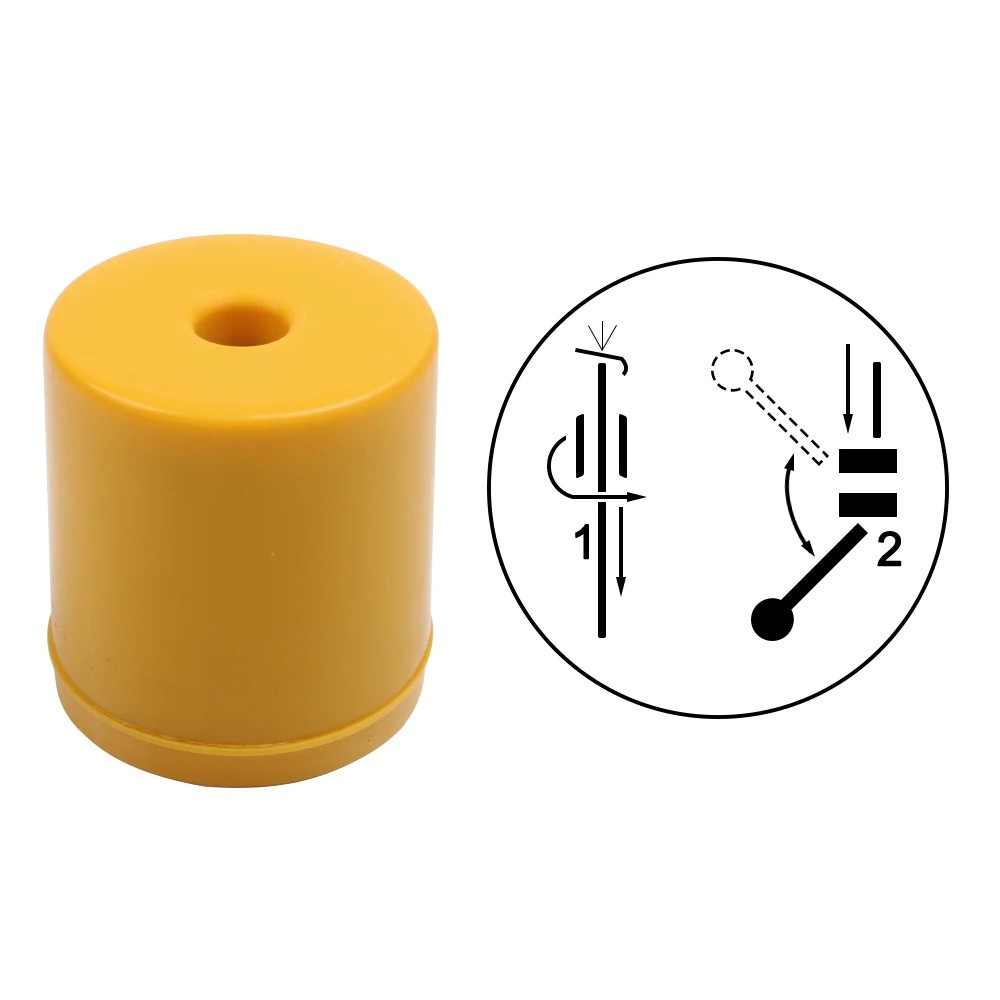

The three-metre cable provides ample freedom for installation in medium-sized tanks without the need for connectors and extensions. In practice, it is suitable for domestic sumps, medium-sized rainwater cisterns, underground drinking water reservoirs, septic tanks, accumulation tanks, or pumping stations. The float can be suspended from a mounting point, allowing precise determination of the switching height - by adjusting the suspension, the difference between switching on and off can also be changed. By connecting the blue wire, you obtain the filling function (the pump runs to the upper level), while connecting the brown wire provides the emptying function (the pump runs to the lower level). The passive microswitch inside the float operates reliably for hundreds of thousands of cycles without the need for maintenance.
