Cable Float Switch for Liquid Level with 2 m PVC Cable and Counterweight, 220V/8A or 380V/4A, for Tanks and Pumps, Yellow-Blue
You already have the maximum available quantity in your cart.

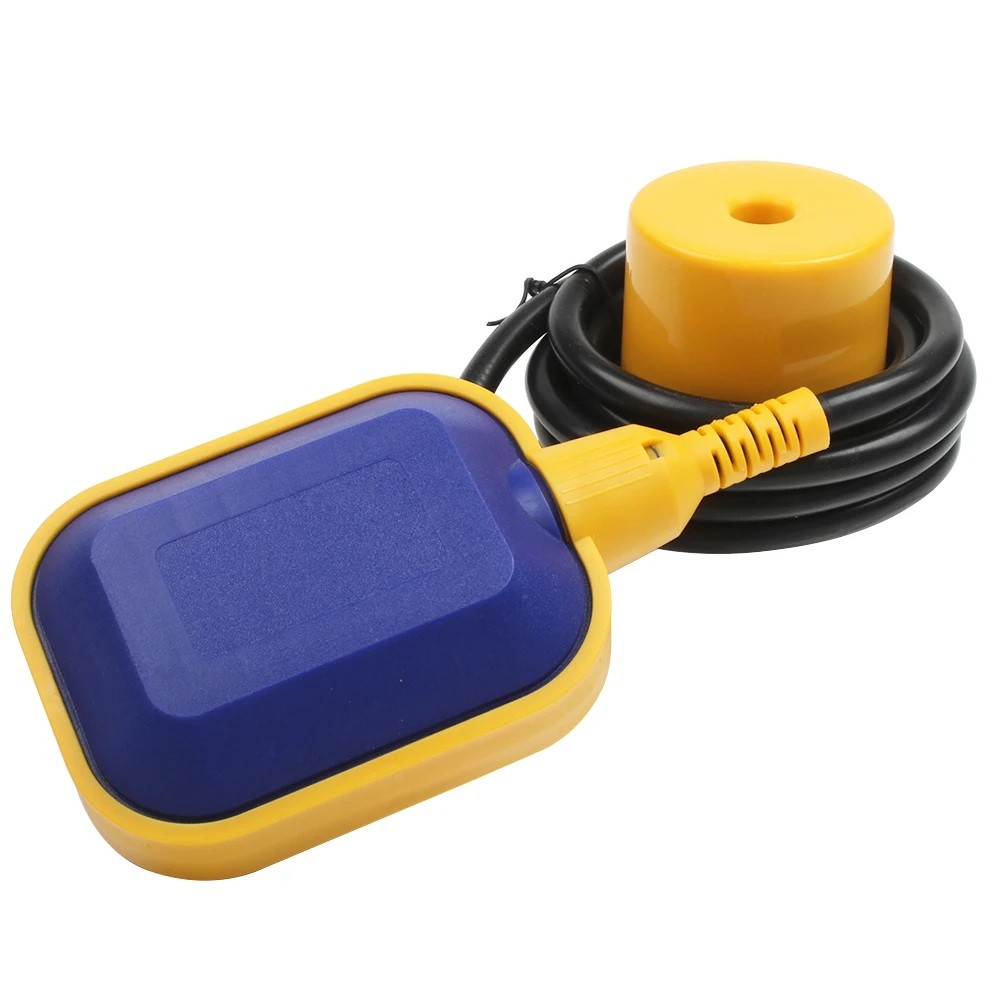

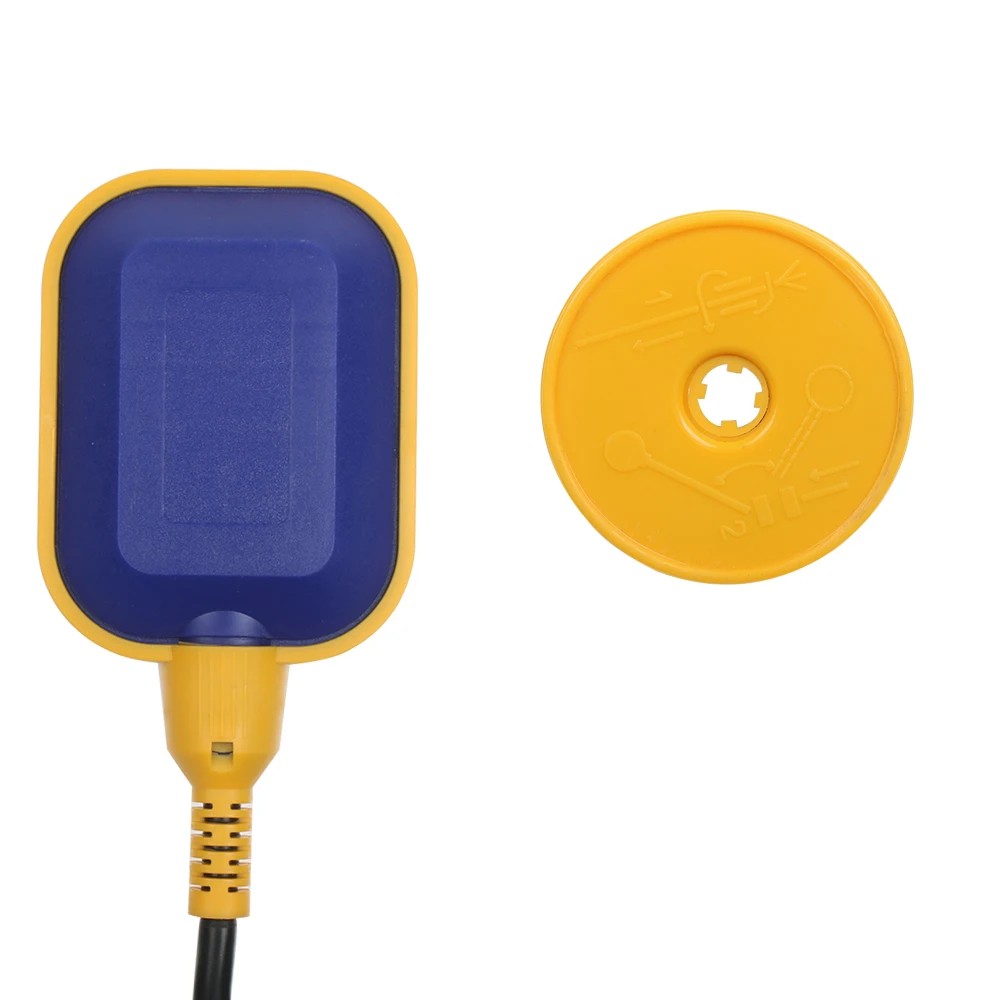

The cable float switch is one of the simplest and most reliable ways to automatically control the level in tanks. The float hangs freely on the PVC cable inside the tank and tilts according to the level - when the upper or lower level is reached, a microswitch inside the float is activated, turning on the connected device. The counterweight on the cable ensures stable positioning and precise switching at the chosen height. The float can handle drinking water, wastewater, oils, and weakly acidic media, making it suitable for both indoor and outdoor use.

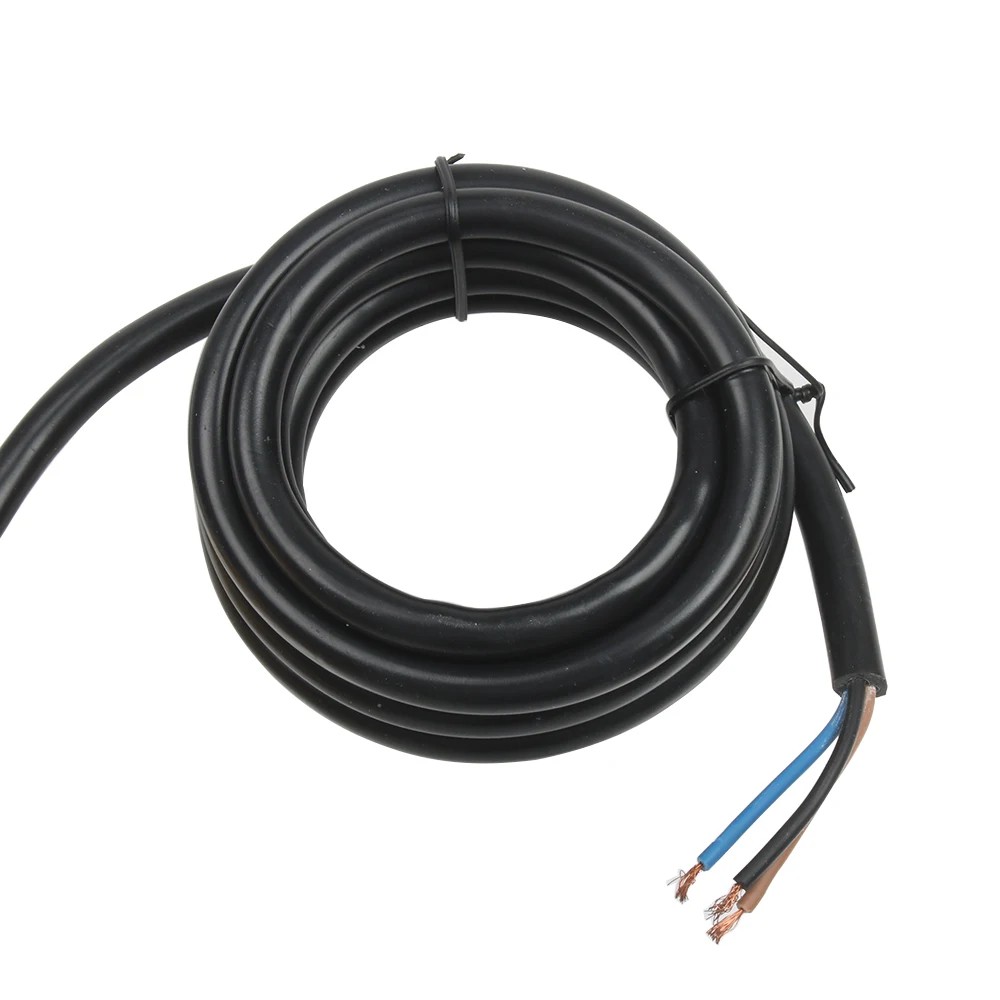

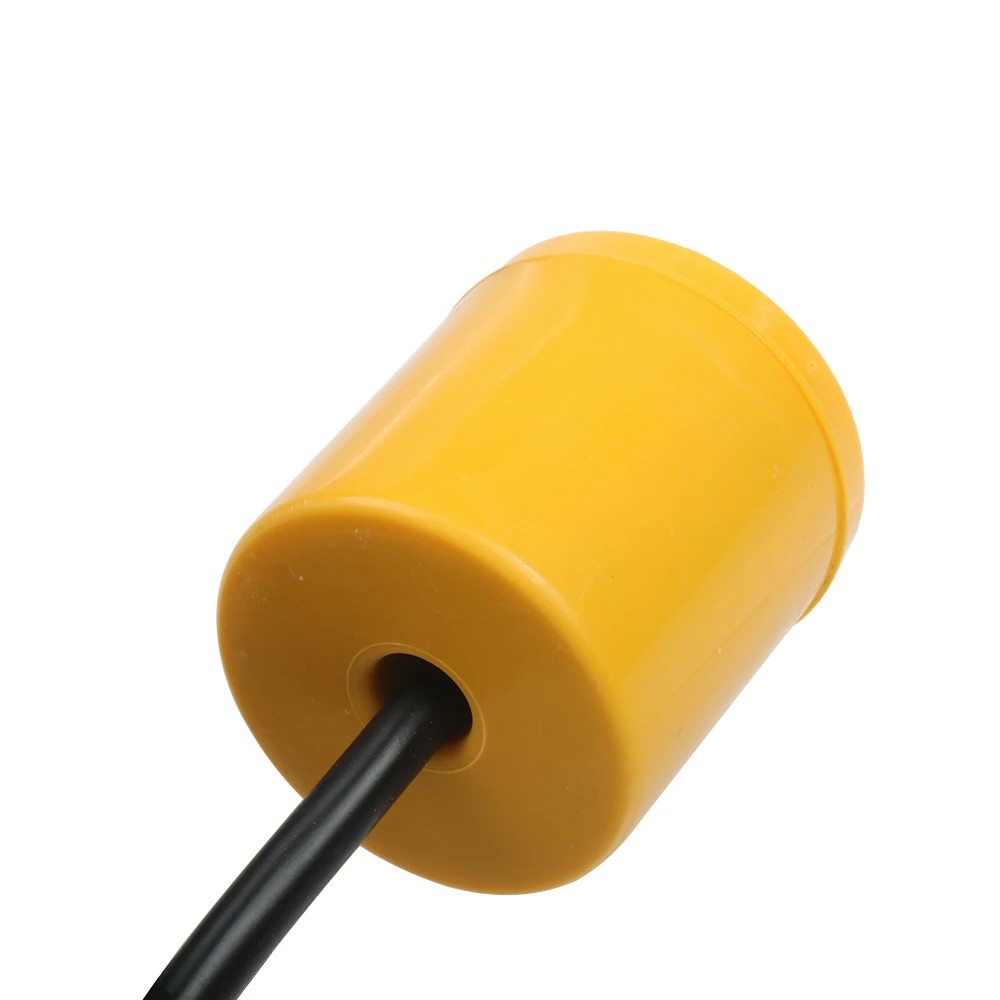

- 2 m PVC cable with integrated counterweight for stable operation

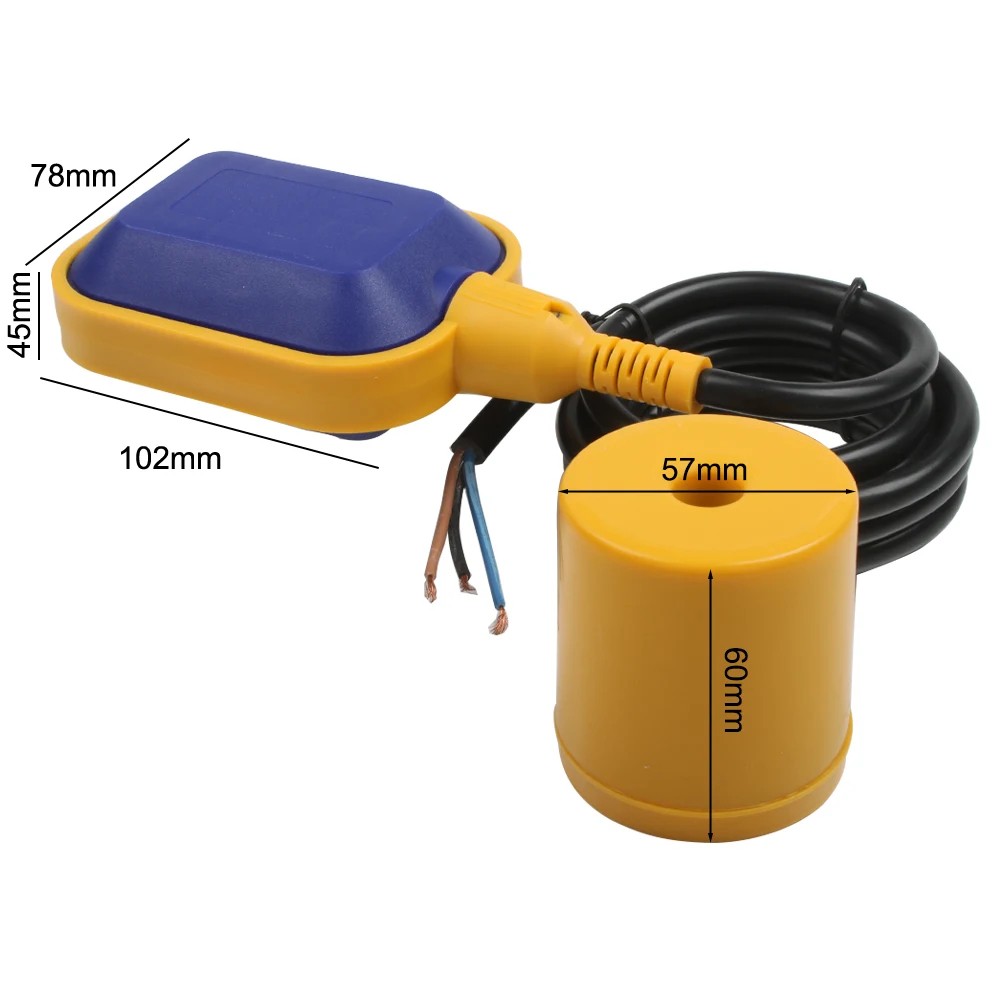

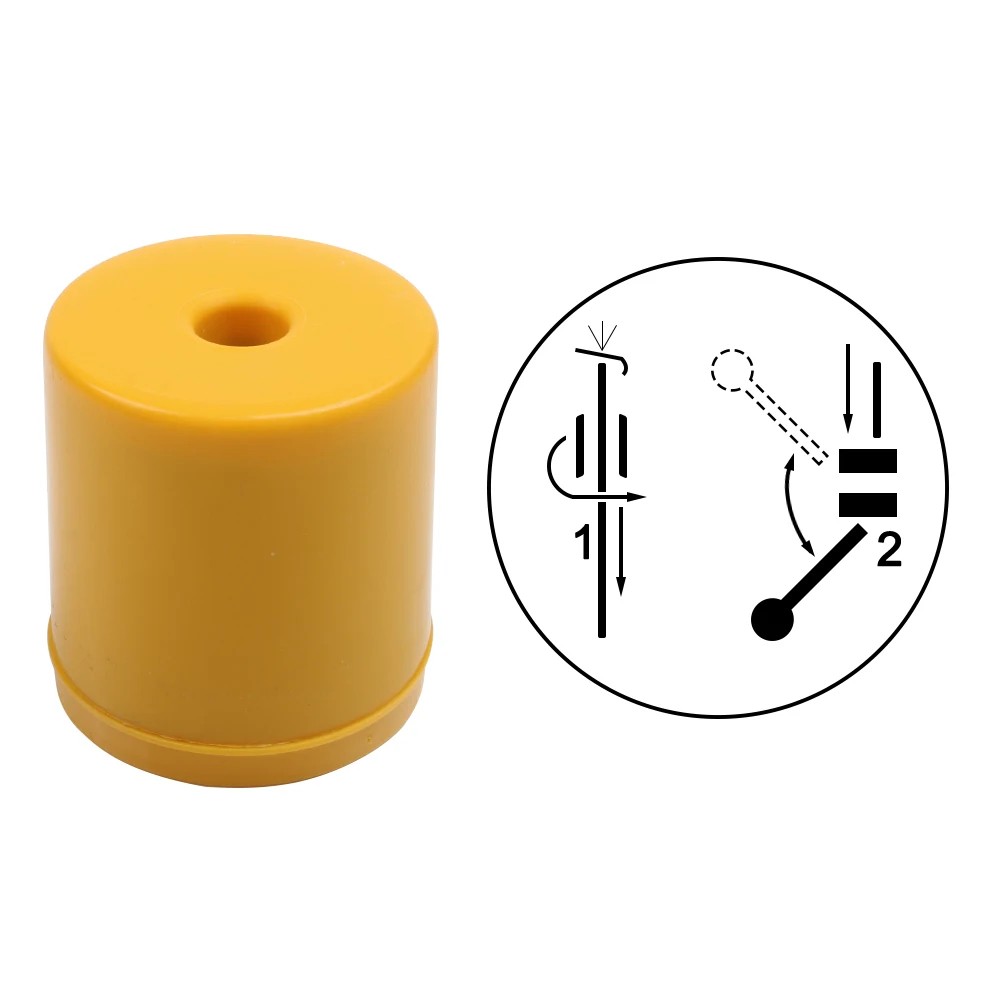

- Float dimensions 102 x 78 x 45 mm, counterweight diameter 57 x height 60 mm
- Operating voltage 220V/8A or 380V/4A, direct switching up to 2 kW at 250V
- Electrical lifespan of 100,000 cycles, mechanical lifespan of 500,000 cycles
- Suitable for water, wastewater, oils, and weakly acidic liquids
- Operating temperature from 0 to 65 °C, short-term up to 70 °C
- Waterproof design, maximum pressure 1 bar
- Yellow plastic body, blue cap, black PVC cable
- ON/OFF function depending on wiring: ON at upper or lower level
- Maintenance-free operation, no calibration required
- Package contents: 1x float switch
The switch function is very simple: the float rises with the increasing level and at a certain angle activates or deactivates the internal microswitch. By changing the wiring (blue or brown), you can determine whether the switch should activate at the upper level (stopping filling) or at the lower level (starting the pump for replenishment). By adjusting the cable attachment point, the desired switching level can be precisely set - a longer free cable means a greater difference between ON and OFF. The two-metre cable is suitable for controlling submersible pumps in smaller sumps, for automatically filling tanks with drinking and utility water, for overflow protection, and for managing drainage in smaller septic tanks and ponds. The passive principle without electronics guarantees long life and low maintenance operation.
