Brushless Submersible Pump 24 V with DC Connector and Flow Rate of 800 l/h with a Lift of 7 m and Power Consumption of 26 W with IP68 Rating in Black
You already have the maximum available quantity in your cart.
The brushless submersible pump is designed for the distribution and circulation of water in circuits powered by a 24 V direct current. The brushless motor has a lifespan of over 30,000 hours of operation, eliminating the need for regular replacement of worn parts. The power cable is fitted with a DC connector, allowing for quick connection without the need to splice loose wires during installation. The centrifugal impeller can move up to 800 litres of liquid per hour and can push it to a height of seven metres. The entire body is black, with mounting brackets on the sides featuring holes, and it can be submerged underwater during operation.
- Flow rate of up to 800 litres per hour when powered by 24 V
- Maximum lift height reaches 7 metres above the surface of the pumped liquid
- Power consumption of 26 W corresponds to a current draw of 1.1 A from the source
- Brushless motor operates without carbon brushes, which typically wear out
- The power cable is fitted with a DC connector for quick connection to the source
- IP68 rating allows for continuous operation of the entire body underwater
- Noise level during normal operation does not exceed 35 dB

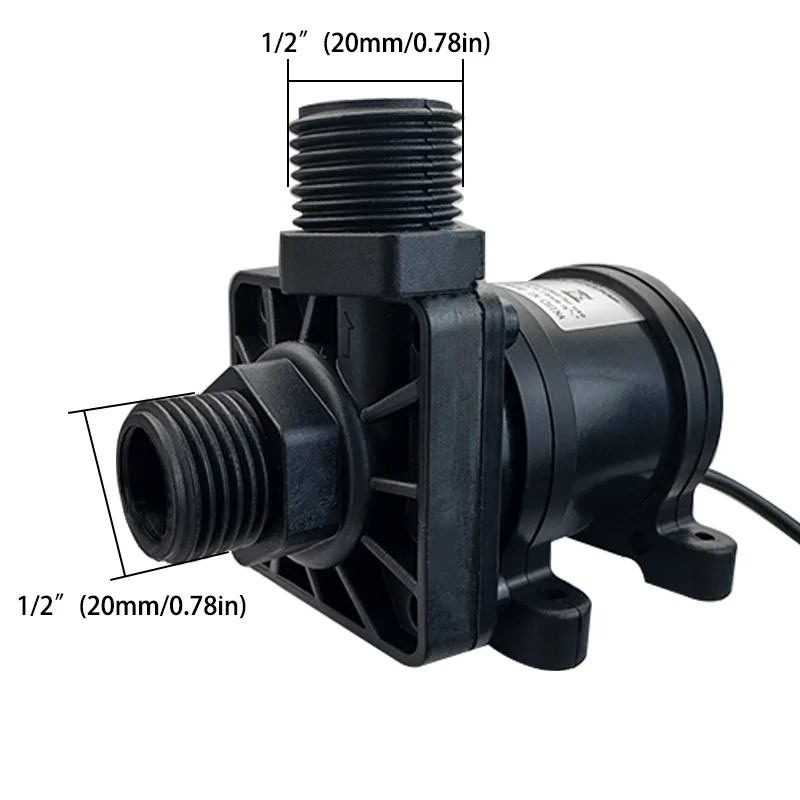

- Both the inlet and outlet ports have an external thread of 1/2 inch, or 20 mm
- Shaft made of 316 stainless steel withstands continuous contact with the liquid
- Centrifugal pumping principle with an impeller enclosed within the body
- Temperature of the pumped liquid and surrounding environment from -20 to 100 °C
- Operation can withstand relative humidity of up to 90 %
- Insulation tested with a test voltage of 1500 V for 60 seconds
- In addition to water, it can also pump alcohol or diesel
- Acidic and alkaline solutions must not be pumped
- Impurities larger than 0.35 mm may damage the impeller
- Side brackets with holes allow for secure attachment to a base
- The pump is exclusively connected to a 24 V direct current source
- Before the first start-up, the pump must be filled with liquid
- The pump is not self-priming and must not run dry
- Brushless construction reduces mechanical wear on the drive
- The body, mounting brackets, and power cable are in a black finish
- One pump can be used for both circulation and transferring between tanks
Contents of the package:
1x brushless submersible pump
The combination of low power consumption of 26 W and a flow rate of 800 l/h is suitable where only a direct current source is available and reliable liquid circulation is needed. The submersible design saves space as the pump operates directly in the tank, eliminating the need for a separate suction pipe and its sealing. The ports with an external thread of 1/2 inch can be connected with standard hose fittings or reducers, making the construction of the circuit quick. It finds application in fountains, ponds, cooling circuits, and in mobile water distribution systems powered by batteries. The quiet operation and durable casing also allow the pump to run continuously without operator intervention, as long as it remains permanently submerged.
