Brake Sensors for Hydraulic Brakes Motor Cut-off When Braking Cable 76 cm Connector 3-pin Magnetic Sensor Black For BAFANG Electric Bicycle
You already have the maximum available quantity in your cart.
These brake sensors are designed for electric bicycles with hydraulic brakes and BAFANG drive. They ensure motor cut-off when braking, so the drive stops working the moment you press the brake lever. The sensor operates on a magnetic principle and consists of a sensor and a small magnet, which are placed near the brake lever. It connects to the control unit or wiring of the bicycle using a 3-pin connector with a male pin configuration. The sensor is attached to the lever using 3M adhesive tape, and the cable can be secured with the included zip ties.
- Motor cut-off function – the sensor monitors the distance between the sensor and the magnet. At a distance of 5–8 mm, the motor operates normally; when the brake is pressed, the distance increases to more than 9 mm, and the power to the motor is interrupted.
- Magnetic principle – the sensor reacts to the change in position of the magnet, which moves along with the brake lever. There is no mechanical contact between the two parts.
- Cable length – the cable from the sensor to the connector measures 76 cm, allowing it to be routed from the handlebars along the frame to the control unit.
- 3-pin connector – the cable ends with a round male connector with three pins. Before installation, please ensure that the connector matches the wiring of your electric bicycle.
- Dimensions of the sensor and magnet – the sensor has a width of 10 mm, and the round magnet with a hole in the middle has a diameter of 10 mm. Due to their small dimensions, both parts take up little space on the lever.
- Attachment with 3M tape – the sensor is equipped with 3M adhesive tape with a red protective film. After removing it, you can stick it onto a clean and dry surface of the lever or its bracket.
- Zip ties – the package includes zip ties for neatly securing the cable to the handlebars or frame.
- Plastic box – small parts are supplied in a transparent plastic box, where they can be stored until installation.
- Colour scheme – both the cable and the body of the sensor are black, while the connector is orange.

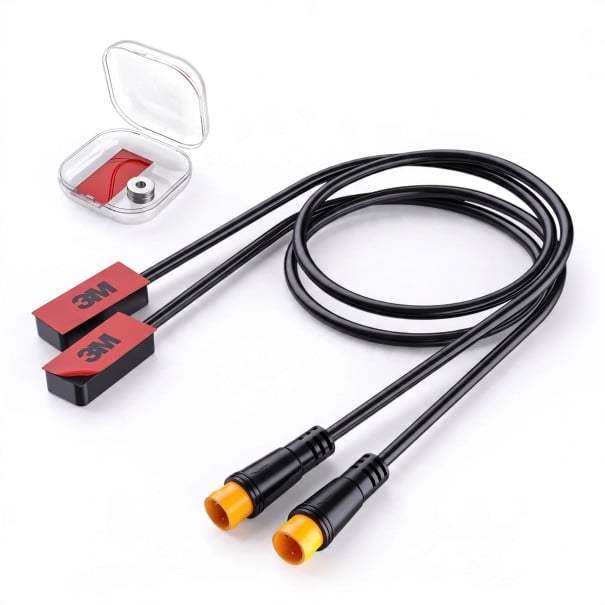

Package contents:
- 2x brake sensor with cable and 3-pin connector
- 1x magnet
- 1x 3M adhesive tape
- 1x set of zip ties
- 1x plastic box
Brake sensors are suitable for electric bicycle owners who wish to add or replace the motor cut-off feature when braking. They can be used on bicycles with hydraulic brakes, serving as an addition to existing brake levers. They are intended for bicycles with BAFANG drive, but please check the type of connector on your wiring before purchasing. During installation, pay attention to the correct distance between the sensor and the magnet so that the motor operates in the resting position of the lever and cuts off when braking. Thanks to the 3M adhesive tape and zip ties, the sensor and cable can be directly attached to the lever and handlebars.
