BMS Protection Board for DALY Batteries 7S to 24S 60 A 125 x 66 x 15.8 mm CAN/485 and UART Ports with NTC Sensor Red for Electric Scooters
You already have the maximum available quantity in your cart.
The DALY BMS protection board is a module for managing and protecting the batteries of electric scooters with a high number of cells. It covers a configuration of 7S to 24S, meaning batteries with 7 to 24 cells connected in series. The module is rated for a current of 60 A. The casing, measuring 125 x 66 x 15.8 mm, is flat and can be easily placed in the battery box. The red cover with labelled ports for communication, temperature sensors, and a switch facilitates orientation during installation.
- Wide Range 7S to 24S: one board covers batteries from 7 to 24 series-connected cells, making it suitable for various voltage configurations of scooter batteries.
- Current 60 A: we recommend comparing the rated current of the module with the maximum consumption of the motor and controller before installation.
- Dimensions 125 x 66 x 15.8 mm: the low and flat casing saves space in the battery box.
- Communication CAN/485 and UART: data connection ports with other devices are located on the side of the casing and labelled for easy identification.
- Temperature Sensors: the board has two NTC-A and NTC-B inputs for temperature sensors, which monitor the battery temperature.
- KEY Port and Switch: the included switch connects to the KEY port and is used to control the module.
- DIO Port: an additional connection point for further wiring according to specific applications.
- Power Wires: black wire P- and blue wire B- for connecting to the battery and load. Point B+ is marked directly on the casing, and the colour-coded wires reduce the risk of confusion.
- Cell Connectors: connectors for the cable leading to individual battery cells are located on the underside of the casing.
- Status Indicator: a green indicator on the casing signals the status of the module.
- Mounting Brackets: brackets with holes at both ends of the casing are used for secure attachment in the battery box.

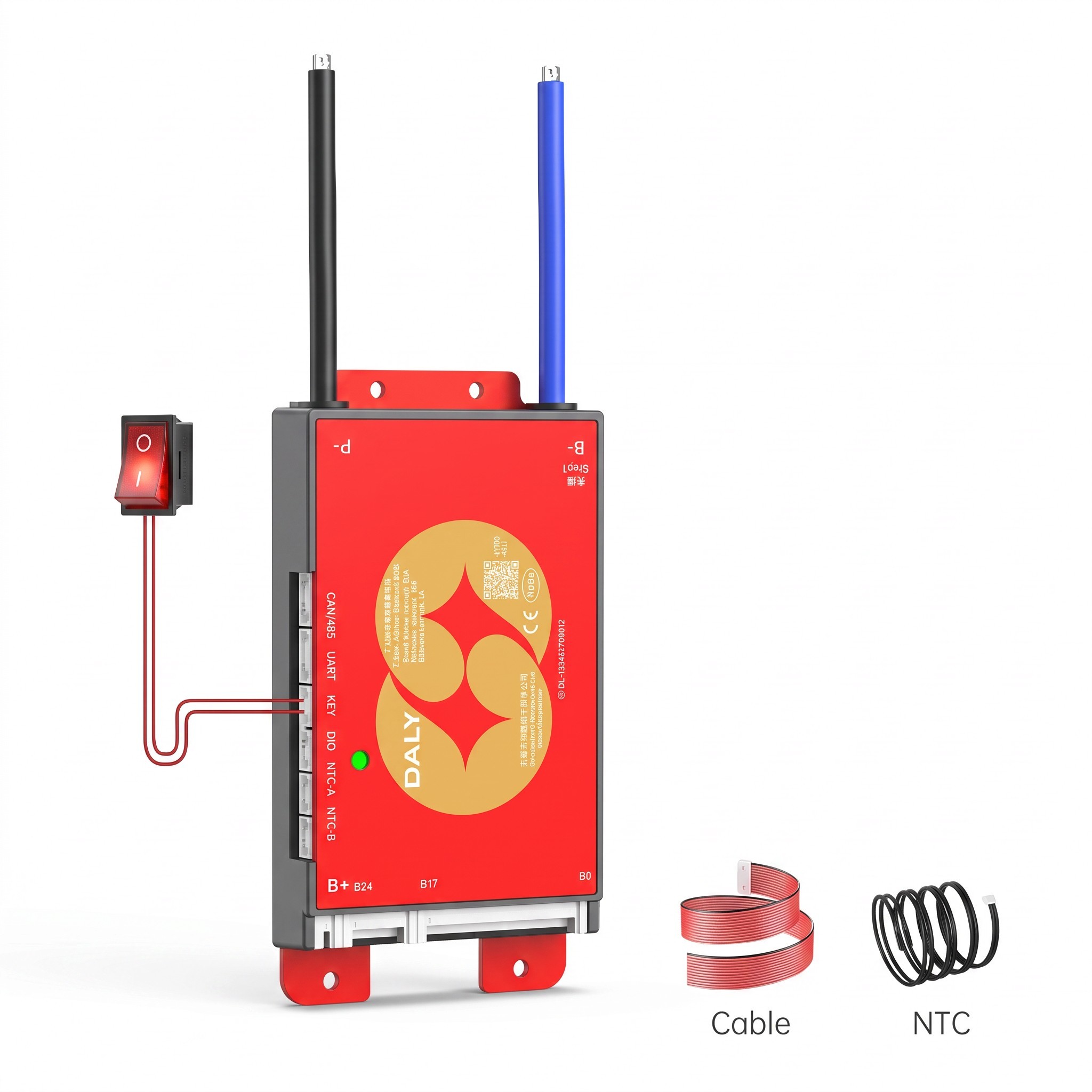

Contents of the package:
- 1x DALY BMS Protection Board 7S to 24S 60 A
- 1x cable for connecting cells
- 1x NTC temperature sensor
- 1x switch
The DALY 7S to 24S BMS board with a current rating of 60 A is designed for building or repairing a battery for an electric scooter with a higher number of cells. Due to its dimensions of 125 x 66 x 15.8 mm, it can be installed even in a cramped battery box. The CAN/485 and UART interfaces allow integration into a system with data communication. Along with the board, you will receive a cable for connecting cells, an NTC temperature sensor, and a switch. Before installation, ensure that the number of cells and the current draw of the battery match the module's specifications.
