BMS Protection Board for DALY Batteries 7S to 24S 40 A 125 x 66 x 15.8 mm CAN/485 and UART Ports with NTC Sensor Red for Electric Scooters
You already have the maximum available quantity in your cart.

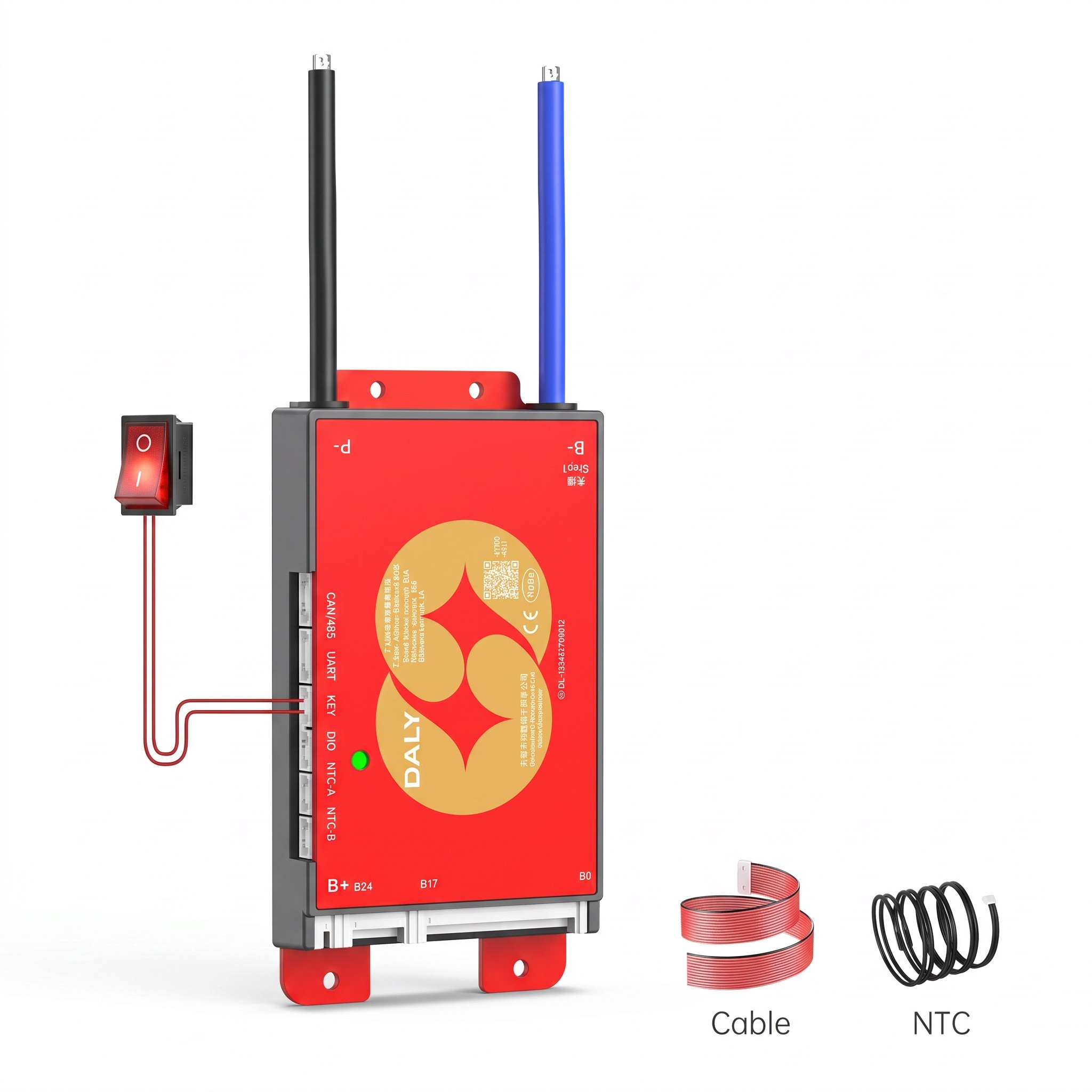

The DALY BMS protection board is designed for the management and protection of electric scooter batteries. It supports a wide range of connections 7S to 24S, meaning batteries composed of 7 to 24 cells in series. The module is rated for a nominal current of 40 A. Dimensions of 125 x 66 x 15.8 mm allow the board to be stored in the battery box without requiring much space. The red casing with labelled ports and mounting brackets facilitates connection and securing.
- 7S to 24S Connection: the board serves batteries with 7 to 24 series-connected cells, making it suitable for both lower and higher voltage configurations of scooter batteries.
- Nominal Current 40 A: before installation, compare this value with the maximum current draw of the motor and controller.
- Flat Casing: dimensions of 125 x 66 x 15.8 mm make it easy to store the board alongside the cells in the battery box.
- CAN/485 and UART Ports: used for data connection with other devices and are labelled on the side of the casing.
- Temperature Measurement: via NTC-A and NTC-B ports, temperature sensors can be connected to monitor the battery temperature.
- Switch on KEY Port: the included switch connects to the KEY port and allows control of the module.
- DIO Port: an additional connection point for expanding the connection according to specific applications.
- Power Connection: the black wire P- and blue wire B- are used for connecting to the battery and load. The B+ point is marked on the casing, and the colour coding of the wires assists in correct connection.
- Cell Connectors: at the bottom of the casing are connectors for the cable leading to individual battery cells.
- Status Indicator: a green indicator on the casing signals the status of the module.
- Mounting: brackets with holes at both ends of the casing allow the board to be securely screwed into the battery box.
Contents of the package:
- 1x DALY BMS Protection Board 7S to 24S 40 A
- 1x Cable for connecting cells
- 1x NTC Temperature Sensor
- 1x Switch
The DALY 7S to 24S board with a current of 40 A is suitable for assembling or repairing electric scooter batteries with a larger number of cells. Compact dimensions 125 x 66 x 15.8 mm facilitate installation even in limited spaces. With CAN/485 and UART ports, the board can be integrated into a system with data communication. The package includes, in addition to the board, a cable for connecting cells, an NTC temperature sensor, and a switch. Before installation, ensure that the number of cells and the battery current draw match the module's specifications.
