BMS Protection Board for DALY Batteries 7S to 17S 60 A 125 x 66 x 15.8 mm CAN/485 and UART Ports with NTC Sensor Red for Electric Scooters
You already have the maximum available quantity in your cart.

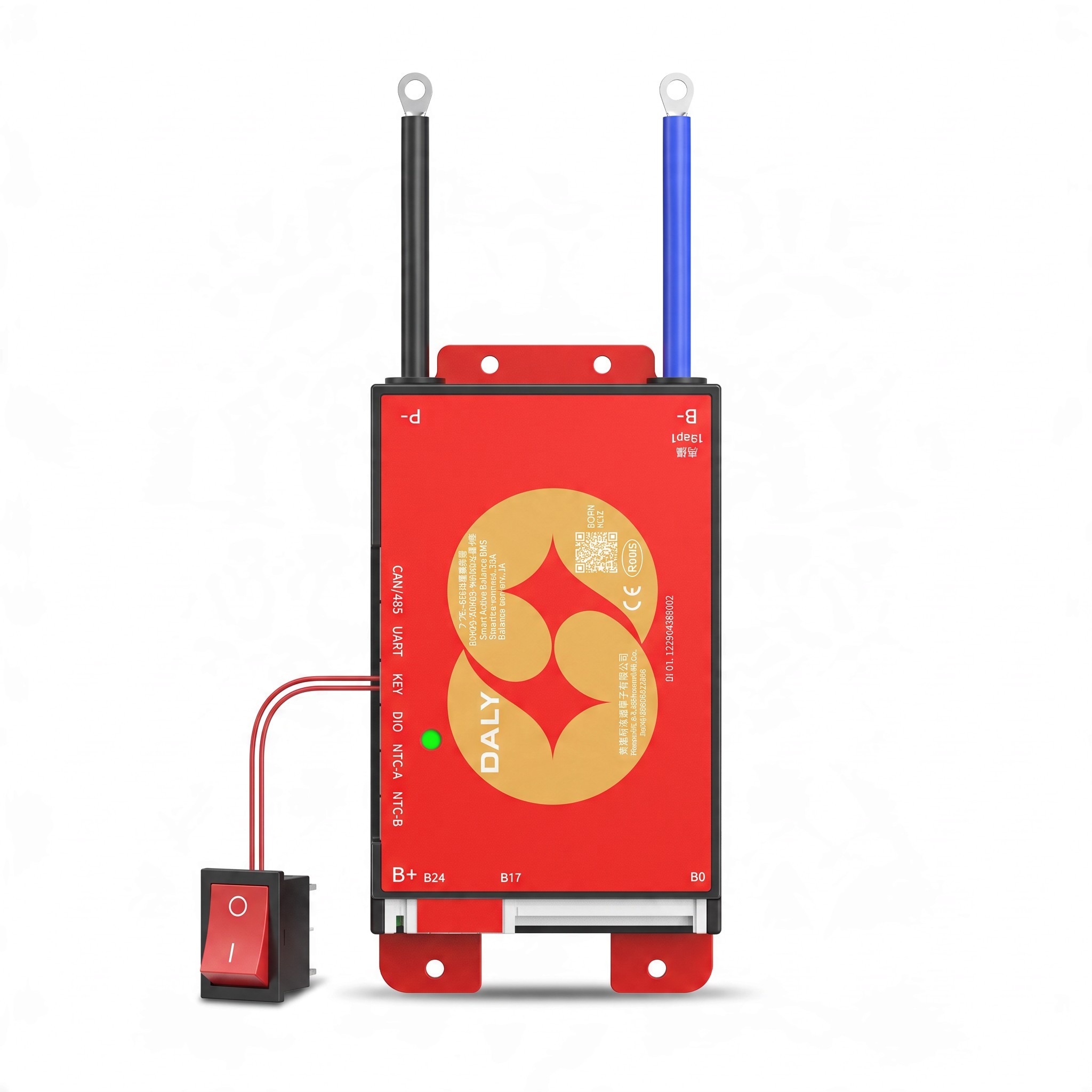

The DALY BMS protection board is designed to manage the battery of an electric scooter and protect it during operation. It supports batteries in a configuration of 7S to 17S, meaning with 7 to 17 cells connected in series. The nominal current of the module is 60 A. The flat design with dimensions of 125 x 66 x 15.8 mm fits well into the scooter's battery box. The red casing features described ports for communication, temperature sensors, and a switch, with mounting brackets at both ends.
- Supported Configuration 7S to 17S: the range from 7 to 17 cells in series allows the use of one type of board for various voltage configurations of the battery.
- Nominal Current 60 A: it is advisable to verify this value against the maximum consumption of the motor and the scooter's control unit before installation.
- Compact Casing: dimensions of 125 x 66 x 15.8 mm and a low height facilitate the placement of the board next to the cells even in smaller battery boxes.
- CAN/485 and UART Interfaces: ports for data communication with other devices. Labels on the side of the casing facilitate the correct connection of individual connectors.
- Temperature Inputs: two NTC-A and NTC-B ports for connecting temperature sensors that monitor the battery temperature.
- KEY Port: designated for the included switch, which controls the module.
- DIO Port: additional input for expanding the configuration according to the specific application.
- Power Wires: the black wire P- and the blue wire B- ensure connection to the battery and load, with the connection point B+ marked on the casing. The colour coding of the wires helps prevent confusion during installation.
- Connector for Connecting Cells: the board connects to the individual battery cells via the included cable.
- Green Indicator Light: indicates the status of the module directly on the casing.
- Installation: brackets with holes at both ends of the casing allow for secure fastening in the battery box.

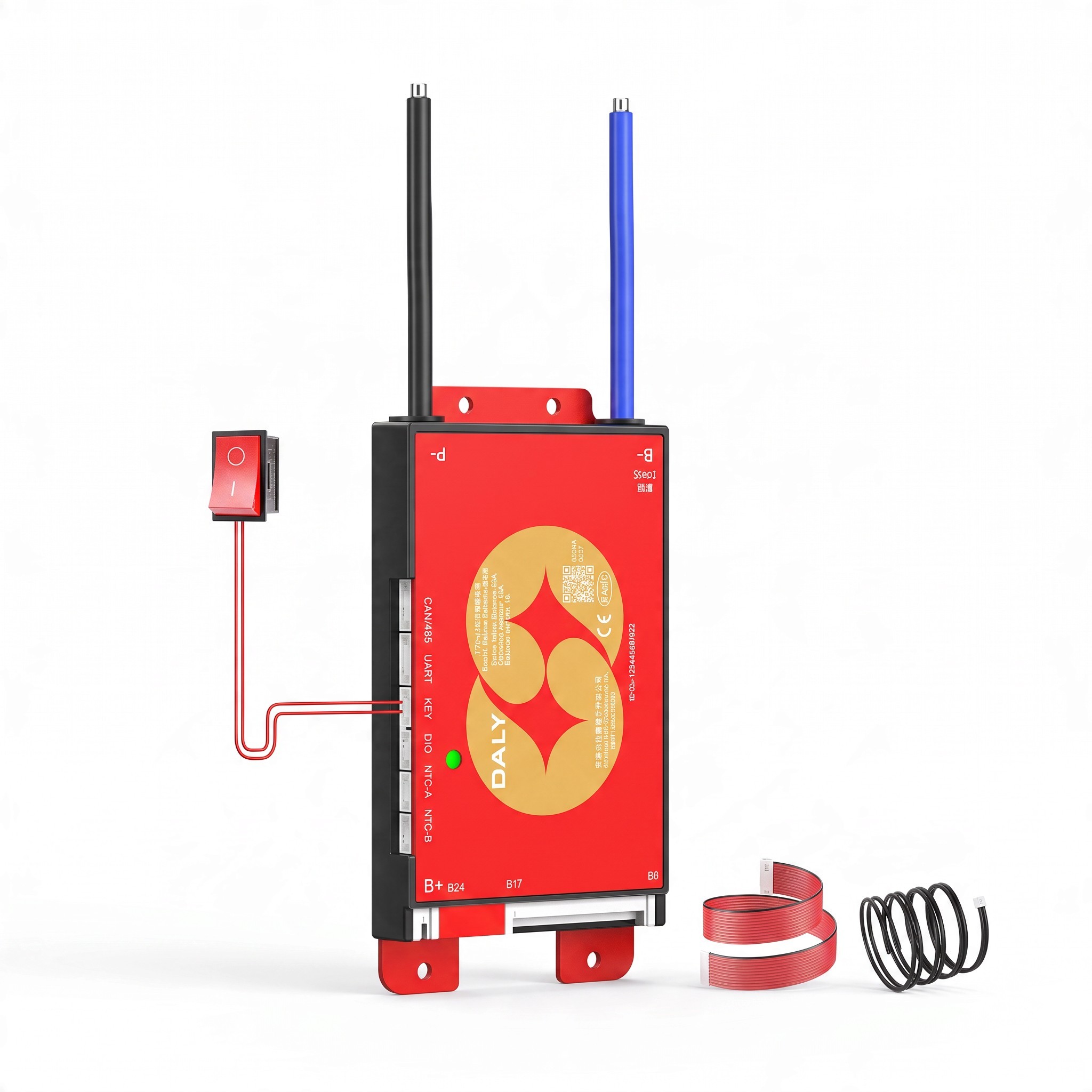

Contents of the package:
- 1x DALY BMS Protection Board 7S to 17S 60 A
- 1x Cable for connecting cells
- 1x NTC Temperature Sensor
- 1x Switch
The DALY board for 7S to 17S with a current of 60 A is intended for assembling or repairing the battery of an electric scooter. The dimensions of 125 x 66 x 15.8 mm allow installation even where space is limited in the battery box. The CAN/485 and UART ports permit integration into a system with data communication. In addition to the board itself, the package includes a cable for connecting cells, an NTC temperature sensor, and a switch. Before installation, please check that the number of cells and the current draw of the battery match the module's parameters.
