BMS Protection Board for DALY Batteries 4S to 8S 60 A 125 x 66 x 15.8 mm CAN/485 and UART Ports with NTC Sensor Red for Electric Scooters
You already have the maximum available quantity in your cart.
The DALY BMS protection board ensures the management and protection of the electric scooter battery. It is designed for batteries configured in 4S to 8S, meaning with 4 to 8 cells connected in series. The module is rated for a current of 60 A, which should be compared to the consumption of your scooter's drive. With dimensions of 125 x 66 x 15.8 mm, the board can be placed directly inside the battery box. The red casing clearly labels the ports for communication, temperature sensors, and the switch, with mounting brackets at both ends.
- Range 4S to 8S: the module manages batteries with 4 to 8 series-connected cells, thus covering more configurations for the scooter battery.
- Current Rating 60 A: the nominal current of 60 A should be compared to the maximum consumption of the motor and control unit before installation.
- Dimensions 125 x 66 x 15.8 mm: the low flat design saves space in the battery box and facilitates placement alongside the cells.

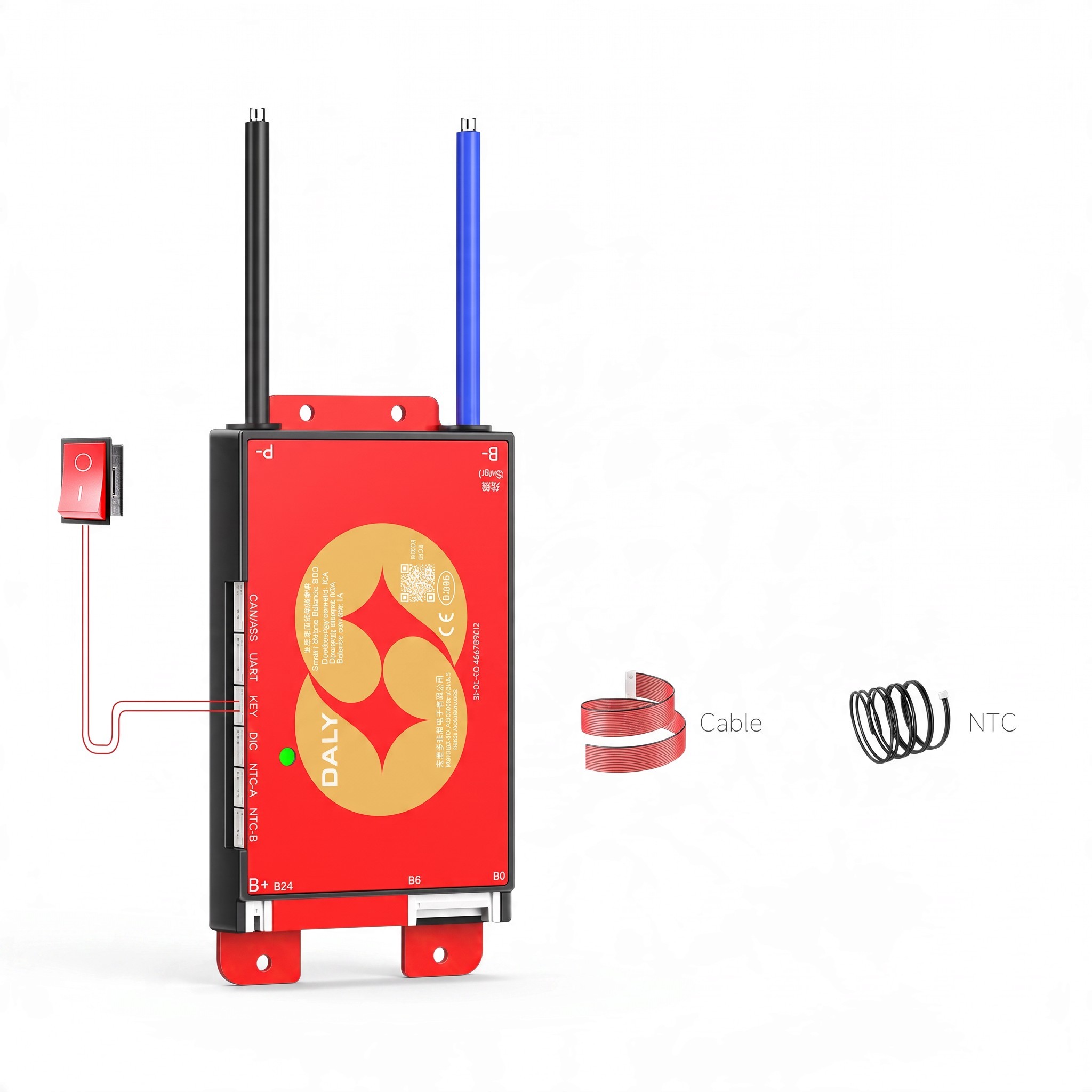

- Data Interfaces: the CAN/485 and UART ports allow connection to other devices. The ports are labelled on the side of the casing, making correct wiring easier.
- Temperature Monitoring: NTC-A and NTC-B ports are used to connect temperature sensors for monitoring the battery temperature.
- Switch on KEY Port: the package includes a switch that connects to the KEY port and is used to control the module.
- DIO Port: an additional connection point for expanding the wiring according to specific applications.
- Power Connection: the black wire P- and the blue wire B- are used to connect to the battery and load, with point B+ marked directly on the casing.
- Connector for Cells: used to connect the cable that links the board to the individual battery cells.
- Indicator Light: the green indicator light on the casing signals the status of the module.
- Mounting: brackets with holes at both ends of the casing allow for secure attachment in the battery box.

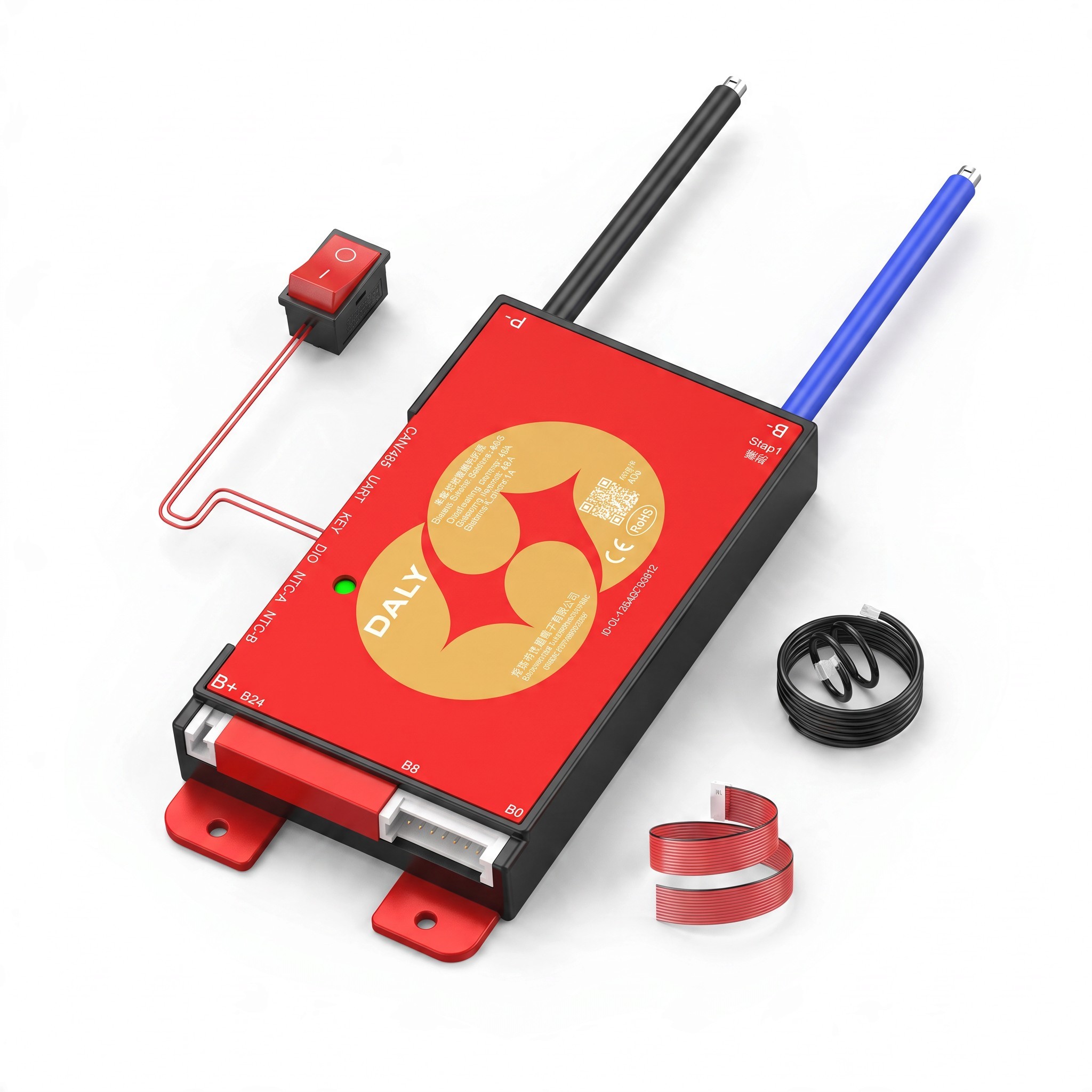

Contents of the package:
- 1x DALY BMS Protection Board 4S to 8S 60 A
- 1x Cable for connecting cells
- 1x NTC Temperature Sensor
- 1x Switch
The DALY 4S to 8S board with a current of 60 A is designed for building or repairing an electric scooter battery. Compact dimensions of 125 x 66 x 15.8 mm facilitate installation even in smaller battery boxes. The CAN/485 and UART interfaces allow integration into a system with data communication. In addition to the board, the package includes a cable for connecting cells, an NTC temperature sensor, and a switch. Before installation, ensure that the number of cells and the current consumption of your battery match the module's specifications.
