BMS Protection Board for DALY Batteries 4S to 8S 40 A 125 x 66 x 15.8 mm CAN/485 and UART Ports with NTC Sensor Red for Electric Scooters
You already have the maximum available quantity in your cart.

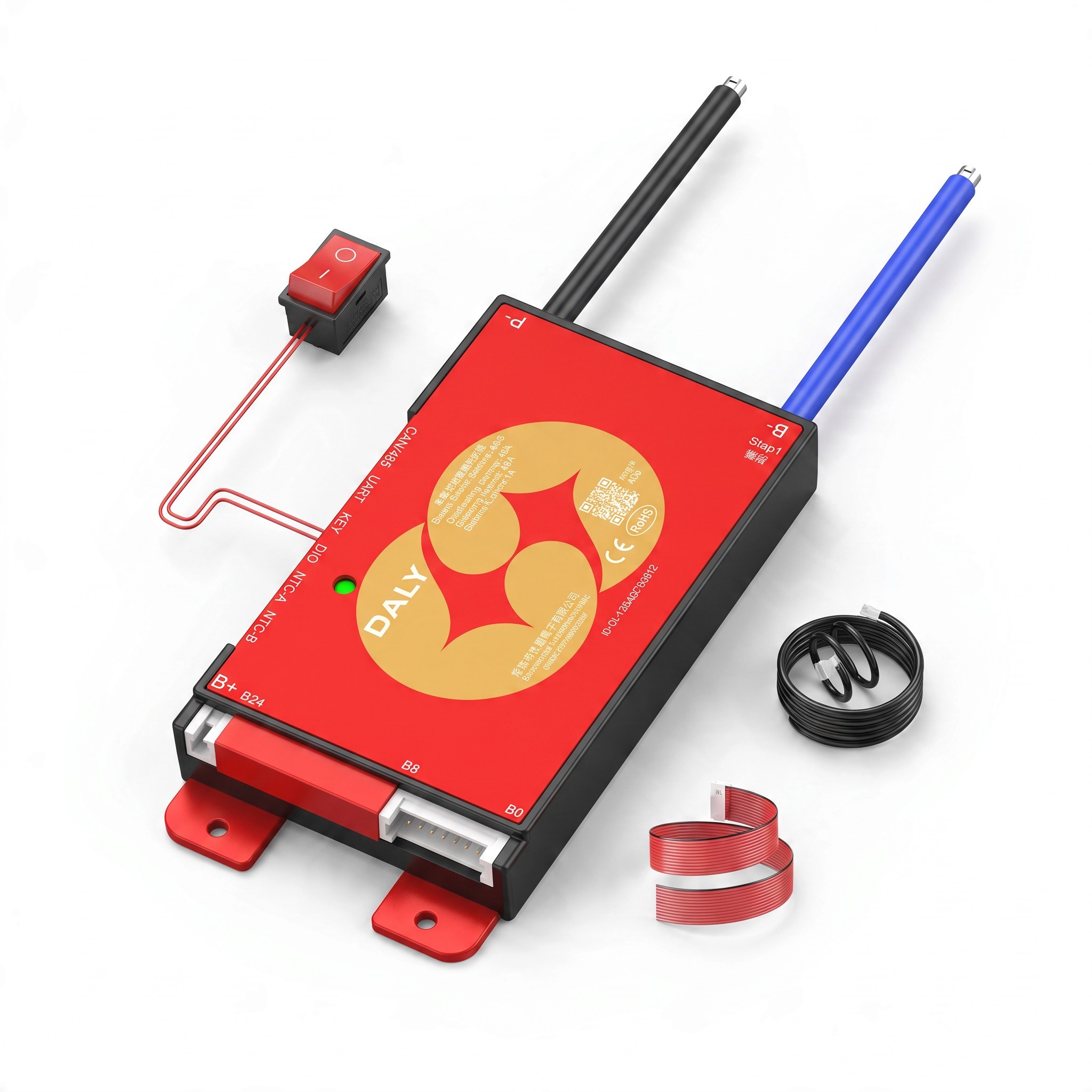

The DALY BMS protection board is designed for managing and protecting the battery in electric scooters. The module is intended for batteries configured in 4S to 8S, meaning 4 to 8 cells connected in series. The board is rated for a current of 40 A and is suitable for battery packs in electric scooters. The compact dimensions of 125 x 66 x 15.8 mm facilitate the placement of the module directly in the battery box. The red casing with mounting brackets and a set of clearly labelled ports for communication, temperature sensors, and a switch simplify the wiring and subsequent maintenance.
- Support for 4S to 8S: the module works with batteries composed of 4 to 8 series-connected cells, allowing it to be used for various scooter battery configurations.
- Current 40 A: the rated current of the module is 40 A, so it is advisable to compare this with the consumption of the scooter's motor and controller when selecting.
- Compact Dimensions: 125 x 66 x 15.8 mm, flat design easily fits alongside the cells in the battery box.
- Communication Interface: CAN/485 and UART ports for data connection with other devices.
- NTC Temperature Sensors: the board offers two NTC-A and NTC-B inputs for temperature sensors that monitor the battery temperature.
- KEY Port: used to connect the included switch, which controls the module.
- DIO Port: an additional connection point for expanding the wiring as needed for specific applications.
- Power Wires: black wire P- and blue wire B- for connection to the battery and load, connection point B+ is marked directly on the casing.
- Connector for Cells: port for connecting the cable to individual battery cells.
- Indicator Light: green indicator on the casing shows the status of the module.
- Mounting Brackets: brackets with holes at both ends of the casing allow for secure fastening in the battery box.

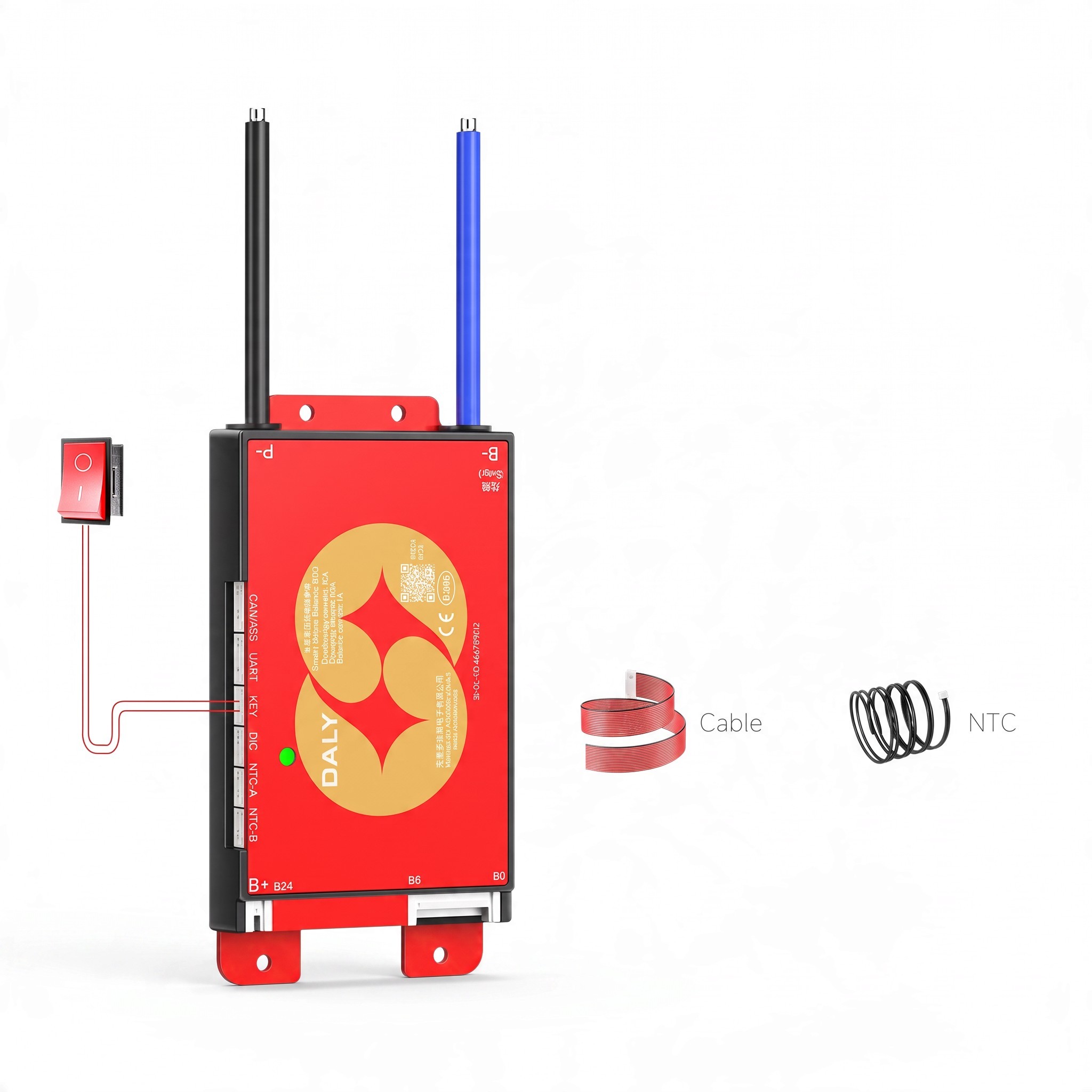

Package Contents:
- 1x DALY BMS Protection Board 4S to 8S 40 A
- 1x Cable for connecting cells
- 1x NTC Temperature Sensor
- 1x Switch
The DALY BMS protection board is designed for assembling or repairing the battery of an electric scooter with 4 to 8 series-connected cells. With compact dimensions of 125 x 66 x 15.8 mm, it offers a current rating of 40 A and clearly labelled connection points. Thanks to the CAN/485 and UART ports, it can be integrated into a system with data communication. The package also includes an NTC temperature sensor, a cable for connecting cells, and a switch. Before installation, ensure that the number of cells and the current requirements of your battery match the module's specifications.
