BMS Board with Balancing JNFN S Bluetooth 4S 60 A NTC Inputs for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

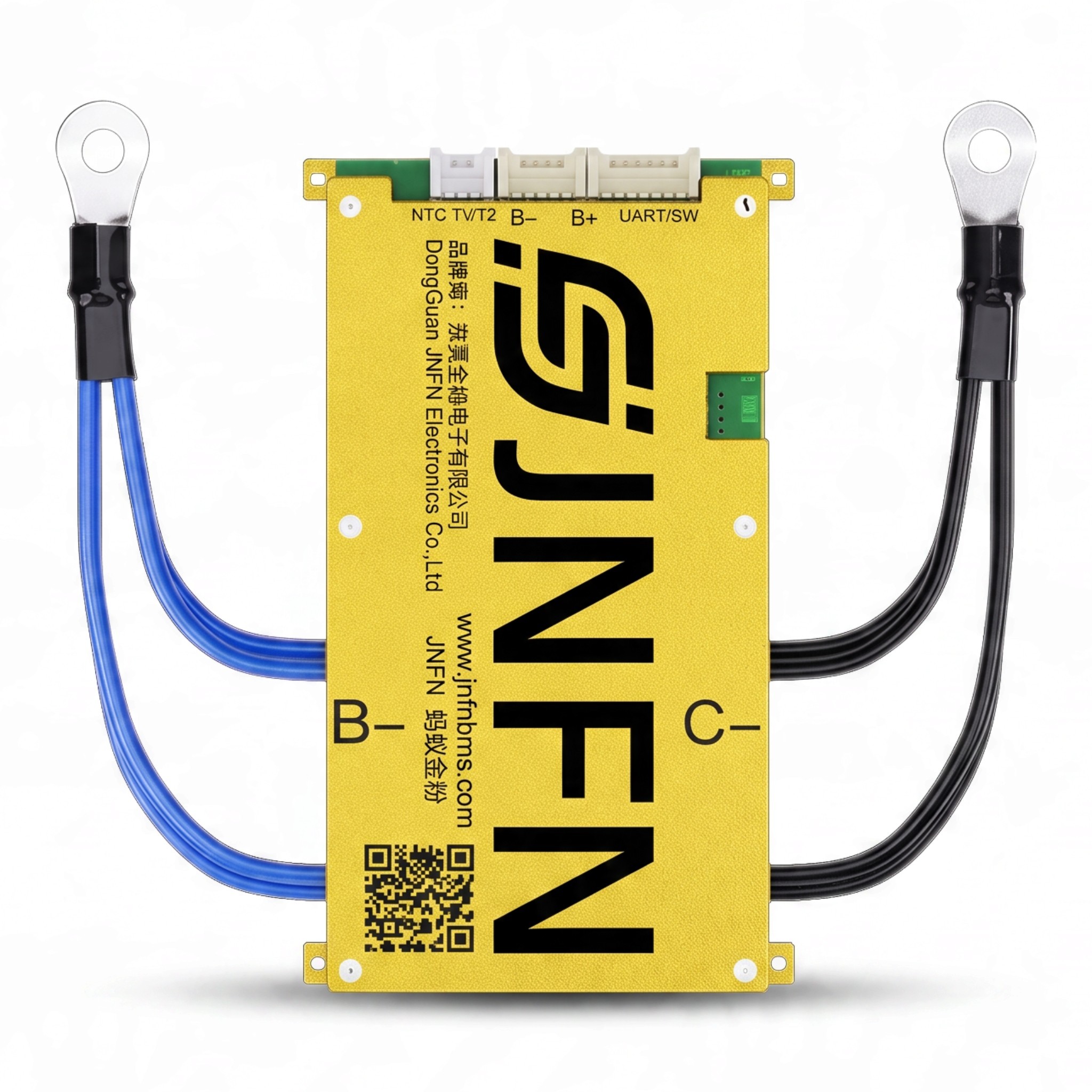

The JNFN BMS board with balancing is designed for e-bike and electric scooter batteries in a 4S configuration, meaning it has 4 cells in series. The board is rated for a continuous current of 60 A. In addition to balancing the cells, it also offers Bluetooth connectivity. On the top edge, there are connectors for the cells, temperature sensors, and data communication. The power leads are terminated with cable lugs for direct bolting.
- 4S Configuration: the board is intended for batteries with 4 cells connected in series.
- 60 A Current: we recommend comparing the rated current of the board with the maximum consumption of the motor and control unit before installation.
- Balancing: this function equalises the voltage between individual cells of the battery.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Compatible Cells: the board is suitable for Li-ion, LiFePO4, LTO, and Na-ion batteries.
- NTC T1/T2 Connector: used to connect temperature sensors for monitoring battery temperature.
- B- and B+ Connectors: connectors on the top edge of the board for connecting wires to the individual cells.
- UART/SW Port: connector in the top right corner of the board for data communication and additional connections.
- Power Connection: a pair of blue wires B- and a pair of black wires C-, each terminated with a cable lug. The colour coding facilitates correct pole connection.
- Mounting: brackets with holes in the corners of the board allow for bolting in the battery box.
- Colour: yellow board with JNFN branding.
Contents of the package:
- 1x BMS Board with Balancing JNFN 4S 60 A
The JNFN BMS board with balancing is suitable for building or repairing a battery with 4 cells connected in series. Before installation, compare the continuous current of 60 A with the consumption of the motor and control unit. Thanks to the connector with NTC T1 and T2 inputs, battery temperature can be monitored. The board supports Li-ion, LiFePO4, LTO and Na-ion cells and is equipped with Bluetooth connectivity. The power leads with cable lugs and labelled connectors simplify the wiring.
