Bench Vice with 360° Rotating Base Jaw Width 20.3 cm Opening 29.2 cm Ductile Cast Iron QT450 Black-Orange Workshop Pipe Vice
You already have the maximum available quantity in your cart.

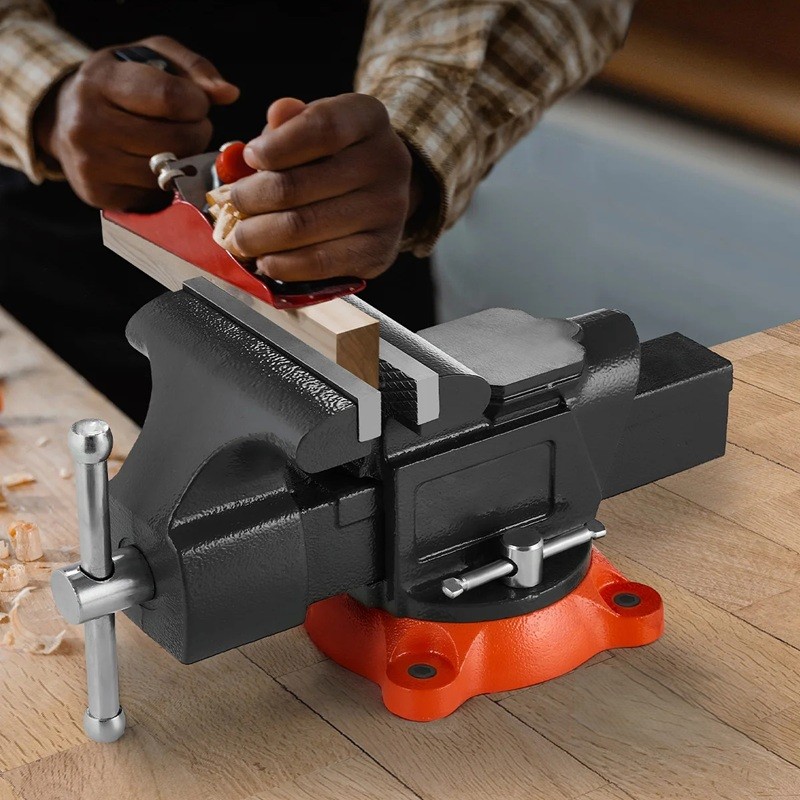

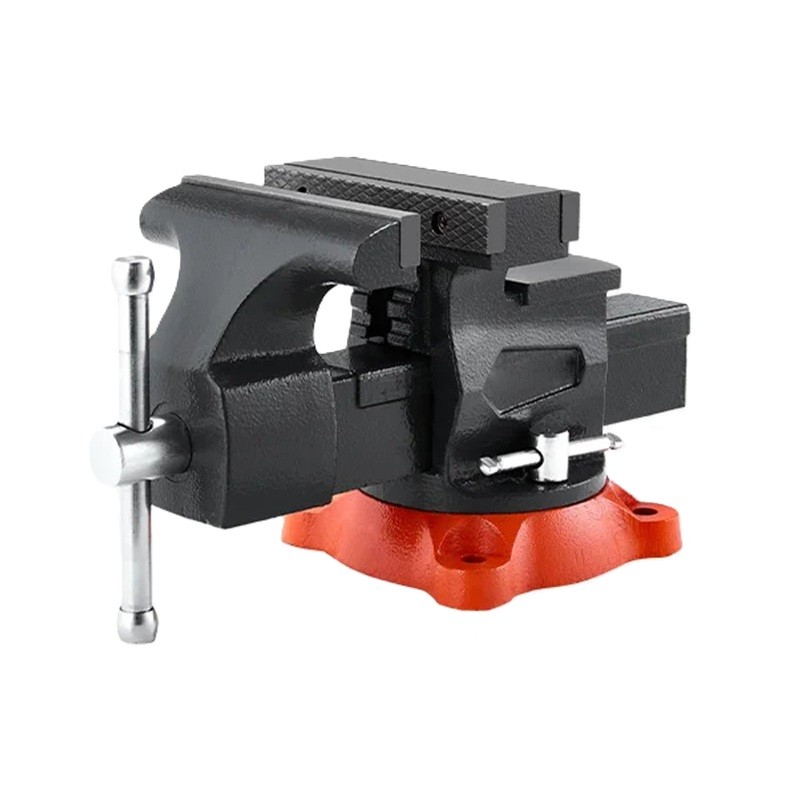

This eight-inch bench vice is designed for clamping larger workpieces during locksmithing, carpentry, and plumbing tasks in workshops, garages, and professional settings. The rotating base with a range of 360° allows you to turn the vice to any angle, giving you access to the workpiece from any side without the need to reposition it. The jaw width of 20.3 cm and maximum opening of 203 mm in the base position or 292 mm after rotating the jaws accommodate even large plates, profiles, and structural components. The lower jaws for pipes grip round profiles with a diameter of 15 to 60 mm, which is appreciated by anyone working with plumbing or heating pipes. The body of the workshop vice is cast from ductile iron QT450 combined with carbon steel, allowing it to withstand loads during straightening and shaping of materials.
- Model — 9528.
- Rotating Base — rotation through a full range of 360° with locking in the desired position, suitable for angled work.
- Jaw Width — 20.3 cm, suitable for large workpieces and structural components.
- Maximum Jaw Opening — 203 mm in the base position and 292 mm after rotating the jaws.
- Clamping Depth — 94 mm under the jaws, allowing for the clamping of tall workpieces.
- Pipe Jaws — grip round profiles with a diameter of 15 to 60 mm without slipping.
- Anvil — working area 86 x 86 mm for straightening and shaping materials.
- Material — ductile iron QT450 and carbon steel Q235 and 45.
- Weight — 20.1 kg, high weight dampens shocks and ensures stability even during heavy-duty work.
- Vice Dimensions — 455 x 205 x 220 mm.
- Mounting — four M10 screw holes for secure anchoring to the workbench.
- Magnetic Jaw Inserts — protect the surface of the clamped material from dents and also serve as pipe jaws.
- Black-Orange Finish — black body with an orange rotating base.
Contents of the package:
- 1x Bench Vice
- 4x Screw M10 x 50
- 4x Nut M10
- 2x Magnetic Jaw Insert 20.3 cm with pipe jaw function
- 1x Manual
A vice of this size is useful for assembly, repairs, cutting, and sawing larger parts where smaller models are insufficient. Due to its weight of 20.1 kg, secure it with the included screws to a sufficiently sturdy workbench and check the tightness of the base before first use. Keep movable parts and guiding surfaces clean and lubricated — this will extend the lifespan and smooth operation. Always use magnetic inserts when clamping materials with sensitive surfaces. Do not exceed the vice's clamping range, do not use it as a hammer, and always wear protective glasses and gloves while working.
