Balancing BMS Module JNFN S Bluetooth 17S to 24S 220 A Peak 550 A for Li-ion LiFePO4 LTO and Na-ion Silver for E-bikes and Scooters
You already have the maximum available quantity in your cart.

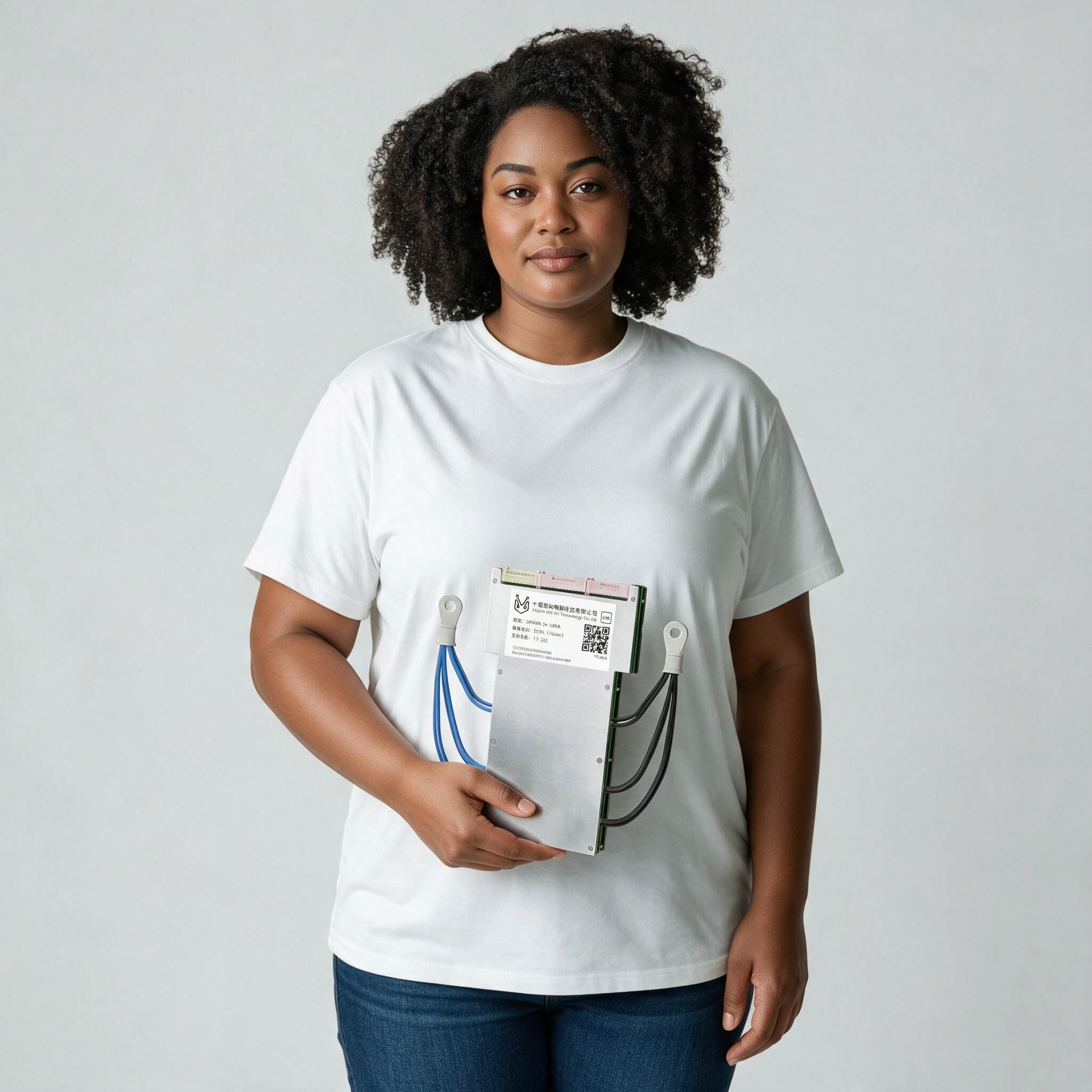

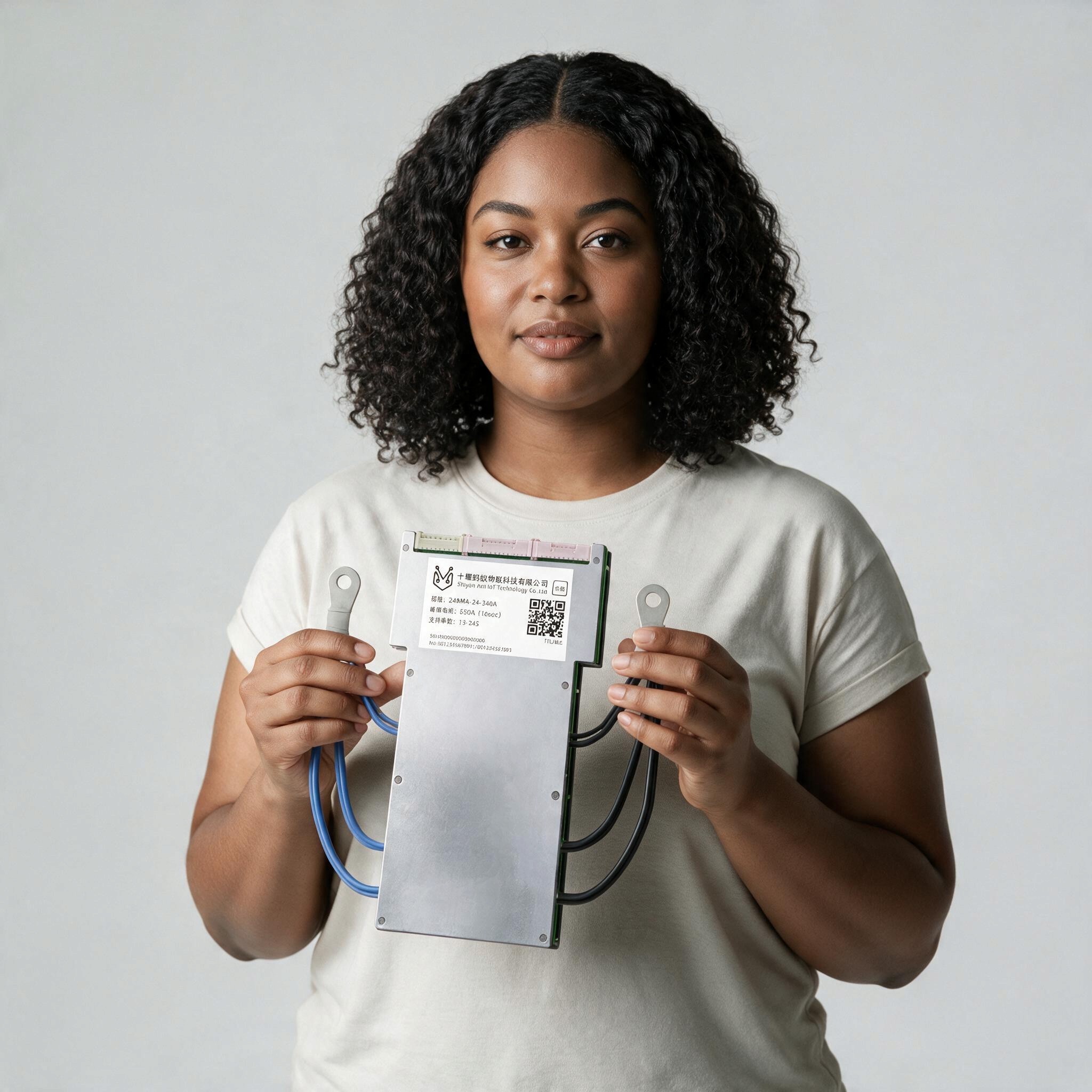

The Balancing BMS Module JNFN is designed for the management and protection of batteries in e-bikes and electric scooters with a high number of cells. It supports connections of 17S to 24S, meaning batteries with 17 to 24 cells in series. The module is rated for a continuous current of 220 A and can briefly withstand peak loads. It is equipped with Bluetooth connectivity and cell balancing functionality. The electronics are housed in a silver casing, and the power leads are terminated with cable lugs.
- Range 17S to 24S: the module is designed for batteries with 17 to 24 cells connected in series, suitable for battery packs with higher voltage.
- Continuous current 220 A: compare this value with the maximum consumption of the motor and controller before installation.
- Peak current: the module can briefly withstand a peak of 550 A.
- Bluetooth: wireless connectivity allows communication with the module without the need to connect a cable.
- Cell balancing: this function equalises the voltage between individual cells of the battery.
- Supported cells: the module is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.

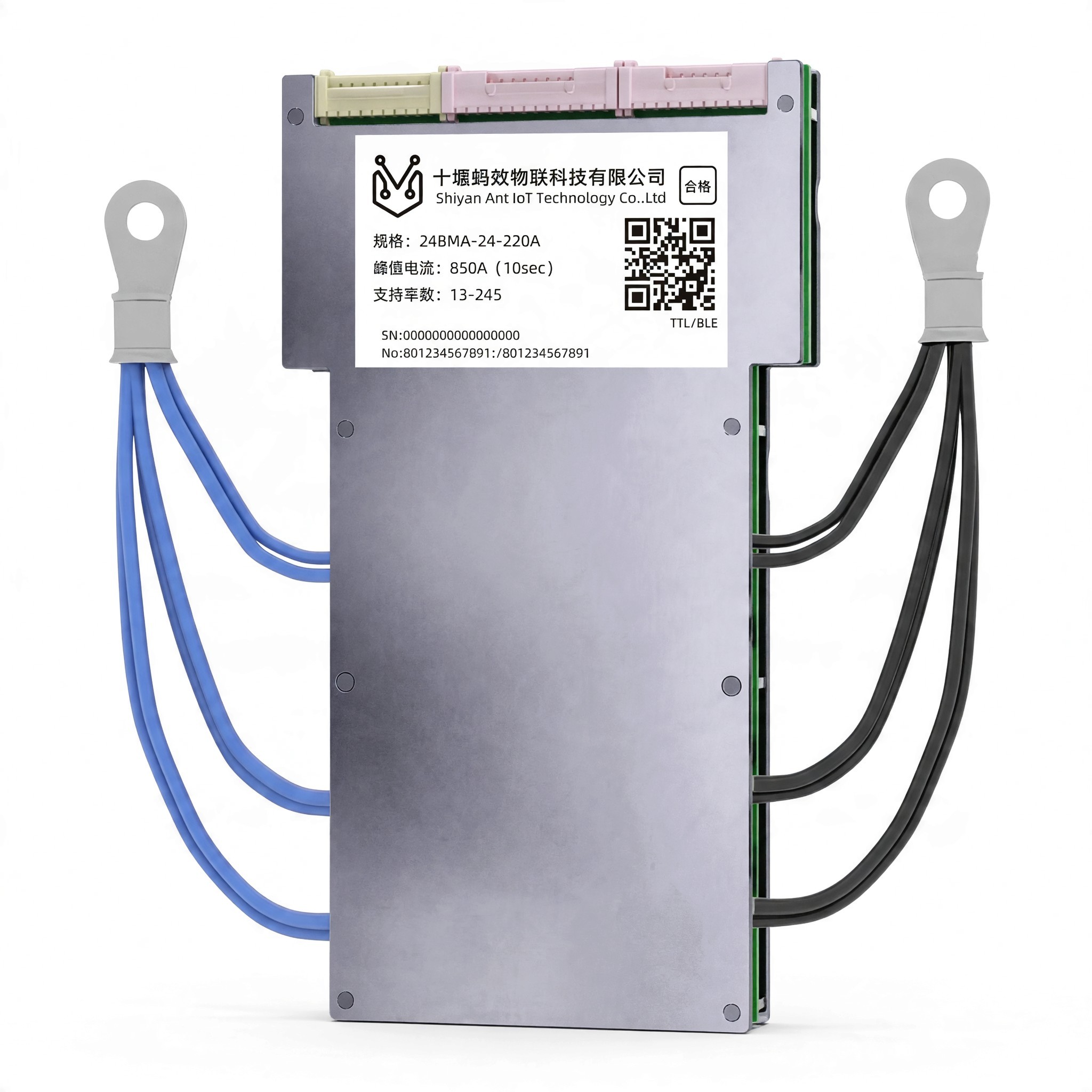

- Power leads: on each side of the module, there is a trio of leads, blue and black, combined into a single cable lug for bolting. Splitting the current into multiple leads is a common solution for high currents.
- Colour coding: blue and black leads help prevent pole reversal during installation.
- Connectors for cells: on the top side of the module, there is a row of connectors for connecting leads to individual cells.

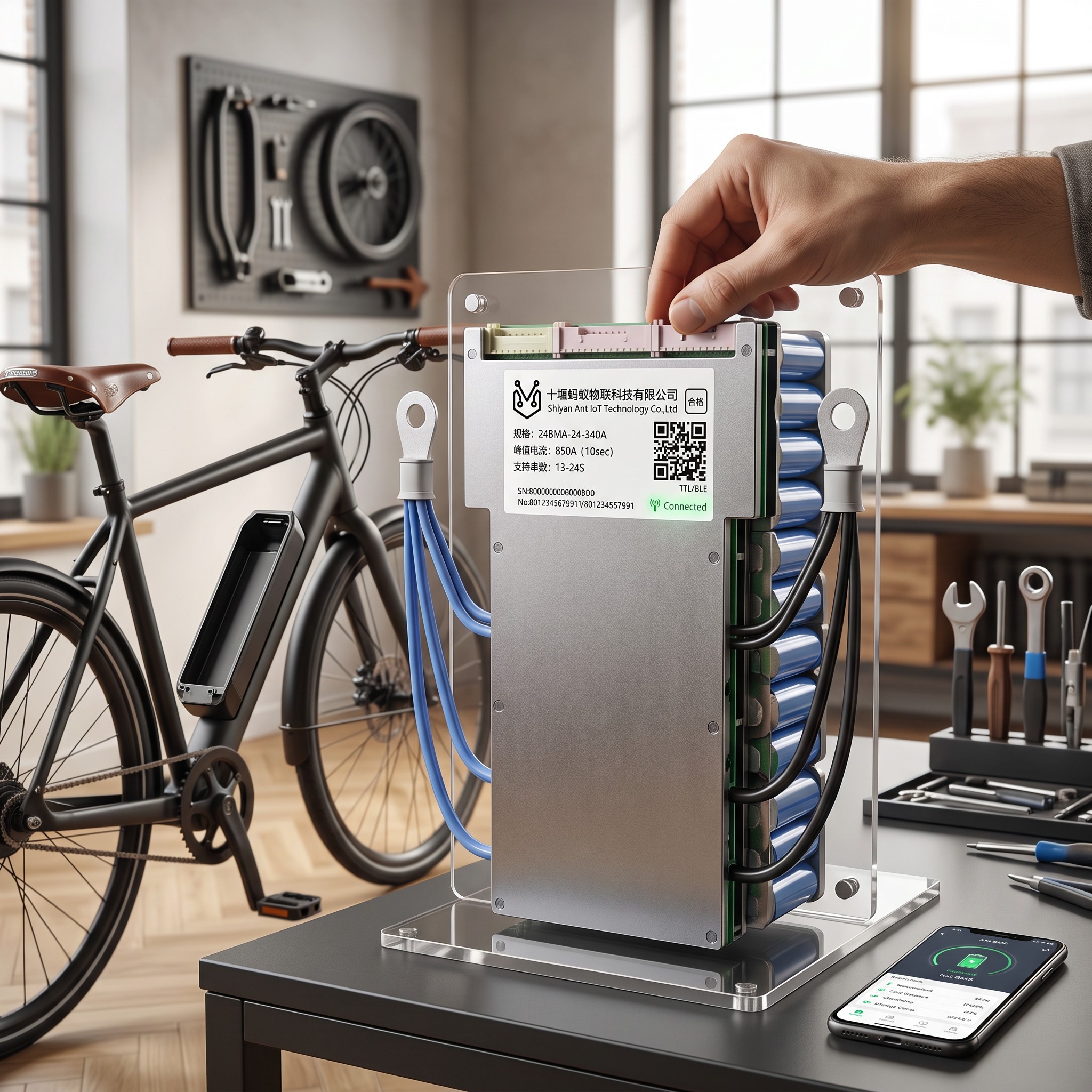

- Casing: the flat design in a silver casing facilitates storage next to the cells in the battery box.
Contents of the package:
- 1x Balancing BMS Module JNFN 17S to 24S 220 A
The Balancing BMS Module JNFN is intended for the construction or repair of a battery for an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 220 A with a peak of 550 A and support for cells Li-ion, LiFePO4, LTO and Na-ion allow for use in various battery packs. The module is equipped with Bluetooth connectivity and cell balancing functionality. The trio of power leads with a cable lug on each side simplifies connection to the battery. Before installation, ensure that the number and type of cells and the current draw match the module's specifications.
