Automatic Source Switch ATS 4P 63 A Manual and Automatic Mode Source Indicators for DIN Rail White for Generator and Backup Power Supply
You already have the maximum available quantity in your cart.
The automatic source switch monitors the power supply and switches the load to the backup source during a power outage. The device is four-pole with a rated current of 63 A, making it suitable for three-phase distribution including the neutral conductor. Source A is designated for the mains, source B for the generator or other backup power supply. The switch can be toggled between manual or automatic mode using a sliding control. Indicators A and B show the active source. The body is white with a red toggle lever and transparent terminal covers.
Features:
- Rated current 63 A — capacity for residential and smaller operational distribution.
- Four poles — 4P design for three phases and the neutral conductor.
- Source A for mains — primary power supply from the distribution network.
- Source B for generator — backup power supply during an outage.
- Manual and automatic mode — selection via sliding switch.
- Toggle lever — manual switching between positions A and B.
- Indicators A and B — indication of active source.
- Signal terminal block — NC, C, and NO contacts for both sources.
- Terminals for both sources — connections on both the upper and lower sides.
- Transparent terminal covers — protection for connected wires.

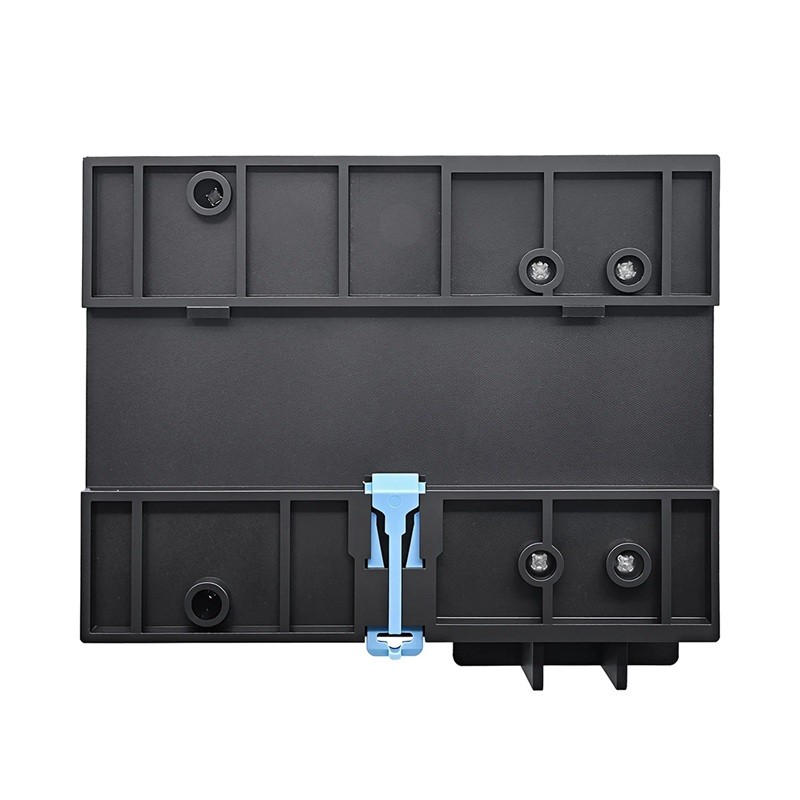

- DIN rail mounting — installation into standard distribution boards.
- White colour — body with red lever and coloured indicators.
Package contents:
- 1x automatic source switch
The switch is useful in family homes, holiday cottages, workshops, server rooms, and businesses where a power outage poses a problem. The four-pole design covers the entire three-phase distribution including the neutral conductor, so there is no need to address separate switching of N. The manual mode allows the source to be switched hard during inspection or maintenance; however, be cautious as manual switching is only possible in the Manual position. Indicators A and B provide immediate visibility of which source is currently supplying power to the load. DIN rail mounting allows installation into existing distribution boards without cabinet modifications.
