Automatic Source Switch ATS 4P 100 A 230 V Manual and Automatic Mode Source Indicators for DIN Rail White for Generator and Backup
You already have the maximum available quantity in your cart.

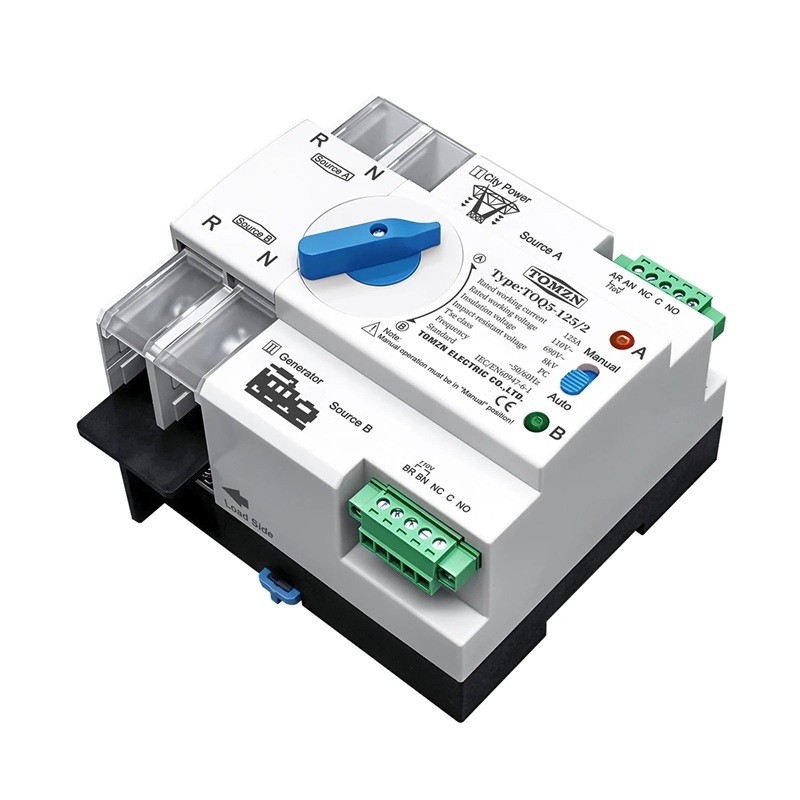

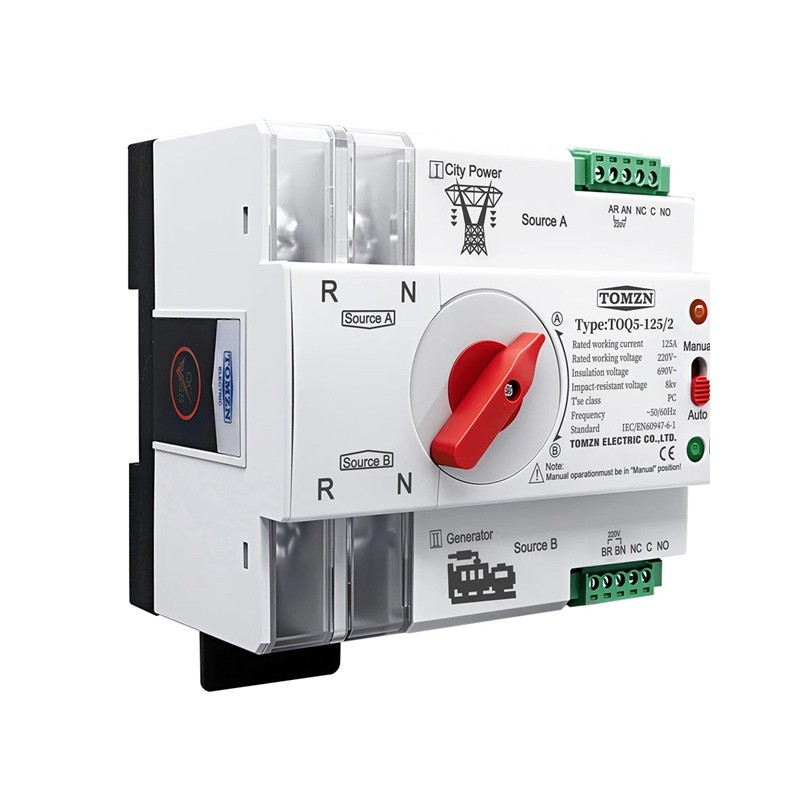

The automatic source switch monitors the power supply and switches the load to the backup source during a power failure. The device is four-pole with a rated current of 100 A and operates at 230 V, thus covering the distribution including the neutral conductor. Source A is designated for the mains, while source B is for the generator or other backup power supply. The switch can be toggled to manual or automatic mode using a sliding control. Indicators A and B show the active source. The body is white with a red rotary lever and transparent terminal covers.
Features:
- Rated current 100 A — capacity for higher consumption distribution.
- Voltage 230 V — operating voltage of the switch.
- Four poles — 4P design for three phases and a neutral conductor.
- Source A for mains — primary power supply from the distribution network.
- Source B for generator — backup power during outages.
- Manual and automatic mode — selection via sliding switch.
- Rotary lever — manual switching between positions A and B.
- Indicators A and B — indication of the active source.
- Signal terminal block — NC, C, and NO contacts for both sources.
- Terminals for both sources — connection on both the top and bottom sides.
- Transparent terminal covers — protection for connected wires.

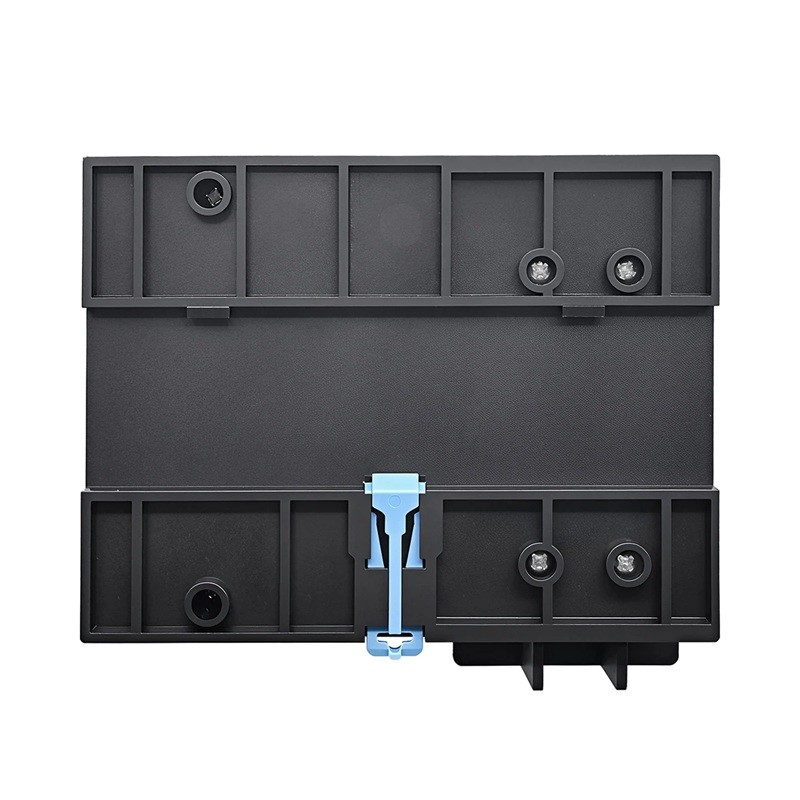

- DIN rail mounting — installation in a standard distribution board.
- White colour — body with a red lever and coloured indicators.
Contents of the package:
- 1x automatic source switch
The switch is useful in family homes, cottages, workshops, server rooms, and businesses where a power outage means a problem. The four-pole design covers the entire distribution including the neutral conductor, so there is no need to deal with separate switching of N. The manual mode allows for hard switching of the source during inspection or maintenance, but be aware that manual switching is only possible in the Manual position. Indicators A and B provide immediate visibility of which source is currently powering the load. DIN rail mounting allows for installation in an existing distribution board without modifications to the enclosure.
