Automatic Source Switch ATS 2P 63 A for 220 V and 380 V Systems Manual and Automatic Mode for DIN Rail White for Generator and Backup
You already have the maximum available quantity in your cart.

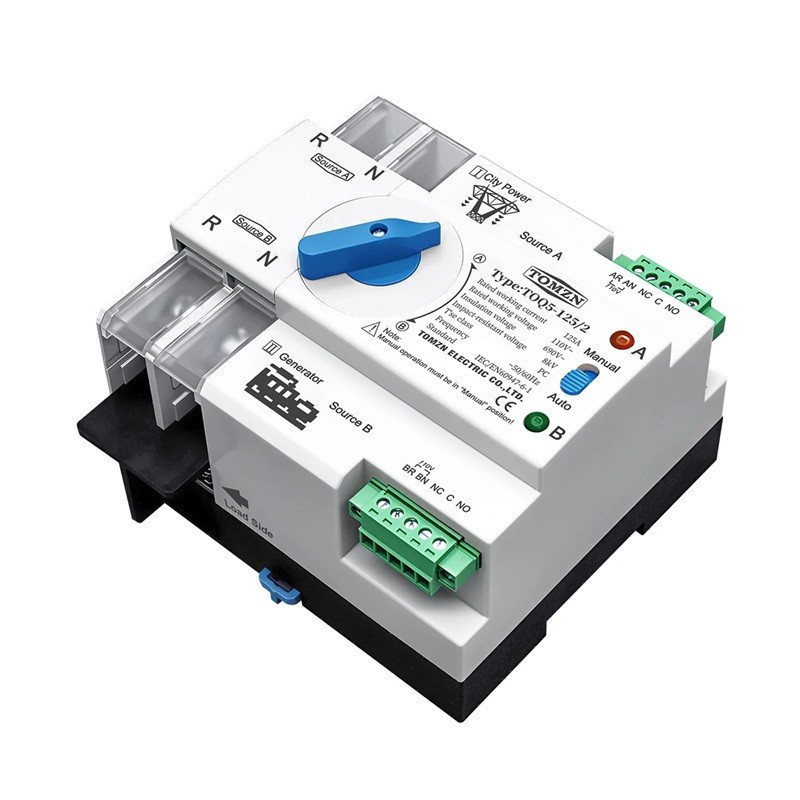

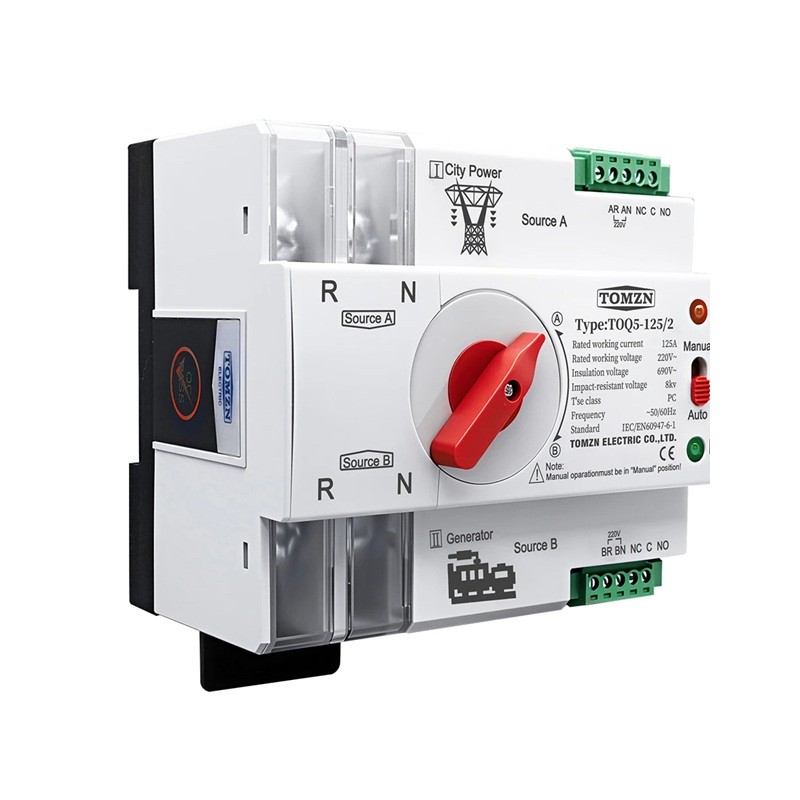

The automatic source switch monitors the power supply and during a power outage switches the load to the backup source. The device is two-pole with a rated current of 63 A and is compatible with 220 V and 380 V systems. Source A is intended for the mains, source B for the generator or other backup power supply. The switch can be toggled into manual or automatic mode using a sliding control. Indicators A and B show the active source. The body is white with a red toggle lever and transparent terminal covers.
Features:
- Rated current 63 A — capacity for domestic and smaller operational distribution.
- Two poles — 2P design for phase and neutral conductor.
- Compatibility with 220 V and 380 V systems — widespread application in distributions.
- Source A for mains — main power supply from the distribution network.
- Source B for generator — backup power during outages.
- Manual and automatic mode — selection using a sliding switch.
- Toggle lever — manual switching between positions A and B.
- Indicators A and B — indication of the active source.
- Signal terminal block — NC, C and NO contacts for both sources.
- Terminals R and N — connection of both sources on the top and bottom sides.
- Transparent terminal covers — protection for connected wires.

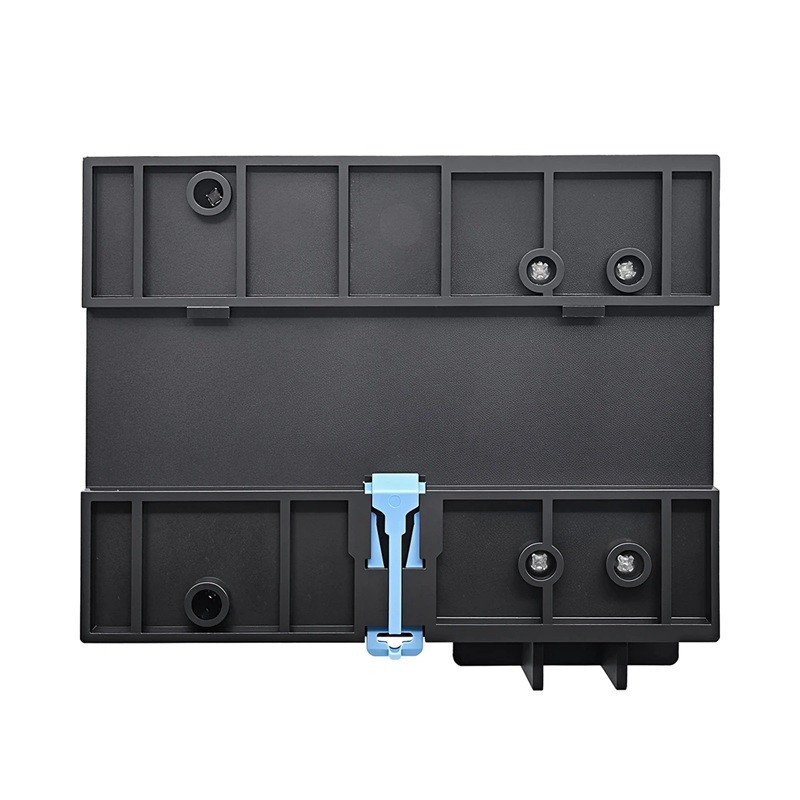

- DIN rail mounting — installation into a standard distribution board.
- White colour — body with a red lever and coloured indicators.
Contents of the package:
- 1x automatic source switch
The switch is useful in a family home, at a cottage, in a workshop, in a server room, and in a business where a power outage means a problem. Manual mode allows for a hard switch of the source during inspection or maintenance, but be cautious as manual switching is only possible in the Manual position. Indicators A and B clearly show which source is currently powering the load. DIN rail mounting allows for installation into an existing distribution board without modifications to the enclosure. Transparent terminal covers protect connected wires from contact.
