Automatic Source Switch ATS 2P 125 A 230 V Manual and Automatic Mode Source Indicators for DIN Rail White for Generator and Backup
You already have the maximum available quantity in your cart.

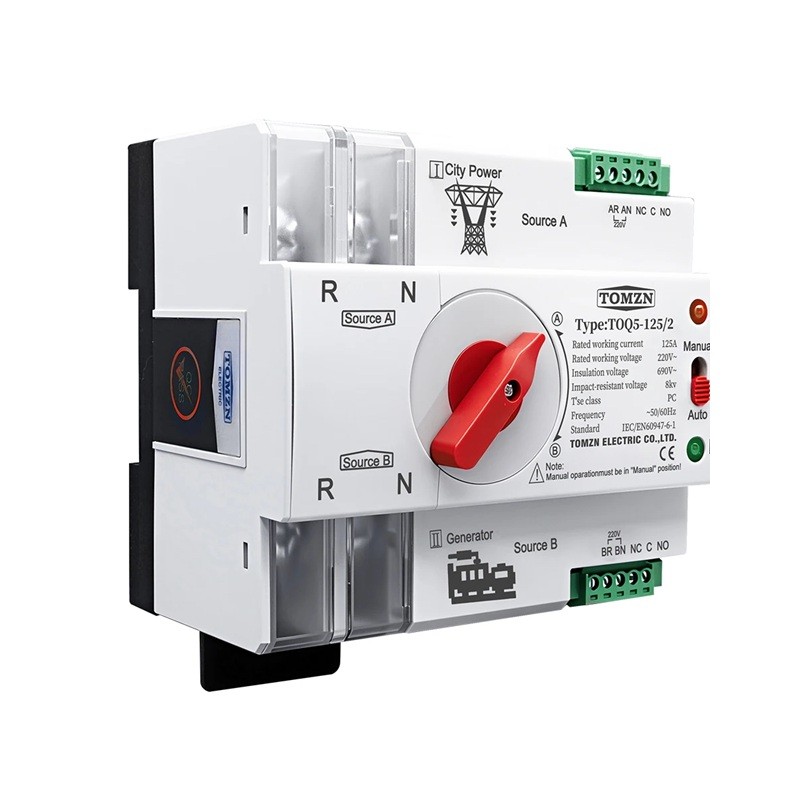

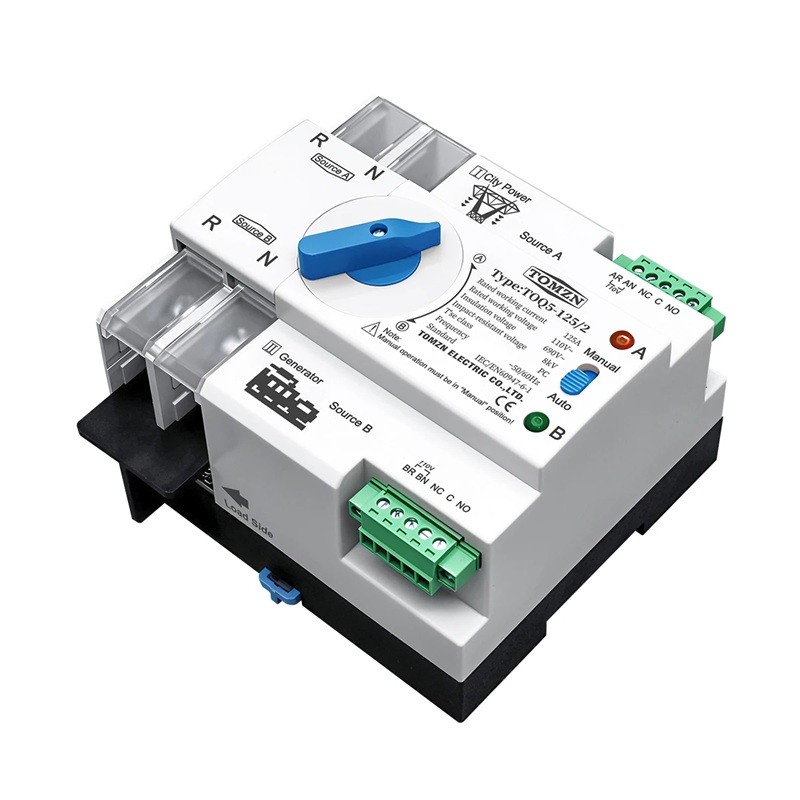

The automatic source switch monitors the power supply and switches the load to the backup source during a power outage. The device is two-pole with a rated current of 125 A and operates at a voltage of 230 V. Source A is intended for the mains, while source B is for the generator or other backup power supply. The switch can be toggled to manual or automatic mode using a sliding control. Indicators A and B show the active source. The body is white with a red toggle lever and transparent terminal covers.
Features:
- Rated current 125 A — capacity for high consumption distribution.
- Voltage 230 V — connection to a standard single-phase network.
- Two poles — 2P design for phase and neutral conductor.
- Source A for mains — main power from the distribution network.
- Source B for generator — backup power during an outage.
- Manual and automatic mode — selection via sliding switch.
- Toggle lever — manual switching between positions A and B.
- Indicators A and B — indication of the active source.
- Signal terminal block — NC, C and NO contacts for both sources.
- Terminals R and N — connection of both sources on the top and bottom sides.
- Transparent terminal covers — protection for connected wires.

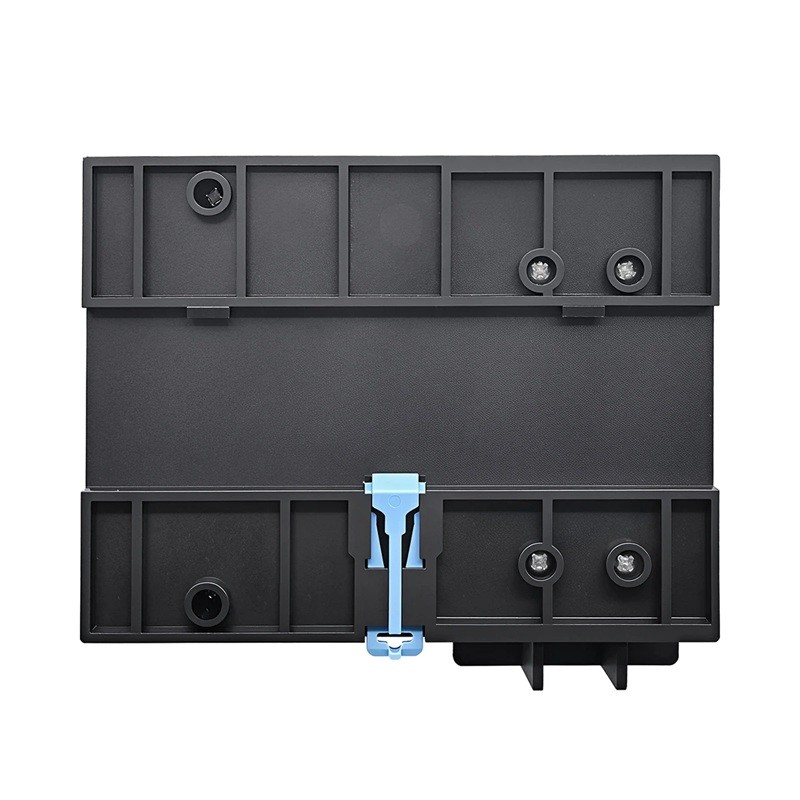

- DIN rail mounting — installation into a standard distribution board.
- White colour — body with a red lever and coloured indicators.
Contents:
- 1x automatic source switch
The switch is useful in family homes, cottages, workshops, server rooms, and businesses where a power outage poses a problem. Current 125 A provides a buffer even for high consumption circuits, so there is no need to split the load between multiple devices. Manual mode allows for a hard switch of the source during inspection or maintenance, but be cautious that manual switching is only possible in the Manual position. Indicators A and B clearly show which source is currently powering the load. DIN rail mounting allows for installation into an existing distribution board without modifications to the enclosure.
