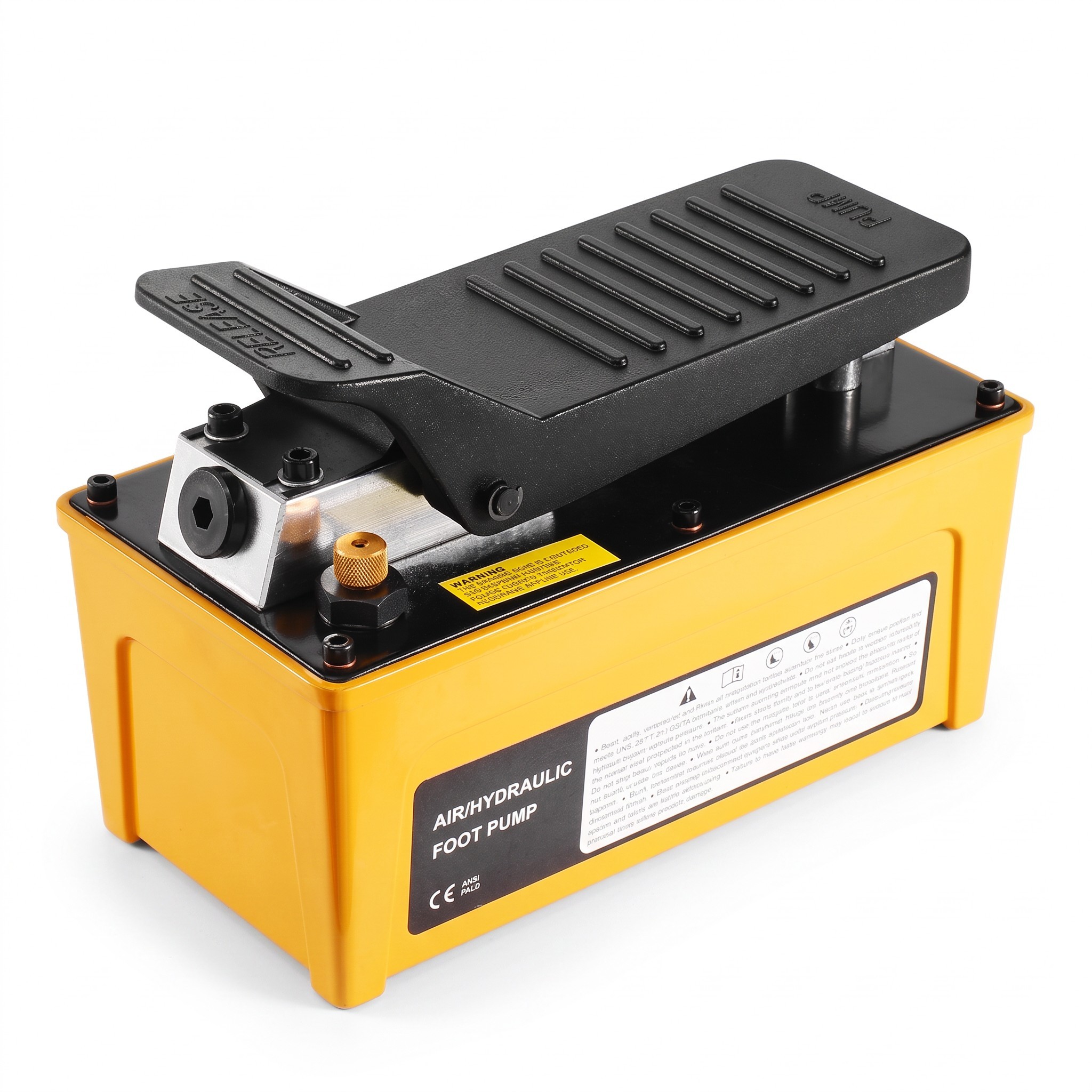

Air Hydraulic Pump 10,000 PSI Foot Pump with 1.6 L Tank and 2 m Hose Aluminium Yellow for Frame Machines and Hydraulic Presses

Air Hydraulic Pump 10,000 PSI Foot Pump with 1.6 L Tank and 2 m Hose Aluminium Yellow for Frame Machines and Hydraulic Presses

Foot pneumatic-hydraulic pump with a pressure of up to 700 bar and a tank filled with oil. Air flow 340 l/min, safety valve and hose included. Full description
In stock
Delivery €1.59
30-day return policy
€209.13
Safe shopping Safe shopping
Overview
Air Hydraulic Pump 10,000 PSI Foot Pump with 1.6 L Tank and 2 m Hose Aluminium Yellow for Frame Machines and Hydraulic Presses

The air hydraulic pump with foot control powers hydraulic tools in garages, body shops, and workshops. It generates hydraulic pressure of up to 10,000 PSI (approximately 700 bar) and operates with compressed air at a flow rate of 340 l/min. The pump comes with a 1.6 L tank filled with hydraulic oil, so you do not need to purchase oil separately and can use it immediately. It is operated by foot, leaving both hands free to work with tools. It is suitable for frame straightening machines, hydraulic presses, jacks, and tools for bending, pressing, and disassembly.

  • Maximum output pressure – 10,000 PSI (approximately 700 bar).
  • Pump flow rate – 0.8 l/min without load and 0.16 l/min under load.
  • Air inlet pressure – 110–145 PSI (approximately 7.6–10 bar), air flow 340 l/min.
  • Connection – air inlet NPT 1/4" (13.7 mm), oil outlet NPT 3/8" (16.66 mm).
  • Oil tank – volume 1.6 L, filled with hydraulic oil from the factory.
  • High-pressure hose 2 m – rubber hose reinforced with three layers of steel wire, withstands pressure up to 125 MPa.

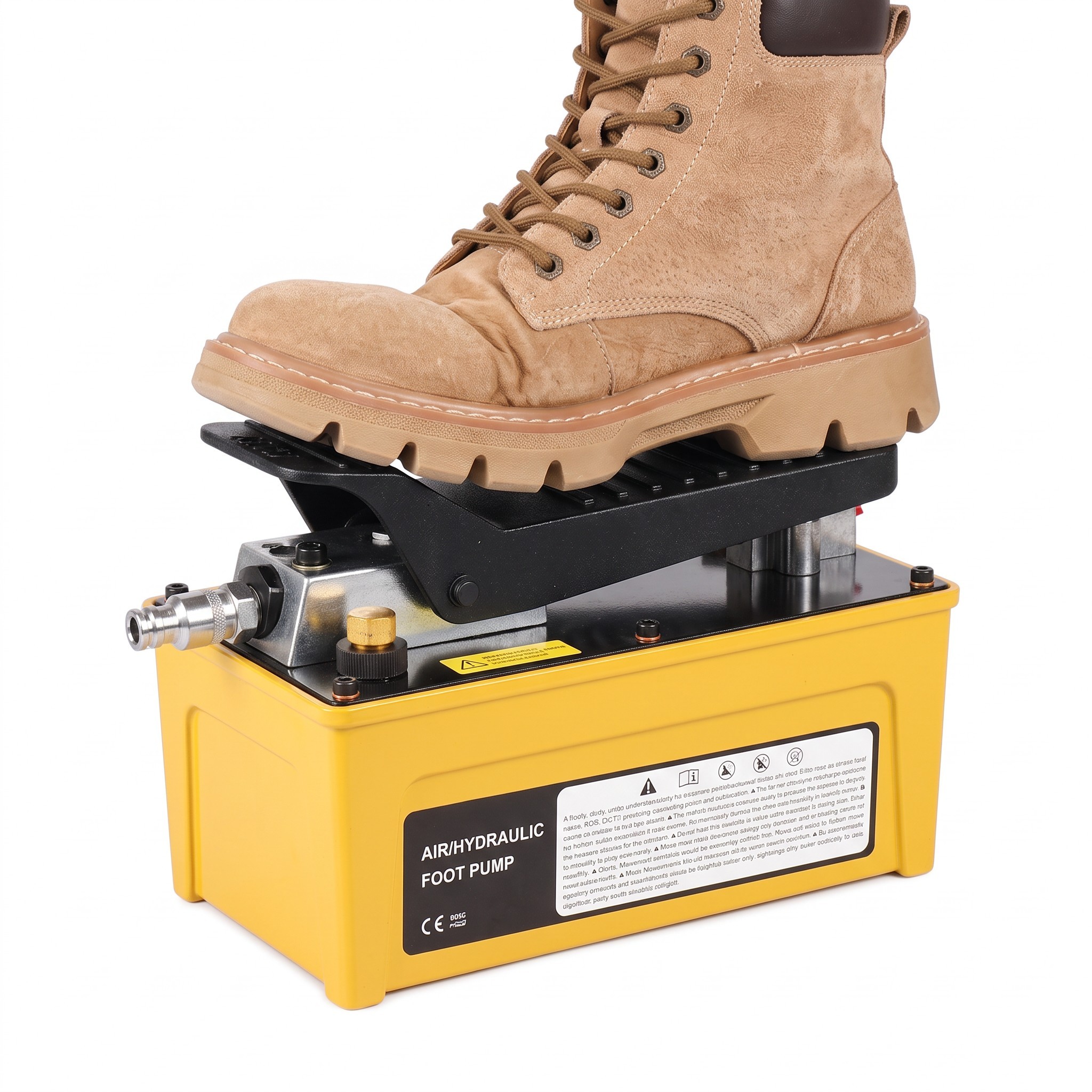

  • Foot control – pressure is created by pressing the pedal and released just as quickly.
  • Durable design – the casing is made of aluminium and the internal safety valve protects hydraulic components from overpressure.
  • Mounting holes – at the bottom, allowing you to secure the pump firmly.
  • Dimensions – 26.2 x 13.6 x 18.6 cm.
  • Weight – 8 kg.
  • Colour – yellow and black.
  • Model – TL-A5102.

Starting it up is straightforward. First, connect the hydraulic hose to the quick coupling of the tool you wish to use. Then connect the compressed air supply from the compressor to the pump. Before first use, briefly open the bleed valve and close it again to ensure the pump operates smoothly. Thanks to the air inlet NPT 1/4" and oil outlet NPT 3/8", the pump can be connected to standard air supplies and hydraulic tools.

The pump is ideal wherever you need high hydraulic pressure without manual pumping, such as in bodywork and frame straightening, bearing pressing, lifting heavy parts, or during assembly and disassembly. With the two-metre hose, you can work at a safe distance from the tools. Due to its compact size and weight of 8 kg, it can be easily moved around the workshop.

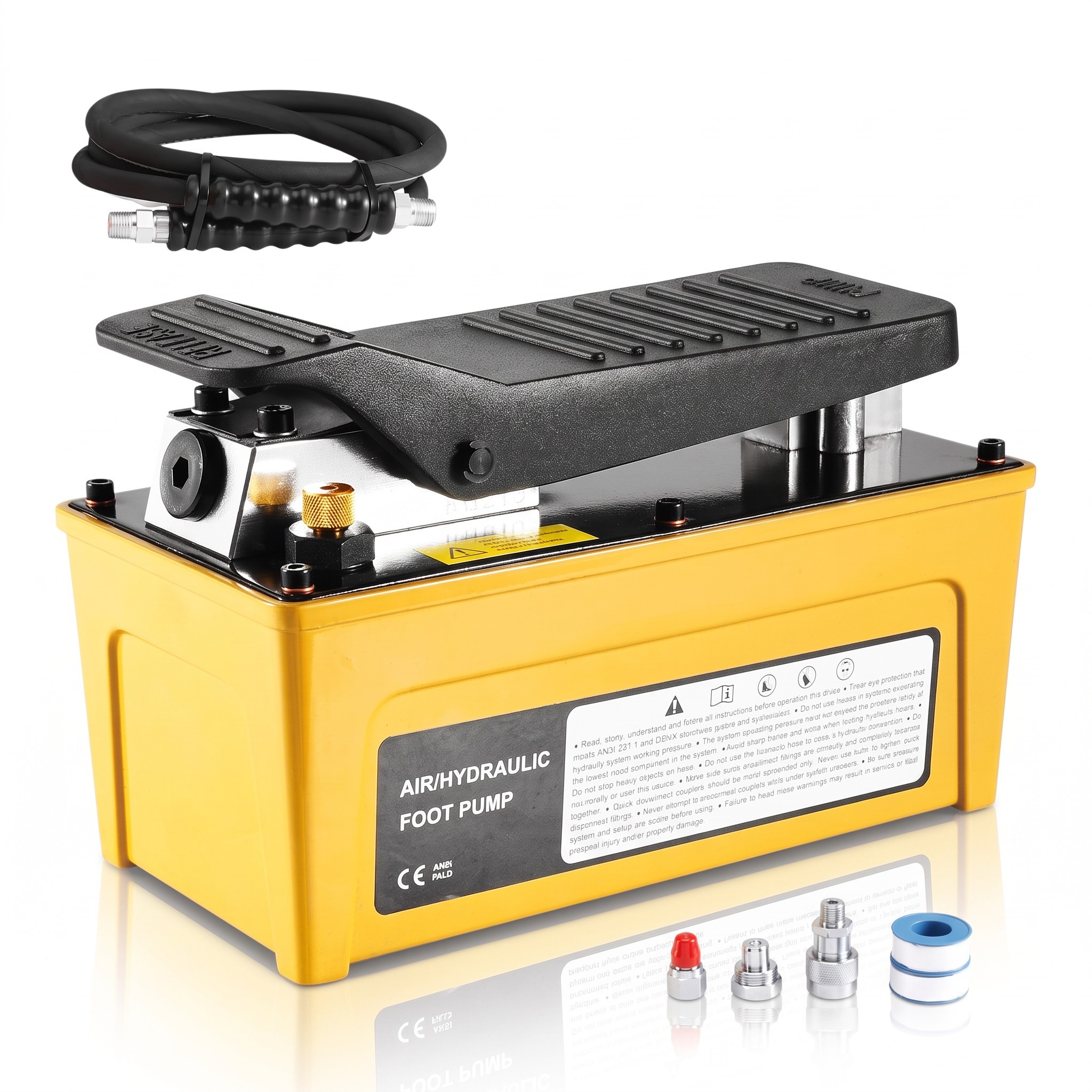

Package contents:

  • 1x air hydraulic pump
  • 1x hermaphrodite coupling
  • 1x adapter
  • 1x oil hose 2 m
  • 1x Teflon tape
  • 1x user manual

The foot air hydraulic pump is a practical source of pressure for garages, body shops, and industrial workshops. Pressure of up to 10,000 PSI is sufficient to drive frame straightening machines, hydraulic presses, and other high-pressure tools. The oil is already in the tank from the factory, and the hose is included in the package, so preparation takes just a moment. The internal safety valve protects hydraulic components and the aluminium casing withstands demanding workshop conditions.
