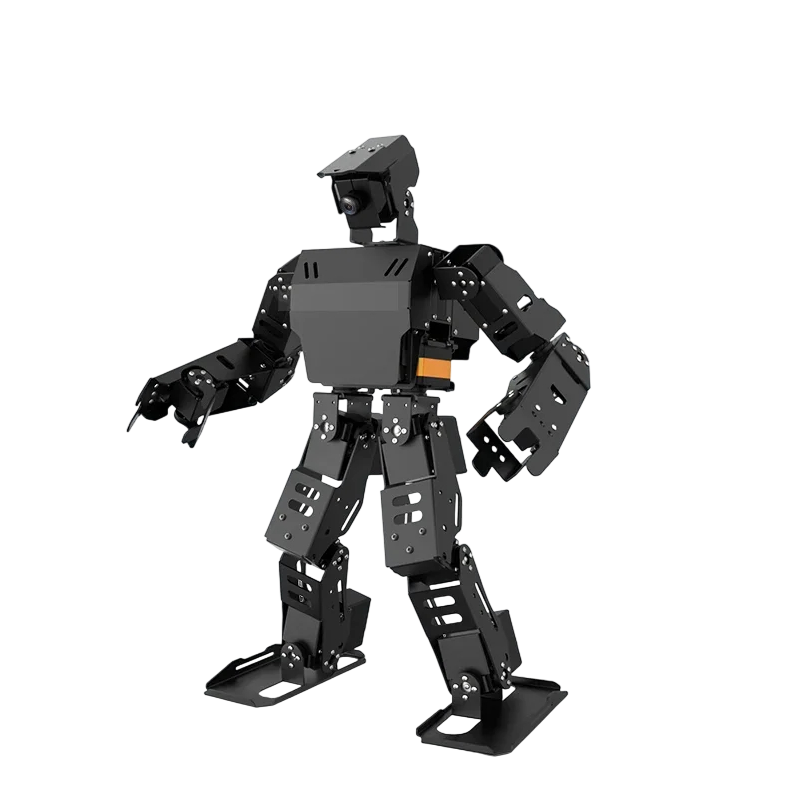

AiNex Humanoid Robot with 24 Degrees of Freedom Raspberry Pi 4B and ROS 193 x 135 x 415 mm Aluminium Alloy Black for Robotics Education
You already have the maximum available quantity in your cart.
The AiNex Humanoid Robot is a professional bipedal robot designed for robotics education and robotic competitions. The robot features 24 degrees of freedom, allowing it to walk, kick a ball, overcome obstacles, and grasp objects. The heart of the system is the Raspberry Pi 4B control unit with a Broadcom BCM2711 processor, 4 GB of LPDDR2 memory, and a 32 GB SD card. The entire construction is made from an aluminium alloy with rubber foot pads, ensuring stability and durability. The robot operates in a ROS environment and can be programmed and controlled via the WonderROS app for Android and iOS. It is capable of performing a range of competitive tasks, such as autonomous line following, low-profile navigation, shooting a ball into a goal, and intelligent object transport.
Main features:
- Construction — aluminium alloy and rubber foot pads
- Mobility — 24 degrees of freedom (24 DOF)
- Servomotors — 24 intelligent serial bus servomotors: HX-35H x14, HX-35HM with magnetic encoder x2, and HX-12H x8
- Control Unit — Raspberry Pi 4B, 4 GB LPDDR2 SDRAM and 32 GB SD card
- Joint Feedback — voltage, position, and temperature
- Camera — 120° wide-angle with 1 megapixel resolution and manual focus
- IMU Module — 3-axis gyroscope, accelerometer, and compass
- Power Supply — 11.1 V 3500 mAh 5C LiPo battery
- Software — ROS, WonderROS, AiNex visual action editor, and support for Android and iOS
- Interfaces — DC power, network port, HDMI, PWM, serial bus, IIC, UART, GPIO, USB 3.0, camera, and POE
- Dimensions and Weight — 193 x 135 x 415 mm and approximately 2 kg
- Walking Speed — 7 cm/s
- Competitive Tasks — line following, ball shooting, object grasping, hurdling, and climbing stairs

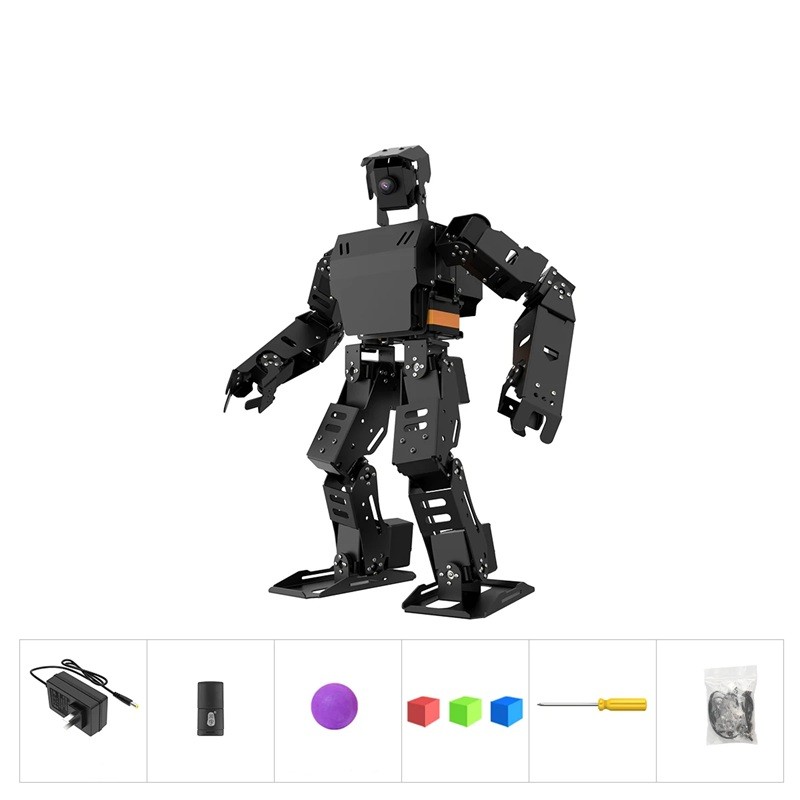

Package contents:
- 1x AiNex humanoid robot
- 1x charger 12.6 V 2 A (DC5.5 x 2.5 male)
- 1x card reader
- 1x purple ball (6.3 cm)
- 3x coloured cubes (3.5 x 3.5 cm)
- 1x screwdriver
- 1x bag of accessories
- 1x e-learning educational materials
The AiNex is suitable for students, hobbyists, and developers who wish to engage in advanced robotics and machine vision. With joint feedback and the IMU module, the robot maintains stable walking on uneven surfaces and while climbing stairs. The open ROS operating system allows for the expansion with custom algorithms and integration of additional hardware thanks to a wide range of interfaces. The self-stabilising walking algorithm with adjustable height, speed, direction, and turning radius, along with inverse kinematics and tuning software, provides full control over movement. Additionally, the robot is capable of colour recognition, target tracking, face detection, and reading AprilTag markers, making it a practical tool for both education and experimentation.
