ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement

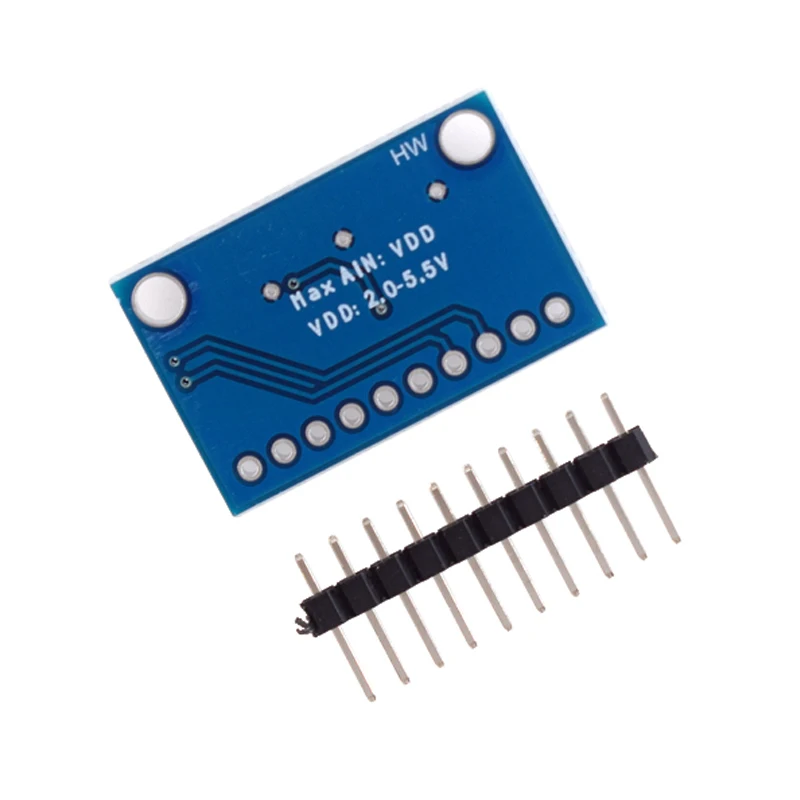

ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement 1

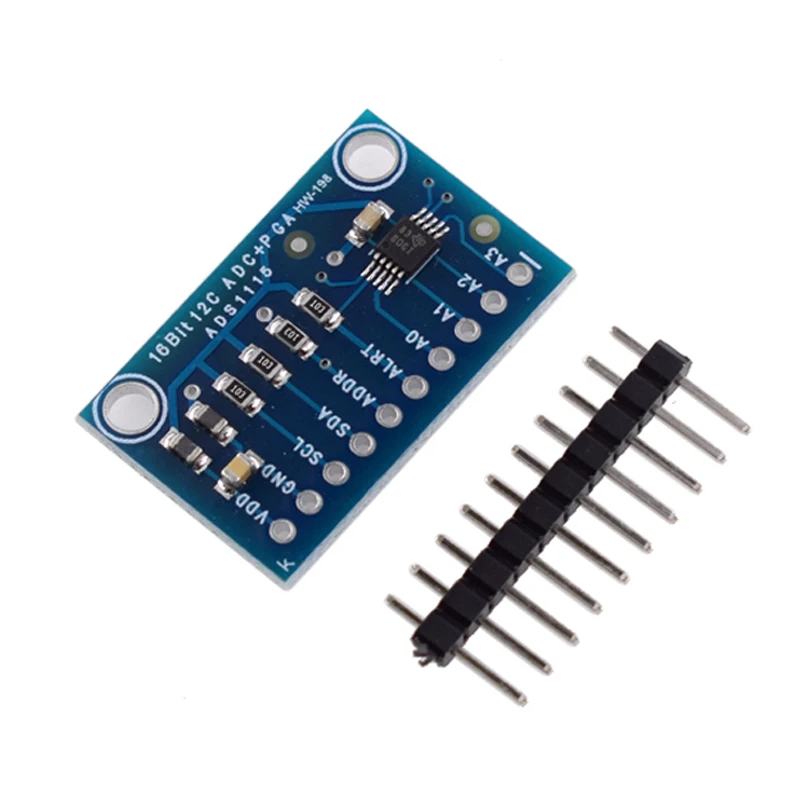

ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement 1
ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement 2
ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement 3

ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement

Accurate 16-bit A/D converter with I2C interface for four analogue inputs. Ideal for projects with Arduino, Raspberry Pi, and sensors. Full description
In stock
€7.38
Overview

ADS1115 HW-198 Development Board 16 Bit 4-Channel I2C ADC Module 28.2 x 17.9 mm for Arduino Raspberry Pi Signal Measurement

The ADS1115 HW-198 development board is a highly accurate 16-bit analogue-to-digital converter (ADC) that allows precise measurement of analogue signals using microcontrollers such as Arduino or Raspberry Pi. Thanks to the I2C interface, communication is straightforward and enables easy connection of multiple devices on a single bus. The module supports up to 4 independent analogue inputs, or can be configured as 2 differential channels.

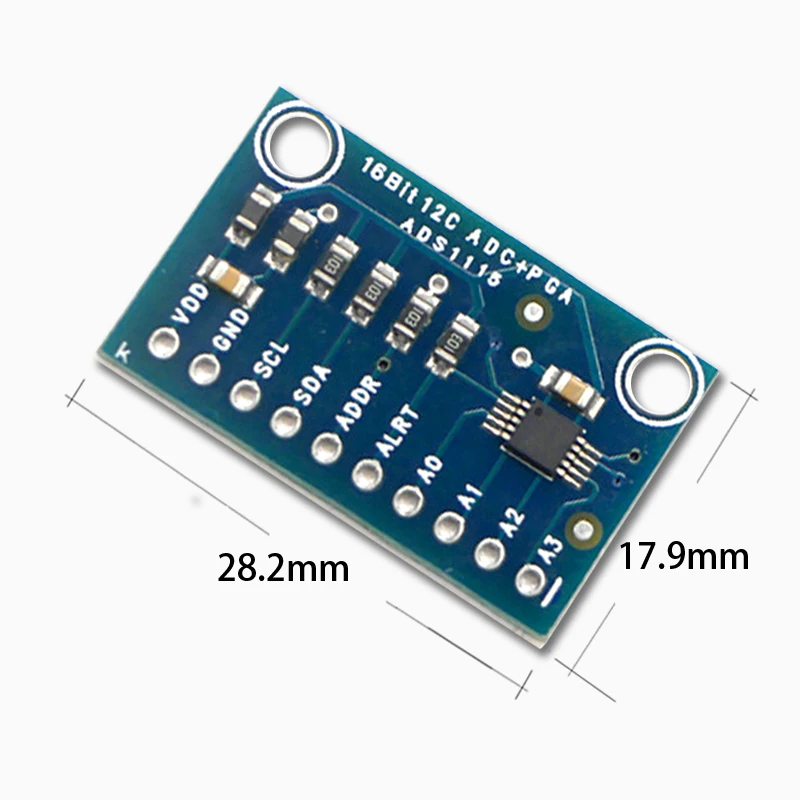

The board is compact, with dimensions of 28.2 x 17.9 mm, and provides highly stable measurement results even in demanding conditions. It is suitable for a wide range of applications – from measuring voltage and current to reading data from sensors or laboratory measurements.

  • 16-bit resolution for exceptionally accurate measurement of analogue values
  • 4-channel input (or 2 differential channels) for versatile use
  • Communication via I2C – easy connection with Arduino, ESP32, Raspberry Pi, and other microcontrollers
  • Programmable gain amplifier (PGA) – ability to set the measurement range as needed
  • Low power consumption, suitable for portable projects
  • Compatible with supply voltage of 2.0–5.5 V
  • Compact dimensions of 28.2 x 17.9 mm
  • Stable and accurate results even with small signals

Package contents: 1× ADS1115 HW-198 Development Board

This module is ideal for anyone needing to accurately convert analogue signals into digital form for microcontrollers. Thanks to the I2C interface, it is easy to use even in large projects where multiple measurement channels are required. The module simplifies the design of electronic systems and ensures high measurement accuracy without the need for complex calibrations. It is suitable for measuring temperature, light, voltage, and current sensors, laboratory instruments, or automation systems. It is a reliable and efficient component that expands the possibilities for every developer and hobbyist.
