9 m Extension Cable with Solar Connector Photovoltaic Cable 12 AWG with a Cross-Section of 4 mm² Load Capacity 55 A Red and Black For Panels
You already have the maximum available quantity in your cart.

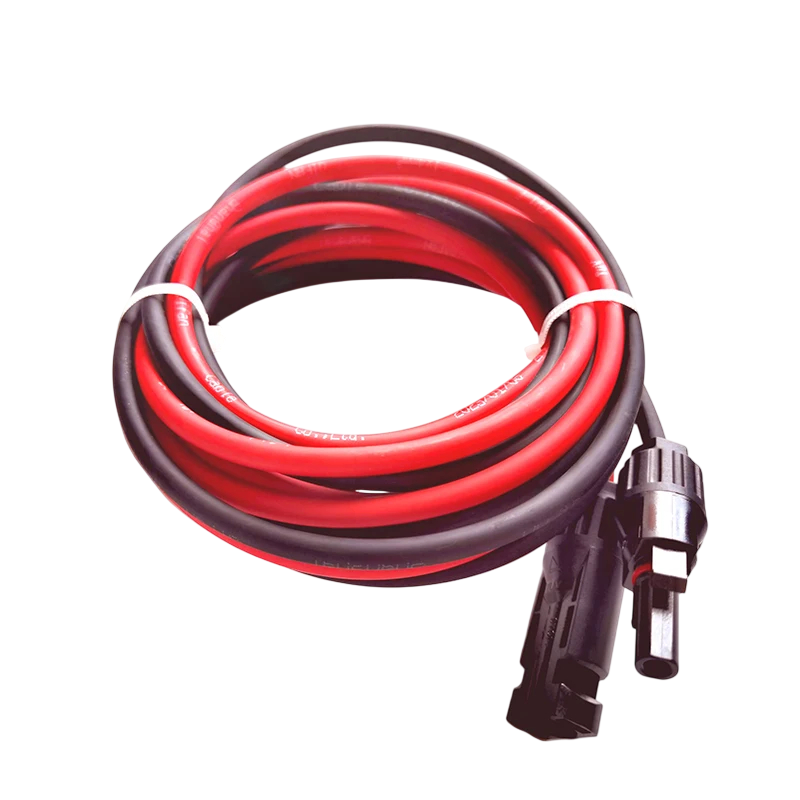

The 9 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the assembly. It is supplied as a pair of wires in red and black, so the polarity is distinguished by the colour of the insulation, making it easy to connect without confusion. The wire has a cross-section of 4 mm² according to the designation 12 AWG and is composed of fifty-six strands with a diameter of 0.30 mm, which maintains its flexibility even with a larger cross-section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 55 A at 60 °C.
- Length 9 m — covers even longer distances between the panel and equipment located in another part of the building
- Cross-section 4 mm² — wire corresponding to the designation 12 AWG for higher currents and longer distances
- Construction of 56 strands of 0.30 mm — flexible core with a diameter of 2.60 mm
- Load capacity 55 A — value specified at a temperature of 60 °C
- Wire resistance max. 4.95 Ω/km — measured at 20 °C, resulting in lower losses than thinner wires
- Outer diameter of the cable 6.10 mm — insulation thickness 0.67 mm and sheath 0.73 mm

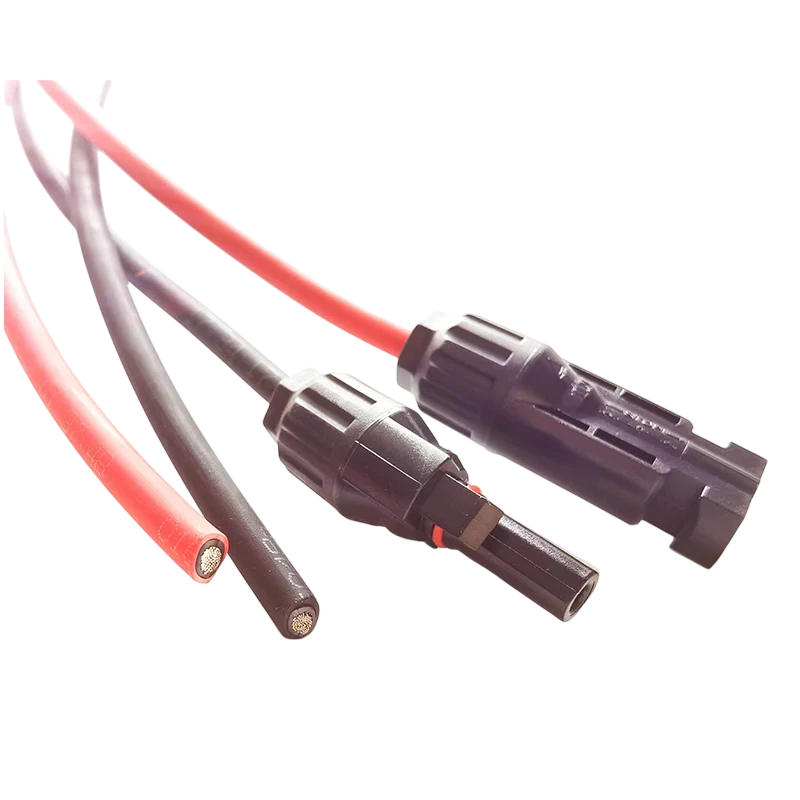

- Solar connector on one end — snap connection with a securing mechanism against pulling out
- Red and black insulation — colour coding for positive and negative wires
Package contents:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting the panel to the charge controller, extending existing wiring, or replacing a damaged piece in a functional assembly. The free end allows for custom termination — lug, cable eye, or direct connection to a terminal depending on the connected device. Cross-section 4 mm² with a load capacity of 55 A is suitable for more powerful panels and longer distances, where it is necessary to keep losses as low as possible. When designing the wiring, consider that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any future adjustments to the assembly.
