9 m Extension Cable with Solar Connector Photovoltaic Cable 10 AWG with a Cross Section of 6 mm² Load Capacity 70 A Red and Black For Panels
You already have the maximum available quantity in your cart.

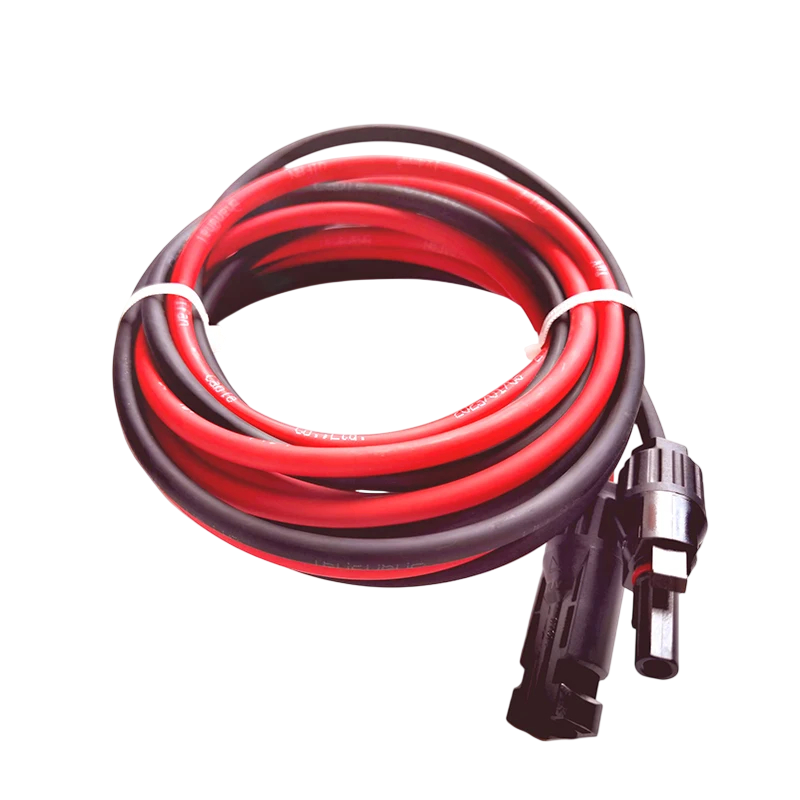

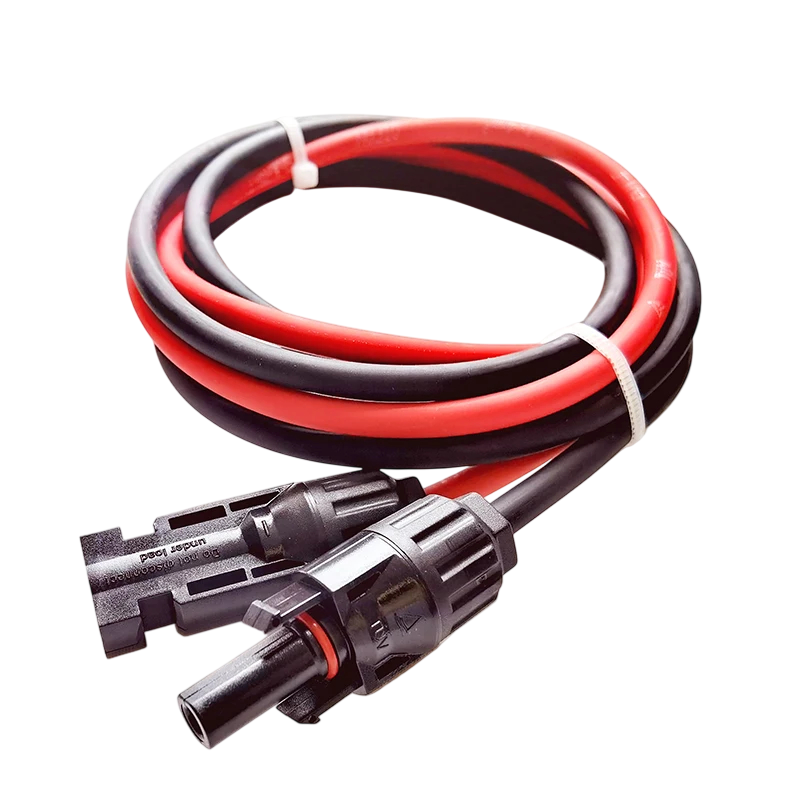

The 9 m photovoltaic extension cable is used to connect a solar panel to a charge controller, inverter, or other wiring in the system. It is supplied as a pair of wires in red and black, so the polarity is distinguished by the colour of the insulation, making it easy to avoid mistakes during installation. The wire has a cross section of 6 mm² according to the designation 10 AWG and is composed of eighty-four strands with a diameter of 0.30 mm, which maintains its flexibility even at this cross section. One end is factory-fitted with a solar connector, while the other end remains free for connection to a terminal block or for custom termination. The current load capacity reaches 70 A at 60 °C.
- Length 9 m — covers even longer distances between the panel and equipment located in another part of the building
- Cross section 6 mm² — wire corresponding to the designation 10 AWG for the highest currents in this range
- Construction of 84 strands of 0.30 mm — flexible core with a diameter of 3.42 mm
- Load capacity 70 A — value stated at a temperature of 60 °C
- Maximum wire resistance 3.30 Ω/km — measured at 20 °C, thus the lowest losses in this range of cross sections
- Outer diameter of the cable 7.20 mm — insulation thickness 0.8 mm and sheath 0.8 mm
- Solar connector on one end — snap-in connection with a pull-out prevention feature
- Red and black insulation — colour coding for positive and negative wires
Contents of the package:
- 1x cable with red insulation and solar connector
- 1x cable with black insulation and solar connector
The cables are suitable for connecting the panel to a charge controller, extending existing wiring, or replacing a damaged piece in a functional system. The free end allows for custom termination — ferrule, cable lug, or direct connection to a terminal depending on what the connected device requires. Cross section of 6 mm² with a load capacity of 70 A is suitable for high-performance systems and longer distances, where it is necessary to keep losses as low as possible. When designing the wiring, keep in mind that voltage drop increases with the length of the run, so choose the shortest reasonable distance. The colour coding of the insulation facilitates polarity checks during any future adjustments to the system.
